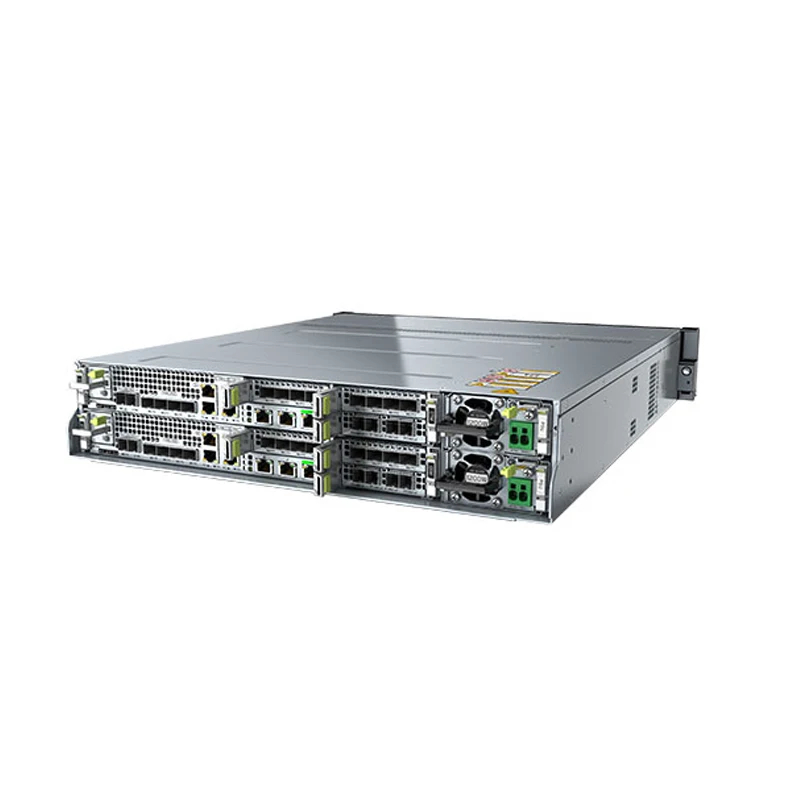

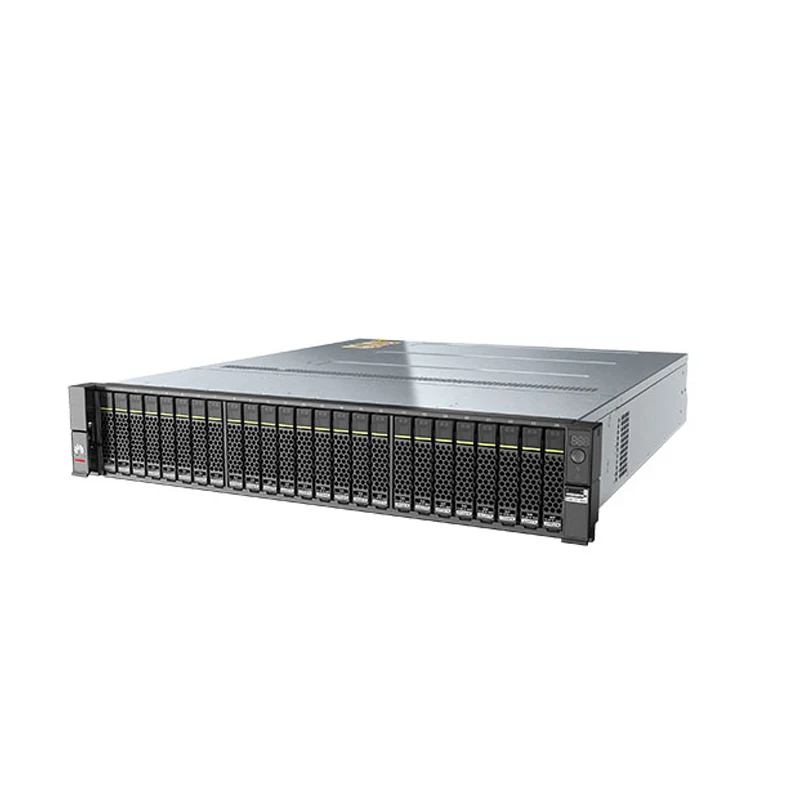

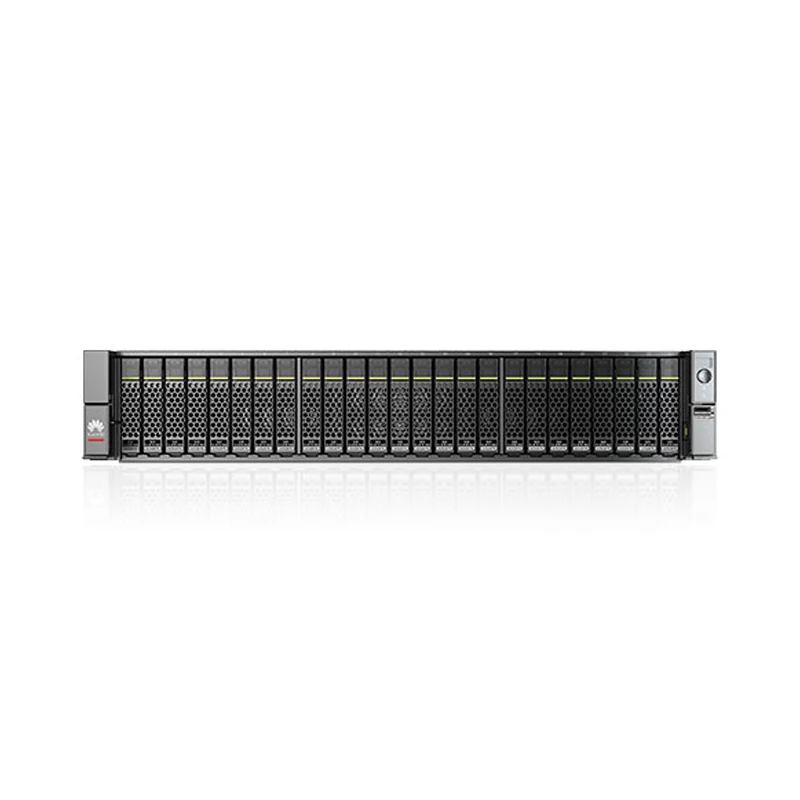

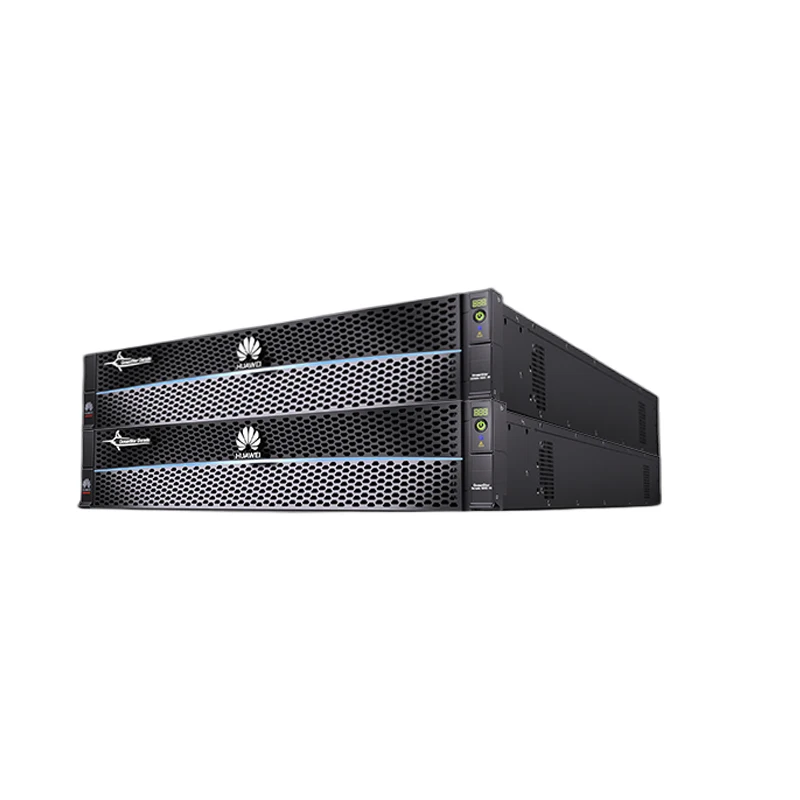

Оригинальный завод huawei OceanStor Dorado 5300 V6 высокопроизводительная сеть хранения всех

Model

OceanStor Dorado 5300 V6

OceanStor Dorado 5500 V6

OceanStor Dorado 5600 V6

Hardware Specification

Maximum cache (dual controllers with controller expansion)

256 GB -2 TB

768 GB -8 TB

384 GB -4 TB

Supported Storage Protocols

FC , ISCSI , FC - NVMe , NVMe over RoCE , NFS , CIFS , NDMP ,S3*

Front Channel Port Type

8/16/32 Gbit / s FC / FC - NVMe ,10/25/40/100 GbE 25/100 Gb NVMe over RoCE

Back Channel Port Type

100G RDMA / SAS 3.0

Maximum hot-swappable / number of O modules / controller enclosure

6

12

Maximum number of front-end host ports/controller enclosure

40

48

HDD type

1.92 TB /3.84 TB /7.68 TB /15.36/30.72 TB palm - sized NVMe SSD ,960 GB /1.92 TB /3.84 TB /7.68 TB /15.36 TB SAS SSD

Support SCM

800 GB /1.6TB SCM

Software Specification

RAID support

RAID 10°, RAID S , RAID 6, RAID - TP (tolerate 3 disk failures at the same time) and cross-frame RAID

storage management software

Device Management ( DeviceManager )

Multipath management (UltraPath)

Remote Maintenance Management ( DME IQ )

Electrical Specifications

power supply

SAS disk enclosure: 100V-240V AC ±10%,
192V-288V DC ,-48V--60V DC controller enclosure/smart NVMe disk enclosure:
200V-240V AC ±10%, 192V-288V DC .-48V--60V DC

SAS disk enclosure: 100V-240V AC ±10%, 192V~288V DC, -48V--60V DC Controller enclosure/smart NVMe disk enclosure: 200V-240V AC
±10%, 192V~288V DC, -48V--60V DC

weight

SAS controller enclosure s 30kg NVMe controller enclosure s 32kg SAS disk enclosure s 20kg Smart NVMe disk enclosure s 35kg

SAS controller box s 45kg NVMe controller s 50kg
SAS disk enclosure≤20kg Smart NVMe disk enclosure≤35kg

Working temperature

The ambient temperature at an altitude of ﹣60-+1800m is 5°C-35°C (cabinet)/40°C (frame);
When the altitude is 1800m-3000m, the ambient temperature (upper limit) will decrease by 1°C for every 220m increase in altitude.

Dimensions (H x W x D)

SAS controller enclosure 86.1mm x 447mm x 520mm NVMe controller enclosure＊86.1mm x 447mm x620mm

SAS controller box 86.1mm x 447mm x 820mm
NVMe controller frame＊86.1mm x 447mm x 920mm

SAS disk enclosure 86.1mmx447mm x 410mm Smart NVMe disk enclosure 86.1mmx447mmx620mm

SAS disk enclosure 86.1mmx447mm x 410mm Smart NVMe disk enclosure 86.1mmx447mmx620mm
