Высокоточный перезаряжаемый полностью автоматический умный многометровый цифровой
- Категория: Multimeters >>>
- Поставщик: Shenzhen,Gvda,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 24.75 $* | 24.11 $* |
| Jul-17-2025 | 20.37 $* | 20.92 $* |
| Jun-17-2025 | 24.59 $* | 24.4 $* |
| May-17-2025 | 24.82 $* | 24.66 $* |
| Apr-17-2025 | 19.12 $* | 19.31 $* |
| Mar-17-2025 | 23.64 $* | 23.69 $* |
| Feb-17-2025 | 23.82 $* | 23.31 $* |
| Jan-17-2025 | 23.66 $* | 23.57 $* |
Характеристики

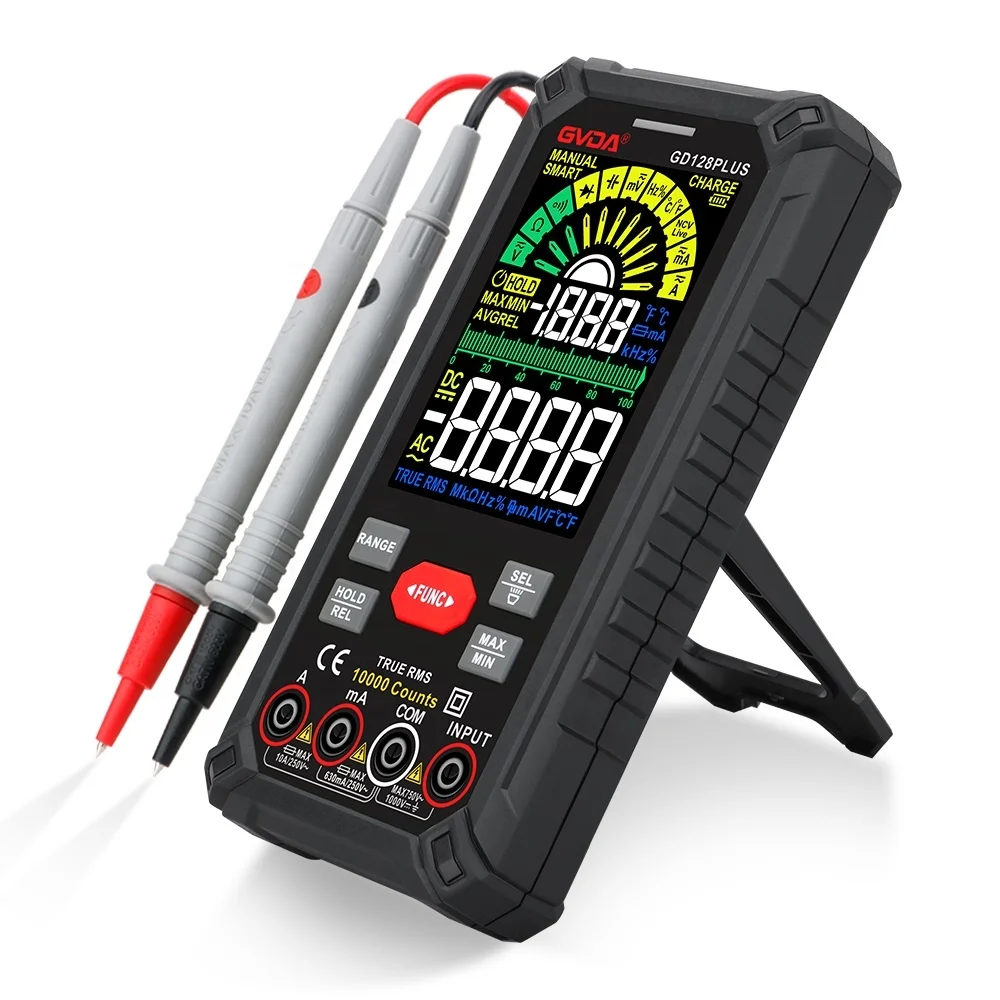

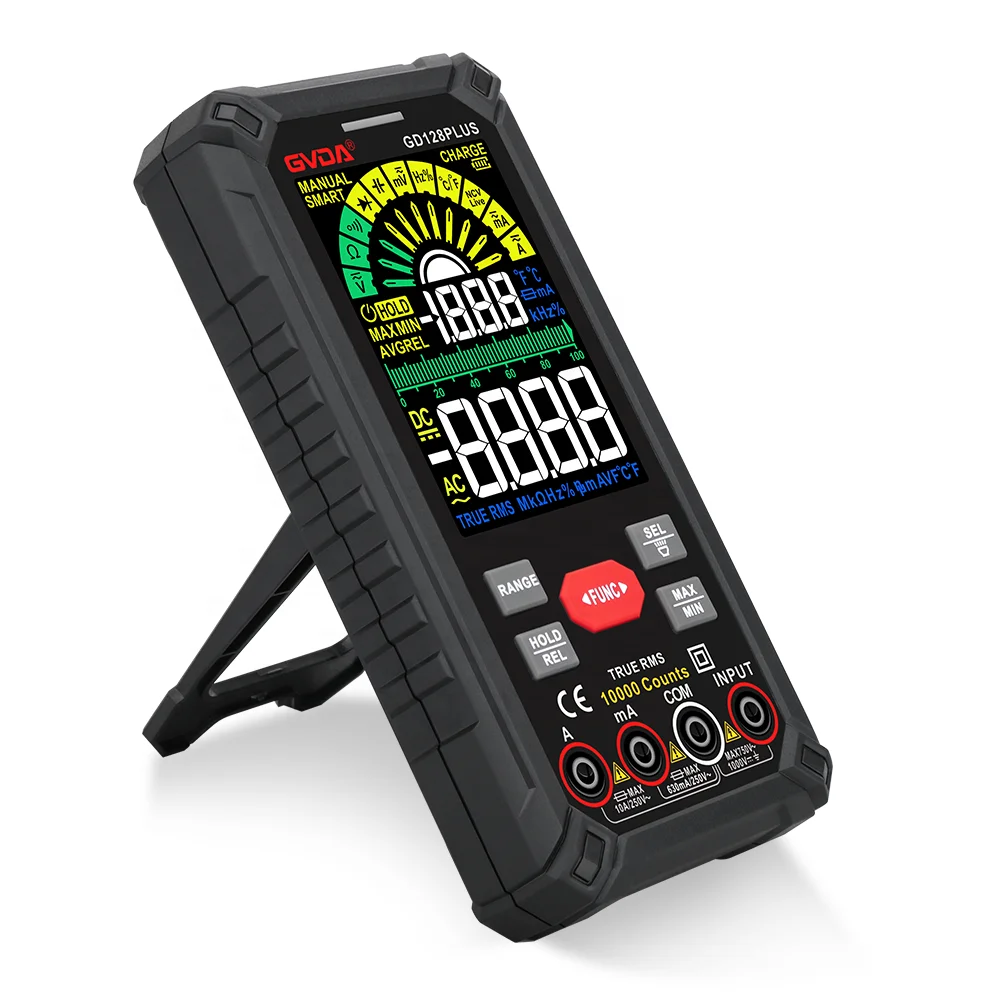

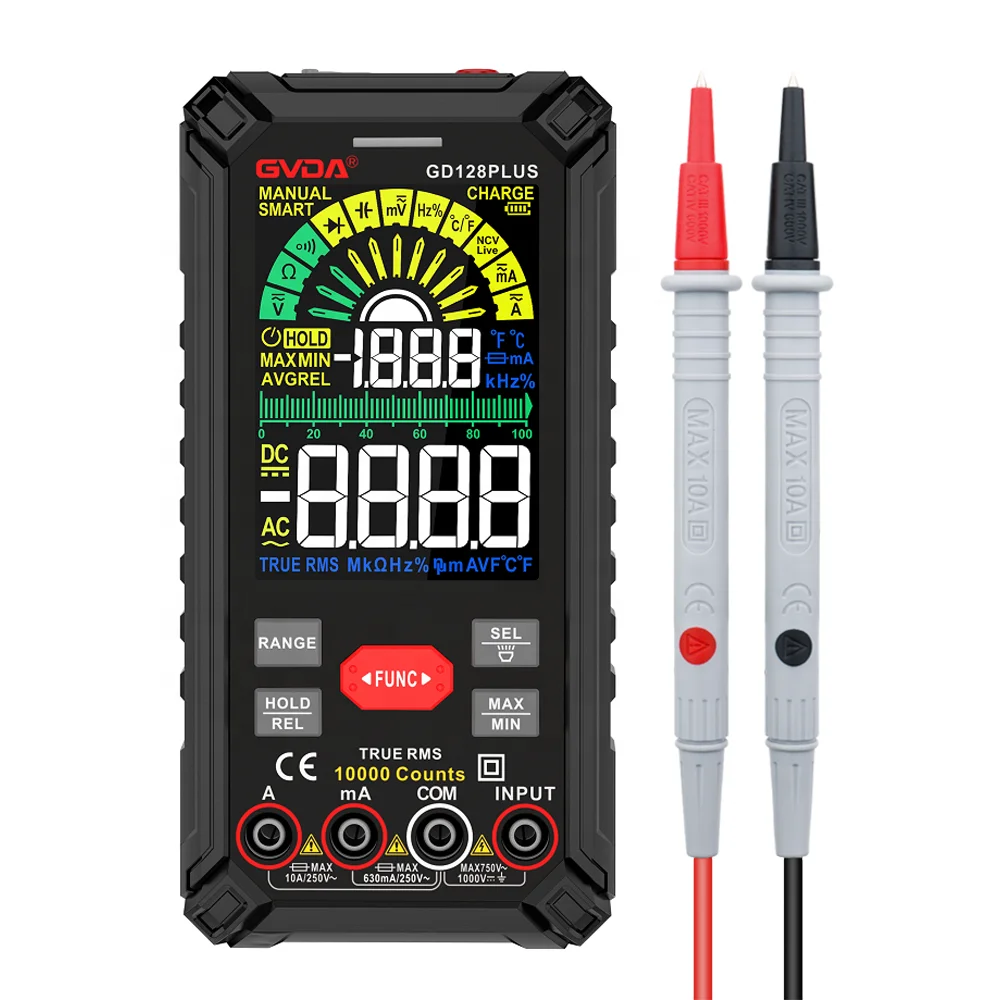

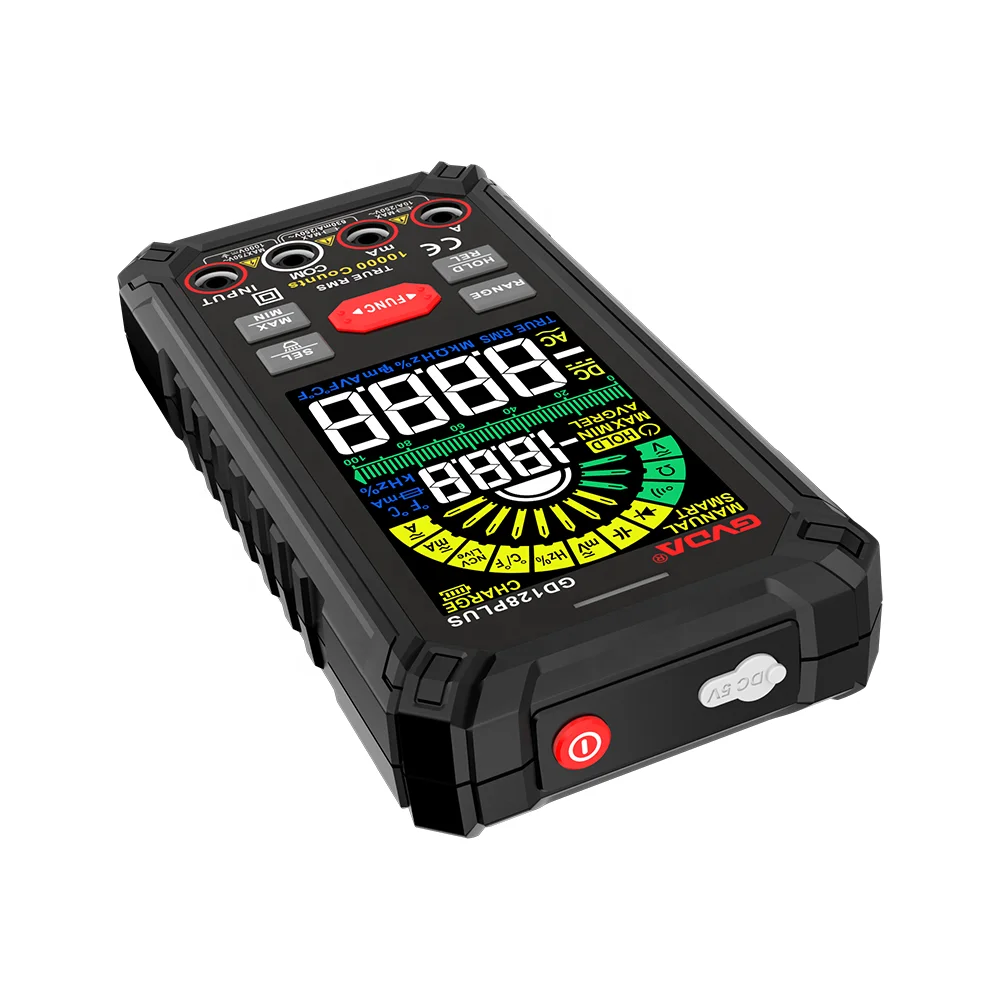

Product Description
GVDA Multimeter is an Professional Multimeter which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use.
Product Features
1)VA ColourLarger HD LCD Display
2) Maximum display: Maxium 9999 Countsdisplay
3)Auto range andManual Range
4) Sampling Rate: About 3 times per second
5) Over range display: the highest position shows "OL"
6) Low voltage display: low battery indication
7) Working environment: (0-40)°C,relative humidity ＜80%
8) Power Supply: 3.7V Rechargeable Lithium battery
9) Input Jack Led Indication
10) With Back Bracket Design
10) It is a stable performance, high precision, high reliability clear readings, and overload protection.
Functions | Range | Accurancy | |
DC Voltage | 99.99mV/999.9mV; 9.999V/99.9V/1000V | ±(0.5%+3) | |
AC Voltage | 99.9mV/999.9/mV; 9.999V/99.9V/750V | ±(0.8%+3) | |
DC Current | 9.999mA/99.99mA/999.9mA | ±(0.8%+3) | |
9.99A | ±(1.2%+3) | ||
AC Current | 9.999mA/99.99mA/999.9mA | ±(1.0%+3) | |
9.99A | ±(1.5%+3) | ||
Resistance | 99.99/999.9ohm/9.999k/99.99k/999.9kohm | ±(0.8%+3) | |
9.999m/99.99mOhm | ±(1.2%+3) | ||
Capacitance | 9.999/99.99/999.9nF/9.999/99.99/999.9uF | ±(4.0%+3) | |
9.999mF/99.99mF | ±(5.0%+5) | ||
Frequency | 99.99/999.9/9.999k/99.99k/999.9kHz/9.999mHz | ±(1.0%+3) | |
Duty | 01.%-99.99% | ±(1.0%+2) | |
Temerature °C/°F | -40~1000°C; -40-1832°F 2°C | ||
Counts | 9999 counts | ||
Display | VA Colour Display Screen | ||
Smart Function(AC/DC Voltage, resistance and continuity) | V | ||
Auto Identification of current input | V | ||
Relative Measurement | V | ||
Max/Min/Avg. | V | ||
NCV/Live/Continuity test | V (sound and light alarm) | ||
Diode test | V (sound alarm) | ||
Bargraph/Data hold /True RMS | V | ||
Fuse Burning Prompt / | V | ||
Input Jack LED indication | V | ||
Low batery indication | V | ||
Auto power off / Flashlights | V | ||
Power supply | Built in 3.7V Lithium battery | ||
Product Weight | Approx.230g | ||
Product Size | 166*83*29mm | ||
Package Size | 210x120x70mm | ||
Package Weight | 570g | ||
Safety rating | EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V CAT IV 600V | ||

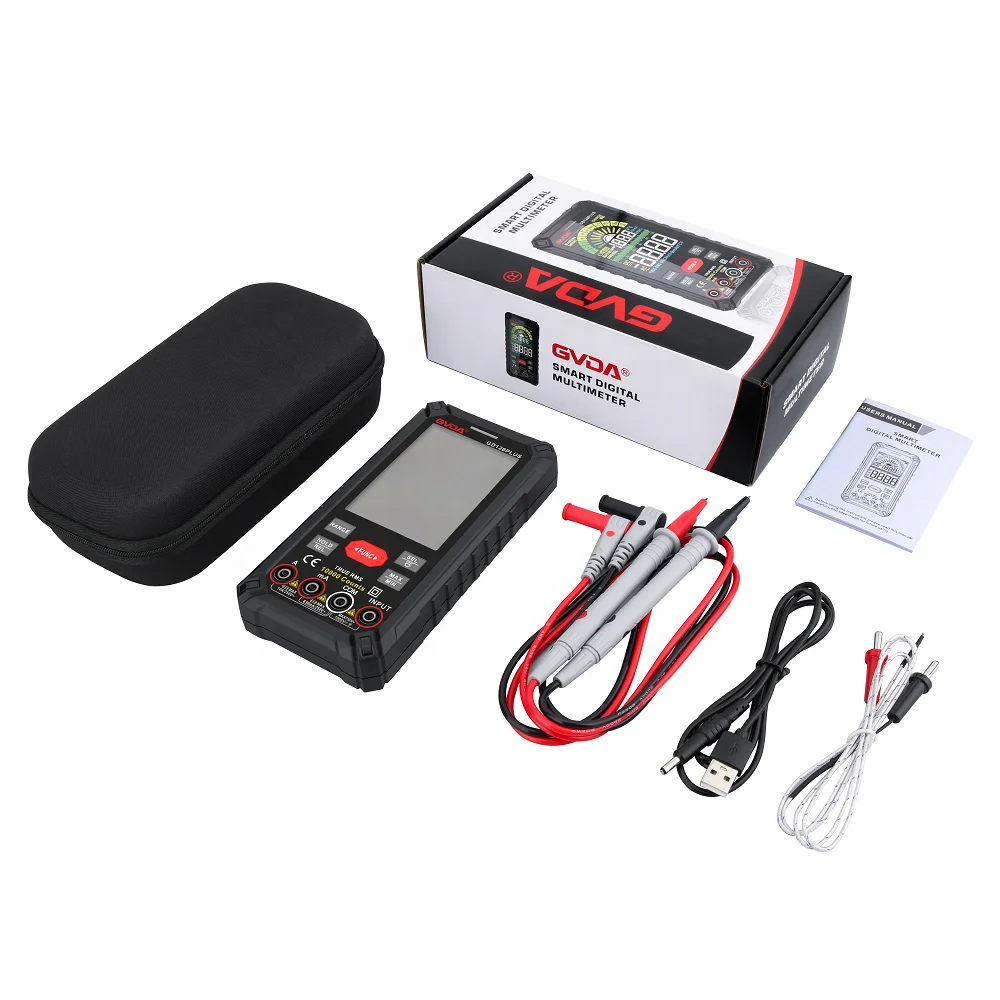

Packing Contents | 1pc Multimeter / 1pc pen cable / 1pc cloth bag/ 1pc Thermocouple probe | ||
Related Products
SW-S50
Laser Distance Meter 50m
SW-S100
Laser Distance Meter 100m
SW-S120 Camera
Laser distance Meter 100m Camera
SW-1000A
Outdoor Laser Rangefinder 1000m
SW-1200A
Outdoor Laser Rangefinder 1200m
SW-1500A
Outdoor Laser Rangefinder 1500m
Company Profile
We are a professional manufacture and sale of instrument. Our instrument has more than 10 years of instrument development and production experience.
We have a large number of personnel of research and development of cutting-edge technology in the industry. We create a platform for technical exchange with domestic universities.
Our independent R & D team develop our products from key components to finished products.Leading core technology, strong R & D capability and innovative team spirit brings us strong competitiveness.
Our products including laser distance meter, infrared thermometer, vibration meter, thickness gauge, sound level meter, anemometer, temperature hygrometer, range finder, gas detector, metal detector, voltage insulation meter, earth resistance tester, leakage current tester and other products have a good reputation and market share in the industry.
we can provide ODM/OEM and Processing services, OEM services are applicable to all models
Customer Service
Sincere, professional and efficient service for every customer
if any urgent issue, you can call us at any time,
24 hours Customs service phone: 86-755-27597356
Factory Workshop 1st
Take quality as the root of our company and keep pursuing excellence， Guided by the policy of “concerted effort, pursuit of excellence, meet users’ needs”, we have set up a complete quality management system and standard quality inspection system and formed an industrial chain that integrates design, manufacturing, installation and service. We are fully aware that quality is the lifeline for Smart Instrument to survive. Only by continuous pursuit of excellence and constant improvement can we supply excellent products to the public.
Factory Workshop 2st
Based on solid business foundations and adhering to the pioneering spirit, Our Instrument overcomes all obstacles to dedicate itself to the development, manufacturing, sale and service of the national electronic instrument industry and never changes its determination. We firmly believe that only profession and devotion can lead to superior quality and leading technologies, and only serving users wholeheartedly can satisfy them in the real sense.
150M Long Testing Workshop
150m Long Testing Workshop, 100% all inspectoin, we do each products is accurate! With the faith “Quality, Innovation and Service”, we will become one of the most popular Laser Distance Meter in the world!
Certifications
FAQ
1. Q: Is your company accept customization?
A: We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
2. Q: What’s the delivery time after an order placed?
A: It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
3. Q: How long have your company run on Laser Range Finders?
A: We have been manufacturing and developing laser range finders since 2010.
4. Q: What’s the MOQ?
A: Regular products only 1 standard carton. but no limit for sample order!
5. Q: What’s the warranty of the product?
A: We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
6. Q: What Shipping way Customer can choose?
A: DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order q'ty!
7. Q: How to place an order?
a: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price, freight and other details
d: complete the payment
e: we start production and arrange the shipment
f: you got your products
