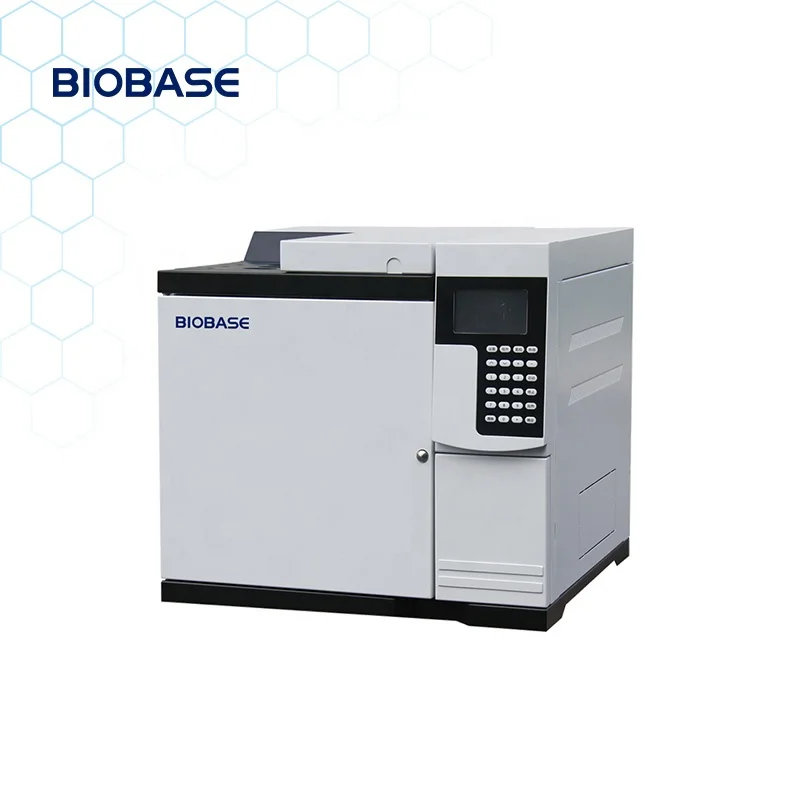

BIOBASE. BK-GC901 анализатора газового хроматографа в Китае с функцией компенсации двойной колонкой
- Категория: Other Test Instrument >>>
- Поставщик: Biobase,Kings,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.1 $* | 0.75 $* |
| Aug-16-2025 | 0.15 $* | 0.82 $* |
| Jul-16-2025 | 0.2 $* | 0.75 $* |
| Jun-16-2025 | 0.88 $* | 0.14 $* |
| May-16-2025 | 0.33 $* | 0.4 $* |
| Apr-16-2025 | 0.11 $* | 0.93 $* |
| Mar-16-2025 | 0.45 $* | 0.30 $* |
| Feb-16-2025 | 0.77 $* | 0.82 $* |
| Jan-16-2025 | 0.17 $* | 0.95 $* |
Характеристики
Products Description
Features:
★.High-precision gas flow control, to ensure the accuracy of GC analysis, to ensure the efficiency of daily analysis, EPC control accuracy 0.01psi
★.It realizes the self-protection of gas circuit failure, automatic ignition, re-ignition, automatic opening of the gas circuit, and one-key start.
★A variety of control combination modes of operation, automatic pressure and flow adjustment, control and display, can operate in gas-saving mode
Color widescreen, unique design of touch keys
★7-inch industrial color LCD screen design, more complete display information, more reasonable interface operation
★Have two sets of operating systems in Chinese and English to meet different user needs
★Adopt resistive touch screen, feel good, durable, double operation of screen and software to achieve seamless connection
★.High-precision gas flow control, to ensure the accuracy of GC analysis, to ensure the efficiency of daily analysis, EPC control accuracy 0.01psi
★.It realizes the self-protection of gas circuit failure, automatic ignition, re-ignition, automatic opening of the gas circuit, and one-key start.
★A variety of control combination modes of operation, automatic pressure and flow adjustment, control and display, can operate in gas-saving mode
Color widescreen, unique design of touch keys
★7-inch industrial color LCD screen design, more complete display information, more reasonable interface operation
★Have two sets of operating systems in Chinese and English to meet different user needs
★Adopt resistive touch screen, feel good, durable, double operation of screen and software to achieve seamless connection
Leading structural design
★Modular structure design, easy to upgrade, can be equipped with a variety of high-performance detectors such as FID, TCD, ECD, FPD and NPD, etc., to meet the analysis needs of complex samples
★.Advanced sampler design, unique liner structure and special processing technology to ensure zero adsorption of samples
★ Adapt to a variety of sample injection methods such as: headspace sampler, thermal desorption analyzer, liquid automatic sampler, easily competent for the analysis of various sample types
★Timed self-starting program can easily complete the laboratory online analysis of gas and liquid samples
Humanized software operating system
★Adopt advanced 10/100M self-adaptive Ethernet communication interface, built-in IP protocol stack, easily form a local area network, realize long-distance transmission, remote control, and remote diagnosis.
★Equipped with IBrain Chrom workstation, which can support multiple chromatographs (253 sets) to work at the same time, realize data processing and reverse control.
★Have complete audit trail, user rights management, electronic signature and other functions, so that data and documents meet GMP management requirements
★The built-in Modbus/TCP server of IBrainChrom workstation can easily connect the analysis results to DCS (distributed control system)
★3 independent connection threads that can be connected to local, laboratory supervisors and authorities, allowing them to monitor the operation of the instrument and analyze the data in real time.
★Modular structure design, easy to upgrade, can be equipped with a variety of high-performance detectors such as FID, TCD, ECD, FPD and NPD, etc., to meet the analysis needs of complex samples
★.Advanced sampler design, unique liner structure and special processing technology to ensure zero adsorption of samples
★ Adapt to a variety of sample injection methods such as: headspace sampler, thermal desorption analyzer, liquid automatic sampler, easily competent for the analysis of various sample types
★Timed self-starting program can easily complete the laboratory online analysis of gas and liquid samples
Humanized software operating system
★Adopt advanced 10/100M self-adaptive Ethernet communication interface, built-in IP protocol stack, easily form a local area network, realize long-distance transmission, remote control, and remote diagnosis.
★Equipped with IBrain Chrom workstation, which can support multiple chromatographs (253 sets) to work at the same time, realize data processing and reverse control.
★Have complete audit trail, user rights management, electronic signature and other functions, so that data and documents meet GMP management requirements
★The built-in Modbus/TCP server of IBrainChrom workstation can easily connect the analysis results to DCS (distributed control system)
★3 independent connection threads that can be connected to local, laboratory supervisors and authorities, allowing them to monitor the operation of the instrument and analyze the data in real time.
Parameters
Model | BK-GC901 | ||
Oven | Temp. Range | RT+5~450℃ | |
Temp. Accuracy | ≤±0.01℃ | ||
Temp. Program | 16-phase | ||
Max. Temp. Heating Rate | 40℃/min | ||
Time Range | 0-999.9min | ||
Detector | Hydrogen Flame Ionization Detector (FID) | Detection limit:≤5×10-12g/s (100ng/ul n-hexadecane-isooctane solution) | |
Temperature 450℃ | |||
Compatible with packed and capillary columns | |||
Baseline drift:≤2x10-13A/30min | |||
Baseline noise: 3×10-14A | |||
Linear range:≥107 | |||
Thermal Conductivity Detector (TCD) | Sensitivity: >5000mv.ml/mg (50mg/ml toluene-benzene solution) | ||
Temperature 400℃ | |||
Baseline drift:≤0.1mV/30min | |||
Baseline noise: 0.03mV | |||
Linear range:≥105(±10%) | |||
Electron Capture Detector (ECD) | Detection limit:≤1×10-14g/ml (Sample: n-hexadecane δ-666) | ||
Linear range: ≥104 | |||
Flame Photometric Detector (FPD) | Detection limit:≤5×10-12g/s(S of 10ng/uL methyl parathion-ethanol solution) Detection limit:≤4×10-12g/s(P of 10ng/uL methyl parathion-ethanol solution) | ||
Linear range (S): ≥103 Linear range (P): ≥104 | |||
Temperature 350℃ | |||
Nitrogen and Phosphorus Detector (NPD) | Detection limit:≤1×10-12g/s (Azobenzene) Detection limit:≤1×10-12g/s(Marla sulfur phosphorous) | ||
Linear range: ≥103 | |||
Injection Method | Capillary column split/splitless sampling (with diaphragm purging function), packed column sampling, valve sampling, gas/liquid automatic sampling system, etc. | ||
Inlet | 1~4, up to 3 capillary column inlets | ||
Injection Type | Packed column injection, capillary column injection. (Flow setting range: 0~1000ml/min) | ||
Control Accuracy | Pressure: 0.01KPa; Flow: 0.01ml/min | ||
Maximum Split Ratio | 1:999 | ||
Pressure Sensor | Accuracy: <2% of full scale; Repeatability: <± 0.05KPa; Range: 0~0.6MPa | ||
Flow Sensors | Accuracy: < 5% of full scale; Repeatability: 0.5K Pa (full scale); Output offset (accuracy): ±5% | ||
Sampling Valve | Can be equipped with multiple imported automatic control valves, which can run automatically in sequence | ||
Power Supply | AC220V±10%, 50/60Hz | ||
Standard Accessory | FID detector, Chromatography workstation software, Capillary sampler | ||
Optional Accessory | Sample injection system, TCD, ECD, FPD and NPD detector, Chromatographic column. | ||
Package Size (W*D*H) | 750*710*720 mm | ||
Gross Weight | 70kg | ||
