Прямые продажи с фабрики Производство бумажной сетки полиэфирная формирующая сетка лента для
- Категория: Paper Machinery Parts >>>
- Поставщик: Henan,Yiheng,Mesh,Belt,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 11.7 $* | 11.92 $* |
| Jul-19-2025 | 9.45 $* | 9.24 $* |
| Jun-19-2025 | 11.83 $* | 11.60 $* |
| May-19-2025 | 11.22 $* | 11.21 $* |
| Apr-19-2025 | 9.52 $* | 9.95 $* |
| Mar-19-2025 | 11.32 $* | 11.2 $* |
| Feb-19-2025 | 11.64 $* | 11.12 $* |
| Jan-19-2025 | 11.79 $* | 11.48 $* |
Характеристики
Factory show
Product Description
Product Application

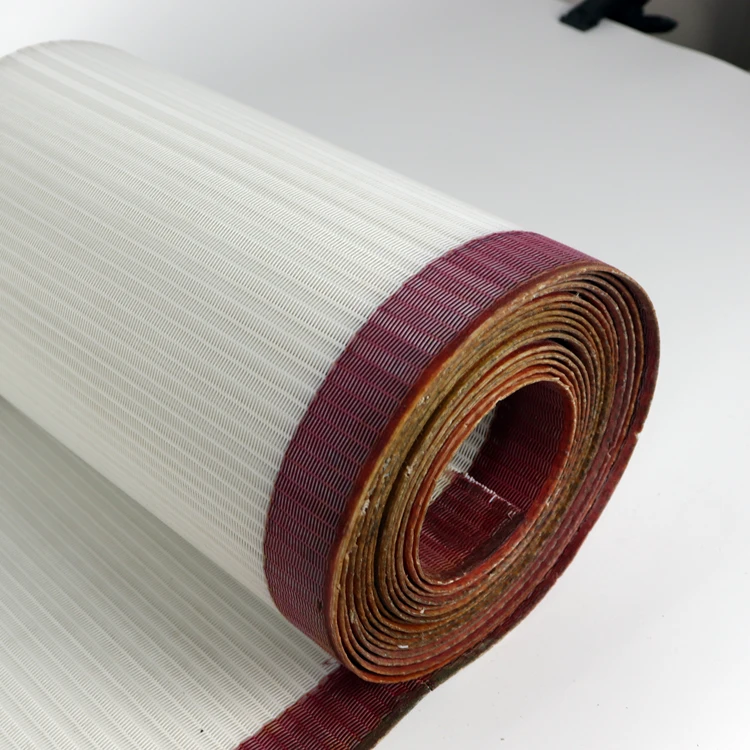

Our main products are: polyester molding mesh, polyester dry mesh, polyester spiral filter belt, pressure filter, sludge dehydration fabric, washing pulp nfabrics, weaving belt, polyethylene belt, decorative belt, puffed food conveyor belt and anti- Electrostatic conveyor belt and more than 10 kinds, hundreds of specifications.
This product is specially designed for non-woven machinery as consumables. It is used for making forming fabric, paper, napkin, baby wipes and sanitary napkins, etc.
The raw material of the product is PE or PP, it will cause static during production, so we'll do anti-static treatment for our spunbond belt. Anti-static wires will be applied, or do anti-static dipping will be done for our products.
It enjoys the features of wearable. Due to its unique structure, the non-woven produced will be more durable, so the cost will be saved.
Specifications for non-woven mesh conveyor belt | ||||||||||
Type | Diameter( mm) | Density(cm) | Air Permeability m3/m2h | |||||||
Warp | Weft | Warp | Warp | |||||||
WFBY4106 | 0.50 | 0.50 | 20 | 7-8 | 9800 | |||||
WFHY4106 | 0.50 | 0.50 | 20 | 7-8 | 9800 | |||||
WFHB 604-1 | 0.344x0.52 | 0.60 | 20 | 7 | 9300 | |||||
WFHB604-2 | 0.37X0.58 | 0.60 | 18 | 5-6 | 10000 | |||||
WFHB508 | 0.344x0.52 | 0.50 | 20 | 8 | 9000 | |||||
WFHB608 | 0.37x0.58 | 0.60 | 18 | 5-6 | 9300 | |||||
Type | Diameter( mm) | Density(cm) | Aperture | ||||||
Warp | Weft | Warp | Weft | ||||||
WF09502 | 0.50 | 0.50 | 10+0.5 | 10+0.5 | 25 | 25 | 0.5 | ||
BW07502 | 0.50 | 0.50 | 7.5+0.5 | 7.5+0.5 | 30 | 19 | 1 | ||
BW09502 | 0.50 | 0.50 | 10+0.5 | 10+0.5 | 25 | 25 | 0.5 | ||
BW0950402 | 0.50 | 0.40(iron) | 9+0.5 | 9+0.5 | 34 | 22 | 0.75 | ||
BW09603 | 0.50 | 0.60 | 9 | 8 | 29 | 25 | 0.3*0.55 | ||

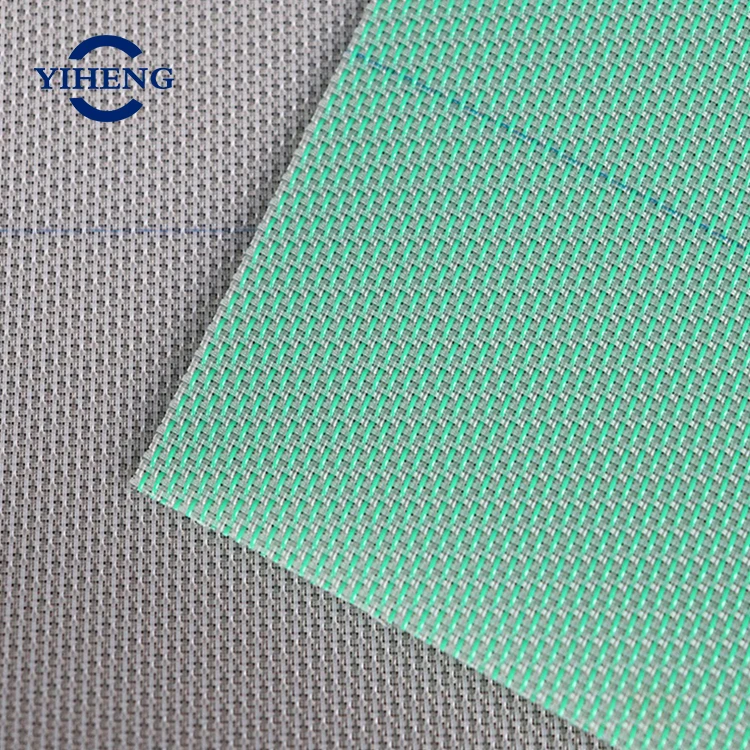

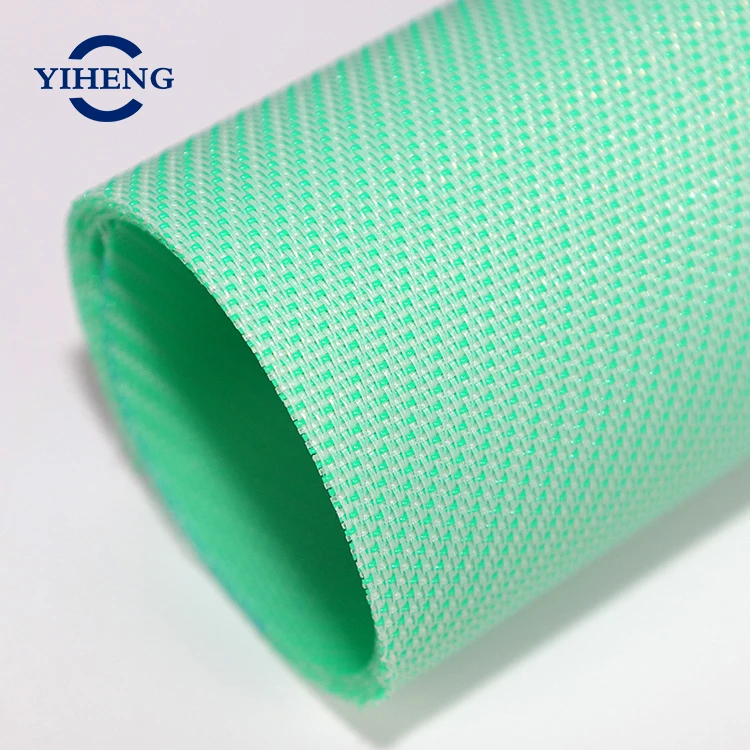

Paper Forming Fabrics
Single-layer, 1.5-layer, double-layer, three-layer and 3.5-layer forming fabrics for different paper production
Polyester Pulp washing Mesh
High quality and durable long life

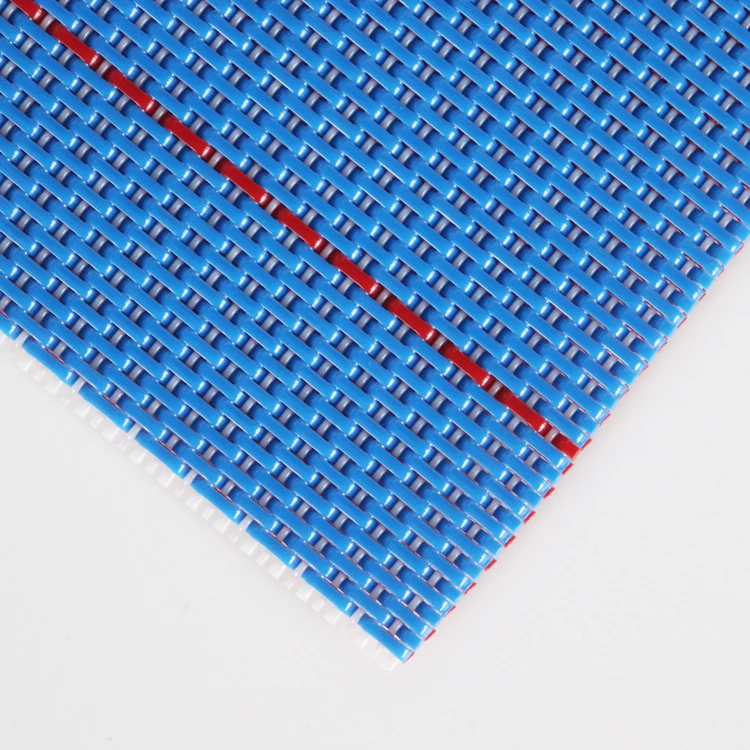

Paper Drying Fabrics
Easy to install, breathable volume can be customized, cost-effective

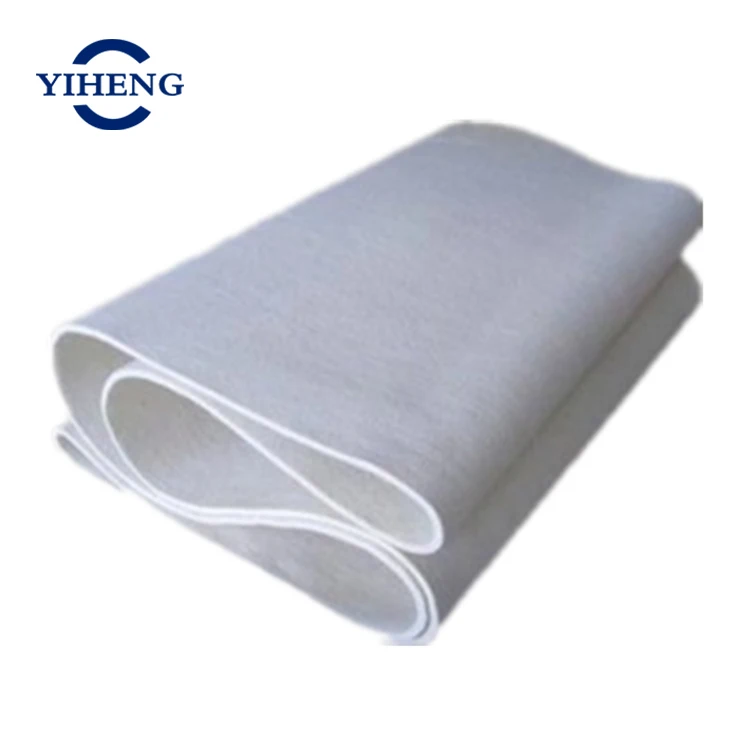

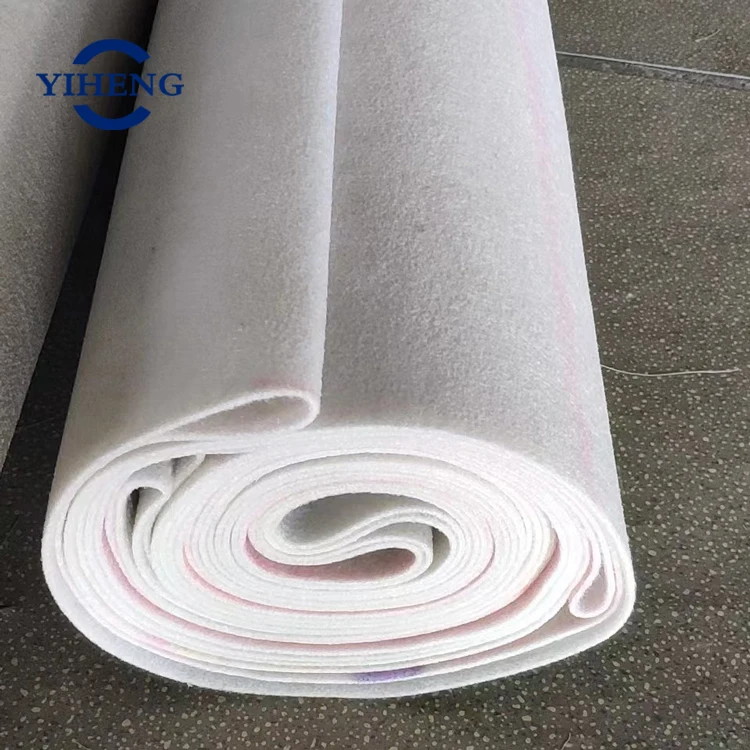

Paper Felt
Paper forming press dewatering and conveying
Our advantages
Our Service
Packing & Delivery
Below package is available, and your special request is also welcome:
1. Non woven fliter belt by sea, wooden case with foam plastic inside
2. Non woven forming fabric belt by air, carton box- soft package
3. Non woven forming fabric mesh belt according to your request.
FAQ
