Характеристики
Stainless steel medium consistency roots water ring vacuum pump paper pulp pumps for paper making plant
Product Overview

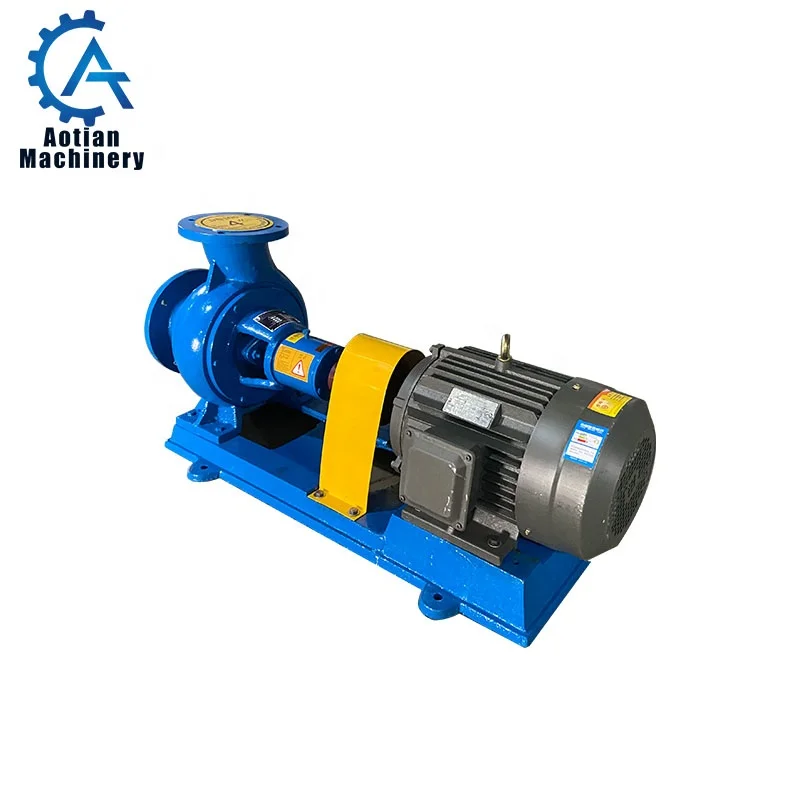

PULP PUMP:
Pulp pumps are used for transporting mixtures of liquid and solid components ; Pulp pump can be widely used in light industry,paper industry, temperature below 110℃,concentration less than 6% pulp transport.

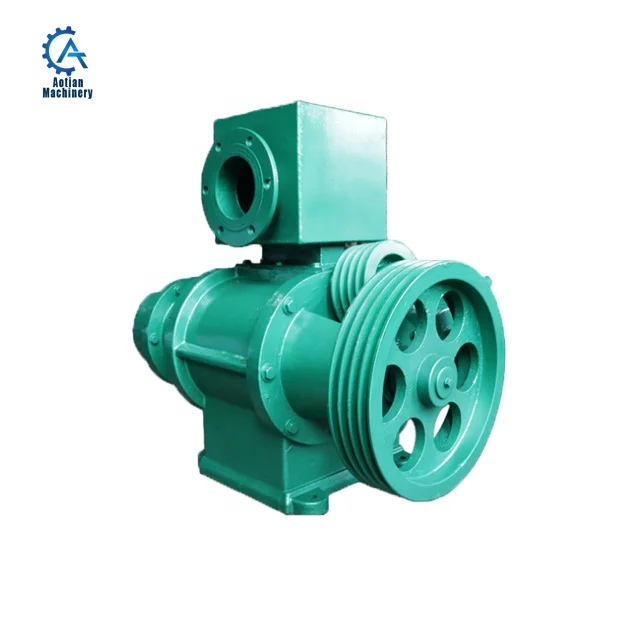

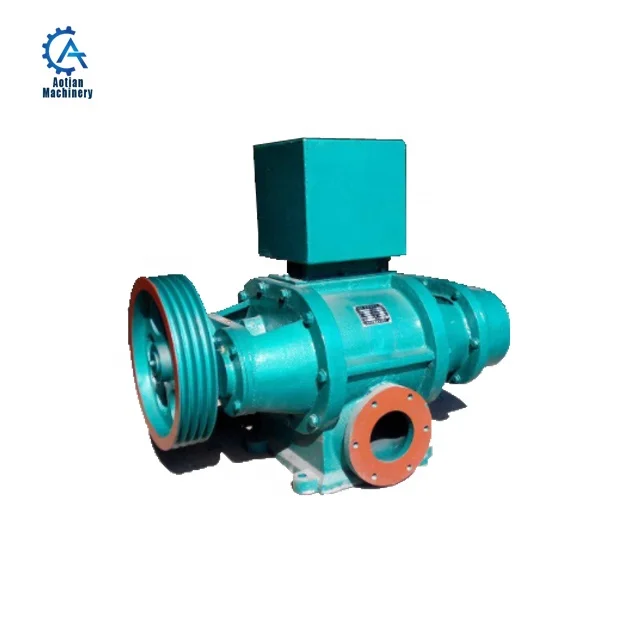

Roots vacuum pump:
Roots vacuum pump is also known as the mechnical booster which is a positive displacement type pump. It is one of the special pumps which can reach middle, high vacuum rang. Its work principle is similar to the Root fan. Both of them used a pair of rotors, whose shape looks like 8, to achieve the suction and discharge process.According to the technical that the plenty of vapor and solvent is required to pump in the mechnical, pharmacy areas, we have improved the seal type of the bearing housing and gear box of the ZJ series Roots pump to reduce the emulsification of the pump oil efficiently and make the Roots pump more suitable to assemble with the water ring vacuum pump to suction more vapor and solvent .

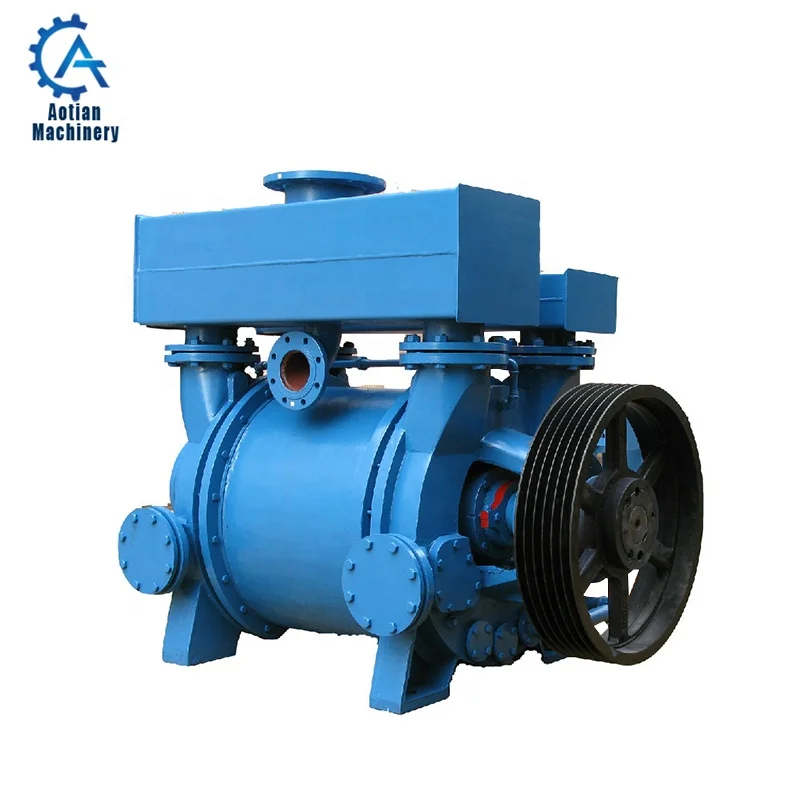

Water ring vacuum pump:
Water ring vacuum pump has the advantages of simple structure, convenient maintenance, reliable operation, high efficiency and energy saving, and can adapt to the bad working conditions such as large displacement, load impact fluctuation. Widely used in paper making, chemical, petrochemical, light industry, pharmaceutical, food, metallurgy, building materials, stone tools, coal washing, mineral processing, fertilizer and other industries.
Technical Parameter
Product name | Pulp pump |
Flow | 100-200m³ |
Motor power | 15kw-4 |
Material | Contact pulp (Impeller,pump housing,drive shaft)is stainless steel 304,base plate is made of cast iron (HT250) |
Head | 20m |
Size | 1520*580*640mm |
Weight | About 250kg |
Product name | Roots vacuum pump |
Model | AT16 |
Max pumping | 15m³/min |
Rated pumping | 11m³/min |
Rated vacuum | 40kpa |
Rated rotary speed | 400r/min |
Input output diameter | 200mm |
Motor power | 22kw |
Equip V-belt | B-type 4500 |
Weight | 890kg |
SIZE | 1100*750*1250mm |
Material | Cast iron(HT250) |
Product name | Water Ring Vacuum Pump | ||
Model | AT3002 | AT2002 | |
Capacity | 3000 m³/h | 2000 m³/h | |
Max pressure | 0.07MPa | ||
Motor Power | 132Kw | ||
Material | parts in flow contact is stainless steel Including: Pump head, motor, connecting pipe, base | ||
