200 micron super fine emi shielding faraday cage red copper woven wire mesh screen

Copper wire mesh series products are available in red copper wire mesh, phosphor bronze wire mesh, and brass wire mesh.
They look similar in appearance and color. Due to the different compositions of metal materials, each product has different characteristics and use effects.
Copper wire mesh products are widely used in building decoration, household, electrical, technology, and other industries.

Note: This series of products are customized products, so the price on the page are for reference only.

Contact our professional team to get the latest price for your project.

Product details introduction:

Weave Types

Our company can provide many different weaves to meet different application needs.

the weave styles mainly depend on the mesh and wire diameter specifications of the

woven mesh. Below are the show of some common styles we weave here.

Mesh, Mesh Count, and Micron Size

Mesh Count and Micron Size are some of the important terms in the wire mesh industry.

The Mesh count is calculated by the number of the holes in an inch of mesh, so the

smaller is the woven holes the bigger is the number of holes.

The Micron Size refers to the size of the holes measured in microns. (The term micron is actually a commonly used shorthand for micrometer. )

In order to make it easier for people to understand the number of the holes of the wire mesh, these two specifications are usually used together. This is the key component of specifying the wire mesh. The Mesh Count determines the filtering performance and function of the wire mesh.

More intuitive expression:

Mesh Count = number of mesh hole. (larger the mesh count, the smaller the mesh hole)

Micron Size = size of mesh hole. (larger the micron size, larger the mesh hole)

Red Copper Wire Mesh

Red copper wire mesh is the highest copper content in the copper mesh products, with a copper content of 99.9%. It is soft, malleable, and has high electrical and thermal conductivity. As a result, it is popularly used as RFI shielding, in Faraday Cages,in roofing, in HVAC, and in numerous electrical-based applications.



Main Material:99.999% Pure Copper Wire.

Wire Diameter Range:0.03-0.70mm.

Mesh Size Range:Plain Weave: 5– 200 mesh, Twill Weave: Up to 250 mesh,

Dutch Weave:Can be customized as required.

Width Range:Usually, 0.914-3 m, can be cut according to customer requirements,

the minimum is 3 mm.

Length Range:Usually 30 m, up to 150 m

Mesh Type:Generally 30m/roll, various shapes can also be cut as required.

 Features & Use:

    Soft, easily soldered

    Ductile and malleable

    Excellent thermal and electrical conductivity

99%+ pure copper

Red copper wire mesh is not only used in the electrical industry. Red copper wire mesh

is also popular in the field of architectural decoration due to its unique color and flexible

and weldable characteristics.Homeowners and designers choose red copper wire mesh for residential projects such as gutter guards, insect screens, fireplace screens, or decorative wall panels. Artists,including sculptors, woodworkers, metal artisans, and architects prefer copper mesh due to its ability to form complex shapes.

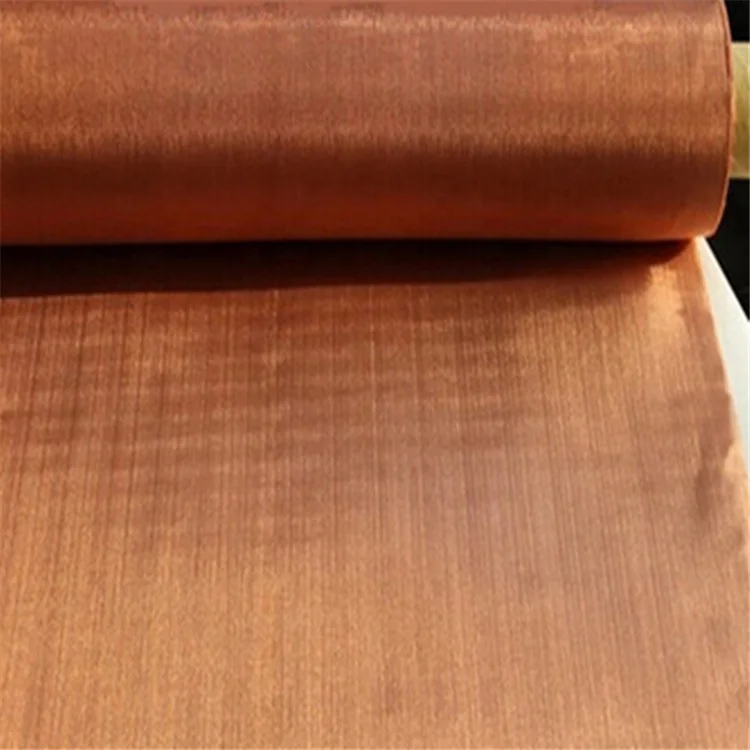

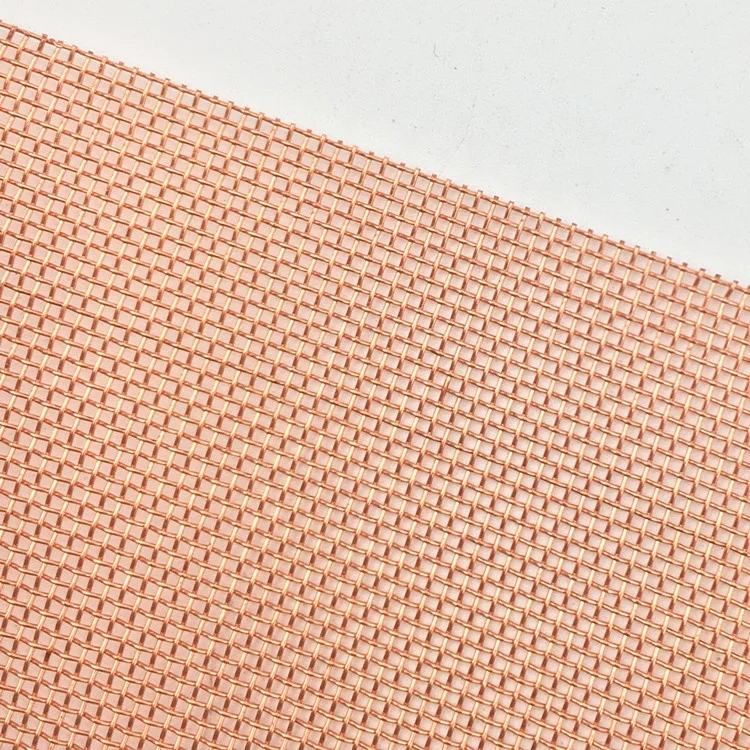

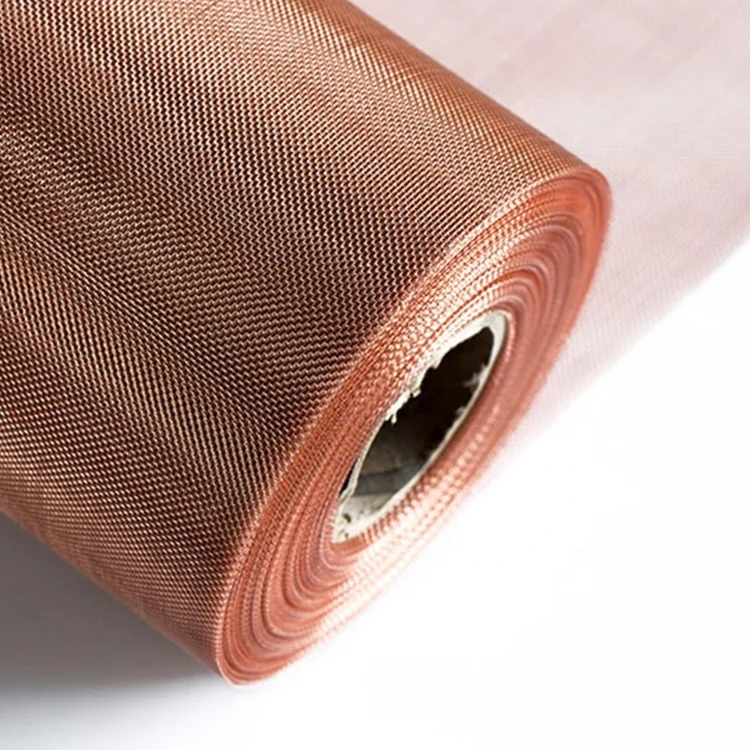

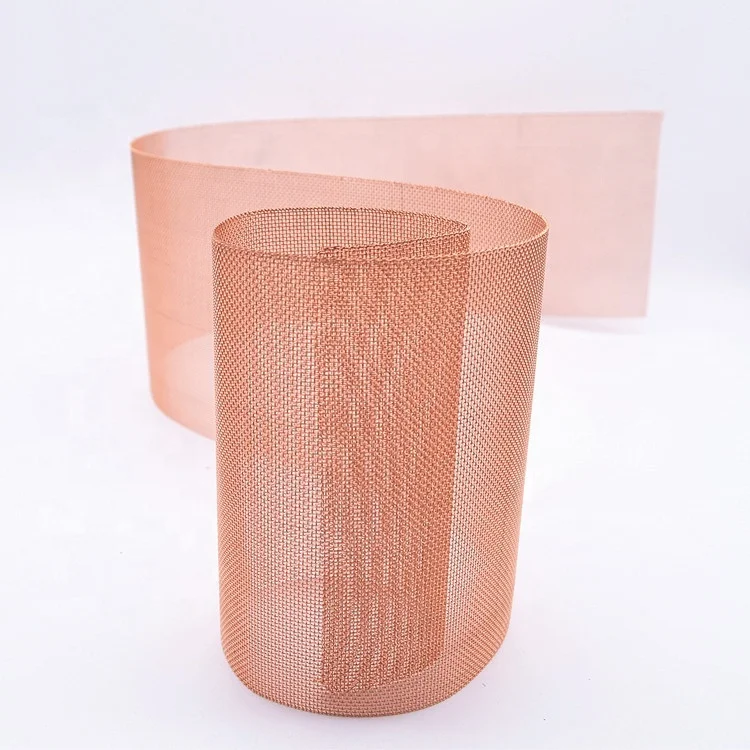

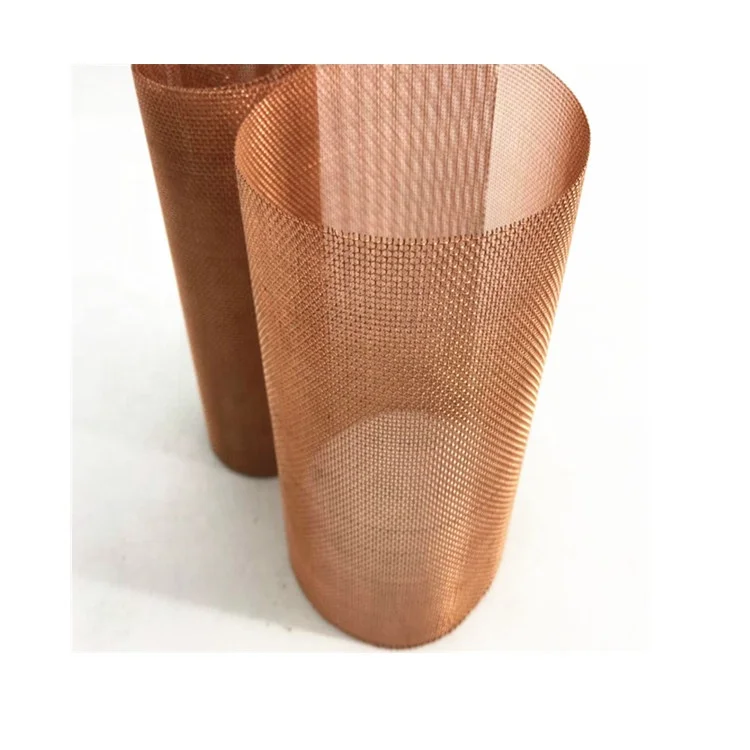

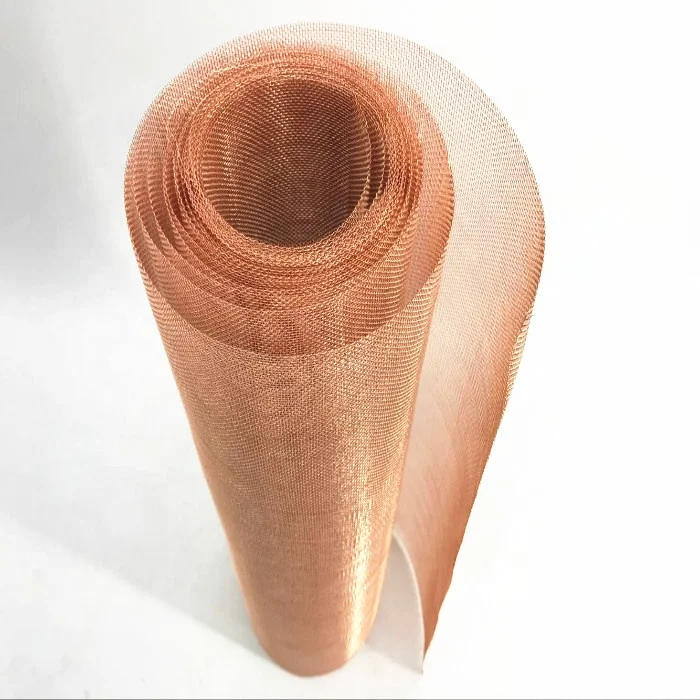

Product photos:







Anping Tianhao Wire meshes products Co., Ltd Located in wire mesh hometown of China——Anping County. It is a comprehensive enterprise of manufacturing, marketing, importing and exporting. We have advanced equipment and professional R&D team.Main products are different kinds of metal wire mesh and related. Main products are different kinds of metal wire mesh and related deep processing filter mesh. Such as stainless steel wire mesh, copper wire mesh, nickel wire mesh, monel wire mesh, Inconel wire mesh,Hastelloy wire mesh, Nichrome wire mesh, Feral wire mesh, titanium wire mesh, mesh filter tube, mesh filter cap, mesh filter disc and so on.

Area: 99000m2
No. of Employees: 200+ people
No. of QA/QC Inspector(s): 12 people
Export Markets: Europe, South America, Australian, North America, Asia etc.
Annual Revenue: USD USD 10.678.360,00
Certificates:  ISO9001 certificate, SGS certificate

Q1. If the packing can be customized?

A: Yes, customized Logo or packing is welcomed all the time. Most of our products, required to do with their Logo.

Q2. What is your terms of payment?

A: T/T: 30% of the total amount should be paid after the order confirmed as down payment, and the balance to be paid before shipping the goods out of our factory. (We will send you

goods pictures before you pay the balance).

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific

delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds

and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
