(1) 5Tons manual un-coiler

Description

There are different choices, please turn to the catalogue of un-coiler

(2) Entry bench & Manual Pre-shearing device

Function

Smart cut control, to cut off the end of the final piece of sheet only

Shearing Thickness

Up to Max. 0.8mm (if thickness > 0.8mm, then hydraulic pre-shearing device or electric pre-shearing device instead )

(3) The general machine parameter

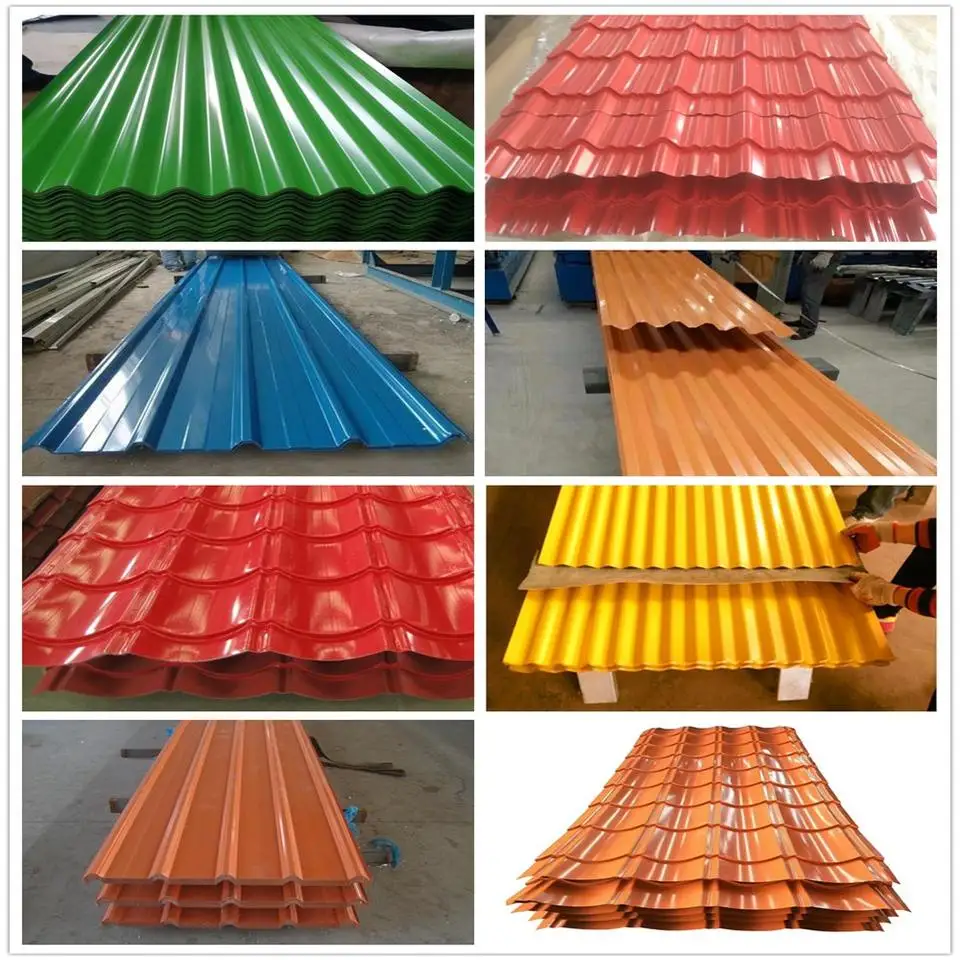

Suitable roll forming material

Color steel sheet or Aluminum

Thickness

0.4mm-0.6mm

Feeding width

1219mm

Frame design

Wall-plate-frame-design /New-stand-frame-design

Roll stages

15-18 stages

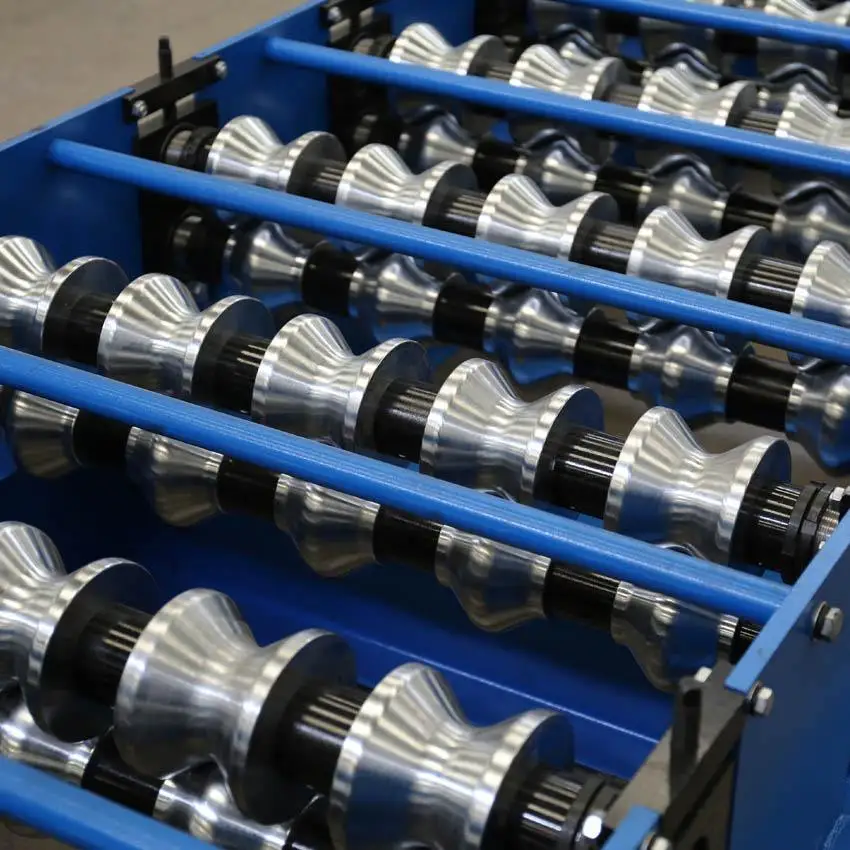

Material of forming roller

45# steel, CNC lathes, Hard Chrome Coated

Shafts Diameter

Φ70mm

Main motor power

5.5KW with reducer

Max. Line speed of roll former

Approx. 4m/min (stair length 350mm, production length 6m)

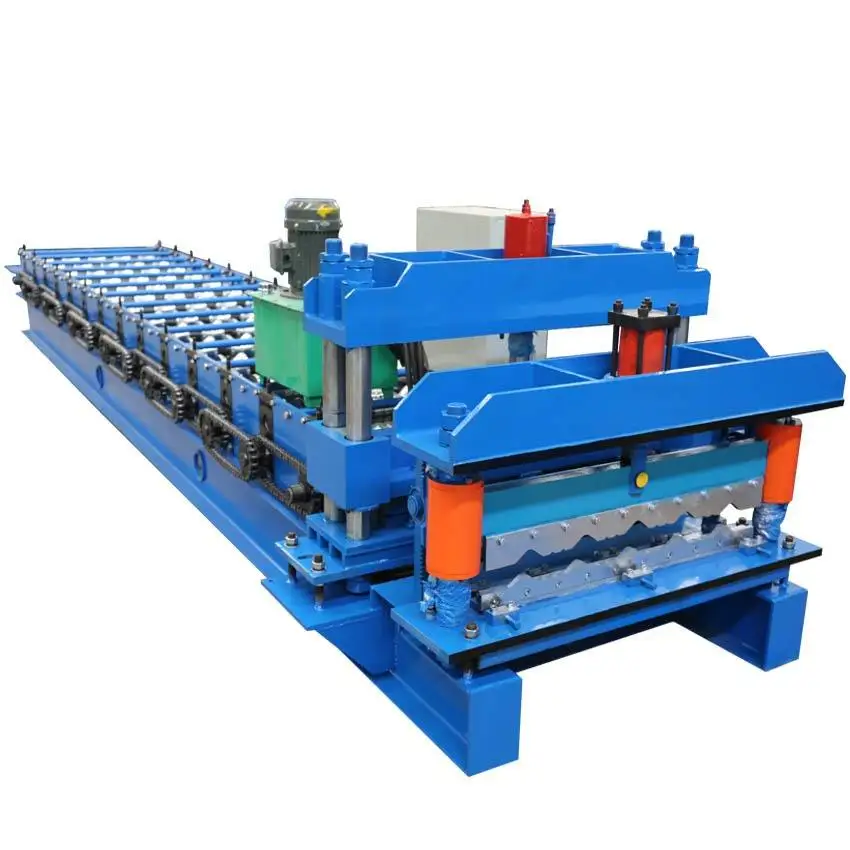

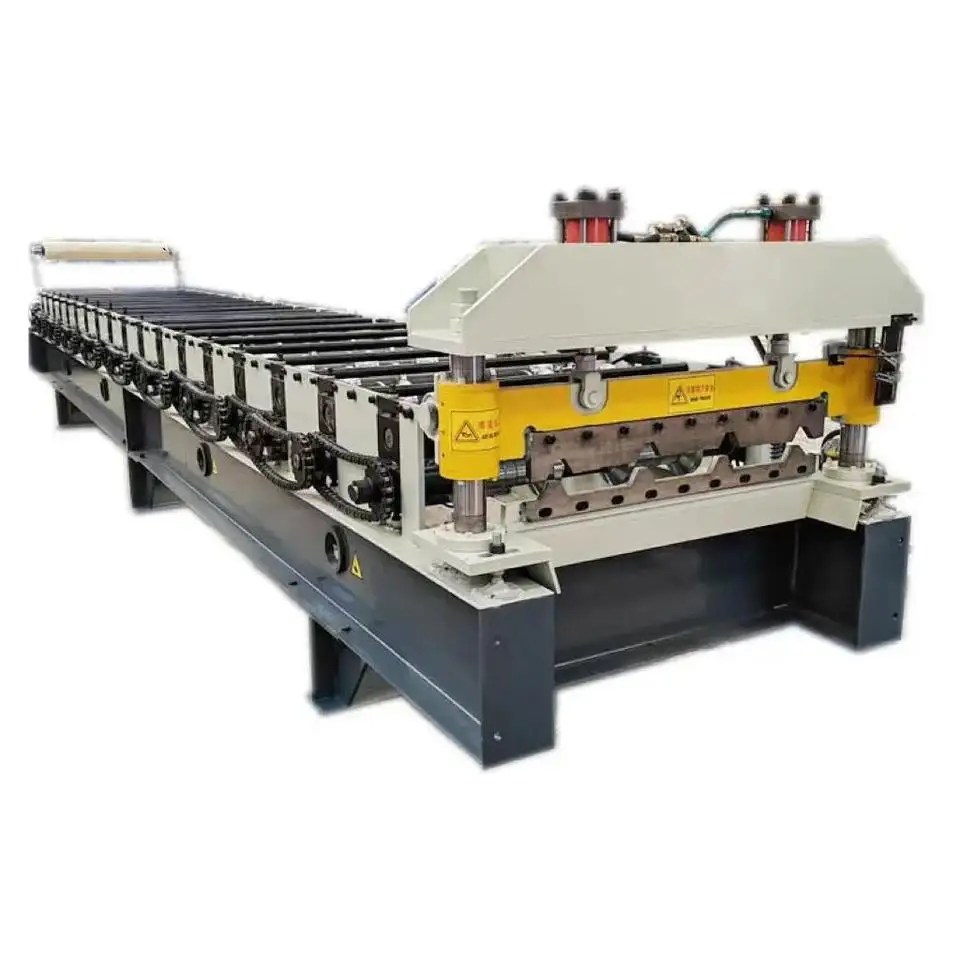

Hydraulic Stair-Drawing & Cutting Device

There is one hydraulic press to make the stair according to requirement and hydraulic post cut for cut off

Hydraulic group power

4KW

Material of cutting blade

Cr12, heat treatment

Electric Standard

380V /50Hz/3PH or as the customer's requirements

Machine Dimensions

9430mm×1960mm×1650mm

Major Color of Machine Painted

RAL 5015 (Blue) or as per customer's requirements

(4) PLC Control system

PLC

Delta brand

Touch Screen

Delta brand

Inverter

Schneider brand

Encoder

Omron brand

(5) Product rack

Description

un-powered, 3 units

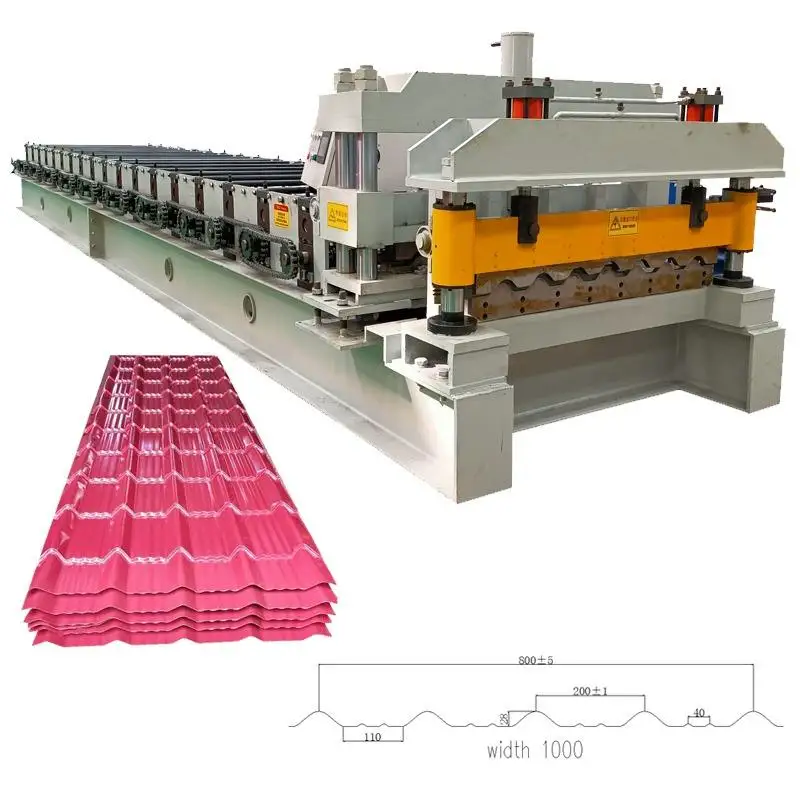

(6) Options for tile roof :
A.Hydraulic pre-shearing device
B.Improvement for driving system for Tile roof
Servo motor instead of AC motor for the roll former, to increase the production speed and the tolerance between two stairs

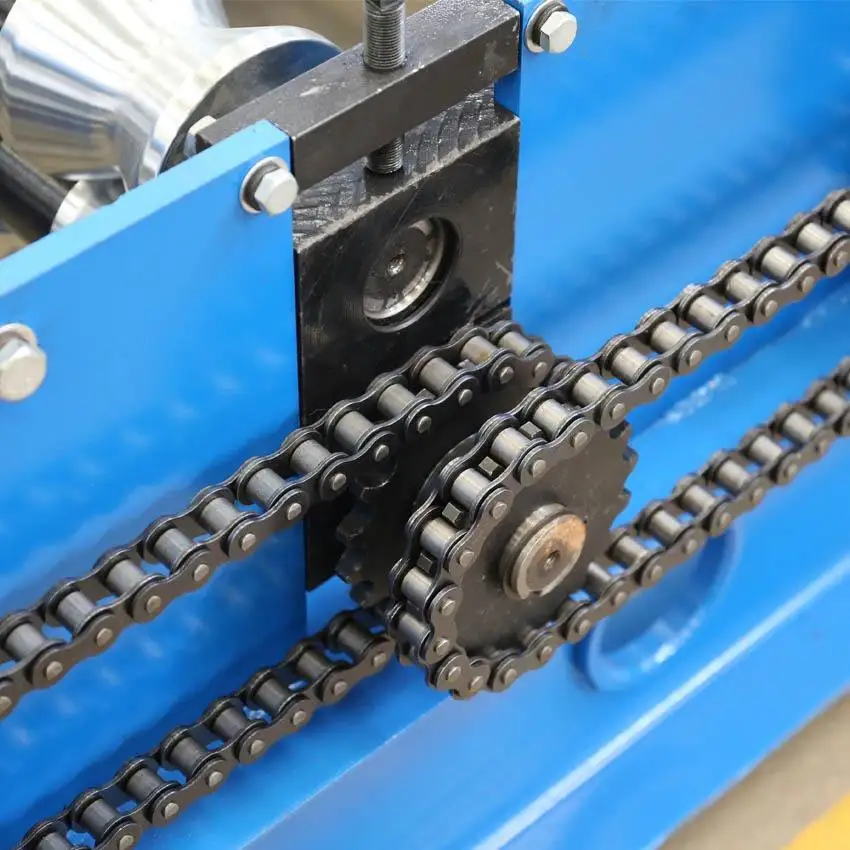

Driving system with gear box and redirector for every three/four stages to improve the speed and tolerance control. Sprocket
driving between each three/four stages.
