Виноферментер с рубашкой из нержавеющей стали заводское оборудование для
- Категория: Beverage & Wine Processing Machinery >>>
- Поставщик: Wenzhou,Ace,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3332.66 $* | 3499.56 $* |
| Aug-15-2025 | 3304.48 $* | 3469.33 $* |
| Jul-15-2025 | 2772.41 $* | 2911.92 $* |
| Jun-15-2025 | 3248.90 $* | 3410.66 $* |
| May-15-2025 | 2828.79 $* | 2969.94 $* |
| Apr-15-2025 | 3192.54 $* | 3352.38 $* |
| Mar-15-2025 | 3164.57 $* | 3322.61 $* |
| Feb-15-2025 | 3136.27 $* | 3293.41 $* |
| Jan-15-2025 | 3108.95 $* | 3263.20 $* |
Характеристики
We Can Make The Brewing Equipment For Beer, Wine, Sparkling Wine ,Whiskey, Gin, Brandy, Rum Etc. The Equipment Capacity From 300l To 30,000l.
Beer Equipment: Including The Brewhouse, Fermenter , Brite Tank , Cip Trolley Etc.;
Wine Equipment: Including The Red Wine/White Wine/Sparkling Wine Tank , Floating Lid Wine Tank And Whole Wine Distillation Equipment: Including The Rum/Whiskey/Brandy/Gin/Vodka Stills
Video

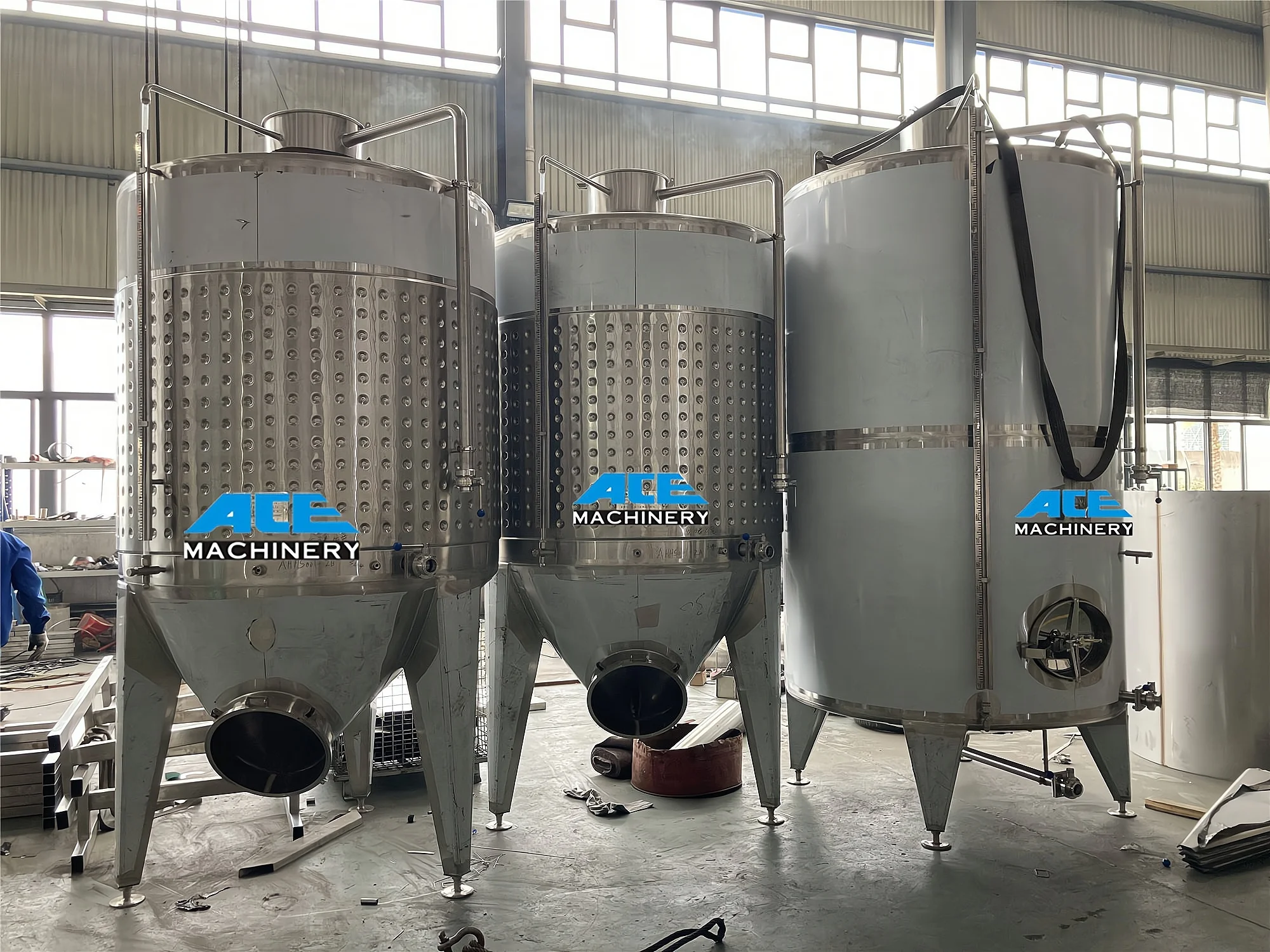

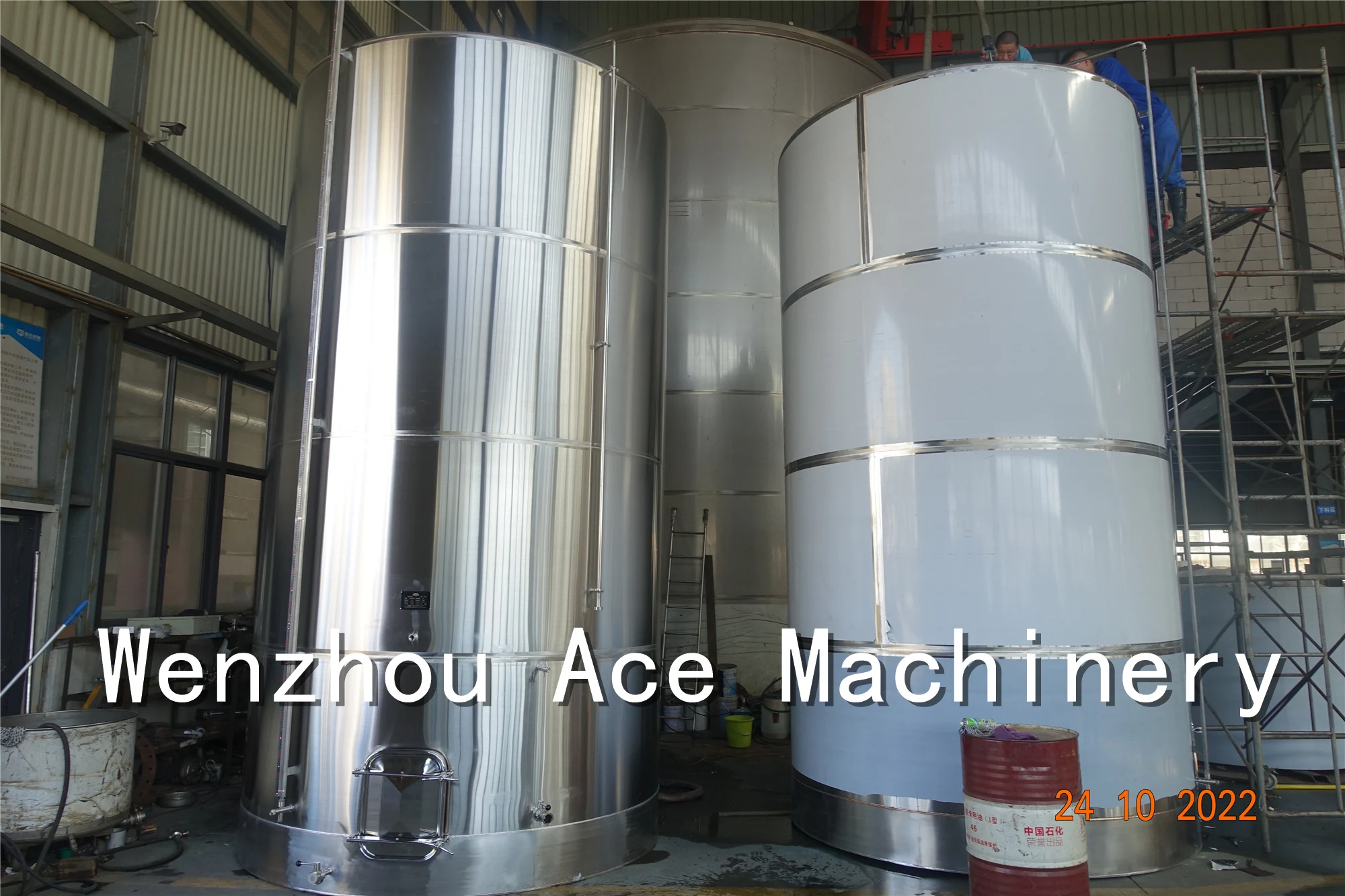

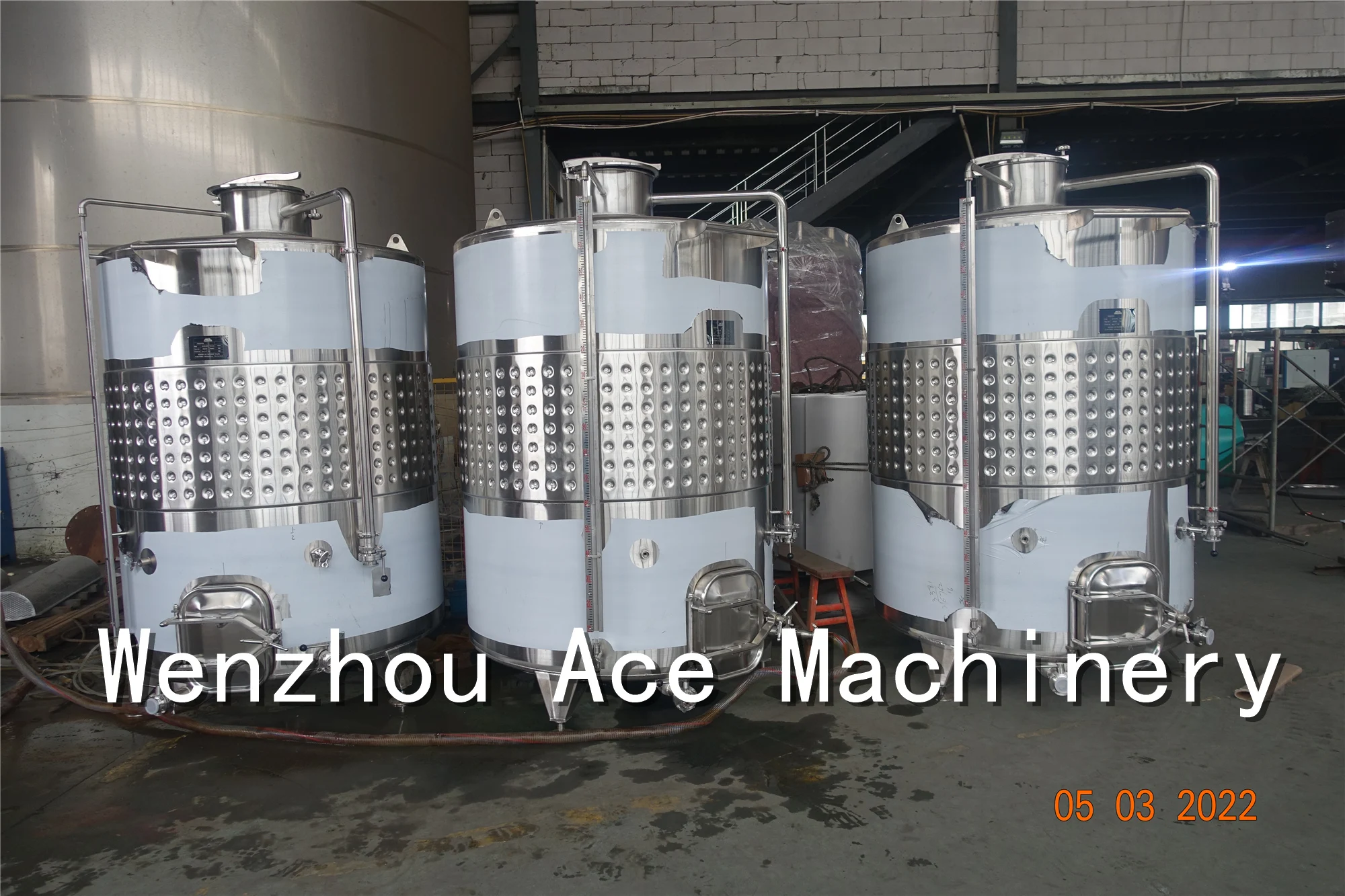

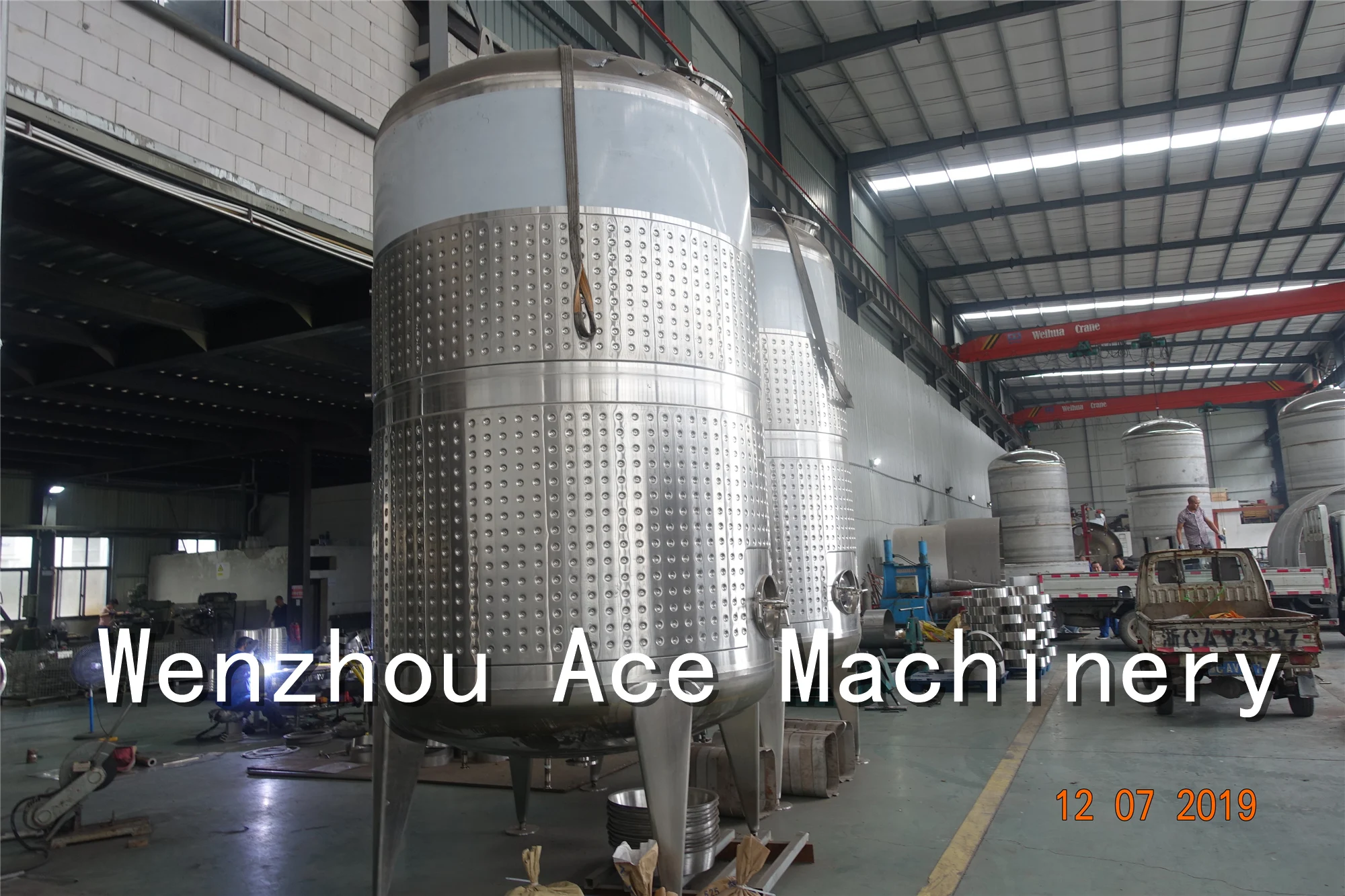

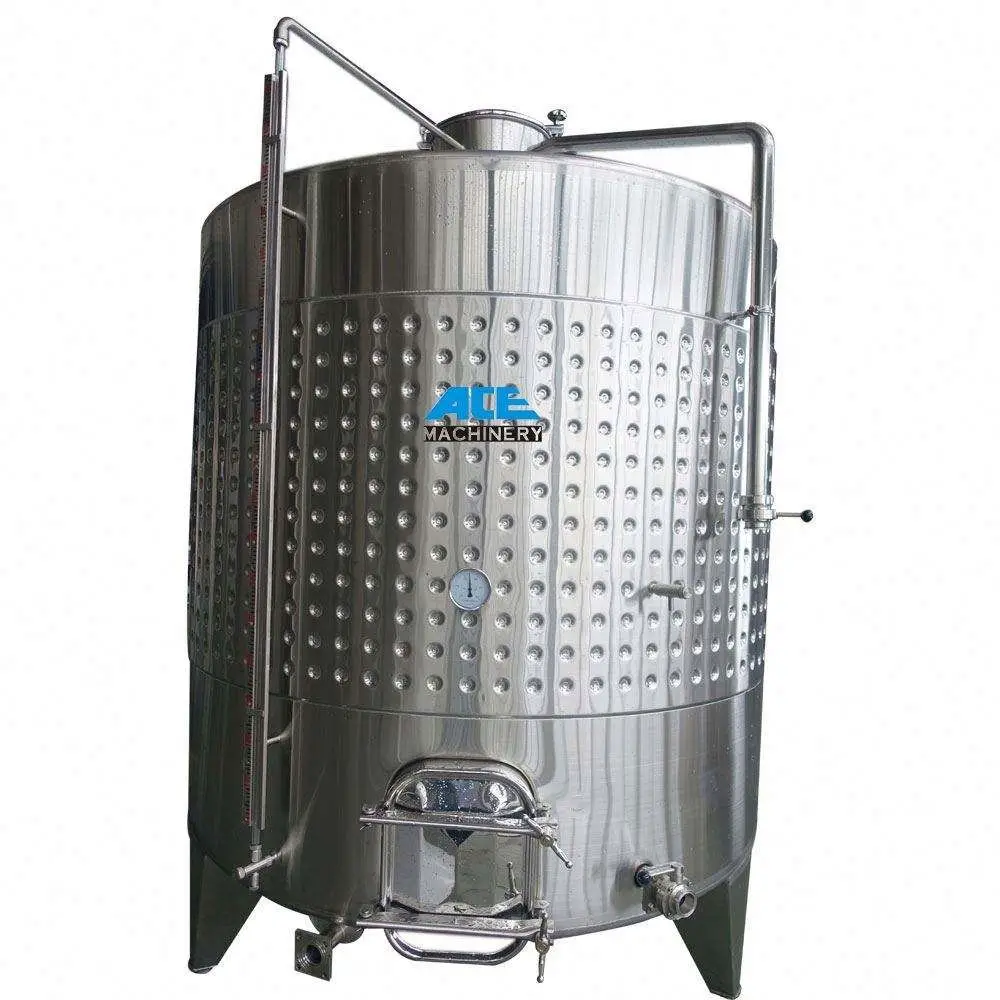

Wine Fermenter
The superior quality and craftsmanship of our wine fermentation tanks and stainless steel fermenters is unsurpassed. Whether you’re looking for variable capacity, conical bottom, flat bottom, jacketed, fermenting tanks, or more, We has what you need to produce wine that will be appreciated for generations.
Description:
Our Wine fermentation tank steel tank for wines adopted SUS 304 stainless steel.
The cooling jacket adopts dimple plate.
The jackets are provided at tank body and conical bottom to effectively increase the cooling speed.
The heat exchanging area of jacket can be designed with different proportions according to customers’ technological requirements.
The wine fermentation tanks are widely used in brewery, bar, hotel, Amily etc.
1. Used as storage and fermentation tank in wine industries
2. Volume from 50L-30000L, could be customized according to customer
needs.
needs.
3. Material use sanitary stainless steel. 4. Conical bottom shape, cooling jacket could adopt dimple jacket, arched and
corrugated access jacket.
corrugated access jacket.
Polishing:
Polishing is vital for tanks. Tanks should be polished wholly inside and outside.
Therefore it can ensure there is no place for the bacteria to hide in tanks.
Our polishing system consists of auto and semi-auto polishing machine and manual polishing.
Each tank is polished three times and more polish for the key place.
Welding:
Our argon central system for welding provides 100% pure argon to protect tanks from distorting during welding
USAGE:
The tank has wide usage: for white wine, red wine , sparkling wine fermentation and storage.
Structure:
It can be designed as flat bottom, conical bottom or ellipse bottom according to detailed requirement;
The can be designee as floating lid or fixed type top;
The wine tank can be designed as a pressure vessel for sparkling wine fermentation.
The tank can be designed with/without dimple jacket /coil jacket according to detailed requirement
Configure:
1. Capacity: 50L to 30,000L
2. Warranty: 12 months
3. Processing: Fermenting
4. Thickness: 3mm
5. Voltage: 220V/380V(Or to be customized)
6. Volume design: Properly according to the capacity requests
7. 60 degree cone bottom, with an average of 25% head space
8. Rotating racking port
9. Side manway hole, shadowless
10. Certification: ISO9001 / CE/ TUV
11. Interior shell: 304 stainless steel, thickness 11 gauge
12. Exterior shell: 304 stainless steel, thickness 14 gauge
13. 2” Polyurethane insulation
14. 2” CO2 blowoff arm for maximum tank space utilization
15. Material: Stainless Steel AISI 304 or AISI 316
16. Design pressure of the tank: 1.5bar
17. Design pressure of the jacket: 3.0bar
Polishing is vital for tanks. Tanks should be polished wholly inside and outside.
Therefore it can ensure there is no place for the bacteria to hide in tanks.
Our polishing system consists of auto and semi-auto polishing machine and manual polishing.
Each tank is polished three times and more polish for the key place.
Welding:
Our argon central system for welding provides 100% pure argon to protect tanks from distorting during welding
USAGE:
The tank has wide usage: for white wine, red wine , sparkling wine fermentation and storage.
Structure:
It can be designed as flat bottom, conical bottom or ellipse bottom according to detailed requirement;
The can be designee as floating lid or fixed type top;
The wine tank can be designed as a pressure vessel for sparkling wine fermentation.
The tank can be designed with/without dimple jacket /coil jacket according to detailed requirement
Configure:
1. Capacity: 50L to 30,000L
2. Warranty: 12 months
3. Processing: Fermenting
4. Thickness: 3mm
5. Voltage: 220V/380V(Or to be customized)
6. Volume design: Properly according to the capacity requests
7. 60 degree cone bottom, with an average of 25% head space
8. Rotating racking port
9. Side manway hole, shadowless
10. Certification: ISO9001 / CE/ TUV
11. Interior shell: 304 stainless steel, thickness 11 gauge
12. Exterior shell: 304 stainless steel, thickness 14 gauge
13. 2” Polyurethane insulation
14. 2” CO2 blowoff arm for maximum tank space utilization
15. Material: Stainless Steel AISI 304 or AISI 316
16. Design pressure of the tank: 1.5bar
17. Design pressure of the jacket: 3.0bar
Jacketed Wine Fermenter
Stainless Steel Tank
Winery Equipment
Open Top Fermenter
Variable Capacity Fermenter
Tapered Fermenter
Shape | Cone top and bottom |
Cooling jacket | Glycol jacketed on body |
Manway | Top round manway+Side lower manway for spent grain |
Accessories | CIP armBottom drain port Thermometer/sample valve/thermowell on body part |
Optional choice | Agitator can be added in case you will mix the wine during fermentings |
Application | The fermenter tank is applied to distillery,winery and brewery |
Beer Fermentation Tank
Description:
• Beer Fermentation Tank has 200L and 30,000L and orthorectifications, according to the actual requirement of customers.
• Cone bottom shape, cooling jacket using dimple jacket jacketed outside covered with insulation, thermal insulation material for polyurethane (cold).
• Connector using tri-clamp, inner tank using SS304 or S316L the inner surface mirror polishing Ra≤0.4um-0.6um. Outer surface can be polished, wiredrawn, sandblasted according to customers requirement.
• Cone bottom shape, cooling jacket using dimple jacket jacketed outside covered with insulation, thermal insulation material for polyurethane (cold).
• Connector using tri-clamp, inner tank using SS304 or S316L the inner surface mirror polishing Ra≤0.4um-0.6um. Outer surface can be polished, wiredrawn, sandblasted according to customers requirement.
Stainless steel beer fermenter tank | ||
Structure: | 1.Volume from 100L-30000L,could be customized according to customer needs. | |
2.Material use sanitary stainless steel. | ||
3.Three layer structure:Inner body,Jacket and isolation.Isolation layer filled with insulation material. | ||
4.Inner wall fineness less than 0.6um,outside finish could be matt or mirror polish | ||
5.Conical bottom shape,cooling jacket could adopt dimple jacket,arched and corrugated access jacket. | ||
6.All pipes are all ISO or DIN sanitaty pipe,internal and external adopt food grade mirror polish | ||
7.PLC control system,which could achieve automatic,semi automatic control,to ensure the accurately and effectively of parameters and experimental results. | ||
Parts(optional): | 1.Manhole 2.Aseptic breather 3.Thermometer(As customer request) 4.CIP Spray ball 5.Bacterial access port 6.Agitator 7.Adjustable leg 8.Jacket(Dimple or full jacket as customer request) | |
Mash Tun
Description:
Mash Tun is a brewhouse vessel used for mixing the ground malt (grist) with temperature-controlled water. This is called “mashing”
and the porridge-like result is called the “mash.” See mash and mashing. The mash is held at a predetermined temperature and time
(e.g., at 65°C for 1 h) until the malt starches convert to sugars, and the dissolved malt sugars (wort) are rinsed into the kettle
where hops are added. The mash tun is a single vessel where the mashing and wort runoff take place in the same vessel. It is
predominantly used for brewing ales and other top-fermented beers, particularly in the UK, using a single-temperature infusion
mash.
and the porridge-like result is called the “mash.” See mash and mashing. The mash is held at a predetermined temperature and time
(e.g., at 65°C for 1 h) until the malt starches convert to sugars, and the dissolved malt sugars (wort) are rinsed into the kettle
where hops are added. The mash tun is a single vessel where the mashing and wort runoff take place in the same vessel. It is
predominantly used for brewing ales and other top-fermented beers, particularly in the UK, using a single-temperature infusion
mash.
Stainless Steel Mash Tun | ||
Structure | • Can be customized according to customer's requirements• with jacket cooling zones or coil inside the tank • with PU foram insulation to keep warm • the width and height can be design accroding to customer requirements • 304 Polished and Brushed Stainless and Polished Standard Features: • Agitator,CIP ball,thermometer,thermowell etc. • Clamps and gaskets • Stainless steel legs with stainless leveling footpads • Interior shell: 304 stainless steel • Exterior shell: 304 stainless steel • Interior and exterior finish polished to a sanitary finish • Interior finish pickled and passivated • Fully welded exterior shell | |
Working capacity | 1bbl/2bbl/3.5bbl/4bbl/5bbl/7bbl/10bbl/15bbl/20bbl/25bbl/30bbl/40bbl/50bbl/60bbl/90bbl/100bbl/120bbl standard size | |
Bright Tank
Description:
The bright tanks are cans for storing live beer. After the beer is fermented and matured, the yeast and another turbidity in the fermentation broth need to be filtered to make the wine clear and bright. After the fermentation broth is filtered, it is called "bright beer". Let the packaging department bottling into beer finished products. Sake jars are used to hold sake.
In most breweries, the beer will be filtered after leaving the larger container and sent into bright tanks. If you want to force carbonation of bright beer, the beer can be carbonated in a fermentation tank or storage tank. In this case, the beer should be completely filled with carbonic acid to reach the bright tank.
In most breweries, the beer will be filtered after leaving the larger container and sent into bright tanks. If you want to force carbonation of bright beer, the beer can be carbonated in a fermentation tank or storage tank. In this case, the beer should be completely filled with carbonic acid to reach the bright tank.
Vertical
Horizontal
Parameter of Bright Beer Tank: | ||
Effective volume | 100L-10000L 7BBL~30BBL 1HL~100HL | |
Type | veritical type, easy cleaning horizontal type, space saving | |
Design pressure | 0.3Mpa | |
Working pressure | 0.15Mpa | |
Materials | 304 Stainless Steel 316 Stainless Steel Option | |
Control System | CIP arm and 360° spary ball | |
Stills
Description:
Material: Red Copper/SUS304 for choose
Heating method: by steam/electrical heating elements
Top of pot with whole glass manway,inlet,safety valve, thermometer,pressure gauge and liquid return back hole. Top with agitator can be used to distill any wash,even washes full of fruit pulp or grain mash can heated in this configuration of boiler without any risk of burning on bottom of pot.Also,by constantly agitating the wash throughout the distillation run,the distillery can save 20% on the heating required to perform the distillation.
Heating method: by steam/electrical heating elements
Top of pot with whole glass manway,inlet,safety valve, thermometer,pressure gauge and liquid return back hole. Top with agitator can be used to distill any wash,even washes full of fruit pulp or grain mash can heated in this configuration of boiler without any risk of burning on bottom of pot.Also,by constantly agitating the wash throughout the distillation run,the distillery can save 20% on the heating required to perform the distillation.
Whisky/Vodka/Stills
Multi-Function Stills
