Характеристики
PRODUCT SPECIFICATIONS
Specification | SC110-125 | SC135-150 | SC160-180 | SC190-200 | SC210-230 | SC250-280 |
Output(t/d) | 2.5-4 | 3.5-5 | 4-6 | 6-8 | 8-10 | 18-22 |
Power(kw) | 30-40 | 50-70 | 80-110 | 160-180 | 200-240 | 370-410 |
Weight(kg) | 2500-3000 | 4200-5000 | 5000-7000 | 6400-8500 | 7500-9700 | 11000-14000 |
Dimension(m) | 8.4*1.4*2.2 | 12*1.7*2.6 | 16*2.1*2.7 | 21*2.4*3.4 | 32*3*3.6 | 35*3.2*3.6 |
Product Overview

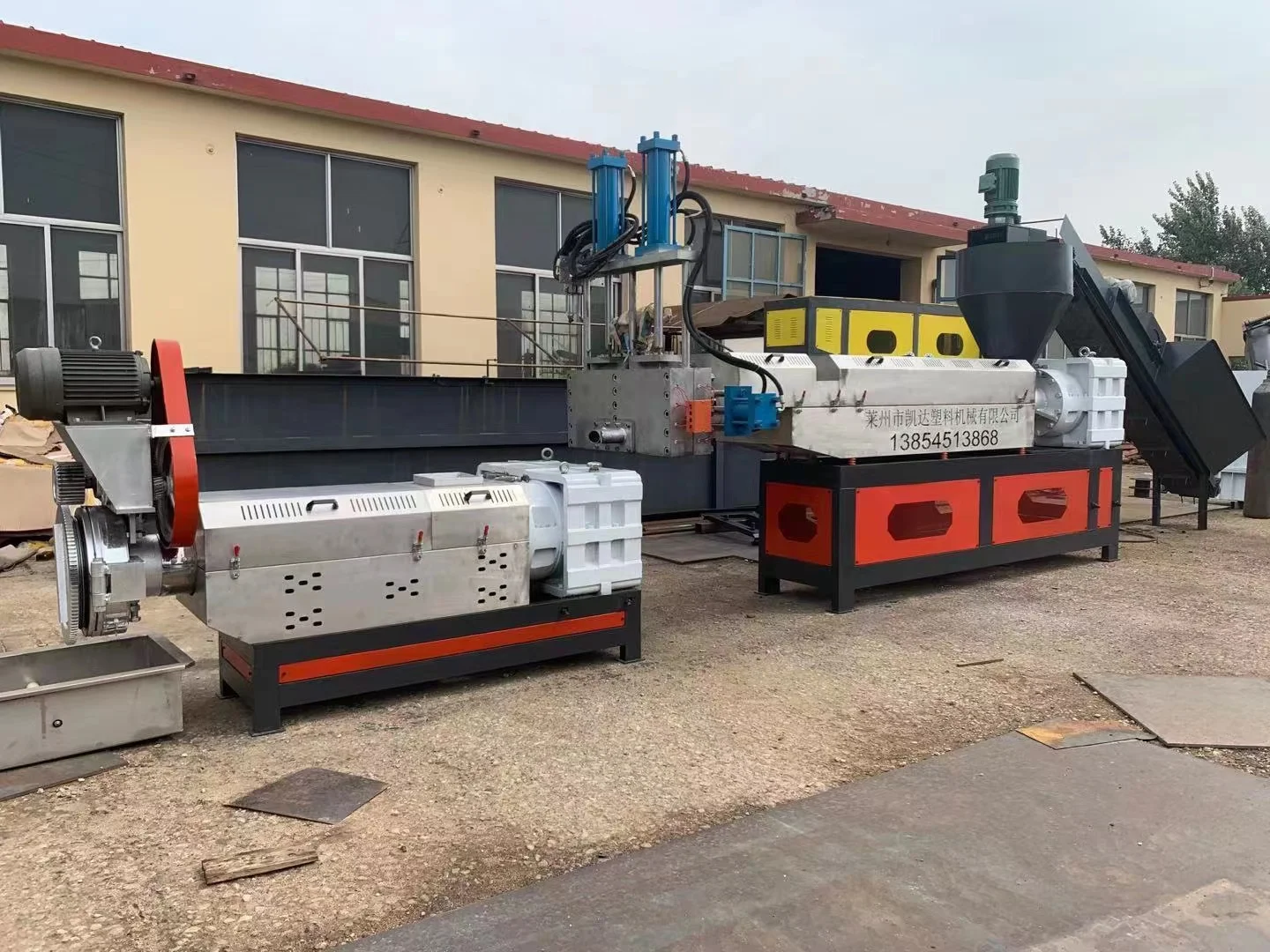

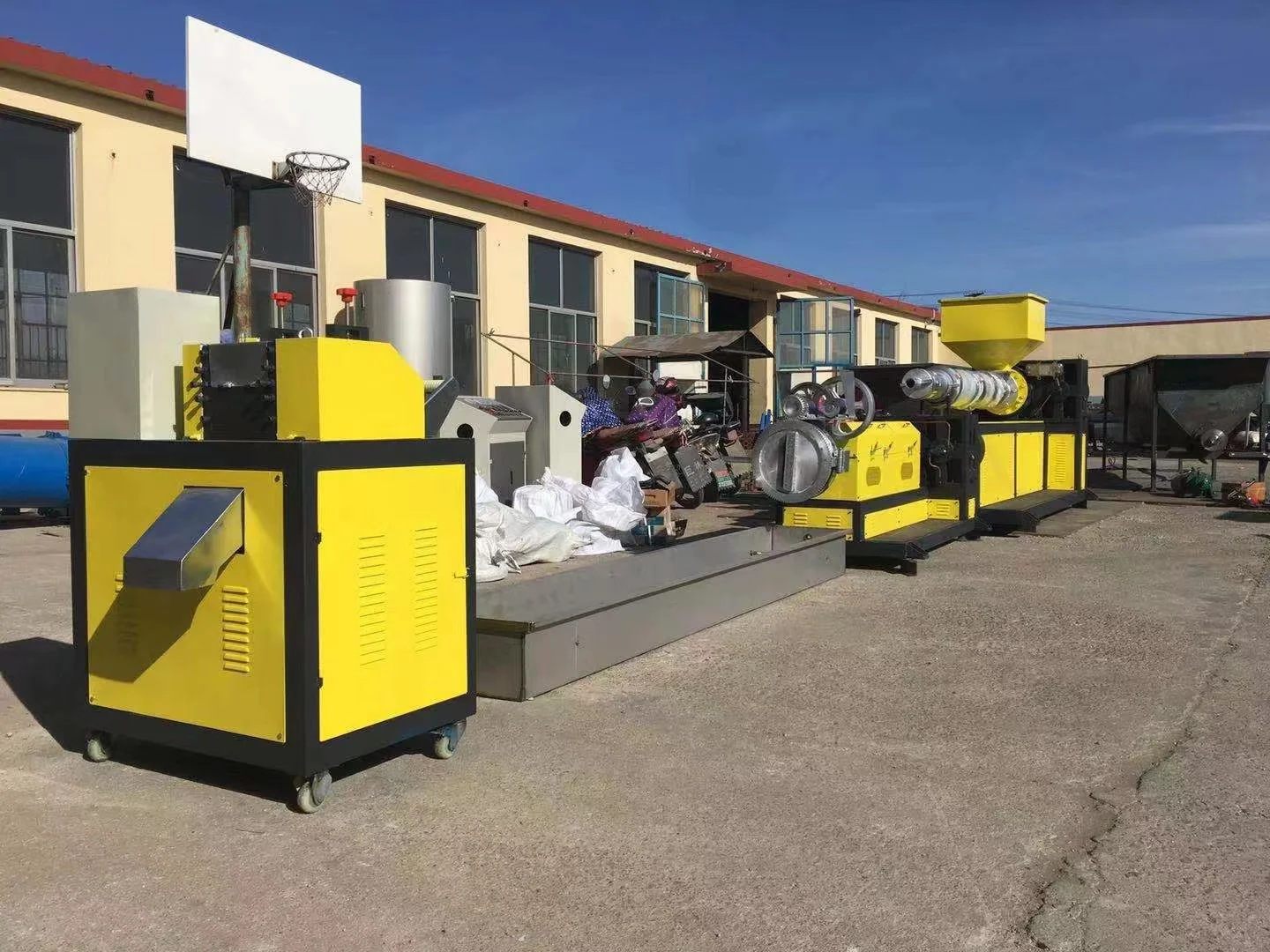

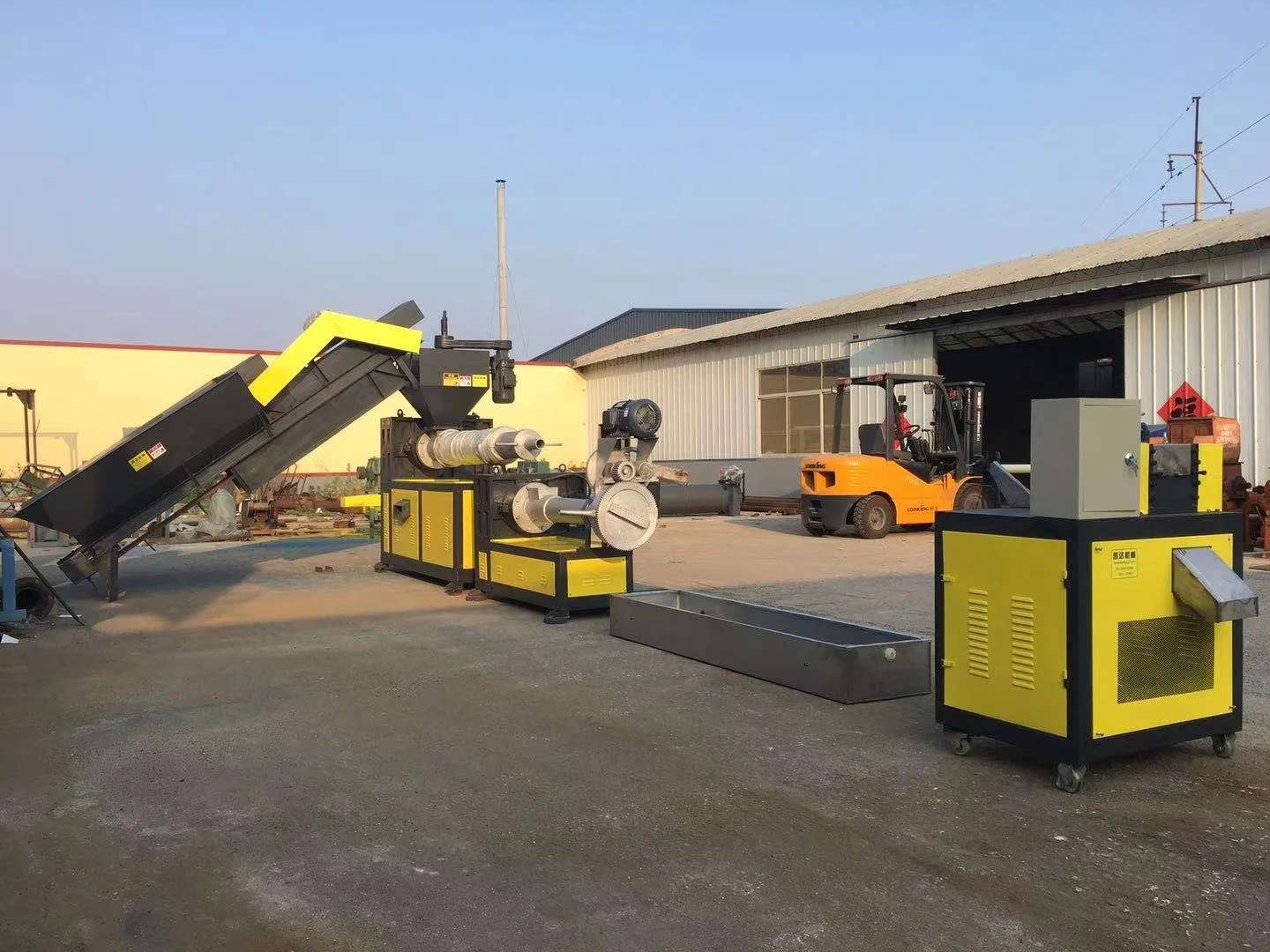

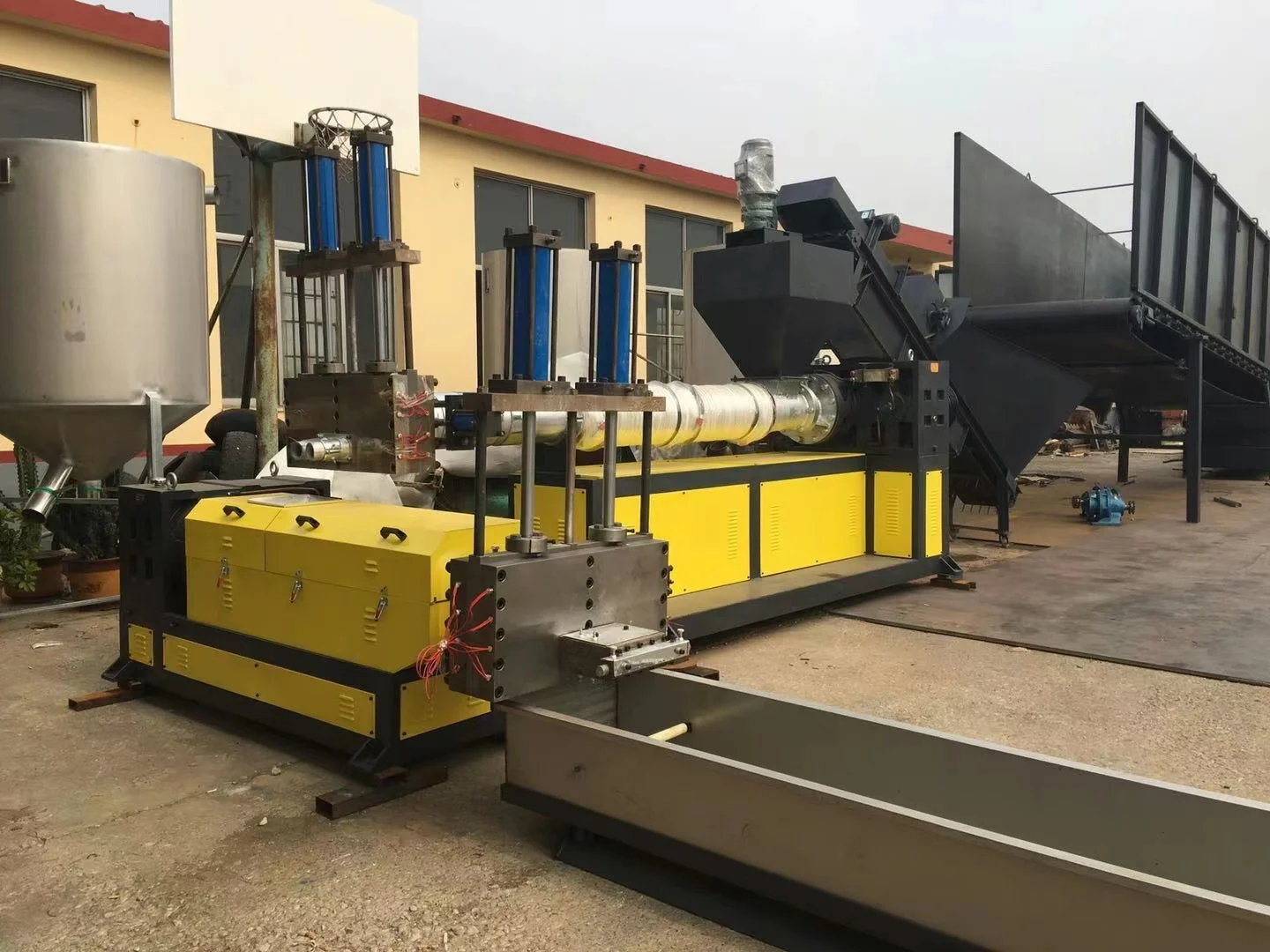

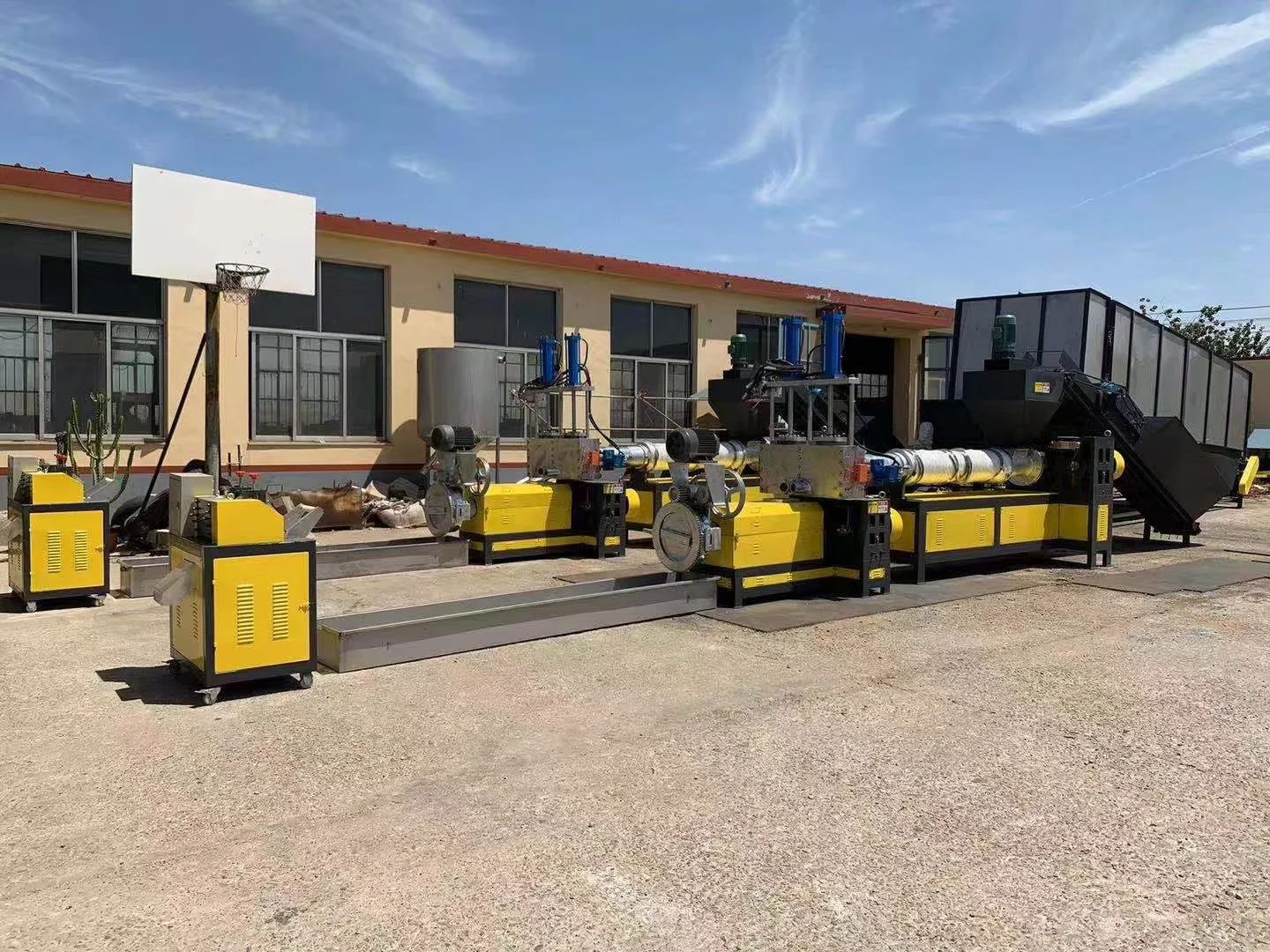

Plastic Pelletizing and Granules Making Machine
1,High practicable for kinds of waste plastics recycling like plastic films, sheets and style material.
2,Equipped with non- stop filter net hydraulic changing for high automation and better output.
3,Particular features have granules from this machine with good plastic performance.
3,Particular features have granules from this machine with good plastic performance.
product mix
Double Stage Design
Mother Extruder
and Baby Extruder
Cold Cutting pelletizing way
Suitable for hard plastic flakes
Easy to operate
High Capacity
FEATURES AT A GLANCE
PRODUCT CONFIGURATION
Automatic feeding system
The quantitative conveyorequipped with frequency converter,can effectively control the conveying speed.
The feeding machine is used for plastic films. Once the materials are put into the hopper
the screw can automatically press the materials into the machinenot only saving labor, but also improving work efficiency.
The feeding machine is used for plastic films. Once the materials are put into the hopper
the screw can automatically press the materials into the machinenot only saving labor, but also improving work efficiency.
Extruder machine
The screwmade of 42GRMO materialgoes through high frequency heat treatment.
The screw barrel is made of 45# carbon steel material,and the inner wall goes through high frequency heat treatment and fine grinding
Extruder reducer is a transmission part with
high precision hard tooth surface and thrust
seat designed for plastic screw extruder. Product
design adoptsJB/T8853-2001technical specifications
The screw barrel is made of 45# carbon steel material,and the inner wall goes through high frequency heat treatment and fine grinding
Extruder reducer is a transmission part with
high precision hard tooth surface and thrust
seat designed for plastic screw extruder. Product
design adoptsJB/T8853-2001technical specifications
Screen change filter die head
The double station hydraulic filter die head
wich connects the screw endfilters the impurities in the material. The design of double mesh plate makes left and right channels switched freely achieving non-stop net change ensuring easy operation and saving time and effort.
wich connects the screw endfilters the impurities in the material. The design of double mesh plate makes left and right channels switched freely achieving non-stop net change ensuring easy operation and saving time and effort.
Cooling drying system
The water cooling tank is used to cool the hot plastic materials.
The plastic drying machine is used to blow-dry the plastic materials.
The plastic drying machine is used to blow-dry the plastic materials.
Hob pelletizer
Hob pelletizer is suitable for plastic
granulation like PC, ABS, PP, PA,PVC POM, PPR, PBT and other plastics. The use of hob can adjust the size of
granules, which is more convenient than ordinary granulator.
granulation like PC, ABS, PP, PA,PVC POM, PPR, PBT and other plastics. The use of hob can adjust the size of
granules, which is more convenient than ordinary granulator.
Particle storage device
The air blower has high pressure which blows the pellets into the storage silo
The storage silo uses the material of stainless steelhelping to save the time and energy of workers.
The storage silo uses the material of stainless steelhelping to save the time and energy of workers.
Company Profile
Laizhou Kaida Plastic Machinery
The company mainly produces various types of plastic machinery, including plastic granulators, plastic cleaning machines, plastic packaging machines, plastic cutting machines, PVC hard pipe machines, pet bottle and chip cleaning lines, plastic mixing machines,plastic dewatering machines, plastic film blowing machines, drip irrigation belt units, pouring pipe units, automatic hydraulic grinding heads, plastic grinding machines, and other products. The product design is simple and easy to operate, and has high work efficiency. All production processes of our factory's products must undergo quality inspection and testing to ensure product quality.
Successful Project
Project in America
Project in India
Project in Spain
SIMILAR PRODUCTS
FAQ
Q:All of your products are made by your self or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clientsalso we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
Q: Are you trading company or manufacturer?
A:We are factoryWe have the technical production teamand the workers are all very experienced.
