Двухступенчатая линия гранулирования экструдера для компаундирования кабельного материала из ПВХ / маточной смеси
- Категория: Plastic Raw Material Machinery >>>
- Поставщик: Nanjing,Gs-Mach,Extrusion,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 164220.91 $* | 172431.98 $* |
| Aug-15-2025 | 162840.39 $* | 170982.72 $* |
| Jul-15-2025 | 136620.30 $* | 143451.86 $* |
| Jun-15-2025 | 160080.93 $* | 168084.28 $* |
| May-15-2025 | 139380.15 $* | 146349.54 $* |
| Apr-15-2025 | 157320.3 $* | 165186.28 $* |
| Mar-15-2025 | 155940.97 $* | 163737.89 $* |
| Feb-15-2025 | 154560.69 $* | 162288.89 $* |
| Jan-15-2025 | 153180.60 $* | 160839.20 $* |
Характеристики
Product Description
PVC Granule Making Machine PVC 80% Caco3 Filler Masterbatch Production Line Plastic Granule Making Machine

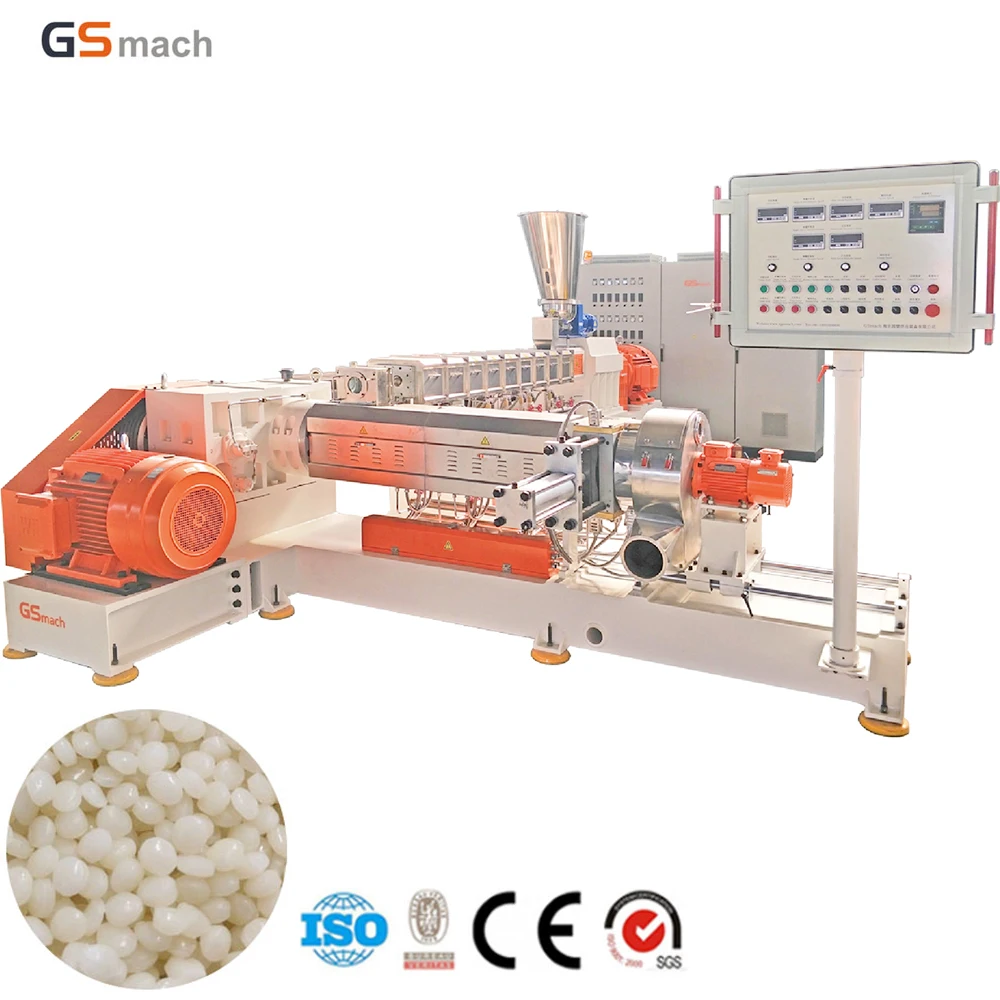

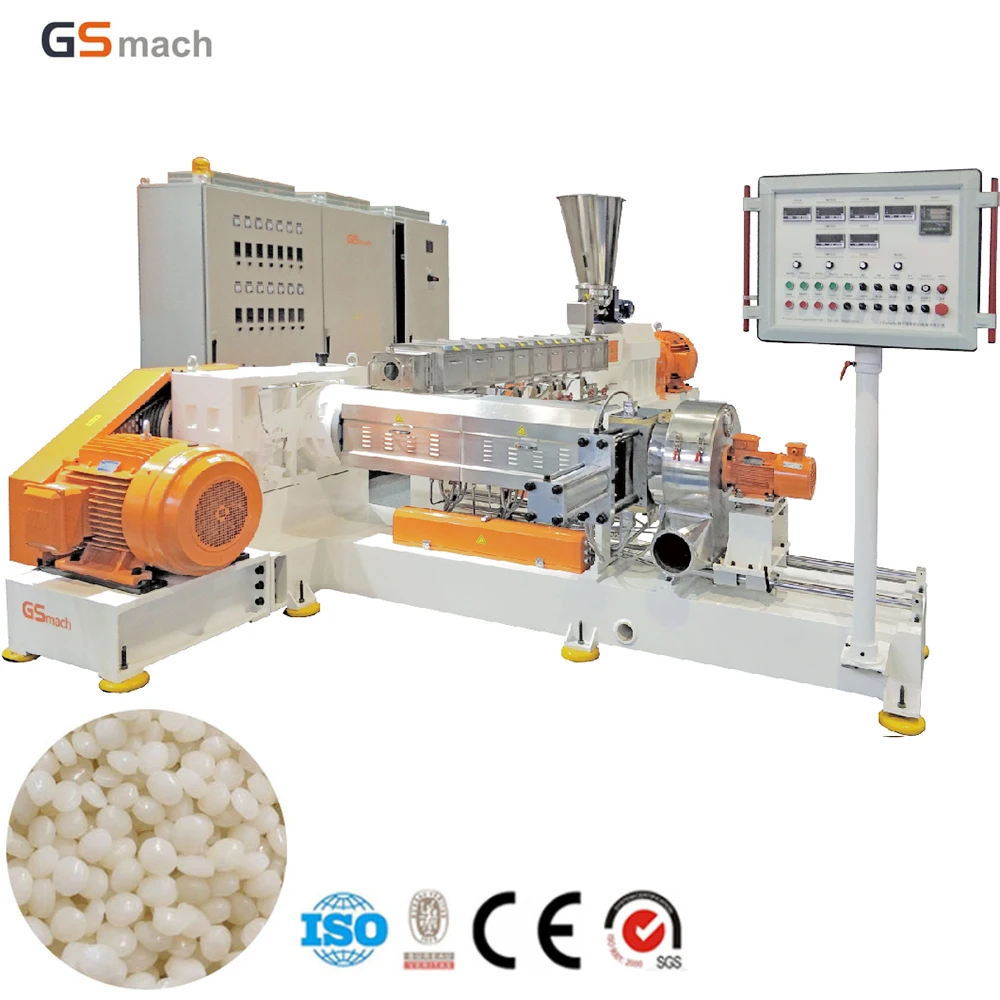

The first twin screw compounding extruder runs at a high speed for good mixing and high output capacity. The second extruder must be a larger diameter single screw one that can run at lower screw speed. The lower screw can avoid over-heating by internal cooling system and strong heat exchange ability. The functional separation allows operator to more flexibly control the expectable material mixing process and temperature.
Capacity can reach 100-1200kg/h, raw material PVC powder mixed with other chemical materials, such as CACO3 ect. Final PVC granules can be used to make soft PVC garden watering hose, electric cables, etc.
Two stage hot cutting line include following machine:
1000L High Speed Mixer---Spiral Load Feeder---GS95 Twin Screw Extruder---GSD200 Single Screw Extruder---Air Cooling Hot Cutting System.
Detailed Images
------Capacity: 1000L
------Working capacity: 800L
------Mixing blade: 3pc
------Mixing blade material: SUS
------Rotating speed: 1480/min
------Mixing time: 8-10min/batch
------The spiral load feeder is used for conveying the mixed materials from the high speed mixer to the main extruder.
------This is very convenient to load the materials automatically, no need to load by staff.
------This is very convenient to load the materials automatically, no need to load by staff.
------Twin screw extruder is for the second mixing and dispersion function.
------Single screw extruder is for the third mixing and dispersion function.

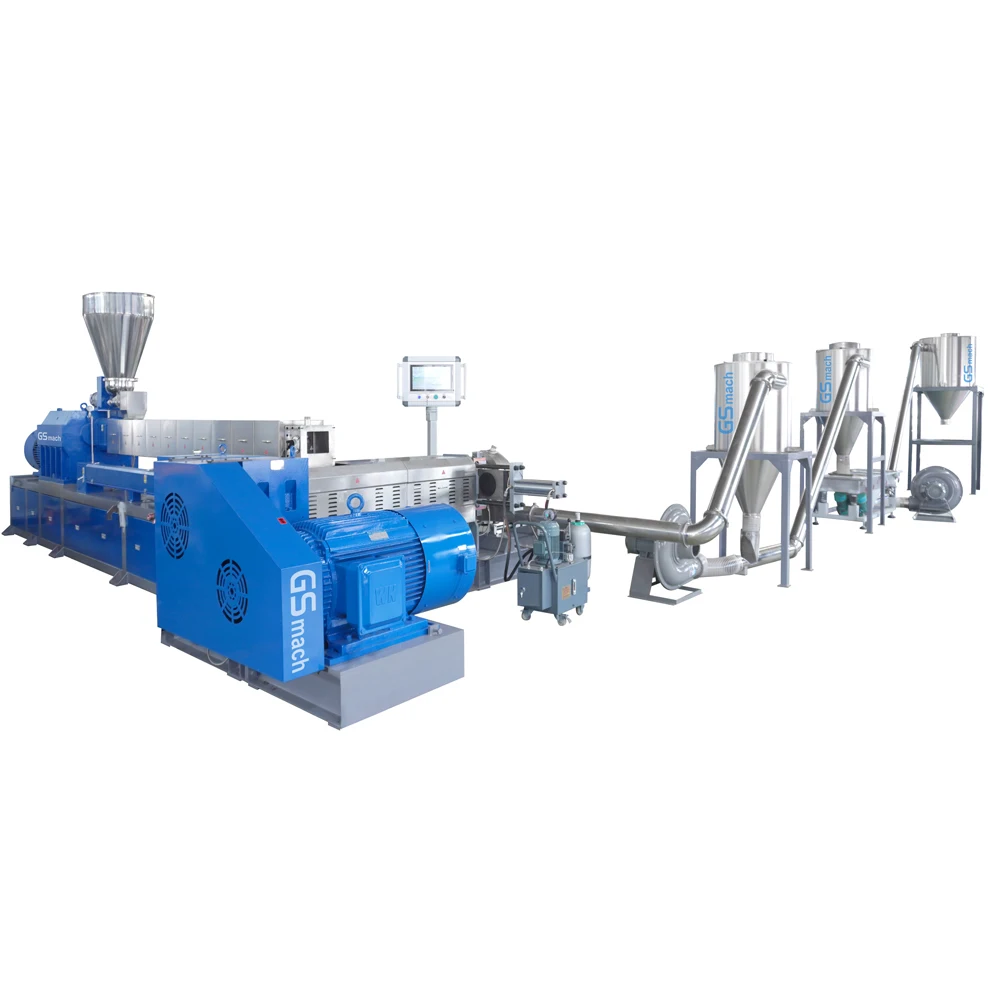

Machine part: Air Cooling Hot Cutting System
------Die face pelletizer: 2.2kw
------Cover: stainless steel, one set
------First cyclone separator : φ800m, stainless steel; φ160mm stainless steel pipes; flange connector; blower 7.5kw.
------Second cyclone separator:φ800m, stainless steel; φ160mm stainless steel pipes;flange connector; blower 5.5kw.
------Silo box:1m3;stainless steel; stainless steel pipes; flange connector; blower 4kw.
------Cover: stainless steel, one set
------First cyclone separator : φ800m, stainless steel; φ160mm stainless steel pipes; flange connector; blower 7.5kw.
------Second cyclone separator:φ800m, stainless steel; φ160mm stainless steel pipes;flange connector; blower 5.5kw.
------Silo box:1m3;stainless steel; stainless steel pipes; flange connector; blower 4kw.
(Reference layout)
Application
Suitable For
------Carbon black granules
------PVC cable, transparent bottle material & medical pipe material
------PE silane-crosslinked & peroxide crosslinked cable material
------Plastic and wood powder compound
------Thermo-sensitive polymer
------With such features as low power consumption, high output and fine product quality, the machine is especially suitable for producing thermo-sensitive material such as PVC, XLPE
------Carbon black granules
------PVC cable, transparent bottle material & medical pipe material
------PE silane-crosslinked & peroxide crosslinked cable material
------Plastic and wood powder compound
------Thermo-sensitive polymer
------With such features as low power consumption, high output and fine product quality, the machine is especially suitable for producing thermo-sensitive material such as PVC, XLPE
Model | L/D | Rotary Speed (rpm) | Motor (kw) | Output (kg/h) | ||
GS50/100 | GS 50 | 24-48 | 500-600 | 45 | 100-200 | |
GSD 100 | 7-15 | 60/85 | 37 | |||
GS65/150 | GS 65 | 24-48 | 500-600 | 75 | 200-400 | |
GSD 150 | 7-15 | 60/85 | 55 | |||
GS75/180 | GS 75 | 24-48 | 500-600 | 110 | 400-800 | |
GSD 180 | 7-15 | 60/85 | 75 | |||
GS95/200 | GS 95 | 24-48 | 500-600 | 250 | 800-1200 | |
GSD 200 | 7-15 | 60/85 | 90 | |||
