DOWEM возобновляемая энергия солнечная панель система питания переменного тока прайс-лист от производителя для
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Aigell,Watches,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.54 $* | 0.87 $* |
| Aug-17-2025 | 0.78 $* | 0.80 $* |
| Jul-17-2025 | 0.81 $* | 0.25 $* |
| Jun-17-2025 | 0.63 $* | 0.85 $* |
| May-17-2025 | 0.6 $* | 0.72 $* |
| Apr-17-2025 | 0.50 $* | 0.85 $* |
| Mar-17-2025 | 0.35 $* | 0.51 $* |
| Feb-17-2025 | 0.87 $* | 0.94 $* |
| Jan-17-2025 | 0.70 $* | 0.31 $* |
Характеристики

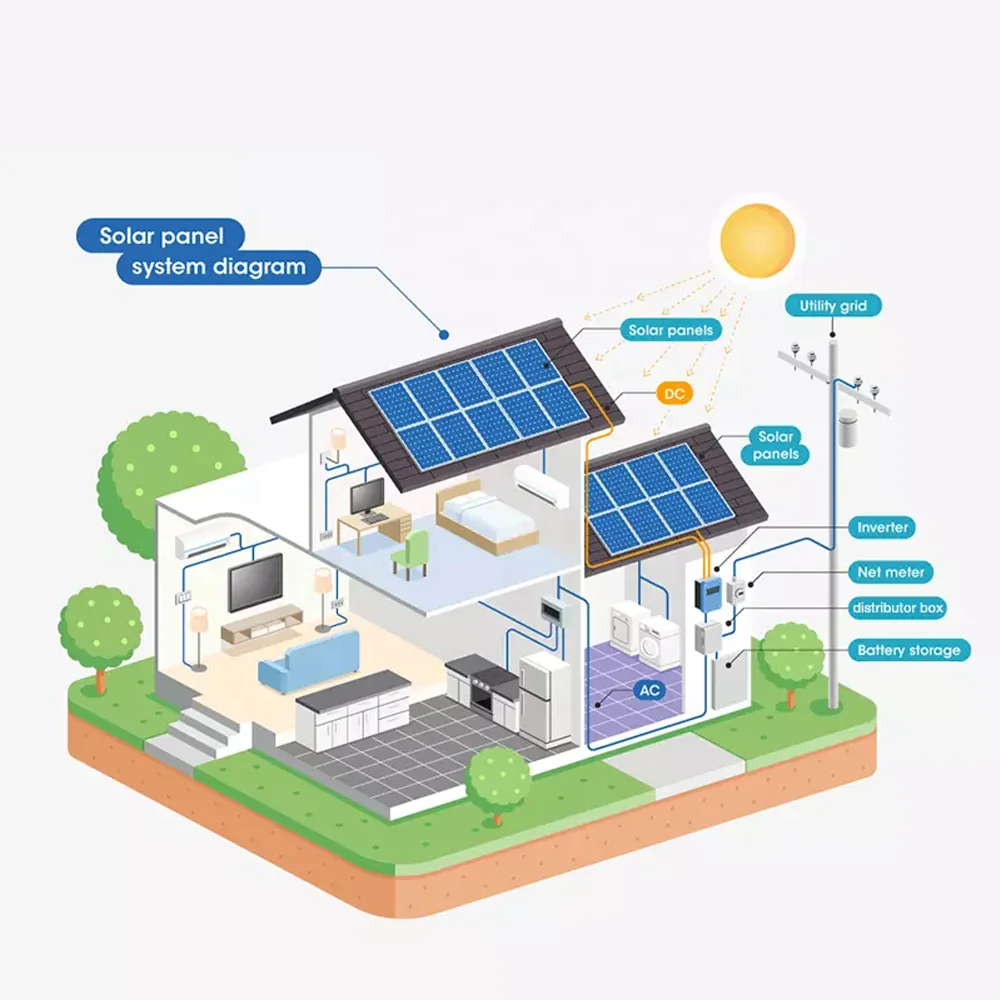

System Show

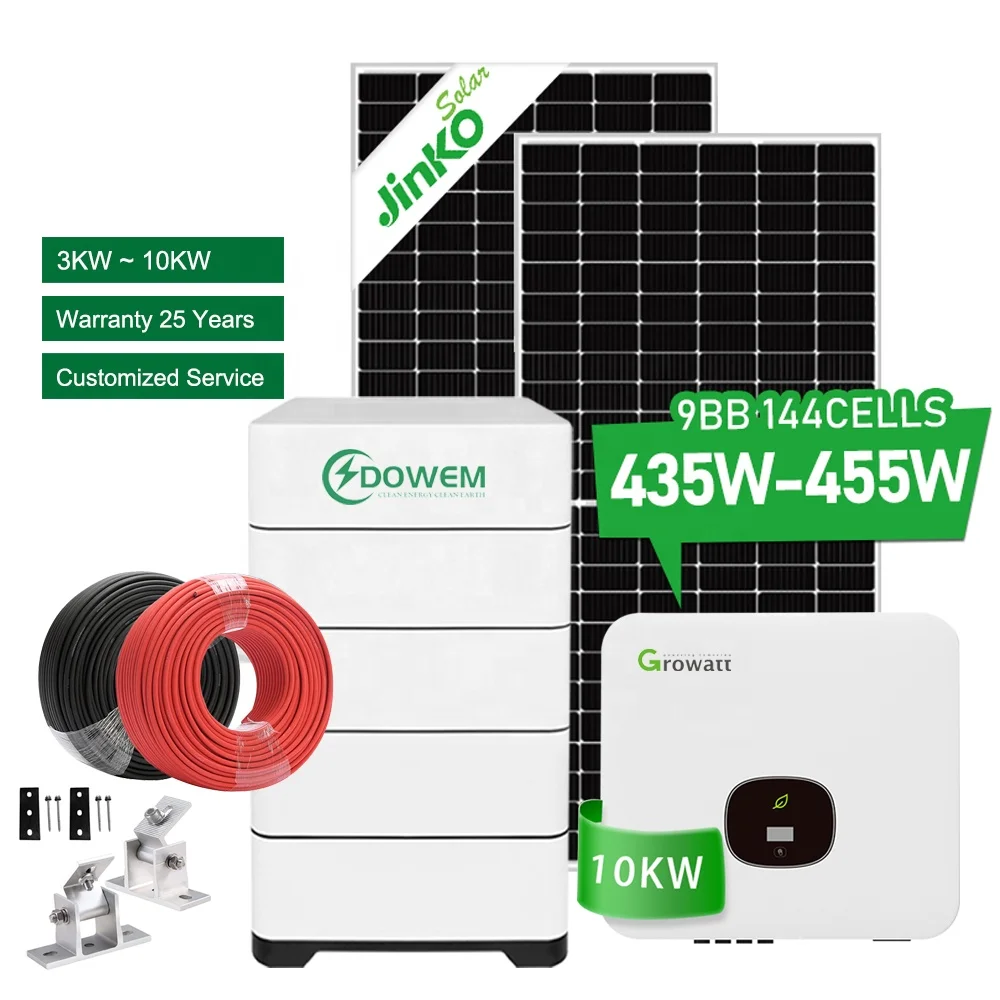

System Components

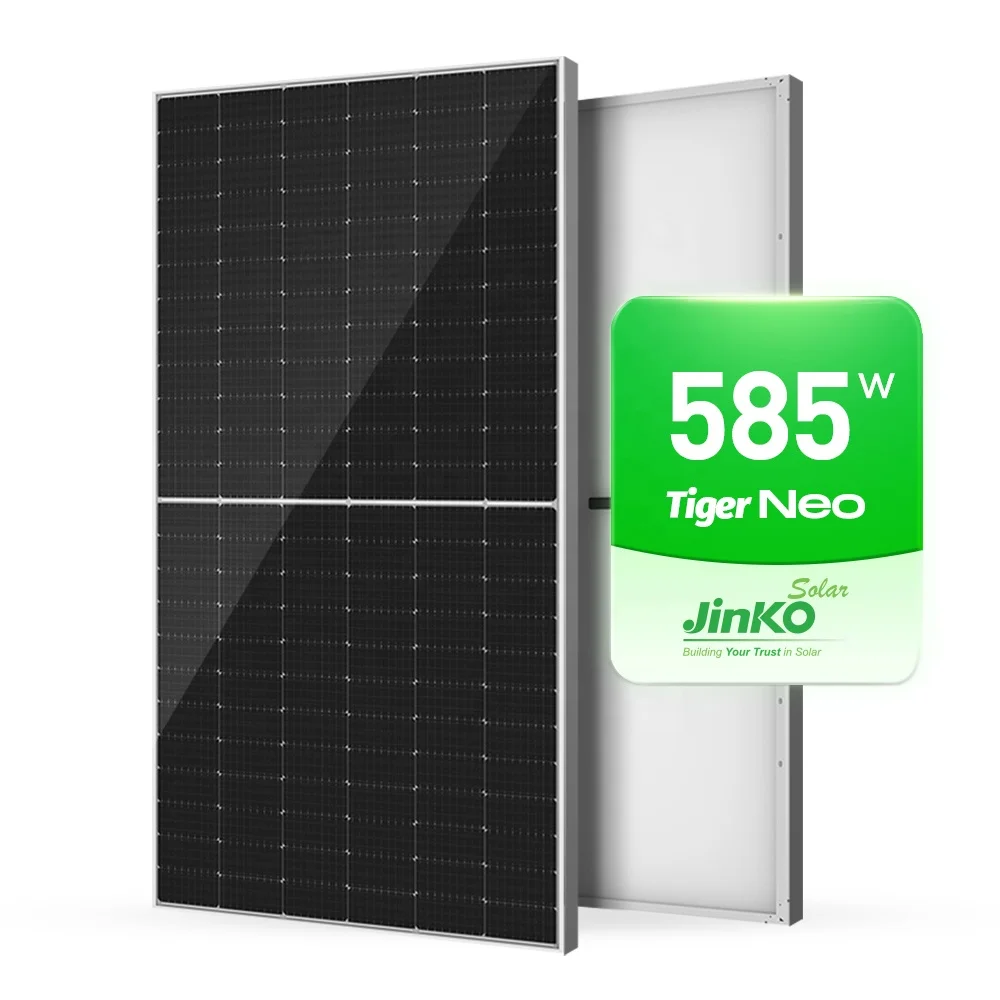

Mono Solar Panels
Custom solar panels with different watts based on your requirements
Power Watts: 550W ~ 570WGrowatt Solar Inverter
Growatt 3KW 5KW 8KW 10KW 30KW Growatt Hybrid Inverter On/Off Grid Inverter Solar Single or Three Phase Hybrid Solar Inverter

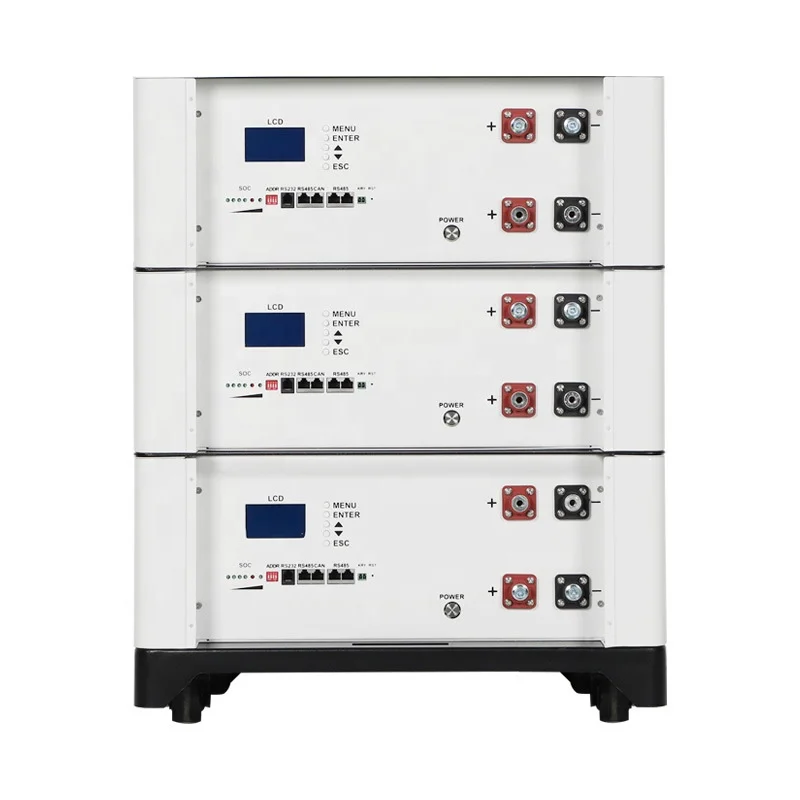

LiFePO4 lithium battery
Residential Use Stackable Battery Pack Rechargeable Lifepo4 Energy Storage System All In One Stack With Lifepo4 Battery 20kwh
Product Model | DW5KW-HY | DW8KW-HY | DW10KW-HY | DW12KW-HY | ||||
PV System Size Nominal (kWp) | 5.5 | 8.8 | 11 | 13.2 | ||||
PV MODULE SPECIFICATIONS (half cell mono) | ||||||||
Power (W) | 550 | |||||||
Vmp (V) | 41.96 | |||||||
Dimensions (L x W x H) (mm) | 2279*1134x35 | |||||||
Certififications | CE / TUV (IEC 61215 & IEC 61730) | |||||||
INVERTER SPECIFICATIONS | ||||||||
Inverter Size (kW) | 5 | 8 | 10 | 12 | ||||
Max DC Power (W) | 6500 | 10400 | 13000 | 15600 | ||||
Max DC Voltage (V) | 500 | 1000 | ||||||
MPPT Voltage Range(V) | 150-425 | 125-425 | 200-650 | 200-650 | ||||
Output Voltage | 220,230Vac | 220/380,230/400Vac | ||||||
UPS (Off Grid Model with Battery) | ||||||||
Rated Power (VA) | 5000 | 8000 | 10000 | 12000 | ||||
Max DC Charge/Discharge Current(A) | 120 | 190 | 210 | 240 | ||||
Max Power(W)for 10 Seconds | 7500 | 12000 | 15000 | 18000 | ||||
BATTERY BANK SPECIFICATIONS | ||||||||
Battery Type | Li-Ion(LifePO4) | |||||||
Total Batteries | 1 | 2 | 3 | 4 | ||||
Battery Bank Power(kWh) | 4.8 | 9.6 | 14.4 | 19.2 | ||||
Battery Voltage (V) | 48 | |||||||
Battery Current(Ah) | 100 | |||||||
Number of PV Modules | 10 | 16 | 20 | 24 | ||||
Packing & Shipping
Our Factory
Why Choose Us
DOWEM SOLAR SYSTEM MANUFACTURER
When it comes to solar energy systems, choosing the right manufacturer and partner is crucial for success. At Dowem Solar, We are proud to develop to rank 7th in the solar energy industry with a strong R&D team and experienced engineering professionals.
Our Partners
Get Free Quote Now

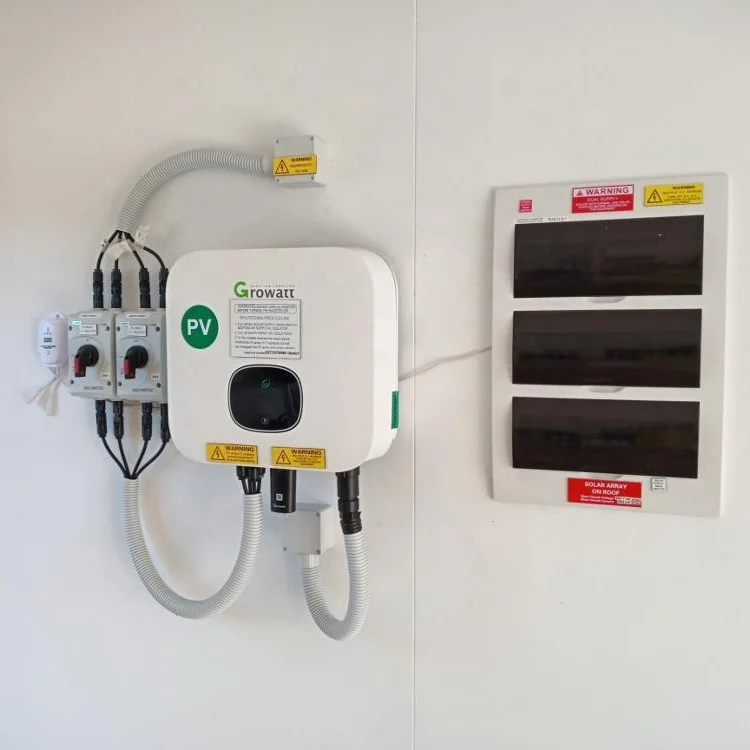

Project Cases
