Адаптер с микропредохранителем 32 В

Описание и отзывы

Трекер стоимости

Характеристики

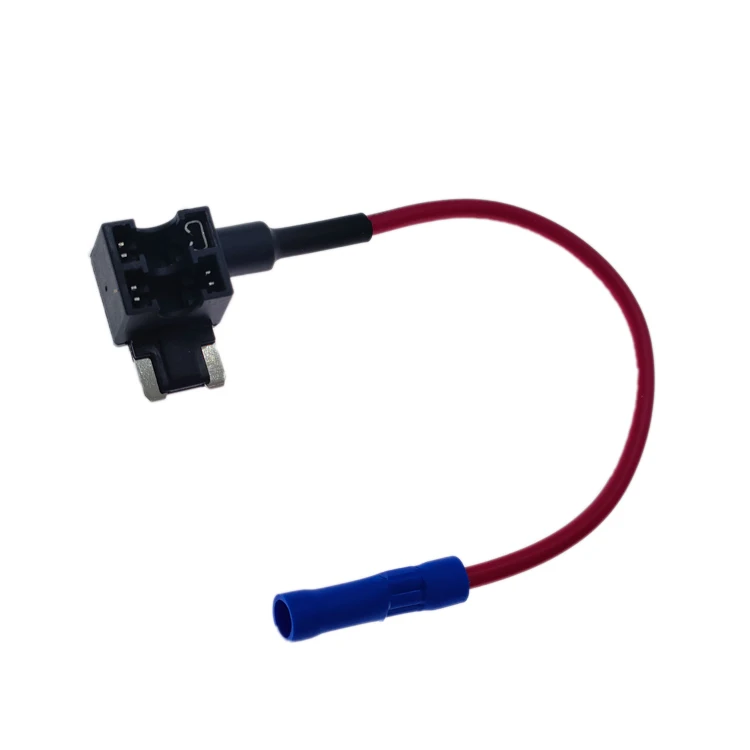

FUSE TAP ADD A CIRCUIT ATM ATT APS ACN LOW PROFILE MINI MICRO FUSE BLADE HOLDER ADAPTER 32V 24V 12V Piggy-Back

VARIOUS APPLICATIONS: Gives you the positive side of your battery so you can hardwire a 12V radio, LED light strip, radar detector, dash cam, GPS, backup camera, USB charger, or any other small electronic device that requires direct wiring into the fuse box (fuse to factory fuse panel) without needing to cut or splice; If replacing a radio, use the existing radio wiring.

1) INSTALL DEVICES WITHOUT SPLICING: Add devices and accessories to your car or any vehicle with compatible sized fuses without cutting into wires; Designed to allow you to turn 1 fuse slot into 2 while providing protection for both circuits; Tap the fuse box to power additional electronic devices with no need to cut or splice; Use this to add a circuit without cutting into your wire harness; Easier to access and to know which circuit you are on than tapping into difficult existing lines

2) FITS YOUR VEHICLE: Designed for use with ATM low profile mini blade fuse holders with a wider center than normal mini fuses (metal contacts are on the side of the fuse as opposed to having metal legs); Fits a low-profile mini fuse slot, trade # APS, (fuse slots in the adapter take regular ATM mini-fuses); Not intended for ATC fuses or fuse blocks that have recessed fuses

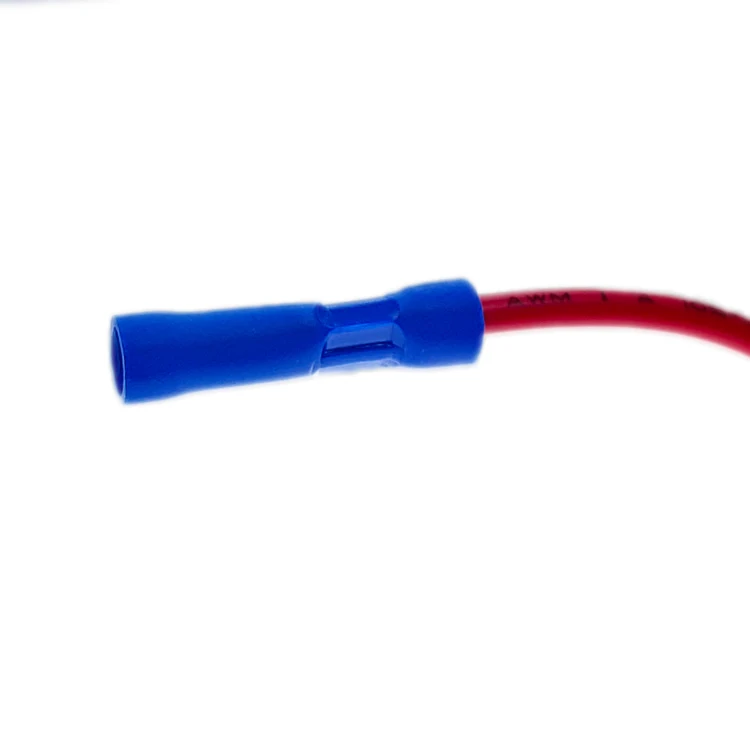

3) BUILT TO LAST: Adapter has a 6-inch (15.2cm) wire/cable; Butt splice connector on the non-fuse side of the wire is a 16-gauge connector for maximum strength and longevity; Fuse is preinstalled for quick and easy use (during use, we recommend using a multimeter to verify correct orientation)

 Use when hardwiring or adding LED strips, dash cams or other electronic devices that require direct wiring into the fuse box

 1.Electrical Characteristics



Series	ACN
Contact	Copper
Fit fuse	Mini blade fuse
Wire gauge	14~22AWG
Lead length	150mm typical(customized)
Termination	Bullet head or blue head



2.How to Use
Remove the fuse from the slot you want to use
Put that fuse into the empty slot on the fuse tap
Then insert the fuse tap into the now-empty slot from the car fuse panel



3.Advantages

Circuit Protection:This dual-slot add-a-circuit fuse holder provides a fuse slot for the existing OEM circuit and a second slot with a 15A blade fuse for a new circuit.

Superior Quality:Made of high quality nylon plastic, anti-wear and anti-corrosion, very sturdy and durable; thermoplastic-insulated wire is high temperature and melting resistant.

Convenient to Use:This high quality add a circuit fuse kit allows easy installation of additional circuits. No spicing or wire cutting necessary. Just plug it into fuse block slot.

Premium Wire"Made from high quality materials, good bending performance, melting resistance and excellent electrical conductivity



4. Overview

Fuse Type	Mini (APM/ATM)	Mini (APM/ATM)	Mini (APM/ATM)	Standard (APR/ATC/ATO/ATS)	Micro2(APT/ATR)	Standard (APR/ATC/ATO/ATS);Mini (APM/ATM) ;Low Profile Mini(APS/ATT);Micro2(APT/ATR)
Cable Size	/	/	16 AWG	16 AWG	16 AWG	16 AWG
Function	Circuit Protection	Circuit Protection and Add-a-circuit	Add-a-circuit	Add-a-circuit	Add-a-circuit	Add-a-circuit
Input Voltage	12V-24V DC	12V-24V DC	12V-24V DC	12V-24V DC	12V-24V DC	12V-24V DC
Current Rating	5Amp-30Amp	1Amp-30Amp	1Amp-30Amp	1Amp-30Amp	1Amp-30Amp	1Amp-30Amp
Application	For most US/Japan car brands	For most US/Japan car brands	For fuse box with mini fuse slots	For fuse box with standard fuse slots	For fuse box with Micro2 fuse slots	For fuse box with Micro2,mini,lp mini and standard fuse slots





5. Drawing
