Новый оригинальный держатель предохранителя с дополнительной схемой адаптер для крана 150 мм мини-банкоматного автомата


Поделиться:


Цена:0,23 $ - 0,30 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.92 $* 0.35 $*
Aug-15-2025 0.93 $* 0.43 $*
Jul-15-2025 0.72 $* 0.49 $*
Jun-15-2025 0.37 $* 0.55 $*
May-15-2025 0.71 $* 0.23 $*
Apr-15-2025 0.66 $* 0.86 $*
Mar-15-2025 0.18 $* 0.20 $*
Feb-15-2025 0.37 $* 0.70 $*
Jan-15-2025 0.0 $* 0.88 $*

Характеристики

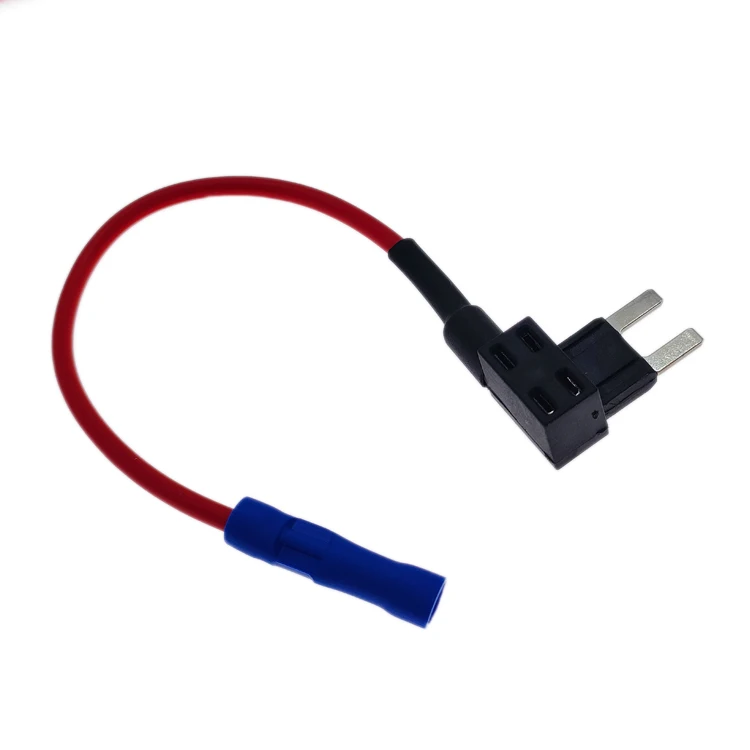

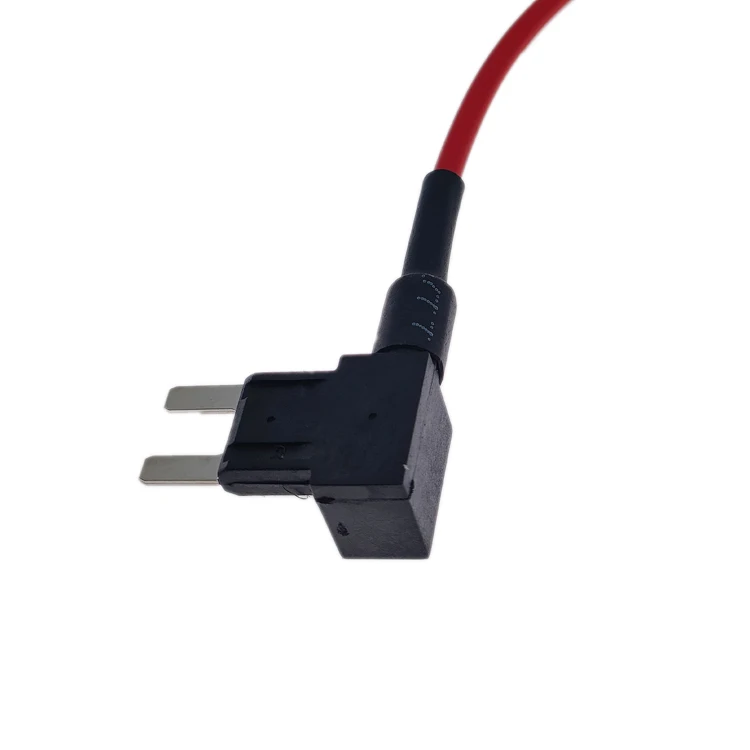

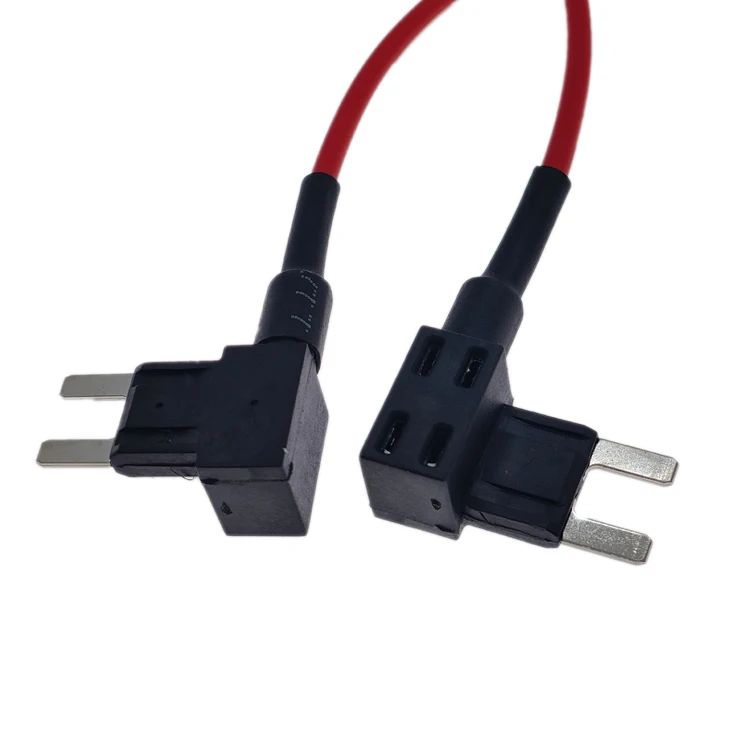

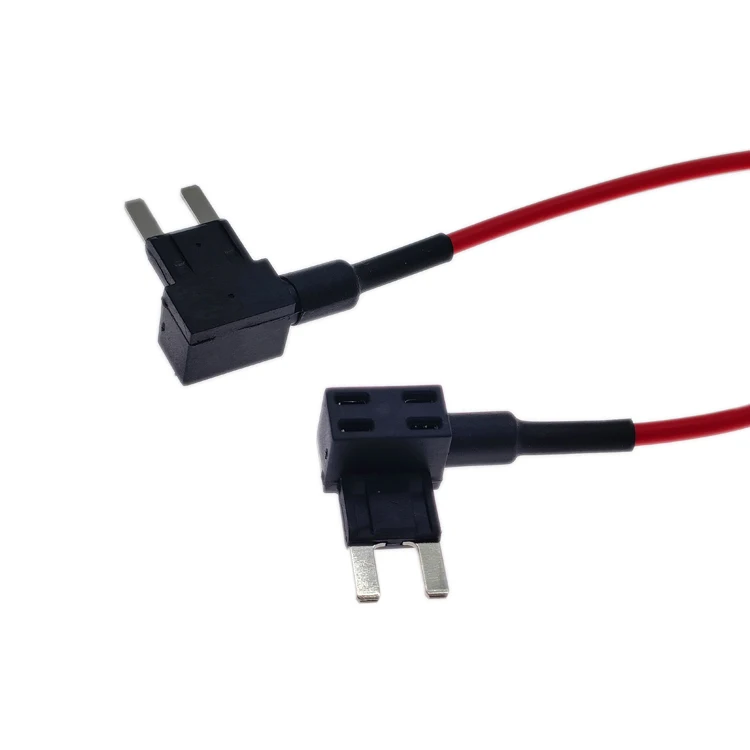

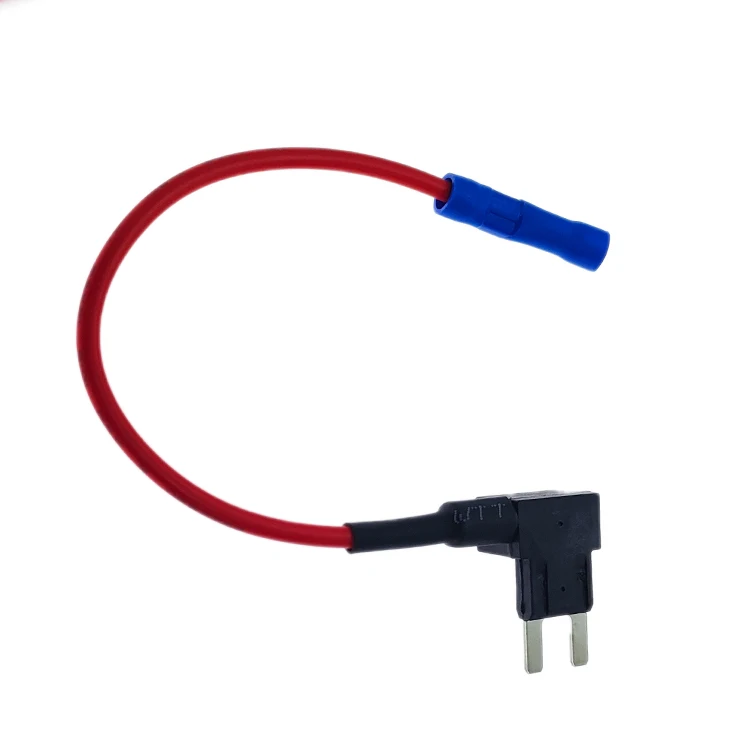

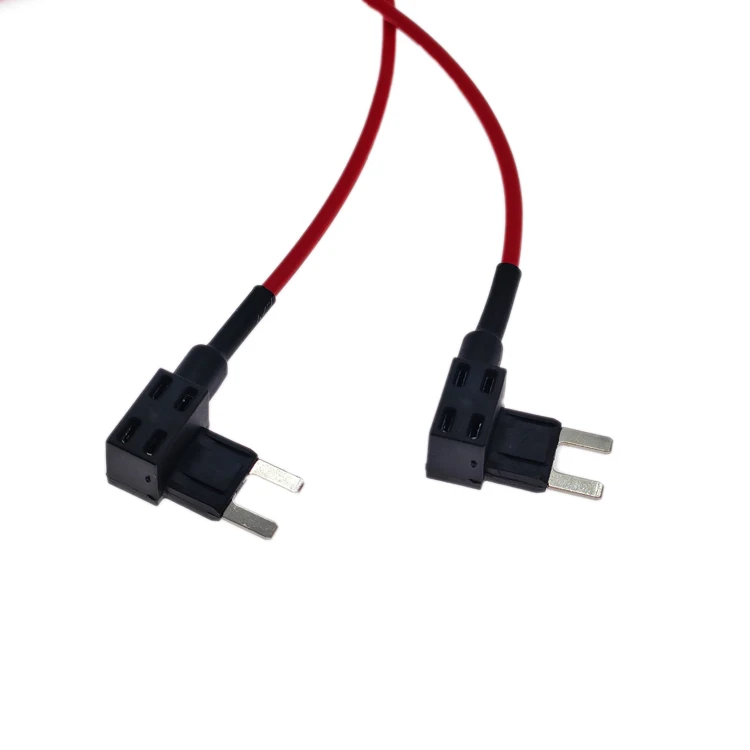

NEW ORIGINAL Fuse Holder Add-a-circuit Fuse TAP Adapter ACS 150mm For Mini ATM APM Automotive Blade Fuse


DESCRIPTION


Ampfort series add-a-fuse holders safely and easily double your fusible circuits.


With the AMPFORT add-a-fuse, you can easily convert an existing fuse holder into two fusible circuits for protecting items such as car stereos, portable navigation systems and other add-on accessories up to 10 amps.Add-a-fuse help provide a safe, cost-effective alternative to splicing electrical wires, and do not disrupt existing circuits.The addition of the AMPFORT ACS add-a-fuse holders continue to build on our legacy of offering cutting edge circuit protection technology.These new add-a-fuse holders tap into the growing demand of using smaller and lighter-weight fuses to reduce the amount of space and weight added to your vehicle when protecting your valuable automotive accessories.


AOO (2)AOO (1)


FEATURES


• High temperature performance wire rated for 105C.
• Superior electrical safety by providing a fused circuit for additional loads.
• Environmentally friendly plastic body is free of phosphorous, halogens and heavy metals.
• Quality construction consists of tin-plated copper alloy contacts and 16AWG wire gauge.


application


 Use when hardwiring or adding LED strips, dash cams or other electronic devices that require direct wiring into the fuse box


APP (2)APP (1)


SPECIFICATION


 1.Electrical Characteristics
































SeriesACS
Contact Copper
Fit fuseMini blade fuse
Wire gauge14~22AWG
Lead length150mm typical(customized)
TerminationBullet head or blue head




2.How to Use
Remove the fuse from the slot you want to use
Put that fuse into the empty slot on the fuse tap
Then insert the fuse tap into the now-empty slot from the car fuse panel





3.Advantages


Circuit Protection:This dual-slot add-a-circuit fuse holder provides a fuse slot for the existing OEM circuit and a second slot with a 15A blade fuse for a new circuit.


Superior Quality:Made of high quality nylon plastic, anti-wear and anti-corrosion, very sturdy and durable; thermoplastic-insulated wire is high temperature and melting resistant.


Convenient to Use:This high quality add a circuit fuse kit allows easy installation of additional circuits. No spicing or wire cutting necessary. Just plug it into fuse block slot.


Premium Wire"Made from high quality materials, good bending performance, melting resistance and excellent electrical conductivity





4. Overview



























































Fuse TypeMini (APM/ATM)Mini (APM/ATM)Mini (APM/ATM)Standard (APR/ATC/ATO/ATS)Micro2(APT/ATR)Standard (APR/ATC/ATO/ATS);Mini (APM/ATM) ;Low Profile Mini(APS/ATT);Micro2(APT/ATR)
Cable Size//16 AWG16 AWG16 AWG16 AWG
FunctionCircuit ProtectionCircuit Protection and Add-a-circuitAdd-a-circuitAdd-a-circuitAdd-a-circuitAdd-a-circuit
Input Voltage12V-24V DC12V-24V DC12V-24V DC12V-24V DC12V-24V DC12V-24V DC
Current Rating5Amp-30Amp1Amp-30Amp1Amp-30Amp1Amp-30Amp1Amp-30Amp1Amp-30Amp
ApplicationFor most US/Japan car brandsFor most US/Japan car brandsFor fuse box with mini fuse slotsFor fuse box with standard fuse slotsFor fuse box with Micro2 fuse slotsFor fuse box with Micro2,mini,lp mini and standard fuse slots

COMMON FUSE TAP





5. Drawing


ACS ACN ACW 3ACZ MINIACU  ACW2 3
