Солнечная Панель зарядное устройство для мобильных устройств Trina Longi полностью черные солнечные панели дома Neg9r.28 420 Вт
- Категория: Solar Energy Products >>>
- Поставщик: Lovsun,Solar,Energy,Co.Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.76 $* | 0.79 $* |
| Aug-15-2025 | 0.59 $* | 0.1 $* |
| Jul-15-2025 | 0.98 $* | 0.50 $* |
| Jun-15-2025 | 0.40 $* | 0.24 $* |
| May-15-2025 | 0.5 $* | 0.77 $* |
| Apr-15-2025 | 0.63 $* | 0.37 $* |
| Mar-15-2025 | 0.97 $* | 0.52 $* |
| Feb-15-2025 | 0.28 $* | 0.4 $* |
| Jan-15-2025 | 0.67 $* | 0.40 $* |
Характеристики
Product Description
Trina Technology
Multi-busbar Technology
In comparison with the conventional 5 busbar design, the innovative multi-busbar design on the cell can shorten the current collection transverse path by 50% and thereby reduce remarkably the cell internal resistance, which contributes a 1% - 1.5% increase in the power output compared with 5 busbar design.
The MBB design can also mitigate the performance loss caused by blocked electrical pathways in case of cell microcracks and finger electrode erosion due to external factors.
In comparison with the conventional 5 busbar design, the innovative multi-busbar design on the cell can shorten the current collection transverse path by 50% and thereby reduce remarkably the cell internal resistance, which contributes a 1% - 1.5% increase in the power output compared with 5 busbar design.
The MBB design can also mitigate the performance loss caused by blocked electrical pathways in case of cell microcracks and finger electrode erosion due to external factors.
PERC Technology
PERC Cell
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
Bifacial PERC
For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent
which enable the cell to absorb light and generate electricity from both sides.
For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent
which enable the cell to absorb light and generate electricity from both sides.
Half-cut Technology
Half-cut cell technology is to cut the cell into two seperate parts by mature infrared laser, hence halve the working current. The thermal loss on the ribbon will be remarkably reduced and the module’s power increases by 2%. The reliability of module is also enhanced.
The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.
The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.
Electrical Data

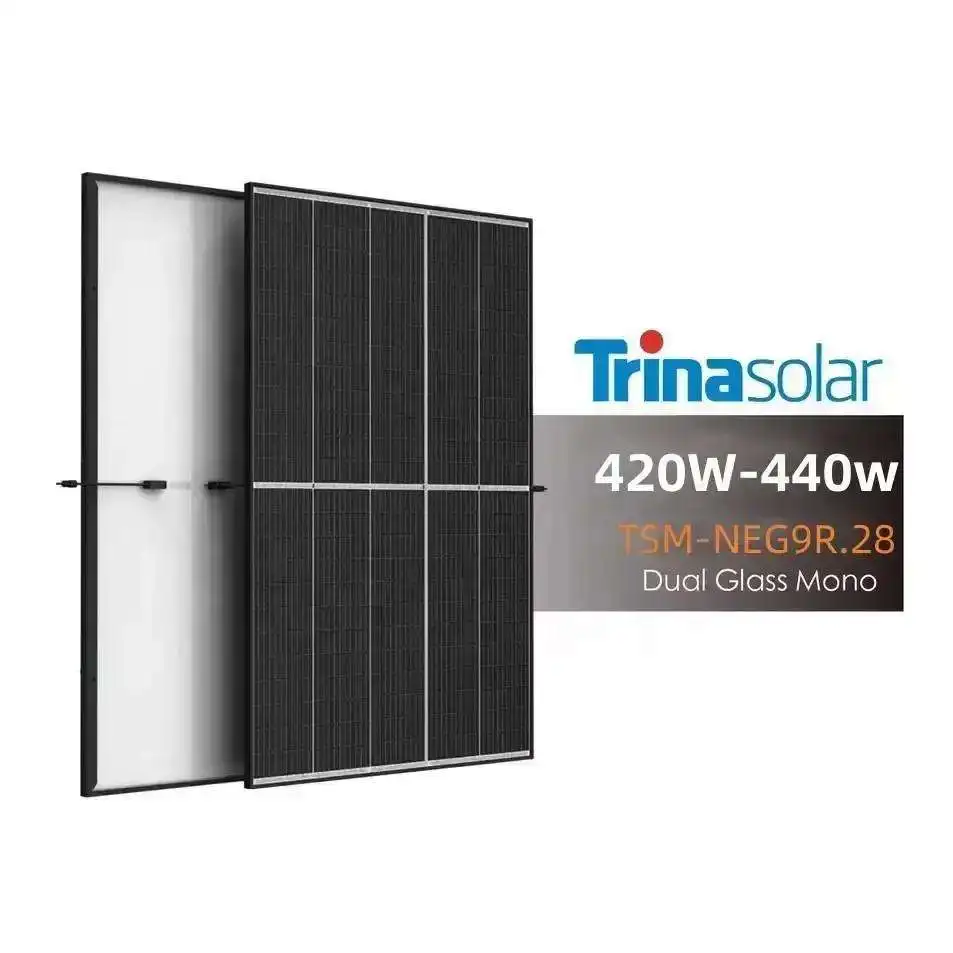

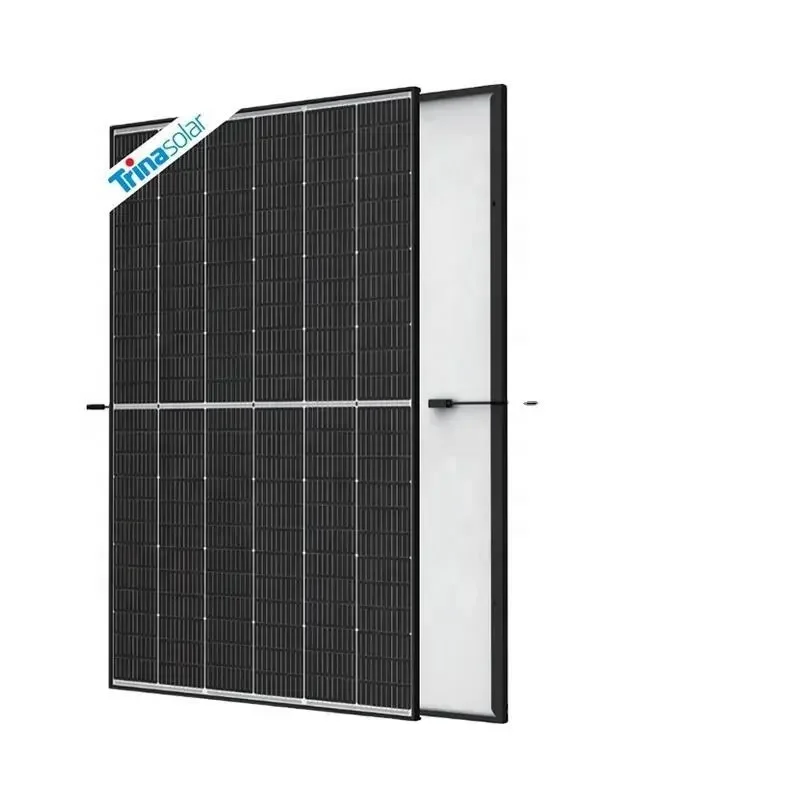

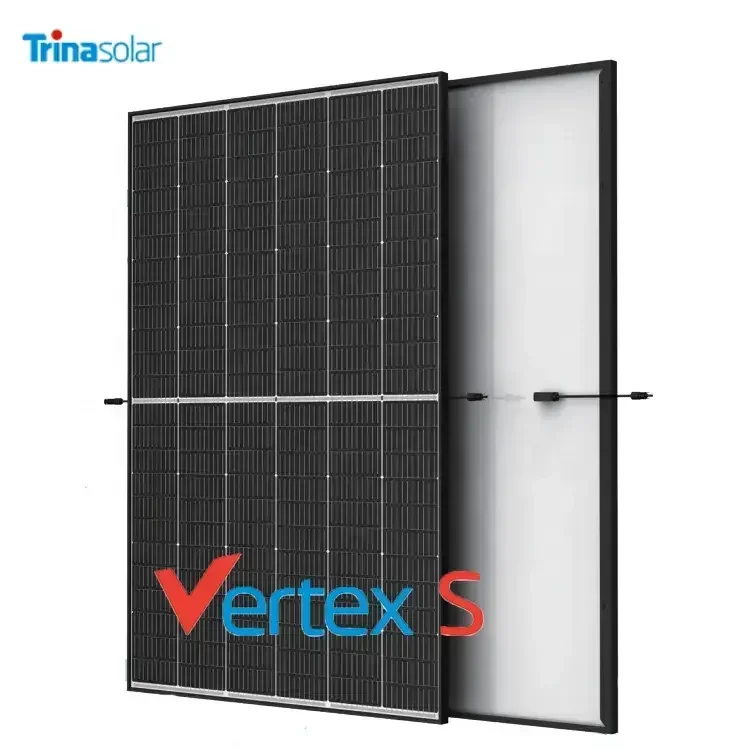

Brand Name | TRINA |
Model Number | TSM-NEG9R.28 420-440w |
Cell size | 182mmx182mm |
Type | Perc half cut cells |
Panel Dimensions | 1762mm*1134mm*30mm |
Panel Efficiency | 22% |
Certificate | TUV/CE |
Warranty | 25 years |
Application | Solar Power System |
Type | Half Cell |
Product name | N-TYPE Mono Solar Panel |
Weight | 21.1kg |
Cell Type | Mono 182mm*182mm |
Cable | 4mm² Length 300mm |
Junction Box | IP68,with Bypass Diodes |
Connector | MC4 Compatiple |
Number of Cells | 144 Half Cells |
Details Images
Trina Factory
Trina Solar has recently built three Vertex Super Factories in Yiwu, Zhejiang, as well as Suqian and Yancheng in Jiangsu, China.By the end of 2020, Trina Solar will see its 210mm Vertex module production capacity exceeding 22GW, and will further shoot over 50GW in 2021 across the globe.
Super Factory, Super IntelligenceHigh Level of Automation and Highly Efficient Productivity

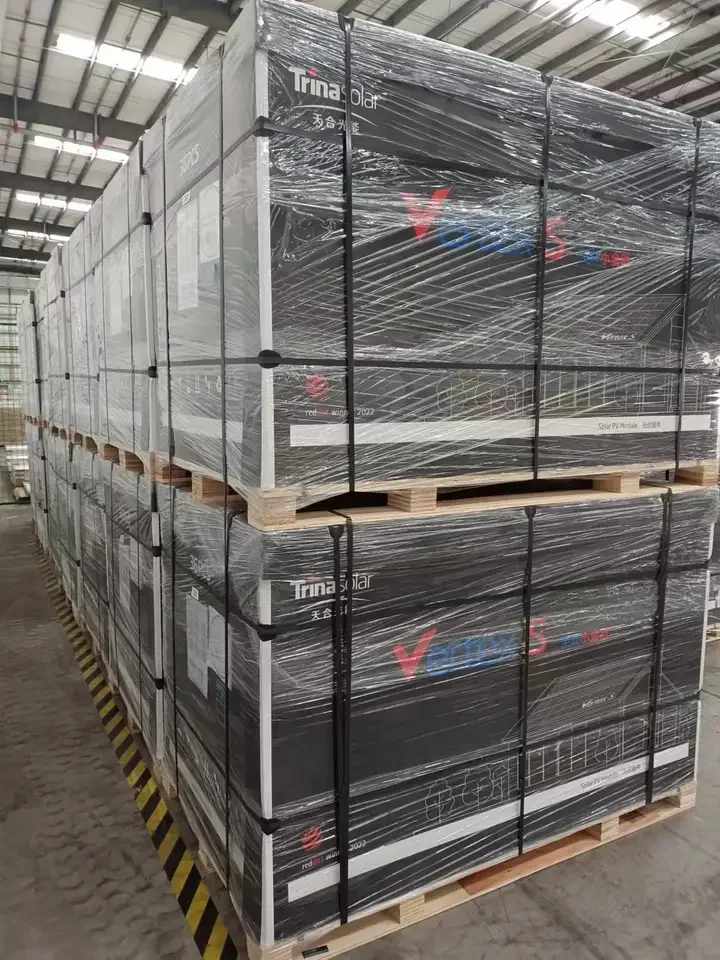

Sharing Data with Customers for Smart Manufacture in the 600W+ eraPacking&Shipping
Trina Projects
