Nema 34 nema 42 двигатель используется 110-220VAC 2DM2280 8A
- Категория: Motor Drivers >>>
- Поставщик: Changzhou,Maples,Precision,Electromechanical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 74.75 $* | 78.15 $* |
| Aug-17-2025 | 73.82 $* | 77.69 $* |
| Jul-17-2025 | 61.15 $* | 64.86 $* |
| Jun-17-2025 | 72.86 $* | 76.91 $* |
| May-17-2025 | 63.99 $* | 66.25 $* |
| Apr-17-2025 | 71.51 $* | 75.57 $* |
| Mar-17-2025 | 70.68 $* | 74.14 $* |
| Feb-17-2025 | 69.51 $* | 72.14 $* |
| Jan-17-2025 | 69.16 $* | 72.19 $* |
Характеристики
nema 34 nema 42 motor used 110-220VAC 2DM2280 8A stepper driver
Product Description
Noted: If you need other motor, please send inquiry to us or contact us directly.
The 2DM2280 is a new generation microstep stepper motor driver.
Due to the adoption of the advanced bipolar constant current chopper
driver technology, it shows stable operation, provides excellent high torque. Moreover, it significantly reduces the noises and
vibration of the operating motor.
driver technology, it shows stable operation, provides excellent high torque. Moreover, it significantly reduces the noises and
vibration of the operating motor.
Features:
2.Built-in high segmentation
3.Low vibration, low heat generation, stable running at low speed
4.Medium and high torque compensation
5.Current vector control, high current efficiency
6.Built-in acceleration and deceleration control to improve start–stopsmoothness
7.Single and double pulse control mode can be selected
8.Motor running position memory
9.Input signal differential optocoupler isolation, compatible with 5V-24V
10.User-defined segmentation
11.Convenient current and subdivision setting
12.Green light means running, red light means protection or offline
13.Green light means running while red light means protection or off line
1.Parameter auto–tuning, motor adaptive
2.Built-in high segmentation
3.Low vibration, low heat generation, stable running at low speed
4.Medium and high torque compensation
5.Current vector control, high current efficiency
6.Built-in acceleration and deceleration control to improve start–stopsmoothness
7.Single and double pulse control mode can be selected
8.Motor running position memory
9.Input signal differential optocoupler isolation, compatible with 5V-24V
10.User-defined segmentation
11.Convenient current and subdivision setting
12.Green light means running, red light means protection or offline
13.Green light means running while red light means protection or off line

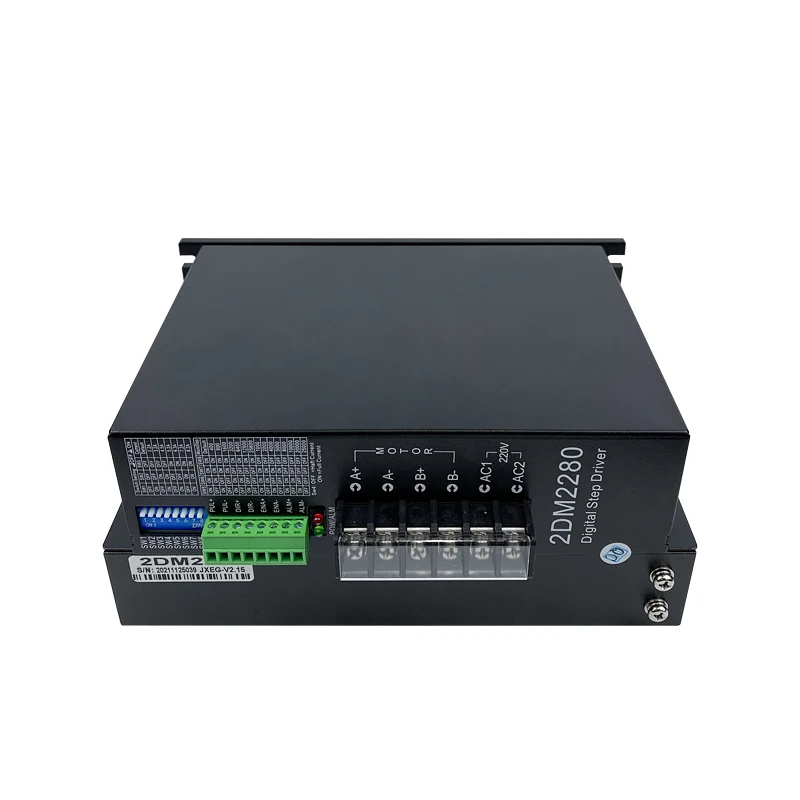

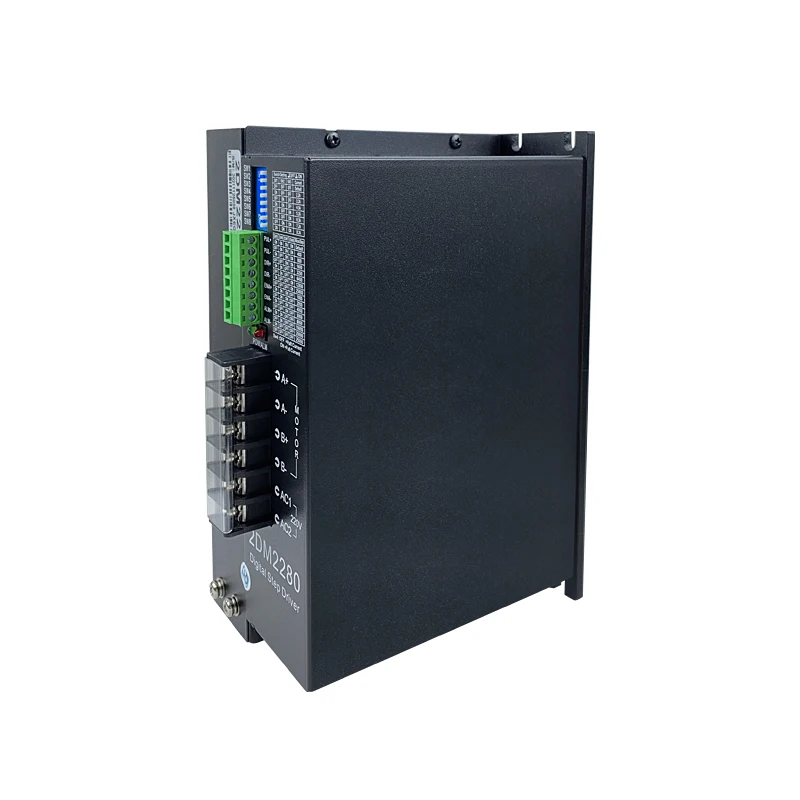

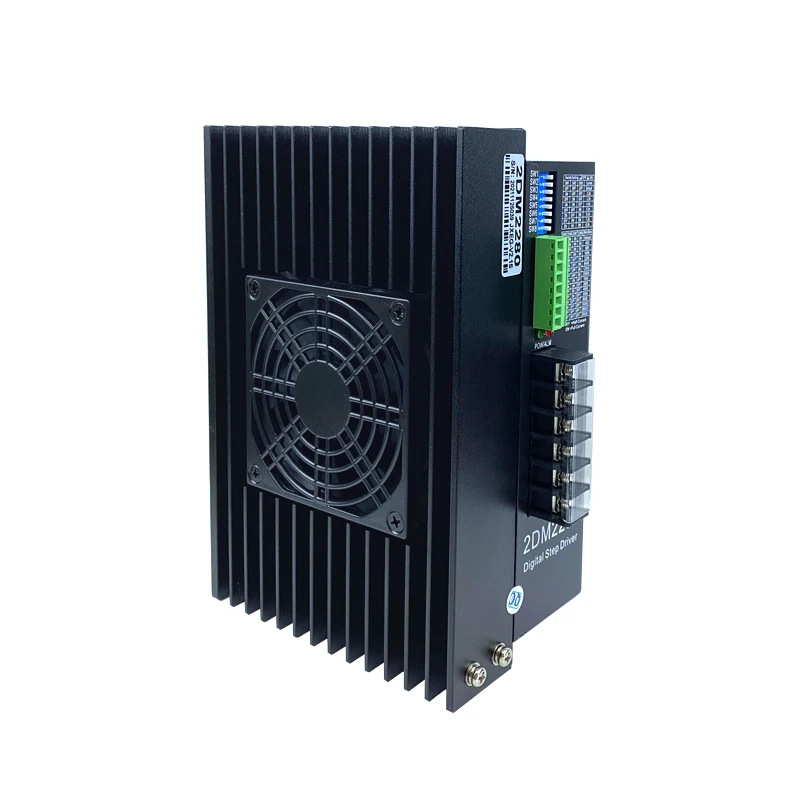

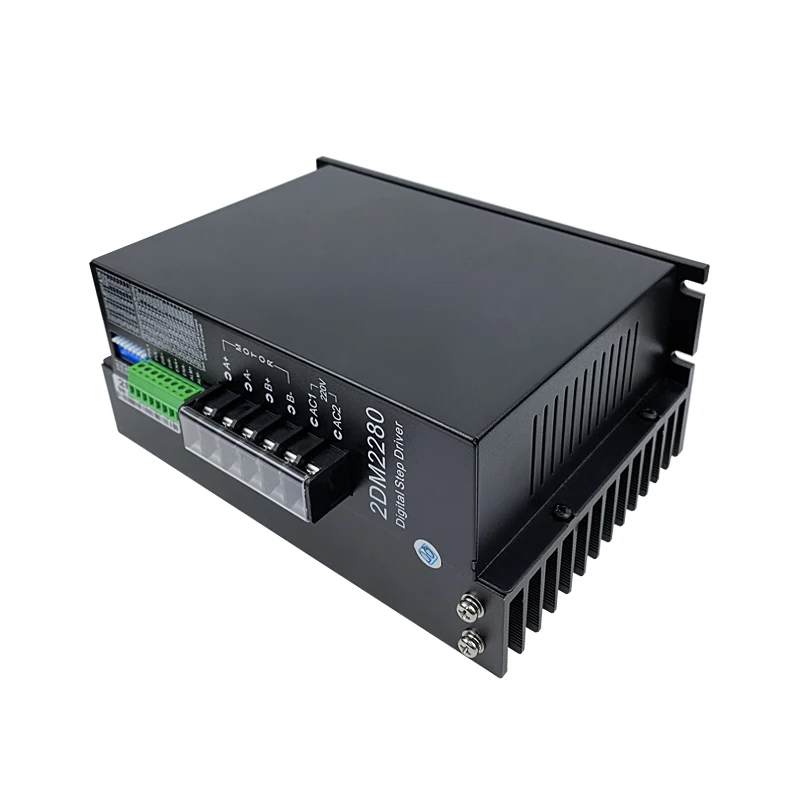

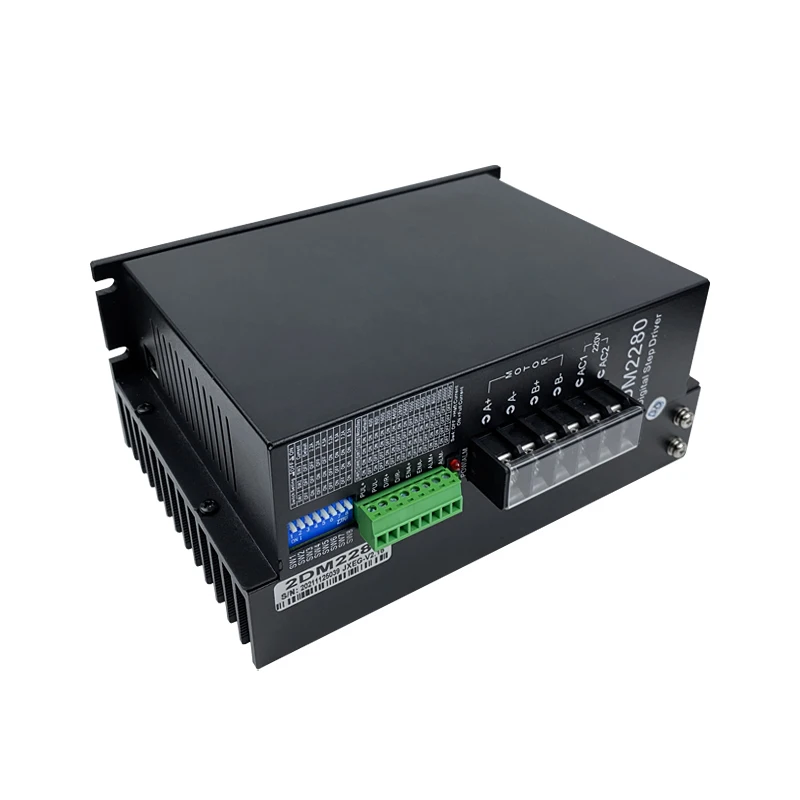

2DM2280 Stepper Motor Driver
Above only for representative products, products of special request can be made according to the customer request.
Current selection
Current (A) | SW1 | SW2 | SW3 |
default | 0 | 0 | 0 |
2.2A | 1 | 0 | 0 |
3.2A | 0 | 1 | 0 |
4.5A | 1 | 1 | 0 |
5.2A | 0 | 0 | 1 |
6.3A | 1 | 0 | 1 |
7.2A | 0 | 1 | 1 |
8.2A | 1 | 1 | 1 |
Microstep selection
Micro step | SW5 | SW6 | SW7 | SW8 |
default | 1 | 1 | 1 | 1 |
400 | 0 | 1 | 1 | 1 |
800 | 1 | 0 | 1 | 1 |
1600 | 0 | 0 | 1 | 1 |
3200 | 1 | 1 | 0 | 1 |
6400 | 0 | 1 | 0 | 1 |
12800 | 1 | 0 | 0 | 1 |
25600 | 0 | 0 | 0 | 1 |
1000 | 1 | 1 | 1 | 0 |
2000 | 0 | 1 | 1 | 0 |
4000 | 1 | 0 | 1 | 0 |
5000 | 0 | 0 | 1 | 0 |
Driver Application:
It can be applied in a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, engraving machine, CNC machine and so on. It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.
It can be applied in a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, engraving machine, CNC machine and so on. It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.
Packing & Delivery
Packing
Layers of packaging are more secure and faster, strict packing to ensure the safety and integrity of the motor.
Delivery
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptable.
Company Profile
Changzhou Maples Precision Electromechanical Co., Ltd is located in Changzhou close to Shanghai of China. It mainly sales hybrid stepper motors, stepper motor drives, brushless dc motors, brushless dc motor driver, and also agent servo motors, spindle motors, related drives, switching power supplies and accessories.
Our main goal is to become a professional supplier of mechanical and electrical products and provide customers with perfect after-sales service. We have a professional technical team, who have extensive experience in the design and development of motor and motor drive products. We provide customers with a full range of services, including product customization and technical consultation.
In addition to our mechanical and electrical products, we also offer a wide range of other services, including engineering design and development, prototyping, testing, and production. We have advanced equipment and experienced engineers that ensure our products meet customer needs and requirements. We also provide technical support, troubleshooting, and repairs.
Our products are widely used in medical, industrial, commercial, and consumer applications. We strive to provide our customers with the highest quality products and services. We have a strict quality control system to ensure our products meet the industry standards.
We are committed to providing our customers with the highest level of customer service. Our sales team is professional, knowledgeable, and dedicated to helping our customers achieve their goals. We take pride in our products and our customer service, and we strive to make every customer experience a positive one.
FAQ
Q1: How to choose the suitable stepper motor driver? | ||||||||
A: There are several important items:voltage, current etc. | ||||||||
Q2: Any other methods to finalize the model? | ||||||||
A: Sure, you can send us the model you are using, we can help you find the suitable one. | ||||||||
