Текстильная термоусадочная машина для парового нагрева
- Категория: Textile Finishing Machines >>>
- Поставщик: Dongguan,Huli,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 4165.17 $* | 4373.17 $* |
| Aug-16-2025 | 4130.88 $* | 4337.60 $* |
| Jul-16-2025 | 3465.83 $* | 3638.31 $* |
| Jun-16-2025 | 4060.40 $* | 4263.31 $* |
| May-16-2025 | 3535.19 $* | 3712.88 $* |
| Apr-16-2025 | 3990.91 $* | 4190.32 $* |
| Mar-16-2025 | 3955.78 $* | 4153.75 $* |
| Feb-16-2025 | 3920.99 $* | 4116.20 $* |
| Jan-16-2025 | 3885.32 $* | 4079.34 $* |
Характеристики
Product Overview

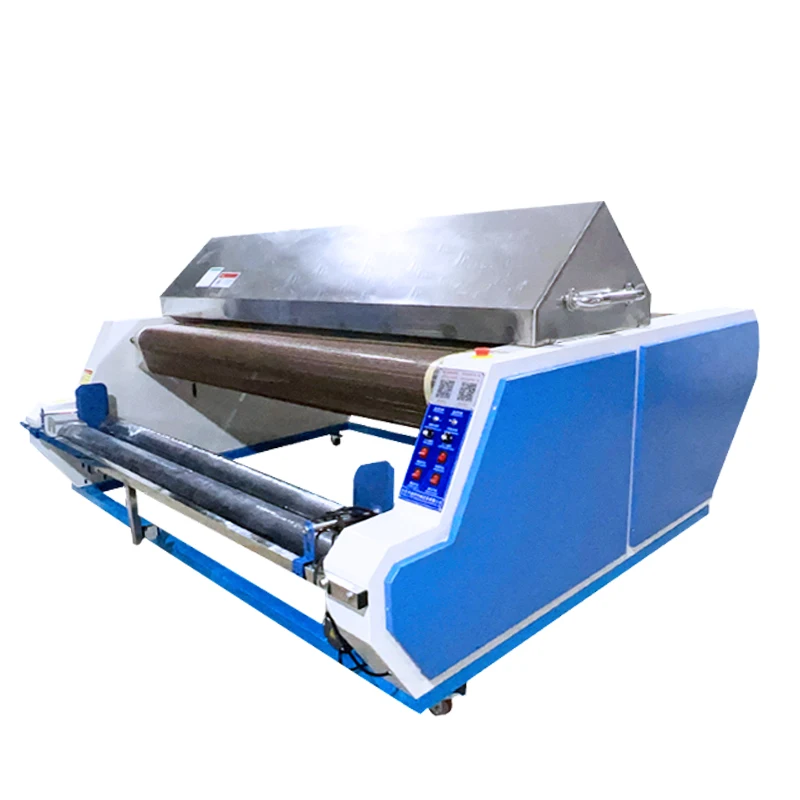

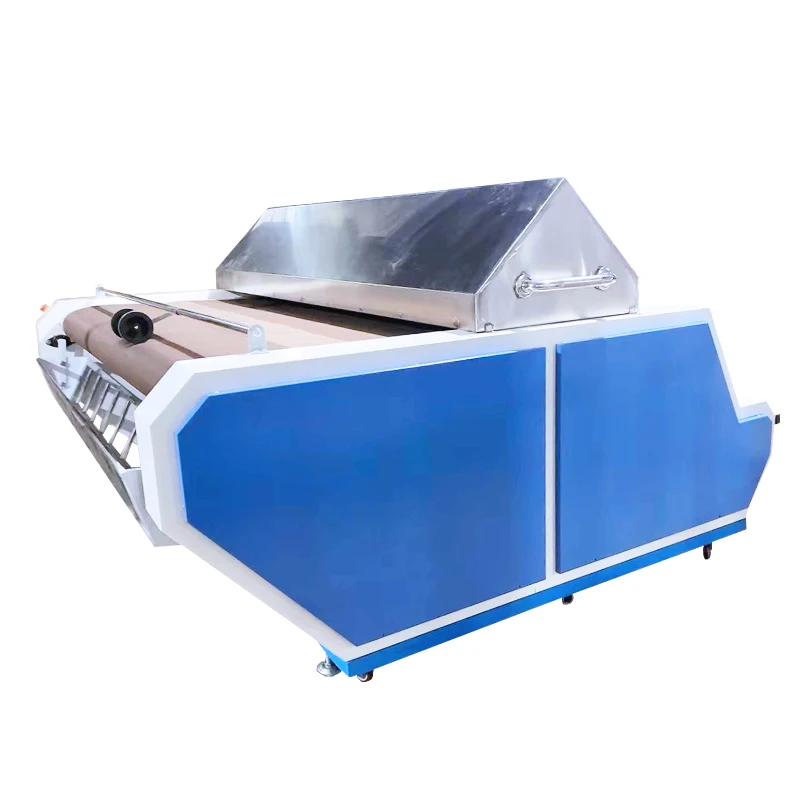

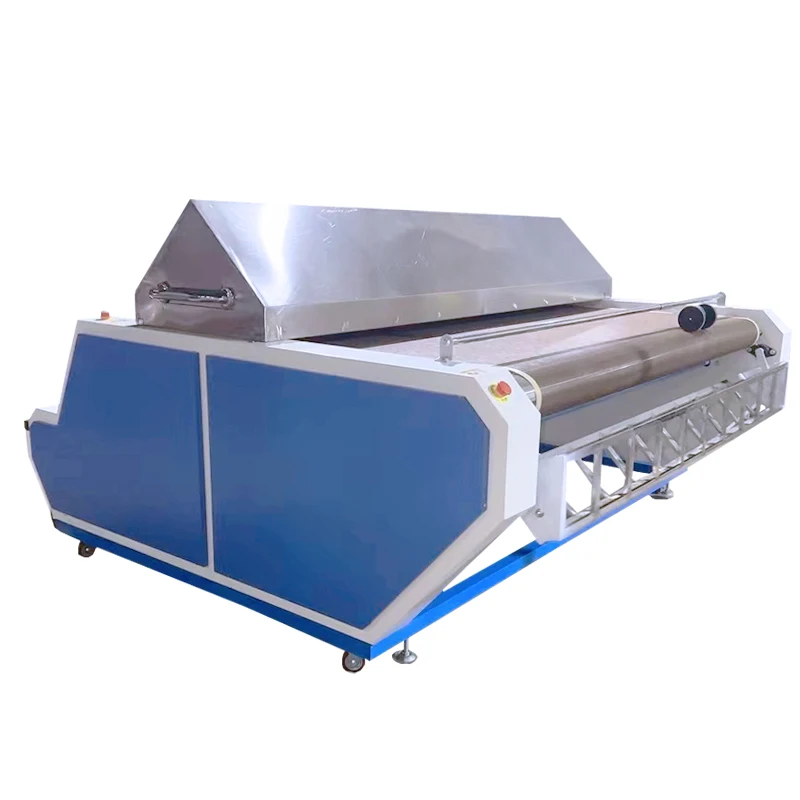

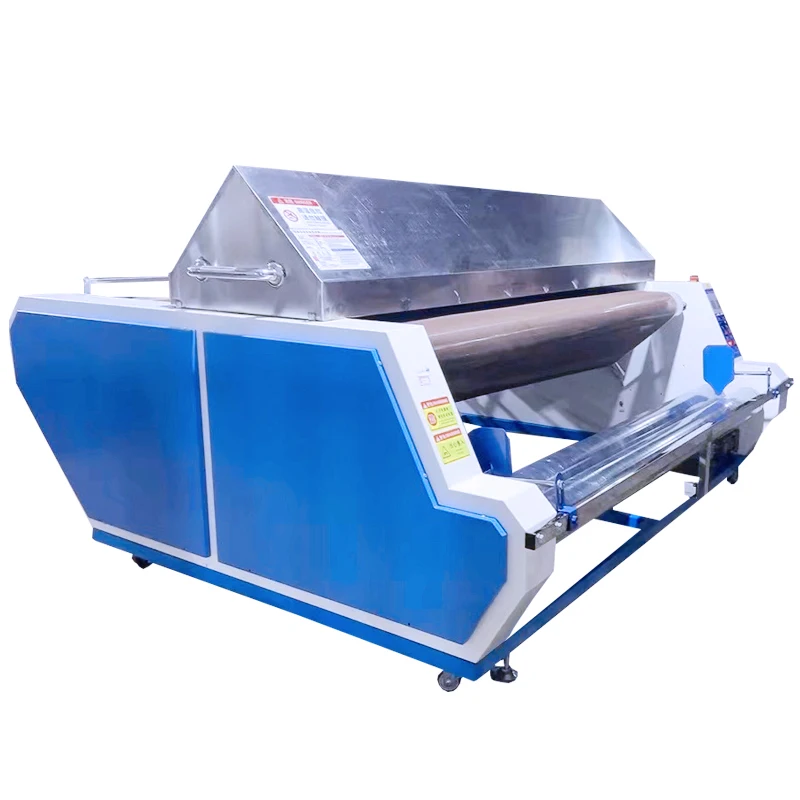

Medium Fabric Shrinking Machine Main function:
1.Suitable for fabric preshrink treatment in the apparel factory before cutting.
2.Steam humidification and heating
3.Electric heating drying
4.Measurement, folding fabric，shrinking fabric.
5. Teflon mesh belt can be automatic cloth feeding.
6.Infrared monitoring,no cloth shutdown.
7.Cloth receiving device(roll or fold).
It can be used with 36 KW or 48 KW steam boiler.
2.Steam humidification and heating
3.Electric heating drying
4.Measurement, folding fabric，shrinking fabric.
5. Teflon mesh belt can be automatic cloth feeding.
6.Infrared monitoring,no cloth shutdown.
7.Cloth receiving device(roll or fold).
It can be used with 36 KW or 48 KW steam boiler.
Suitable for :
Knit and woven ，a variety of general fabric. Especially suitable for viscose fiber, artificial cotton, artificial wool fabric.
Knit and woven ，a variety of general fabric. Especially suitable for viscose fiber, artificial cotton, artificial wool fabric.
Medium Fabric Shrinking Machine of Specification | ||||||||
Model | HW-DXG2800 | |||||||
Voltage&Frequency | AC 220 V 50 HZ | |||||||
Steam consumption | 80kg/h | |||||||
Steam pressure | 0.4-0.7 Mpa | |||||||
Maximum roll fabric diameter | 45 cm | |||||||
Maximum working width | 2100mm | |||||||
Working speed | Adjustable, 0-50m/min | |||||||
Drying temperature | Adjustable,125-200 °C | |||||||
Drying heating power | 1.5kw | |||||||
Total Power | 3 kw | |||||||
Boundary dimension（l*w*h） | 2600 *2600*1500 mm | |||||||
Medium Fabric Shrinking Machine product feature:

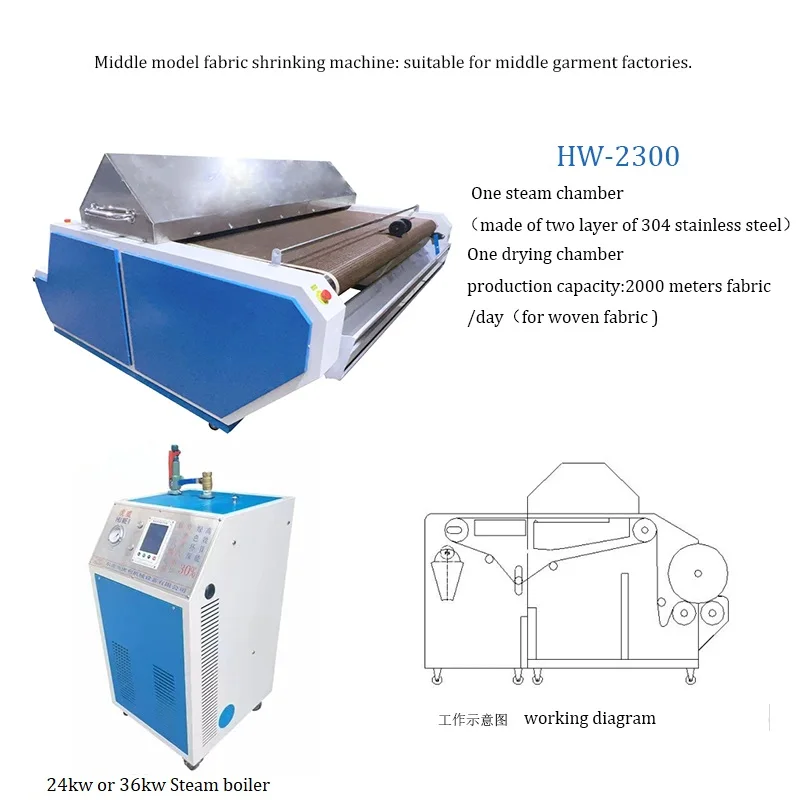

✔This machine is composed of two parts, the steam box shrinks and sets, and the drying box (dries and sets).
✔Fully sealed unique design steam cover: no leakage of steam reduce the steam consumption (save about 40% steam consumption than other type product), ensure no dripping water.
✔The steam cover is made of two layers of stainless steel good heat preservation and thermal insulation effect.
✔Electronic eye monitoring releasing fabric z make sure fabric is in the tension-free state.
✔Stepless Frequency speed regulation.
✔Equipped with original imported electrical appliances, stable performance machine is durable.
✔Use high temperature resistant Teflon mesh belt.
✔Fully sealed unique design steam cover: no leakage of steam reduce the steam consumption (save about 40% steam consumption than other type product), ensure no dripping water.
✔The steam cover is made of two layers of stainless steel good heat preservation and thermal insulation effect.
✔Electronic eye monitoring releasing fabric z make sure fabric is in the tension-free state.
✔Stepless Frequency speed regulation.
✔Equipped with original imported electrical appliances, stable performance machine is durable.
✔Use high temperature resistant Teflon mesh belt.
Recommend Products
Company Profile
FAQ
Q1 :Our workers can't operate the machine, how to train the staff?
A1:We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days.
Q2 : I don’t know which one is suitable for me ?
A2:Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
A1:We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days.
Q2 : I don’t know which one is suitable for me ?
A2:Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
