Алюминиевый прожектор для стадиона
- Категория: Commercial & Industrial Lighting >>>
- Поставщик: Shenzhen,Riyueguanghua,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 159.83 $* | 167.56 $* |
| Aug-15-2025 | 158.63 $* | 166.10 $* |
| Jul-15-2025 | 133.2 $* | 140.23 $* |
| Jun-15-2025 | 155.64 $* | 163.19 $* |
| May-15-2025 | 135.98 $* | 142.97 $* |
| Apr-15-2025 | 153.56 $* | 161.5 $* |
| Mar-15-2025 | 151.5 $* | 159.56 $* |
| Feb-15-2025 | 150.24 $* | 158.46 $* |
| Jan-15-2025 | 149.53 $* | 156.97 $* |
Характеристики

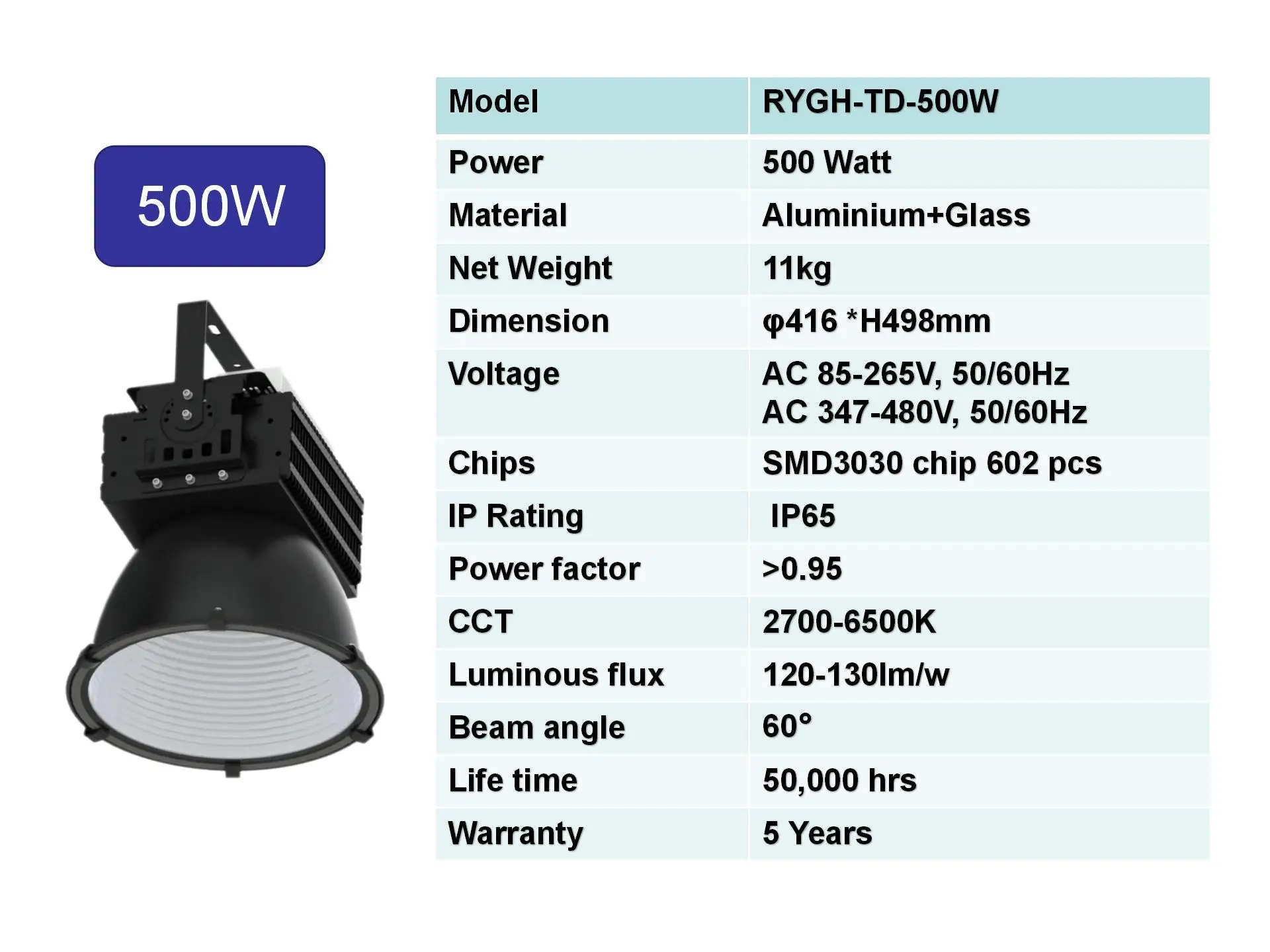

TD LED High Bay Light Specifications
Features:
1. New mould, Fin type AL heatsink
2. High efficiency, 120-130lm/w available
3. Aluminium + glass lens, beam angle 60°
4. IP65 for outdoor use
Model no. | RYGH-TD-150W | RYGH-TD-240W | RYGH-TD-320W | RYGH-TD-400W | RYGH-TD-480W |
Rated power | 150 Watt | 240 Watt | 320 Watt | 400 Watt | 480 Watt |
Input voltage | AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional | ||||
LED Chip | 3030 SMD | ||||
LED Driver | MEANWELL, INVENTRONICS, SOSEN, etc | ||||
Material | AL+Glass | ||||
CRI | 70/80/90/95/98 | ||||
Power Factor | >0.95 | ||||
CCT | WW, NW, CW | ||||
Light efficacy | 120-130LM/W | ||||
IP rating | IP65 | ||||
IK rating | IK08 | ||||
Operation temperature | -35~+50℃ | ||||
Beam angle | 25° 60° | 25° 60° | 25° 60° | 60° | 60° |
Warranty | 5 Years | ||||
Life span | 50,000 hours | ||||

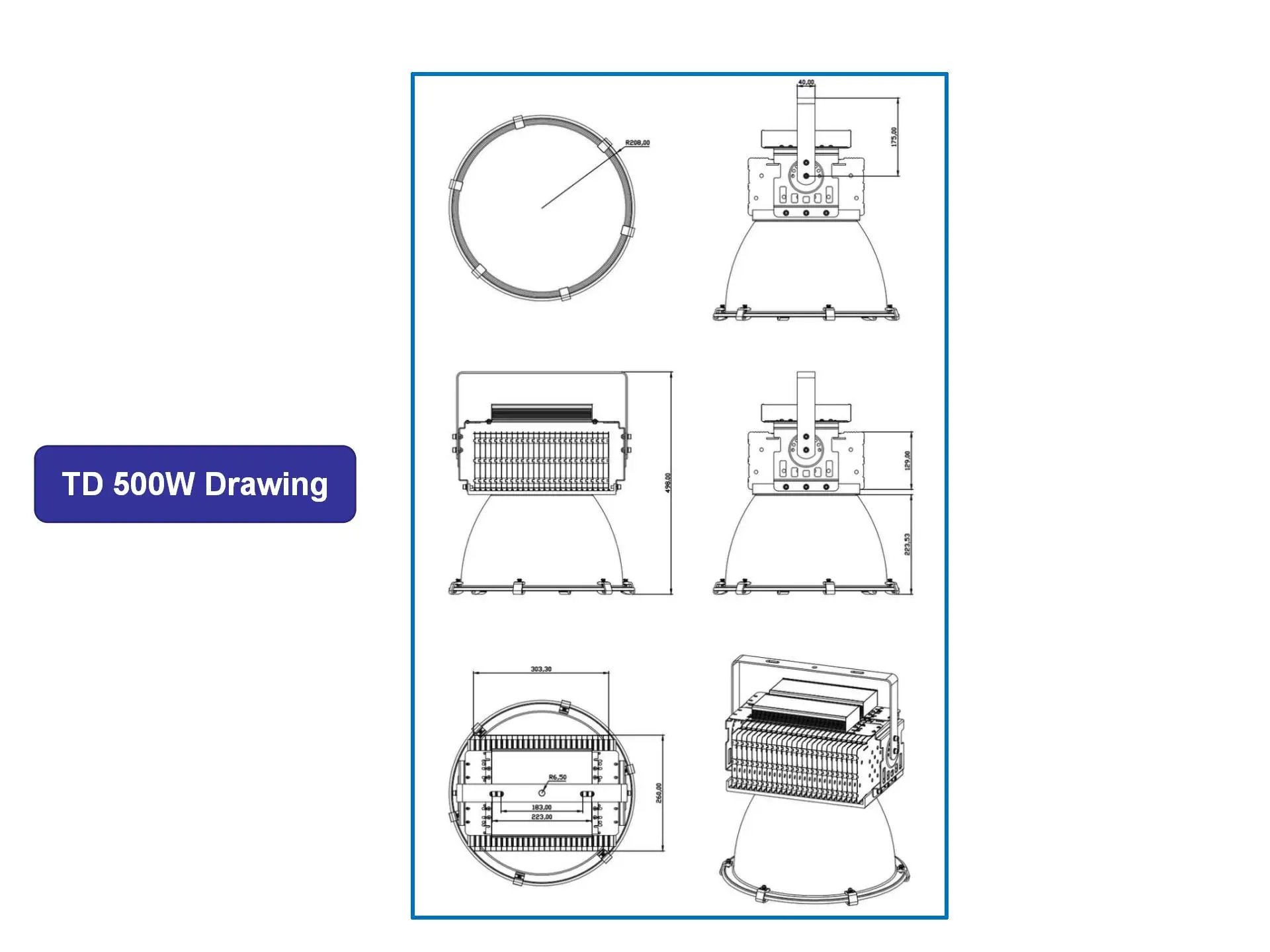

Dimension | φ366.8 *H404mm | φ366.8 *H453.5mm | φ366.8 *H455.5mm | φ416 *H496mm | φ416 *H498mm |
Certificate | CE, RoHs | ||||
Packing size | 43*43*36.5cm | 43*43*36.5cm | 43*43*36.5cm | 47*47*48.5cm | 47*47*48.5cm |
PCS/CTN | 1 | ||||
N.W. | 5.3KG | 7KG | 8KG | 9KG | 11KG |
G.W. | 7KG | 8.5KG | 9.5KG | 10.5KG | 12.5KG |
Environment Requirement
Working Temperature:-35~+50℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%
Application:
It can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-305V 50/60Hz / AC 387-480V 50/60Hz
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
3-5-year warranty since the date of purchase is offered for all LED high bay Lights.
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. RYGH will not provide paid maintenance service under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
