ПЭТ-машина для
- Категория: Plastic Granulators >>>
- Поставщик: Shanghai,Hongwang,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 11900.37 $* | 12495.71 $* |
| Aug-15-2025 | 11800.83 $* | 12390.96 $* |
| Jul-15-2025 | 9900.9 $* | 10395.18 $* |
| Jun-15-2025 | 11600.47 $* | 12180.8 $* |
| May-15-2025 | 10100.96 $* | 10605.36 $* |
| Apr-15-2025 | 11400.17 $* | 11970.68 $* |
| Mar-15-2025 | 11300.69 $* | 11865.78 $* |
| Feb-15-2025 | 11200.58 $* | 11760.29 $* |
| Jan-15-2025 | 11100.56 $* | 11655.33 $* |
Характеристики
Product Overview

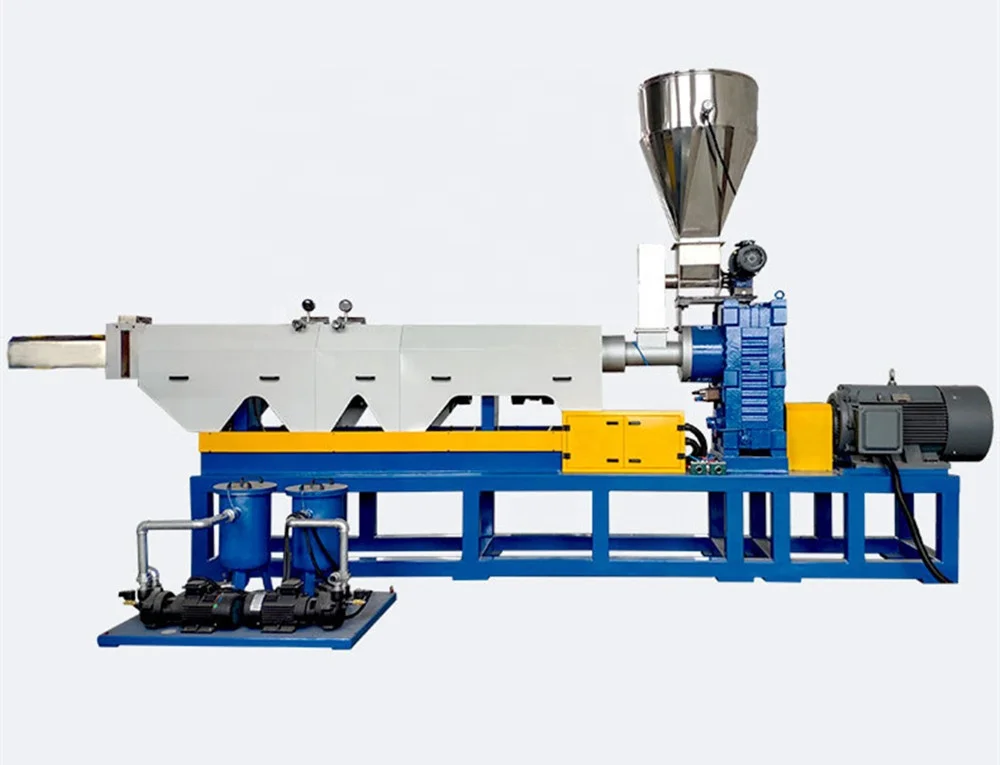

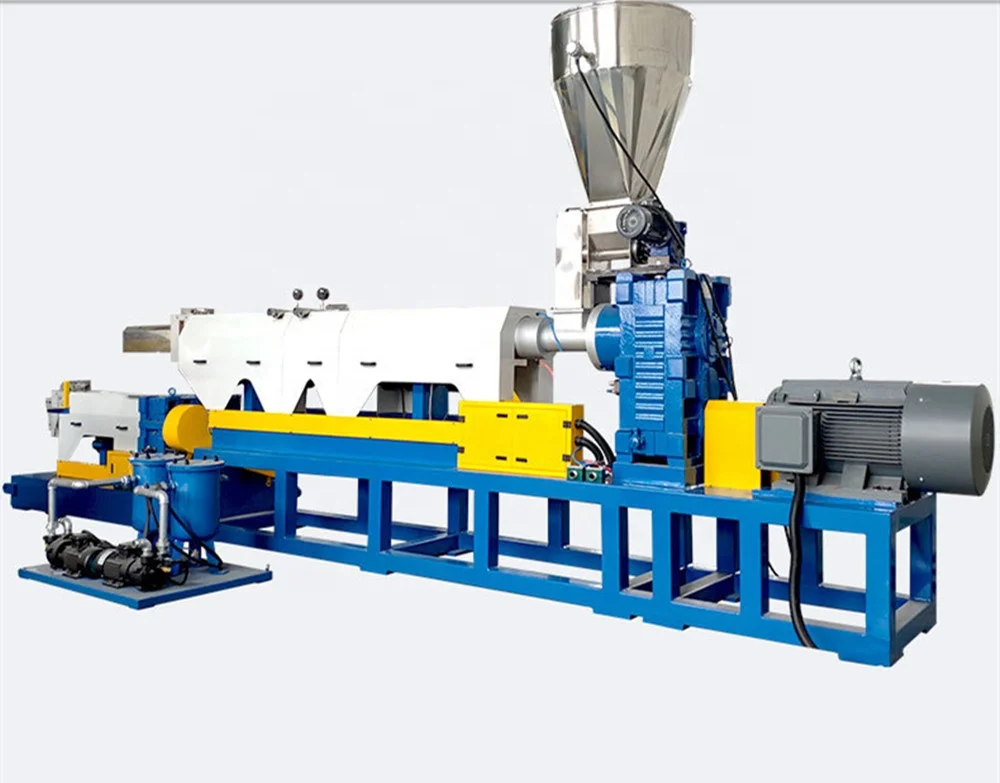

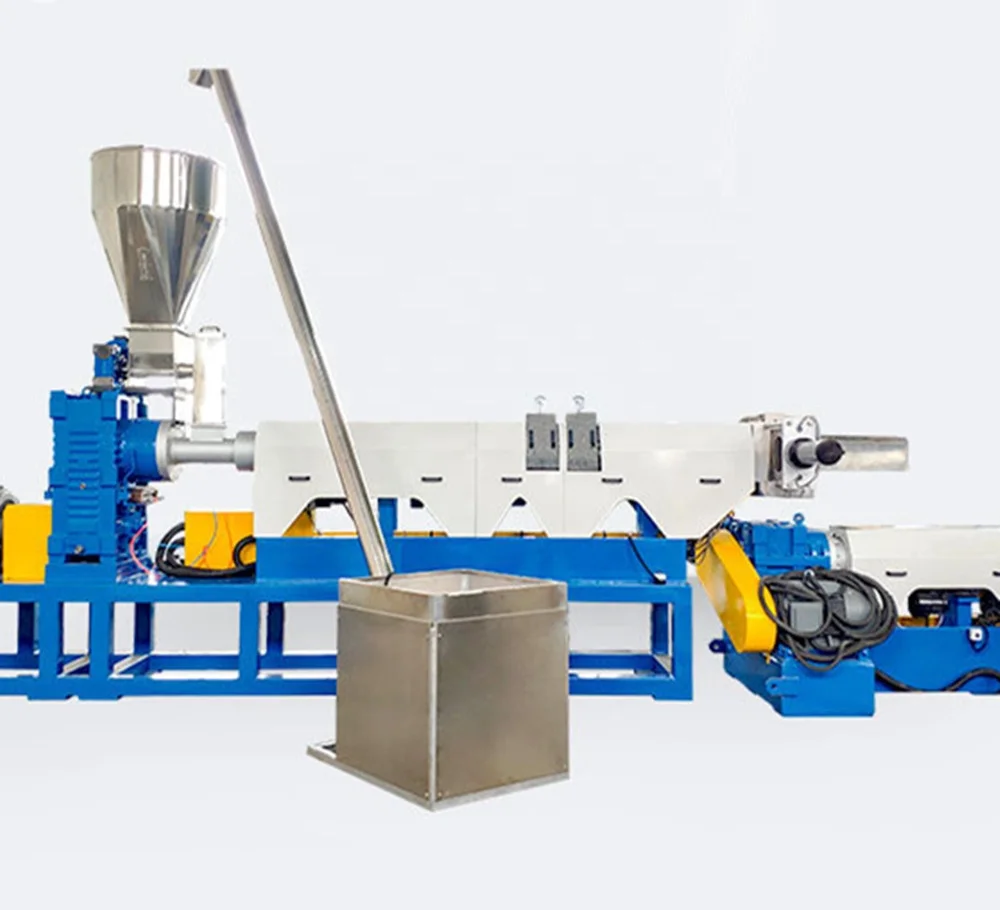

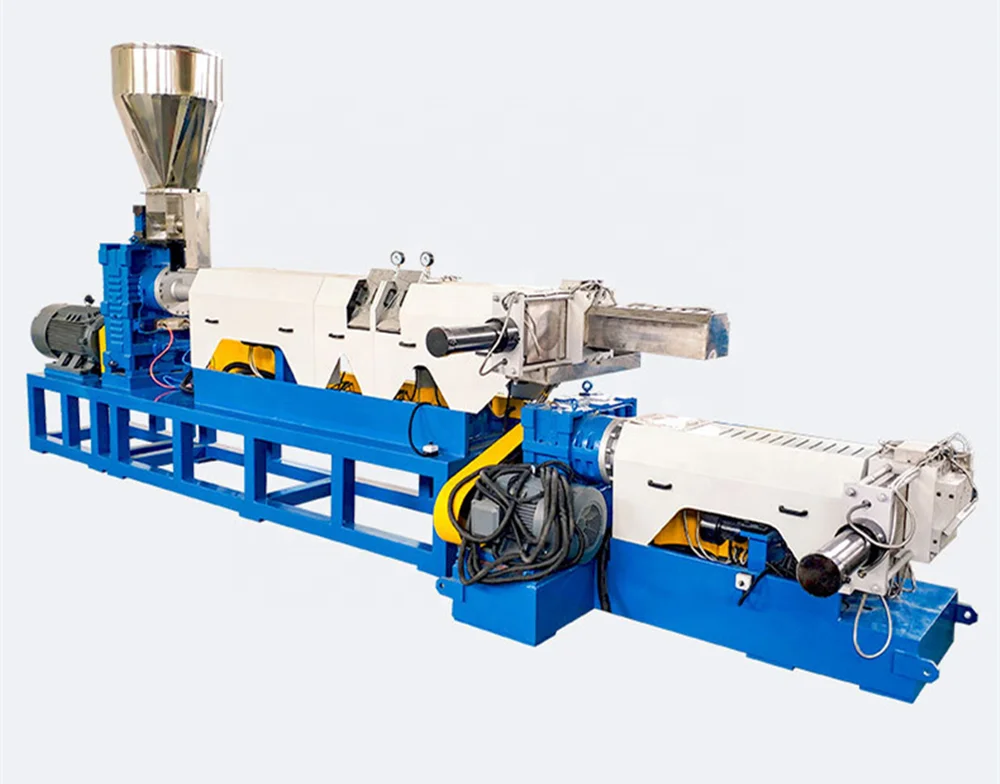

Plastic Pelletizing Line:
Equipped with the vertical and horizontal force-feeding device to ensure high output；
Vent design on the barrel to evaporate the volatiles form the recycling material；
Hydraulic screen change unit and pressure gauge for easy operation and safety；
The vertical centrifuge separates and dry the pellets faster；
High-efficient force-feeder ensures high capacity feeding, low energy consumption；
Plastic pelletizer style: water-ring cutting with extrusion die or strand cutting；
Work pringcle:
Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →Water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing
Vent design on the barrel to evaporate the volatiles form the recycling material；
Hydraulic screen change unit and pressure gauge for easy operation and safety；
The vertical centrifuge separates and dry the pellets faster；
High-efficient force-feeder ensures high capacity feeding, low energy consumption；
Plastic pelletizer style: water-ring cutting with extrusion die or strand cutting；
Work pringcle:
Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →Water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing
FEATURES AT A GLANCE
Advantage:
And Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities;
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion;
This plastic granulator machine for waste plastic recycling is used to make plastic flakes into pellets or granules;
And Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities;
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion;
PRODUCT SPECIFICATIONS
Model | HW-65D | HW-90D | HW-100D | HW-120D | HW-150D | HW-200D | ||||
Screw Dia(mm) | 65 | 90 | 100 | 120 | 150 | 200 | ||||
L/D | 28-33 | 28-33 | 28-33 | 25-33 | 25-33 | 25-33 | ||||
Capacity(kg/h) | 60-80 | 80-120 | 100-180 | 200-300 | 300-500 | 500-800 | ||||
Screw and barrel | made of high grade 38CrMoAIL; hardening& tempering hardness : HB270-300 | Nitrided hardness: HV850-1000; Nitrided depth:0.45-0.7 mm; Screw straightness : 0.015 mm | ||||||||
Gear box | Gear made of 20CrMnTi Hard teeth surface | Hardness : HRC54-62 Bearing : ZHJ and DYZV Sealing:TAIWAN TTO | ||||||||
Electrical parts | Option : chnt , siemens | schedule brand etc | ||||||||
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
38CrMoAi Screw
38CrMoAi Barrel
20CrMnTi Gearbox
Company Profile
Why Choose US?
Hongwang was established in 1992 year in Shanghai on design and manufacture of high quality single shaft shredder, twin shaft shredder, flat-crusher, claw-crusher, film-crusher, low-speed crusher, color mixer, cutter and waste processing equipment.
Our honor is that we produced the first set of single shaft shredder in China in 1999 year. We welcome customization cost-effective solutions for the recycling of waste materials.
Our honor is that we produced the first set of single shaft shredder in China in 1999 year. We welcome customization cost-effective solutions for the recycling of waste materials.
FAQ
1- How to choose proper products you want?
• Please tell us as detail as what you want
• What's your raw material it is?
• What's the final products you want to produce?
• What's capacity you want ?
2- How to control the quality?
• We have technical, engineer team design the sample machinery before enter into market
• Production QC team ensure the machine manufacturing quality
• We will run every machine after finished before shipment
• Optional choose by client running the machinery by material
• We always update the new technology to every customer.
