Многофункциональная пиловая
- Категория: Woodworking Machinery >>>
- Поставщик: Zhengzhou,The,Right,Time,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 286.59 $* | 300.61 $* |
| Aug-20-2025 | 283.80 $* | 297.61 $* |
| Jul-20-2025 | 238.5 $* | 250.95 $* |
| Jun-20-2025 | 278.79 $* | 292.18 $* |
| May-20-2025 | 242.41 $* | 254.33 $* |
| Apr-20-2025 | 274.26 $* | 288.20 $* |
| Mar-20-2025 | 271.65 $* | 285.23 $* |
| Feb-20-2025 | 269.14 $* | 282.73 $* |
| Jan-20-2025 | 266.84 $* | 279.47 $* |
Характеристики
Products Disply
ZDS125 Dust-free sliding table saw, the main slide rail adopts light precision rail, the auxiliary rail adopts 10 precision bearings + mute cotton, the main table top is made of stainless steel with a thickness of 1mm, the frame is a 4*4cm square tube, and double beams on both sides are reinforced, which can be extended on three sides. Equipped with 2 sets of enlarged universal wheels, easy to move after folding.
It can cut 1.2 meters horizontally, cut 2.4 meters vertically, and cut 45° obliquely.
Precise and portable, stable and reliable, highly practical, and can be operated by a single person.
Details Images
Main rail
125*100*1000mm Precision rail, strong and sturdy

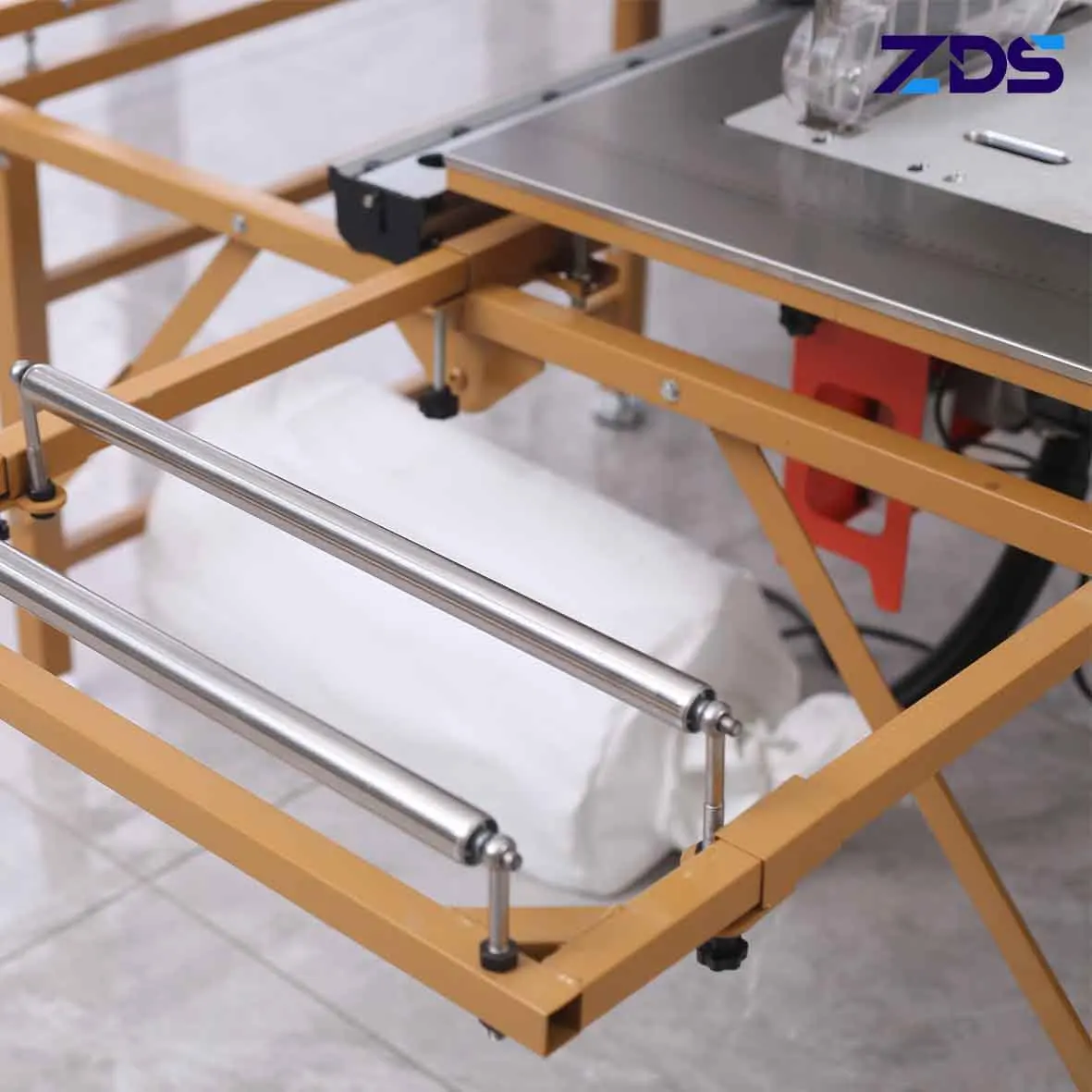

Secondary rail
10 precision bearings + silent cotton, push and pull smoothly

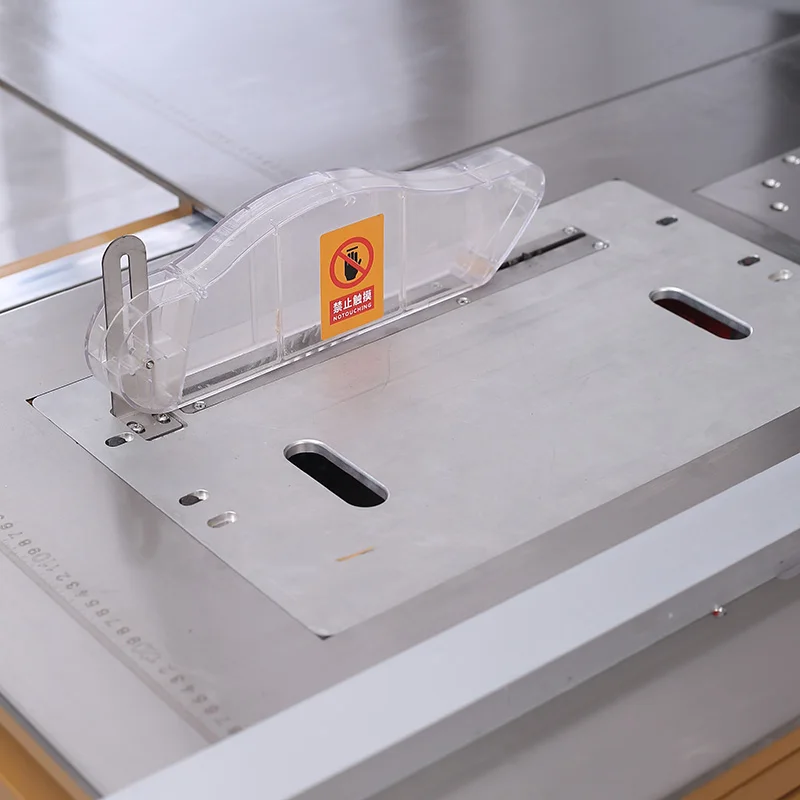

Tabletop
1mm thick stainless steel cover, wear-resistant, laser engraved scale, easy to operate
Adjustable table corner
The height of the table corners can be adjusted to ensure the flatness of the sawing table and make it more adaptable
Quickly detachable aluminum alloy backer
Extendable ruler, suitable for larger size sawing

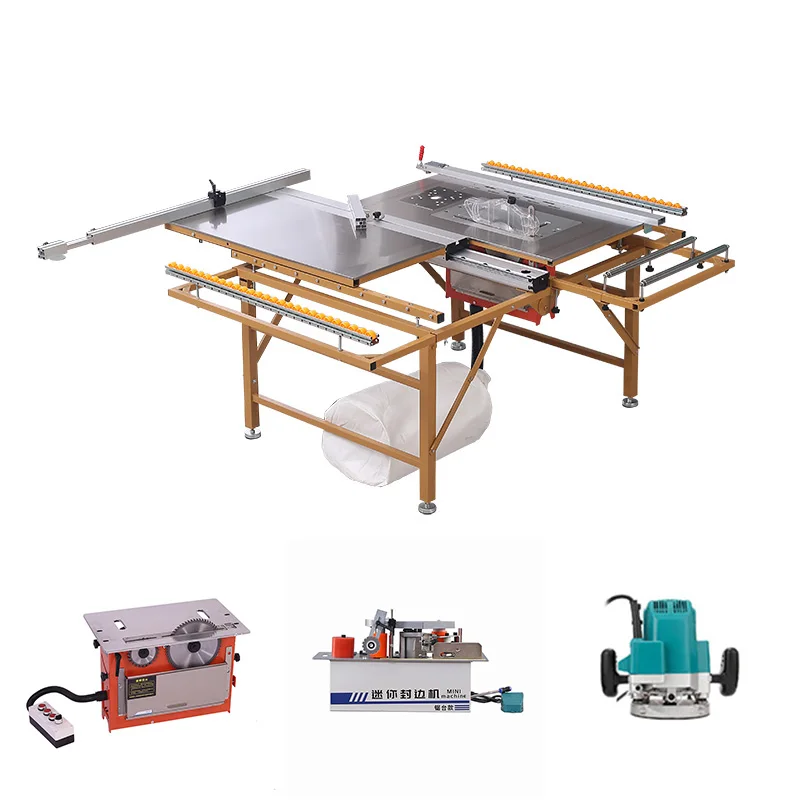

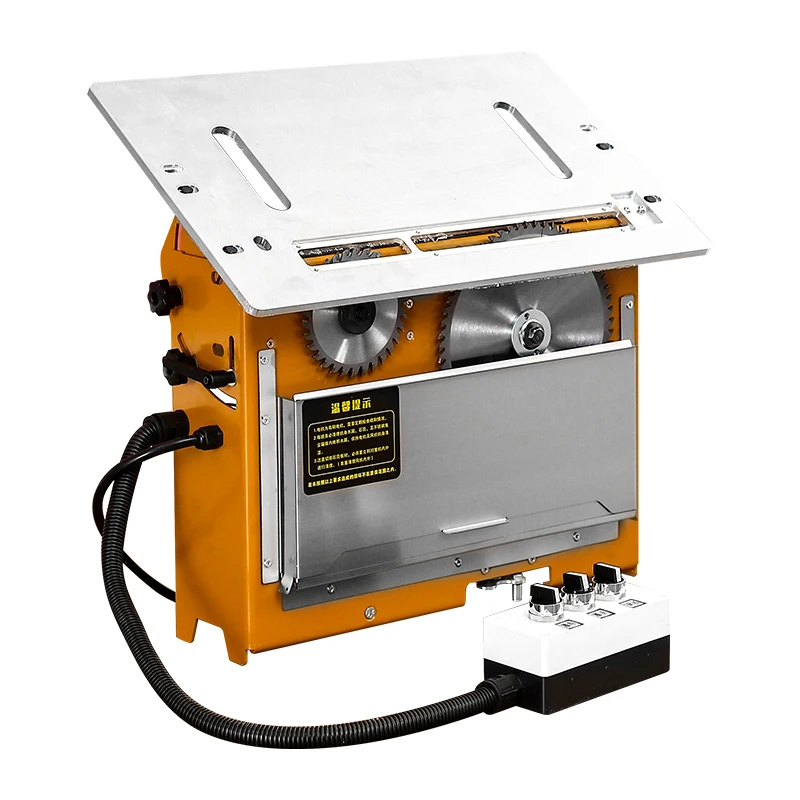

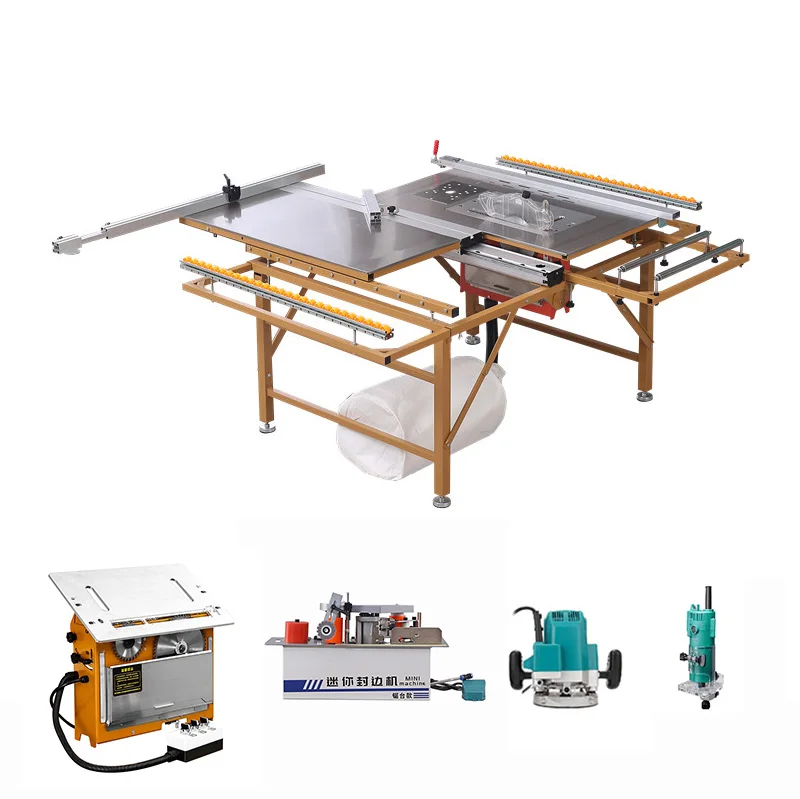

Name | Manually lift dust-free saw | Manual lift brushless saw | Electric lift dust-free saw | Electric Lift Brushless Saw | ||
Model | ZDS10 | ZDS11 | ZDS20 | ZDS21 | ||
Working voltage | 220v/50Hz | 220v/50Hz | 220v/50Hz | 220v/50Hz | ||
Big saw power | 2600w | 1600w | 2600w | 1600w | ||
Small saw power | 1600w | 550w | 1600w | 550w | ||
Big saw speed | 4500r/min | 4500r/min | 4500r/min | 4500r/min | ||
Small saw speed | 13000r/min | 5500r/min | 13000r/min | 5500r/min | ||
Vacuuming power | 1200w | 1200w | 1200w | 1200w | ||
Overall size | 50*30*35cm | 50*30*35cm | 50*30*35cm | 50*30*35cm | ||
Weight | 23kg | 23g | 26kg | 26kg | ||
Saw blade size | Big saw | 8/9inch | 8/9inch | 8/9inch | 8/9inch | |
Small saw | 4inch | 5inch | 4inch | 5inch | ||
Lifting height method | Big saw | Manually | Manually | Electric | Electric | |
Small saw | Manually | Manually | Manually | Manually | ||
Motor | Hanchuan Copper core motor | Custom Brushless Motors | Hanchuan Copper core motor | Custom Brushless Motors | ||
Name | mini edge banding machine |
Model | ZDSF50 |
Edge banding type | line, curve |
Rated voltage | 220v |
Strip thickness | 0.5-2mm |
Sheet thickness | 10-50mm |
Glue capacity | 1000ml |
Overall size | 50*30*27cm |
Machine weight | 13.5kg |
Name | Electric Router |
Model | ZDSER12 |
Rated voltage | 220V-230V 50/60Hz |
Input power | 1650W |
No Load speed | 23000r/min |
Collet chuck capacity | φ12mm |
