Инверторный
- Категория: Resistance Welders >>>
- Поставщик: Jiangsu,Langcui,Welding,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 6331.90 $* | 6648.6 $* |
| Aug-16-2025 | 6278.6 $* | 6592.98 $* |
| Jul-16-2025 | 5267.9 $* | 5530.88 $* |
| Jun-16-2025 | 6171.6 $* | 6480.99 $* |
| May-16-2025 | 5373.27 $* | 5642.15 $* |
| Apr-16-2025 | 6065.70 $* | 6368.90 $* |
| Mar-16-2025 | 6012.45 $* | 6313.61 $* |
| Feb-16-2025 | 5958.63 $* | 6256.53 $* |
| Jan-16-2025 | 5905.50 $* | 6200.86 $* |
Характеристики
Product Overview

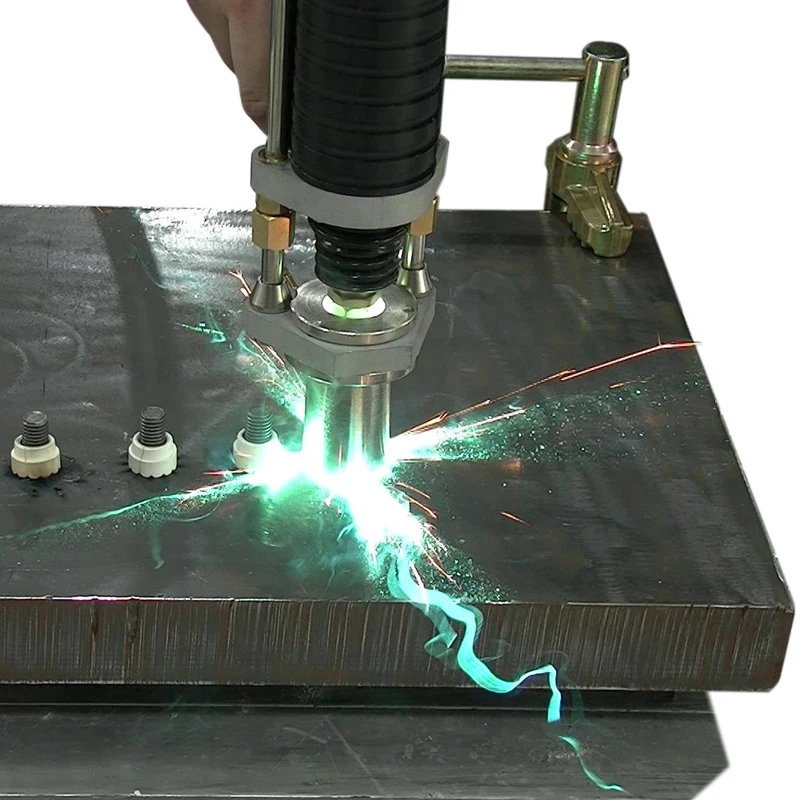

inverter shear stud welding machine
drawn arc stud welding machine ,resistance welding ,
FEATURES AT A GLANCE
Feature of shear stud welding machine
easy operation
digital CPU , output precision
fit for many kinds of material
for carbon steel stud
supply OEM and ODM
easy take
own patent
stainless steel, mild steel ,iron , almg3 ,ss304,ss316,metal
use for construction
such as buidling ,bridge ,rebar ,
steel structure ,Shipbuilding,industrial
plant .
save cost ,simplify
Right elevation
Left elevation
Front elevation

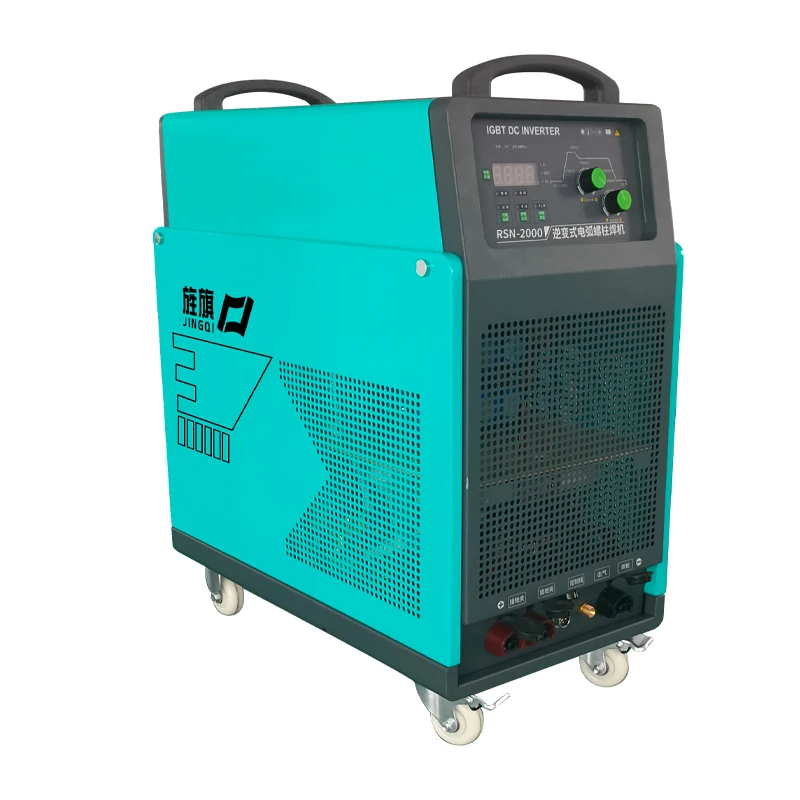

PRODUCT SPECIFICATIONS
Model | RSN-2000 | RSN-2500 | RSN-3150 | ||
Input voltage | 380V±10%/50HZ | ||||
Rated input current | 129A | 163A | 206A | ||
Rated input capacity | 85KVA | 107.5KVA | 135.5KVA | ||
Un-load voltage | 80V | 80V | 80V | ||
Welding speed (pcs/min) | 10-25 | 10-25 | 10-25 | ||
Rated welding voltage | 32VDC | 32VDC | 32VDC | ||
Efficiency (at maximum output) | 80% | 80% | 80% | ||
Power factor (at maximum output) | 0.94 | 0.94 | 0.94 | ||
Welding time (s) | 0.01-4.00 | 0.01-4.00 | 0.01-4.00 | ||
Diameter of weldable stud(mm) | Φ3-Φ10 | Φ3-Φ16 | Φ3-Φ22 | ||
Length of weldable stud (mm) | ≤400 | ≤400 | ≤400 | ||
Ingress Protection | IP21S | IP21S | IP21S | ||
Insulation level | F | F | F | ||
Overall weight | 65KG | 102KG | 105KG | ||
Overall size (mm) | 720x370X680 | 780X370X900 | 780X370X900 | ||
WELDING MACHINE CONTROL PANEL DISPLAY IN ENGLISH AND Chinese ,we also can odm and oem supply .

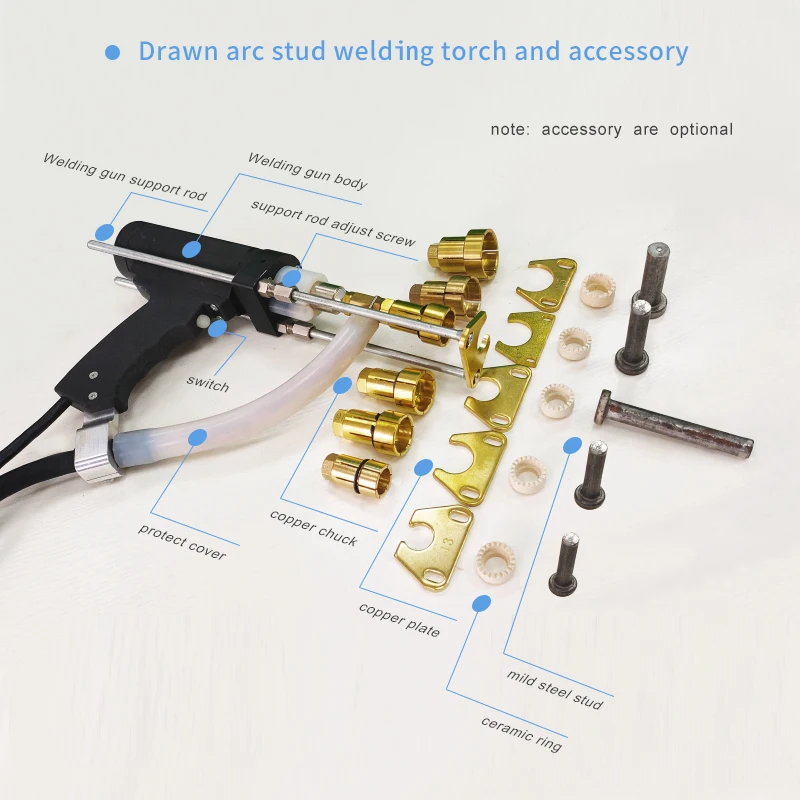

drawn arc welding torch and optional accessory

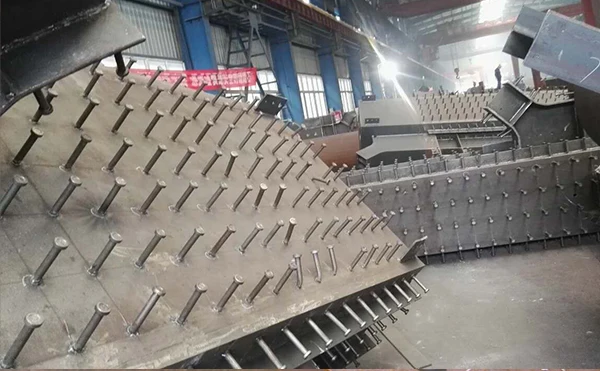

CUSTOMER SHOW
Project in Thailand
Project in India
Project in Russia
SALES AND SERVICE NETWORK
24 hours hotline service
our R&D main engineers
our R&D main engineers
1.about our service : 24 hours hotline or you can email us ,call us , or app contact .2.all R&D team members have rich experience
in welding machine more than 20 years ,and with the support of our company .they are always on the way to innovate and supply
advanced solution to our customers ,make our products more and more popular and our customers more and more approved .
in welding machine more than 20 years ,and with the support of our company .they are always on the way to innovate and supply
advanced solution to our customers ,make our products more and more popular and our customers more and more approved .
MR.Chen - chief engineer,he has worked in company more than 15 years and is professional in welding machine technology update and
design ,supply advanced solution to our customers .
design ,supply advanced solution to our customers .
MR.Zhang- sales engineer,professional in communicate with customers , comprehend customer ,then supply customers to solve problem
in use and buy welding machine ,he also work with MR .CHEN to update products .
in use and buy welding machine ,he also work with MR .CHEN to update products .
MR. Xu -purchase engineer,according customer requirement ,he buy original material for welding machine .He work with MR.Chen and
MR.Zhang together to update products and supply solutions for customers .
MR.Zhang together to update products and supply solutions for customers .
company profile
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(60.00%),South America(3.00%),Eastern
Europe(3.00%),Oceania(3.00%),South Asia(8.00%),North America(2.00%),Southeast Asia(7.00%),Africa(2.00%),Mid East(2.00%),Eastern
Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 1000
square meters in our company .we main supply CD welding machine, capacity discharge welder,air duct insulation nail welding machine ,marine insulation nails
welding machine ,portable stud welder,CD studs welding machine , arc bolt welding machine, pedal spot welding machine,point
welding machine,ac spot welder , single spot type welder, foot spot welding machine,metal welding machine,mesh welding machine
,metal welding machine .stainless steel welding machine ,wire mesh stainless steel welding machine,arc stud welding machine, arc
stud welding equipment, short cycle stud welding machine,long cycle stud welding machine,heavy duty welding machine, construction
welding machine,nut welding machine, industrial welding machine, drawn arc stud welding machine, inverter stud welding
system,industrial welding equipment , DA stud welder,welding machine accessories such as welding gun ,welding torch ,collet
,copper plate , fastener and so on .
we have our own R&D team , patent ,design ,OEM ,ODM ,we are always on the way to innovate and supply advanced solution to our
customers ,make our products more and more popular and our customers more and more approved .
Europe(3.00%),Oceania(3.00%),South Asia(8.00%),North America(2.00%),Southeast Asia(7.00%),Africa(2.00%),Mid East(2.00%),Eastern
Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 1000
square meters in our company .we main supply CD welding machine, capacity discharge welder,air duct insulation nail welding machine ,marine insulation nails
welding machine ,portable stud welder,CD studs welding machine , arc bolt welding machine, pedal spot welding machine,point
welding machine,ac spot welder , single spot type welder, foot spot welding machine,metal welding machine,mesh welding machine
,metal welding machine .stainless steel welding machine ,wire mesh stainless steel welding machine,arc stud welding machine, arc
stud welding equipment, short cycle stud welding machine,long cycle stud welding machine,heavy duty welding machine, construction
welding machine,nut welding machine, industrial welding machine, drawn arc stud welding machine, inverter stud welding
system,industrial welding equipment , DA stud welder,welding machine accessories such as welding gun ,welding torch ,collet
,copper plate , fastener and so on .
we have our own R&D team , patent ,design ,OEM ,ODM ,we are always on the way to innovate and supply advanced solution to our
customers ,make our products more and more popular and our customers more and more approved .
every year we will attend related welding exhibition ,every exhibition our products attract a lot of customer,most of them work with us all the time .
our products not only fit for mainland ,but also fit for customer from all over the world .we also import our product.
exhibition is a way to learn from our customers and market, then we will update our product according to market and customer .
Package
professional export plywood box ,safe and strong.
shipping way
due to weight too much ,normally ship by sea if possible .
FAQ
Q1： Who are we ?A1： We are based in Jiangsu, China, start from 2011,sell to Domestic Market(60.00%),South America(3.00%),Eastern
Europe(3.00%),Oceania(3.00%),South Asia(8.00%),North America(2.00%),Southeast Asia(7.00%),Africa(2.00%),Mid East(2.00%),Eastern
Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 1000
square meters in our company .
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q3: What can you buy from us?
A3: CD welding machine, capacity discharge welder,portable stud welder,CD studs welding machine , arc bolt welding machine, pedal
spot welding machine,point welding machine,ac spot welder , single spot type welder, foot spot welding machine,metal welding
machine ,mesh welding machine ,metal welding machine .stainless steel welding machine ,wire mesh stainless steel welding machine,
arc stud welding machine, arc stud welding equipment, short cycle stud welding machine,long cycle stud welding machine,heavy duty
welding machine, construction welding machine,nut welding machine, industrial welding machine, drawn arc stud welding machine,
inverter stud welding system, DA stud welder,welding machine accessories such as welding gun ,welding torch ,collet , copper plate
, fastener and so on .
Q4: Application and base material.
A4: Carbon steel , mild steel ,copper,ETC,material with arc weld ability. welding in the workpiece surface of oxide layer,oil
slick,priming paint or electroplate.after welding,NO deformation,NO convex,download position welding,vertical position
welding,overheard position welding,all position welding.application welding project:steel construction , floor
decks,bridge,embedded parts,heavy machine,industrial factory building machines are used in a wide variety of industries:
1.Aerospace
2.Appliances
3.Automotive
4.Construction
5.Electronics
6.Forging Process
7.Insulation Installation
8.Light and Heavy Duty Equipment
9.Offshore
10.Petrochemical
11.Shipbuilding
12.Signs and Decorative Trim
13.Toys
14.Transportation
15.Utilities Metal working
Q5: Certificate
A5: CE, patent certificate .
Q6: R&D TEAM
A6: R&D team includes 10 people ,all of them have worked in welding machine more than 20 years ,they can supply professional
design and after-service for you .
Q7: What services can we provide?
A7: Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery AND SO ON
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Cash,Escrow ,Alipay and so on .
Q8: Why should you buy from us?
A8: Our company founded in 2011.it covers more than 1000 square meter, and have own patent ,ce ,every year supply new product
,always on the way to innovate according market and development of industry .we are manufacture not agent .we have own R&D team
,we supply ODM ,OEM .welcome to visit our company .
Q9: What included in a standard order ?
A9: Normally a machine ,a welding torch ,welding wire ,earth wire .a few pcs collets ,if you need test screw ,please contact us ,
it only for reference , standard configure of different machine is different ,you can ask after-service for help .if you need
optional accessories ,tell us and we will help you solve it .
Europe(3.00%),Oceania(3.00%),South Asia(8.00%),North America(2.00%),Southeast Asia(7.00%),Africa(2.00%),Mid East(2.00%),Eastern
Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 1000
square meters in our company .
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q3: What can you buy from us?
A3: CD welding machine, capacity discharge welder,portable stud welder,CD studs welding machine , arc bolt welding machine, pedal
spot welding machine,point welding machine,ac spot welder , single spot type welder, foot spot welding machine,metal welding
machine ,mesh welding machine ,metal welding machine .stainless steel welding machine ,wire mesh stainless steel welding machine,
arc stud welding machine, arc stud welding equipment, short cycle stud welding machine,long cycle stud welding machine,heavy duty
welding machine, construction welding machine,nut welding machine, industrial welding machine, drawn arc stud welding machine,
inverter stud welding system, DA stud welder,welding machine accessories such as welding gun ,welding torch ,collet , copper plate
, fastener and so on .
Q4: Application and base material.
A4: Carbon steel , mild steel ,copper,ETC,material with arc weld ability. welding in the workpiece surface of oxide layer,oil
slick,priming paint or electroplate.after welding,NO deformation,NO convex,download position welding,vertical position
welding,overheard position welding,all position welding.application welding project:steel construction , floor
decks,bridge,embedded parts,heavy machine,industrial factory building machines are used in a wide variety of industries:
1.Aerospace
2.Appliances
3.Automotive
4.Construction
5.Electronics
6.Forging Process
7.Insulation Installation
8.Light and Heavy Duty Equipment
9.Offshore
10.Petrochemical
11.Shipbuilding
12.Signs and Decorative Trim
13.Toys
14.Transportation
15.Utilities Metal working
Q5: Certificate
A5: CE, patent certificate .
Q6: R&D TEAM
A6: R&D team includes 10 people ,all of them have worked in welding machine more than 20 years ,they can supply professional
design and after-service for you .
Q7: What services can we provide?
A7: Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery AND SO ON
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Cash,Escrow ,Alipay and so on .
Q8: Why should you buy from us?
A8: Our company founded in 2011.it covers more than 1000 square meter, and have own patent ,ce ,every year supply new product
,always on the way to innovate according market and development of industry .we are manufacture not agent .we have own R&D team
,we supply ODM ,OEM .welcome to visit our company .
Q9: What included in a standard order ?
A9: Normally a machine ,a welding torch ,welding wire ,earth wire .a few pcs collets ,if you need test screw ,please contact us ,
it only for reference , standard configure of different machine is different ,you can ask after-service for help .if you need
optional accessories ,tell us and we will help you solve it .
