Резистивный дизельный генератор переменного тока 1000 кВт тестовый банк нагрузки для центра
- Категория: >>>
- Поставщик: Hebei,Kaixiang,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.18 $* | 0.90 $* |
| Aug-16-2025 | 0.3 $* | 0.40 $* |
| Jul-16-2025 | 0.71 $* | 0.74 $* |
| Jun-16-2025 | 0.42 $* | 0.9 $* |
| May-16-2025 | 0.65 $* | 0.47 $* |
| Apr-16-2025 | 0.82 $* | 0.60 $* |
| Mar-16-2025 | 0.69 $* | 0.50 $* |
| Feb-16-2025 | 0.51 $* | 0.64 $* |
| Jan-16-2025 | 0.21 $* | 0.20 $* |
Характеристики
Dummy Load Bank Resistive Inductive Load Bank For Data Center Commissioning
Specification
Technical Parameters | ||
Rated Voltage /Frequency | AC400V 3 phase 4 wire /50Hz/60Hz | |
Max Load Power | 1010kW | |
Load Step（AC400V/60H） | Resistive Load: 13 steps,1,2,2,5,10,20,20,50,100,200, 200,200,200kW. Noted: When input voltage is lower than rated voltage, gears power changes according to Ohm's law. | |
Power Factor | 1 | |
Load Tolerance (overall) | ±3% | |
Three-phase unbalance | ≤3% | |
Display Precision | 0.5 class | |
Control Power Supply | External:AC380-400V 3 phase 5 wire /60Hz/12kW | |
Wire Connection | Load bank input——busbar (star coupling “Y”) Control power input——terminal block | |
Communication Interface | RS232/ RS485 | |
Insulation Class | F Class | |
Working Mode | Continuous Working | |
Cooling | Forced air cooling, horizontal inlet and outlet,Air inlet and outlet with louvered frame and plate | |
Transportation | With lifting eyes and wheel castors at bottom with base or forklift hole | |
Casing Color | RAL7035 | |
Dimension | About 1800mm*1300mm*1920mm（W*L*H) | |
Weight | About 1200kg | |
Operating Environment Parameter | ||
Workplace | Outdoor | |
Work Temperature | -20℃～+50℃ | |
Relative Humidity | ≤95% | |
Working noise | 1 meter away from equipment：≤85dB | |
Altitude | ≤2500M | |
Atmospheric Pressure | 86～106kPa | |
Ventilation Distance | The air inlet is required to be 3-5M free of obstacles， The air outlet is more than 3m away from the roof or other obstacles | |
Reserved Distance | For convenience of personnel access, 3 meters in front of control room should be free of obstacles. No obstacle 2m in front of maintenance room | |
Safe working Distance | The load bank has isolation fence 1m away. Only staff within 3-5 meters when load bank is working | |
Products Description
For Permanent Installation To Periodically Test &Exercise Stand-By Generators &UPS Systems Weatherproof Construction,Complete With Controls.
Main features
2. Latest in digital metering
3. Compact Design
4. Vertical Air Discharge
5. Integrated Control System Local, PC or Remote Control
6. ModBus Interface Available As An Option
7. Stainless Steel Vibration&Immersion Proof Military Establishments Resistors
3. Compact Design
4. Vertical Air Discharge
5. Integrated Control System Local, PC or Remote Control
6. ModBus Interface Available As An Option
7. Stainless Steel Vibration&Immersion Proof Military Establishments Resistors
8. Data logging software included
9. Integrated & Modularization Design: Easy to Installation, Maintenance and Transportation.
9. Integrated & Modularization Design: Easy to Installation, Maintenance and Transportation.
Company Profile
Hebei Kaixiang Electrical Technology Co., Ltd is a leading manufacturer in emergency power supply test & maintenance industry.Specialized in the design, R&D, manufacture of the high capacity AC & DC load bank, it owns the professional intelligent power supply testing equipment R&D centre in China. Kaixiang offer one-stop solutions to generator set & battery & UPS power manufacturers.
Its products are widely used in data centre, shipbuilding, offshore platform, state grid, nuclear power, hospital, communication, railway etc filed. Kaixiang is strategy partner of many famous company, such as Cummins, Caterpillar, Kohler,Jiangnan Shipyard, CSSC,CSIC, State grid, China mobile, Tecent, Baidu, Sinopec, CETC etc. Some of its products have been exported to America, Singapore, Israel, Japan, United Kingdom, Saudi Arabia, Australia, South Korea, Thailand, Sri Lanka, Angola etc. Through years of development, “Triumph Load” already famous brand in power supply detection industry in China.

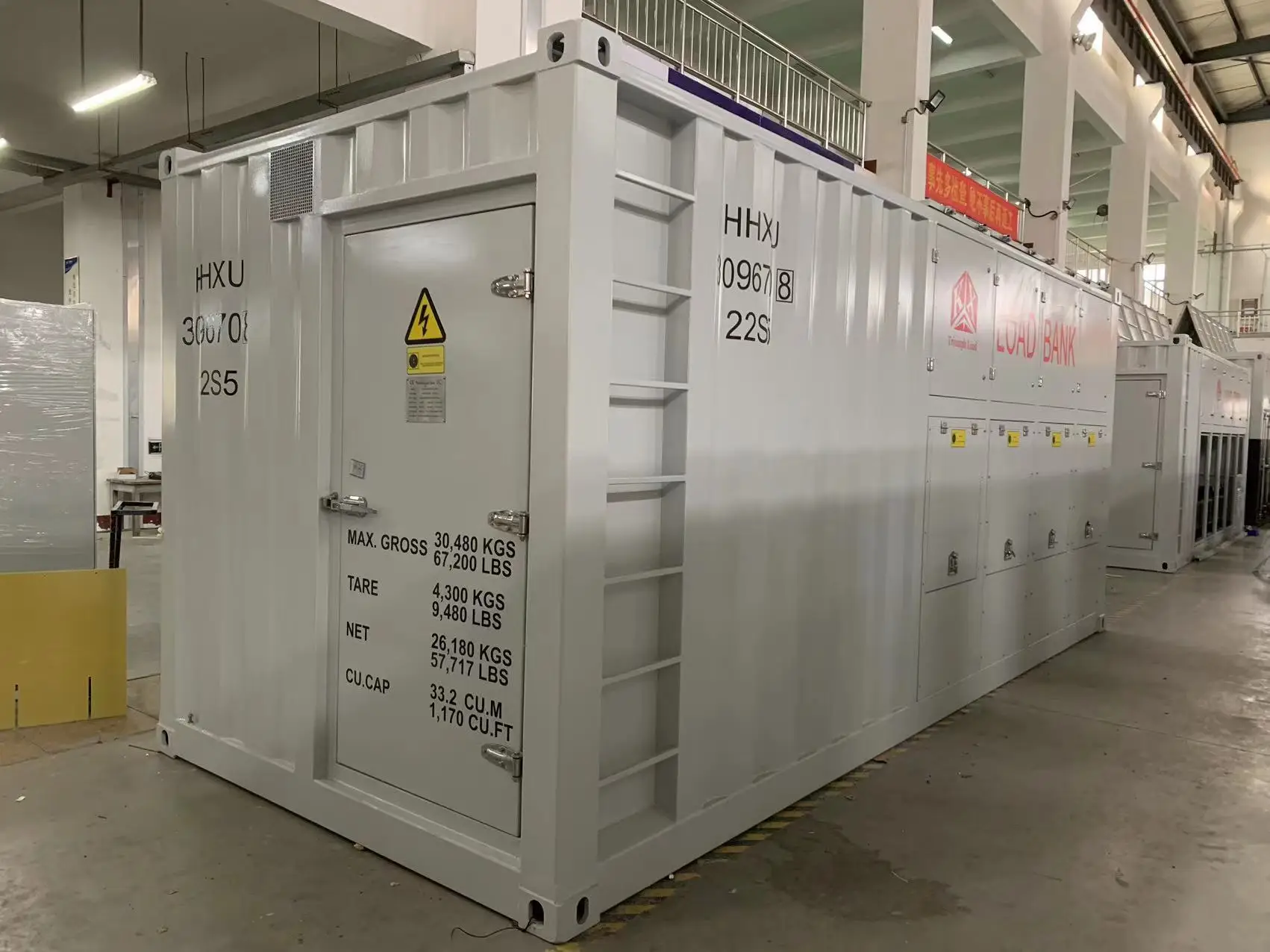

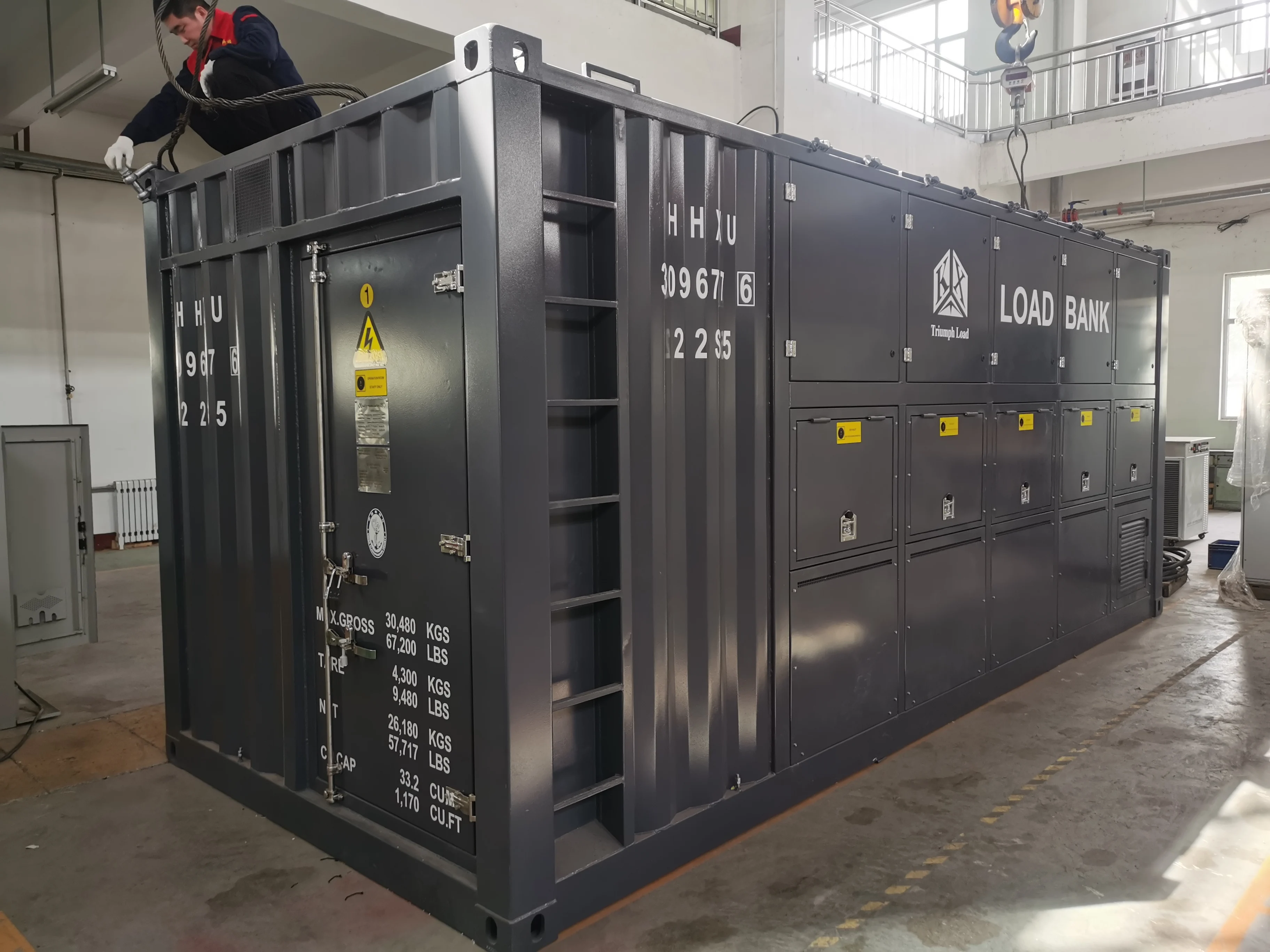

Workshop
Package and Transportation

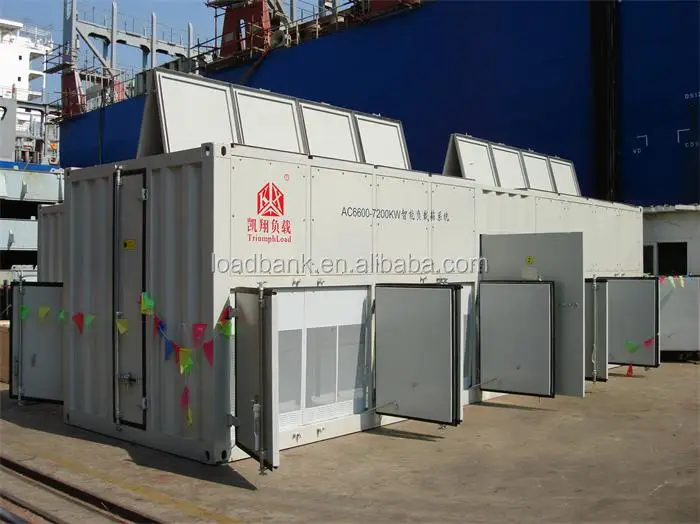

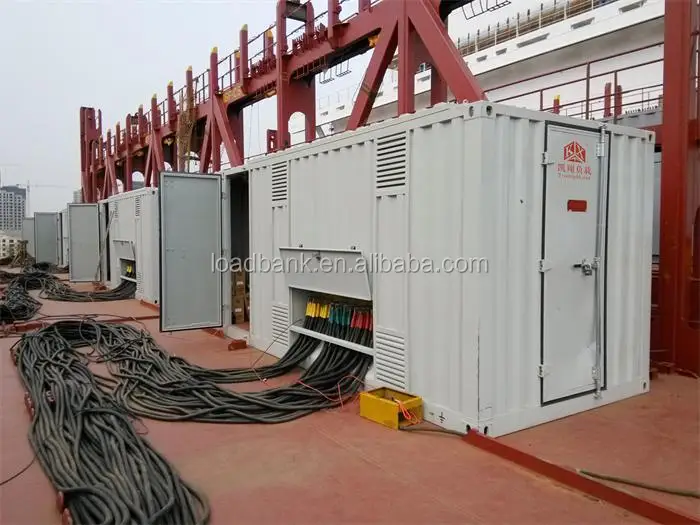

Customer Photos
Certifications
FAQ
Why choosing us
1. Professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
2. Lot of patent technology and scientific research awards gainer in China.
3. Advanced detection method and strict inspection procedure build the qualified quality.
4. Customized production meet the individual requirement.
5. Prompt delivery & excellent after sales service.
6. Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
7. Certified with China Classification Society (CCS) and ISO9001:2015 Quality Certificate.
8. Triumph Load is the famous brand in the emergency power supply test & maintenance industry in China.
2. Lot of patent technology and scientific research awards gainer in China.
3. Advanced detection method and strict inspection procedure build the qualified quality.
4. Customized production meet the individual requirement.
5. Prompt delivery & excellent after sales service.
6. Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
7. Certified with China Classification Society (CCS) and ISO9001:2015 Quality Certificate.
8. Triumph Load is the famous brand in the emergency power supply test & maintenance industry in China.
