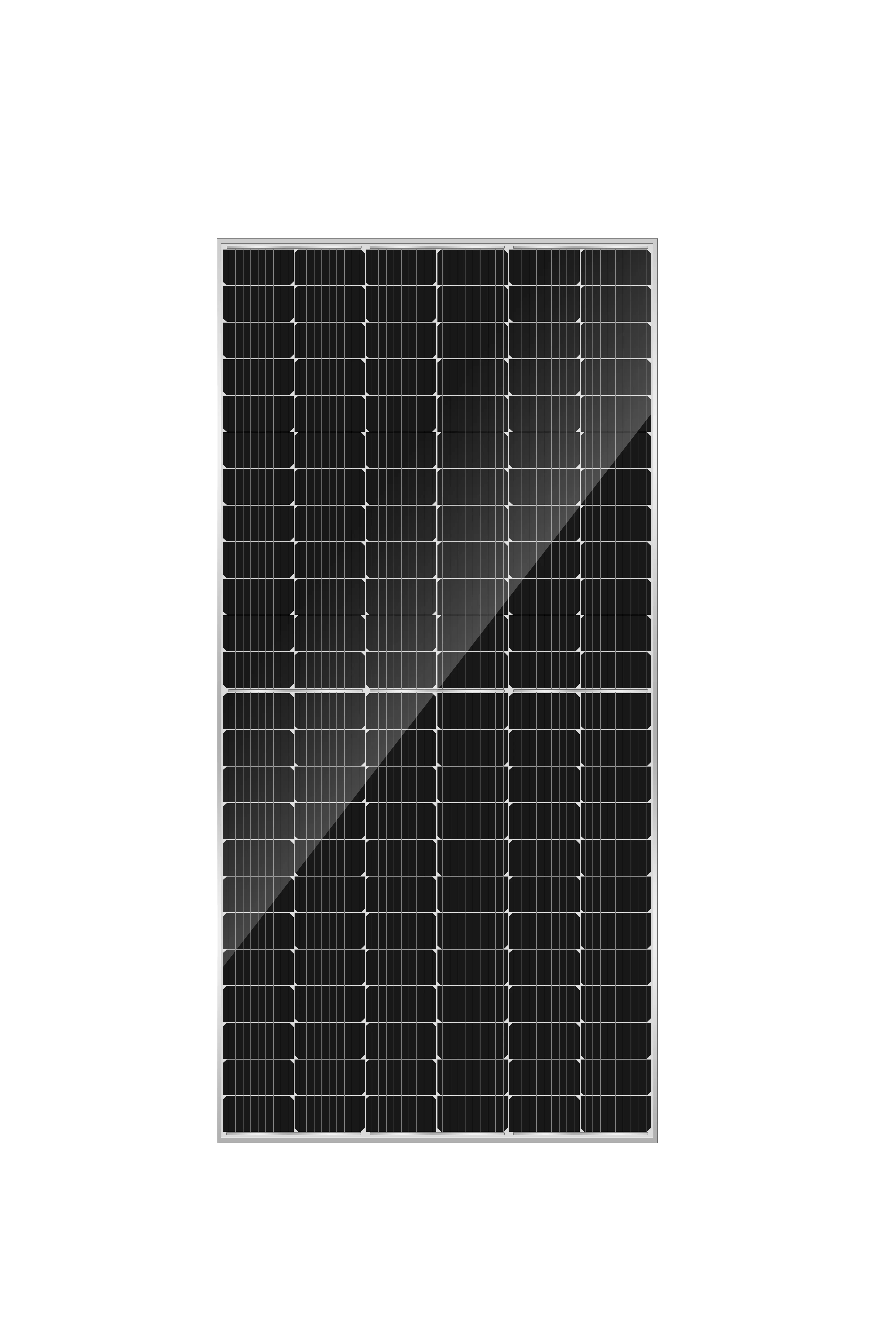

Высокоэффективные солнечные панели 400 Вт 450 500 600 PV поликристаллические для
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Jiayi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.91 $* | 0.75 $* |
| Aug-16-2025 | 0.26 $* | 0.82 $* |
| Jul-16-2025 | 0.72 $* | 0.19 $* |
| Jun-16-2025 | 0.45 $* | 0.83 $* |
| May-16-2025 | 0.4 $* | 0.46 $* |
| Apr-16-2025 | 0.51 $* | 0.95 $* |
| Mar-16-2025 | 0.70 $* | 0.20 $* |
| Feb-16-2025 | 0.0 $* | 0.91 $* |
| Jan-16-2025 | 0.26 $* | 0.52 $* |
Характеристики
OVERVIEW
The solar module combines the monocrystalline (polycrystalline) solar cells in series .with a high current density and smaller size.with aluminum alloy frame, the former board and backplane from laminated packaging; components on the metal frame has mounting holes, easy to use, and with the solid structure.4mm thickness tempered glass front panel, it offered the high-performance protection for resisting the impact of environmental, and it has transmission rate of direct light and scattered light sealing plate can effectively prevent moisture intrusion and penetration of seawater corrosion.
Features
High module conversion efficiency
Module efficiency up to 21.16%
Half-cell Design
Less energy loss cased by shading due to new cell string layout and lower cell connection power loss due to half-cell design.
Excellent weak light performance
More power output in weak light condition such as cloudy, morning and sunset
Higher Durability against harsh environment
Reliable quality leads to a better sustainability even in harsh environment
Lower operating temperature
Lower operating temperature and temperature coefficient increases the power output
Module efficiency up to 21.16%
Half-cell Design
Less energy loss cased by shading due to new cell string layout and lower cell connection power loss due to half-cell design.
Excellent weak light performance
More power output in weak light condition such as cloudy, morning and sunset
Higher Durability against harsh environment
Reliable quality leads to a better sustainability even in harsh environment
Lower operating temperature
Lower operating temperature and temperature coefficient increases the power output
Anti-RID (Potential induced degradation)
Excellent Anti-PID performance
Lower LCOE
2% more power generation, lower LCOE
Excellent Anti-PID performance
Lower LCOE
2% more power generation, lower LCOE
Product Paramenters
Spec.(mm) | Open-circuit voltage(V) | Peak power(W) | Working voltage(V) | Approxi.N.W.(KG) | ||||
480*350*17 | 22.2 | 20 | 18 | 2 | ||||
350*630*20 | 22.2 | 30 | 18 | 3 | ||||
540*680*20 | 22.2 | 45 | 18 | 5 | ||||
540*680*20 | 22.2 | 50 | 18 | 5.5 | ||||
670*650*20 | 22.2 | 60 | 18 | 6 | ||||
780*680*20 | 22.2 | 70 | 18 | 7 | ||||
1005*665*25 | 22.2 | 100 | 18 | 8.5 | ||||
1190*665*25 | 22.2 | 120 | 18 | 10.5 | ||||
1480*665*30 | 22.2 | 150 | 18 | 12 | ||||
1340*990*30 | 43.3 | 200 | 36 | 16 | ||||
1640*990*30 | 35.2 | 300 | 30 | 17 | ||||
1956*990*30 | 43.3 | 350 | 36 | 19 | ||||
1722*1134*30 | 31.32 | 410 | 30.3 | 18 | ||||
2089*1208*30 | 49.3 | 450 | 41.1 | 23.5 | ||||
2278*1134*35 | 49.11 | 550 | 41.96 | 28.1 | ||||
2172*1303*35 | 41.35 | 600 | 34.6 | 35.3 | ||||
Remarks: Many other wattage unlisted, please kindly inquiry for details! | ||||||||

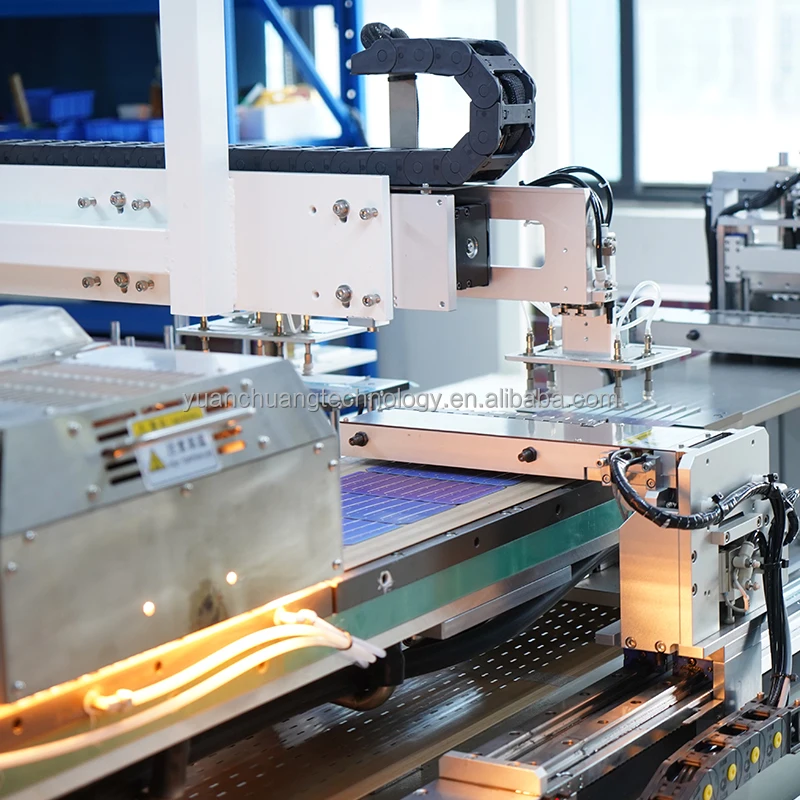

OUR PRODUCTION
FAQ
1,Q: What's the main products in JIAYI?
A: Prismatic Lifepo4 & NMC Battery Cells, Wall-mounted and Rack-mounted battery (5kwh, 10kwh,15kwh,), solar panels, inverters, Rechargeable Cylindrical Lifepo4 battery cells, 12V/24 battery pack and BMS
2. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
3. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
4. Q: How about the lead time?
A: Samples will takes 6-8 business days. Mass production will takes 15-20 days. It depends on quantity.
5. Q: How about shipping and delivery time?
DAP service, delivery time 7-12 days (by express)
1,Q: What's the main products in JIAYI?
A: Prismatic Lifepo4 & NMC Battery Cells, Wall-mounted and Rack-mounted battery (5kwh, 10kwh,15kwh,), solar panels, inverters, Rechargeable Cylindrical Lifepo4 battery cells, 12V/24 battery pack and BMS
2. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
3. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
4. Q: How about the lead time?
A: Samples will takes 6-8 business days. Mass production will takes 15-20 days. It depends on quantity.
5. Q: How about shipping and delivery time?
DAP service, delivery time 7-12 days (by express)
DDP service, delivery time 10-15 days(by air+express delivery)
DDP service, delivery time 35-45 days by sea/rail+express delivery)
CIF to port with 35-45 days.
6. Q: What about after-sale service?
A: We will offer you 5 years guarantee for battery pack, 12 months guarantee for battery cell. If there are any problems, please contact us with the details, we will offer you positive solutions or technical support.
7.Q: Do you accept OEM/ODM?
A1: YES, LOGO/size/weight/cell/BMS/LED screen/inner design accept customization.
6. Q: What about after-sale service?
A: We will offer you 5 years guarantee for battery pack, 12 months guarantee for battery cell. If there are any problems, please contact us with the details, we will offer you positive solutions or technical support.
7.Q: Do you accept OEM/ODM?
A1: YES, LOGO/size/weight/cell/BMS/LED screen/inner design accept customization.
