WEIFANG Новый HH 3D знаки автоматическая пластиковая вакуумная Термоформовочная Машина цена для акрилового abs ПВХ pmma
- Категория: Plastic Vacuum Forming Machines >>>
- Поставщик: Weifang,New,Hh,Ebiz,Tech,Corp
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1547.4 $* | 1624.99 $* |
| Aug-19-2025 | 1534.6 $* | 1611.78 $* |
| Jul-19-2025 | 1287.80 $* | 1351.49 $* |
| Jun-19-2025 | 1508.36 $* | 1583.39 $* |
| May-19-2025 | 1313.8 $* | 1379.91 $* |
| Apr-19-2025 | 1482.49 $* | 1556.30 $* |
| Mar-19-2025 | 1469.57 $* | 1542.88 $* |
| Feb-19-2025 | 1456.29 $* | 1529.93 $* |
| Jan-19-2025 | 1443.41 $* | 1515.13 $* |
Характеристики
Model | 4060A |
Working Area | 400*600MM |
Power Supply | 220V |
Max Power | 5.6KW |
Max Vacuum Deep | 200MM |
Machine Size | 1260*670*430MM |
For single-piece production of small products. Such as product proofing, Halloween masks, birthday gifts, teaching demonstrations High school CNC education.
Institute of industry technology education.and so on.
① Simple structure in linear type, easy in installation and maintenance.
② Single working station, heating box with protect lid.
③ Three separate heating zone, every zone has different temperature controller.
④ Hand leaver up, pump will be auto work.
⑤ Vacuum pump at the bottom of machine.
② Single working station, heating box with protect lid.
③ Three separate heating zone, every zone has different temperature controller.
④ Hand leaver up, pump will be auto work.
⑤ Vacuum pump at the bottom of machine.
Carry materials by hand → clamp the materials → move the material into the oven, after the material to soft →take the material to forming area → the vacuum will auto start→ open the fan to cold→ separate the model and material →take the material out.

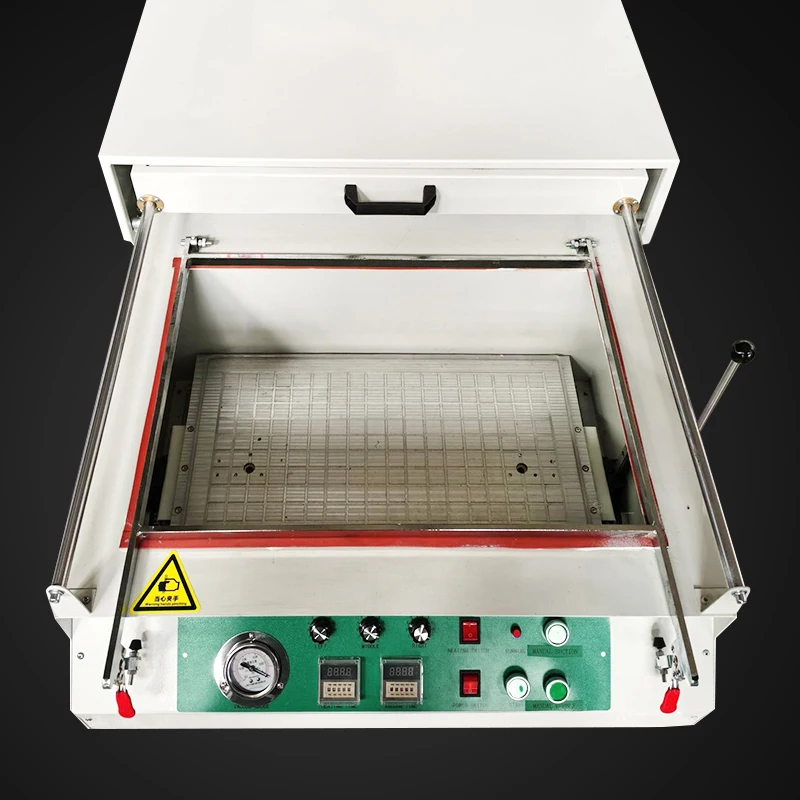

1.heating box
2. Guide rod of heating box
3. Clamp frame
4. Clips
5. Tray of mould
6.Control panel
7. Hand lever
Working process of machine is: clamp sheet -- moved heating box -- heating -- taken heating box -- mould up -- cooling -- mould
down -- clips loose -- take finished products.
down -- clips loose -- take finished products.
1.After the completion of machinery production, the factory inspectors shall check and put the equipment into storage.Before the delivery of the equipment, the after-sales engineer shall conduct secondary inspection and ensure the quality of the machine meets the customer's requirements
2.Clean the whole machinery , protect the parts that need oil, and check the related parts again .
3.Anti-collision package edge: All parts of the machine are covered with some soft materials. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood,saving the transport time and money.
applacation
For single-piece production of small products. Such as product proofing, Halloween masks, birthday gifts, teaching demonstrations.
For single-piece production of small products. Such as product proofing, Halloween masks, birthday gifts, teaching demonstrations.
High school CNC education.Institute of industry technology education.and so on. Advertising sign making , light box. Cake box,food box, packing box, transfer blister forming sheet.Garage DIY equipment ABS, PVC, PE, PET, Acrylic,Poly styrene, Poly propyleneand other materials apply, Many types of molds can be thermoformed.
The machine is small and exquisite, it can be placed in workshops, classrooms, laboratories,homes, etc .; the operation is very convenient, and it can be easily completed by
one person.
one person.
weifang new hh corp This factory build in 2014, mainly producer vacuum forming machine,vacuum press ,CNC router ,laser marking machine ,aluminum coil and other advertising industry supporting products.
we has after-sales service in more than 30 countries. For advertising equipment, the products export to more than 152 countries and get CE certification , service more than 2000 customers.
we has after-sales service in more than 30 countries. For advertising equipment, the products export to more than 152 countries and get CE certification , service more than 2000 customers.
1. What is Vacuum forming machine ?
It mainly use heating tube soften plastic ,then use vacuum pump extract vacuum ,after cooling get the shape you need.
2. What is the vacuum forming machine used for ?
Plastic mold ,Mask making ,signage making ,package ,Decoration ,University research ect.
3. Which materail can use ?
PMMA(Acrylic ), PVC,ABS,PE,PET ect.
4. How to choose vacuum forming machine ?
1) The material type and material thickness ,Less than 6mm 2) Finish forming products size 3) Sample pictures
5.Which type machine you have ?
Now mainly we have three type vacuum forming machine ,the mainly difference:
1) BX series only have
suction function , the max forming height 80mm
suction function , the max forming height 80mm
2) BSX series have suction and blow function ,the max forming height can meet200-300mm
3 ) BXY series have Press ,suction and blow function, the max forming height meet 220mm when use blow function For eachtype we have detail information , here have this three types working video you can check,more detail information contact with us
FAQ
Q1 Which material can use ?How to choose vacuum forming machine ?
A1 Vacuum forming machine can use PMMA(Acrylic ), PVC,ABS,PE,PET thermoplastic material . About how to choose vacuum former ,usually we need to know below questions
1) The material type and material thickness ,Less than 6mm
2) Finish forming products size
3) Sample pictures
A1 Vacuum forming machine can use PMMA(Acrylic ), PVC,ABS,PE,PET thermoplastic material . About how to choose vacuum former ,usually we need to know below questions
1) The material type and material thickness ,Less than 6mm
2) Finish forming products size
3) Sample pictures
Q2 For this machine what is the working voltage,if you accept the customized voltage ?
A2 The BSX-600 and BX-1400 working voltage 220V 50HZ 1P ,Other type normally working voltage is 380V/50HZ/3P, we can accept customized voltage,for example 220V/60HZ/3P ,415V/60HZ/3P act.
Q3 When this machine working ,if it need any accessory equipment ?
A3 If choose the heating box is moving by air cylinder ,when the machine working it need compressor air . For this machine working if you use MDF mould and want to make by yourself ,so you need prepare wood CNC router ; When finish forming need trim off unwanted edge , need trimmer . for this machines we all can provide
Q4 For the working area or forming height if you can accept customized ?
A4 Yes ,we can accept the customized working area and forming height , now we finish the BSX-2030 max forming height 450mm .
Q5 After I buy this machine how you arrange training ?
1)When delivery the machine with operation manual and video ,meantime all the files be saved in U disc ,send to you together .
2) After the machine delivery ,our sales-service engineer will contact with you and inform you ,when receive the machine contact with him ,he will service for you.
3)When you use this machine , any questions you can contact with our after-sales service ,they provide 24Hours/7Days online service
A2 The BSX-600 and BX-1400 working voltage 220V 50HZ 1P ,Other type normally working voltage is 380V/50HZ/3P, we can accept customized voltage,for example 220V/60HZ/3P ,415V/60HZ/3P act.
Q3 When this machine working ,if it need any accessory equipment ?
A3 If choose the heating box is moving by air cylinder ,when the machine working it need compressor air . For this machine working if you use MDF mould and want to make by yourself ,so you need prepare wood CNC router ; When finish forming need trim off unwanted edge , need trimmer . for this machines we all can provide
Q4 For the working area or forming height if you can accept customized ?
A4 Yes ,we can accept the customized working area and forming height , now we finish the BSX-2030 max forming height 450mm .
Q5 After I buy this machine how you arrange training ?
1)When delivery the machine with operation manual and video ,meantime all the files be saved in U disc ,send to you together .
2) After the machine delivery ,our sales-service engineer will contact with you and inform you ,when receive the machine contact with him ,he will service for you.
3)When you use this machine , any questions you can contact with our after-sales service ,they provide 24Hours/7Days online service
