34/5000 YR1035 + YAOREA цилиндрический держатель батареи зонд ручка тестер
34/5000 YR1035 + YAOREA цилиндрический держатель батареи зонд ручка тестер

34/5000 YR1035 + YAOREA цилиндрический держатель батареи зонд ручка тестер


Поделиться:


Цена:50,00 $ - 52,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 60.8 $* 63.37 $*
Aug-16-2025 59.60 $* 62.56 $*
Jul-16-2025 50.98 $* 53.83 $*
Jun-16-2025 58.19 $* 61.94 $*
May-16-2025 51.60 $* 54.81 $*
Apr-16-2025 57.18 $* 60.20 $*
Mar-16-2025 57.68 $* 60.94 $*
Feb-16-2025 56.93 $* 59.25 $*
Jan-16-2025 56.14 $* 59.52 $*

Характеристики



Product Description




Specification


item
value
Place of Origin
China
Does it contain battery
Yes
Types of machine-powered batteries
One 18650 lithium battery
Machine size
length, width and thickness / 13.5cm*7.3cm*2.5cm
Single box size
Length, width and height / 16.5cm*12.5cm*5cm
Weight
 host ≈ 200g, test rack ≈ 120g, four-pin probe ≈ 43g, clip ≈ 68g, outer packing box ≈ 90g


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile




The products we sell have been accurately measured and tested. They not only have good accuracy, but also have good service. You can contact us if you have any questions in subsequent use.

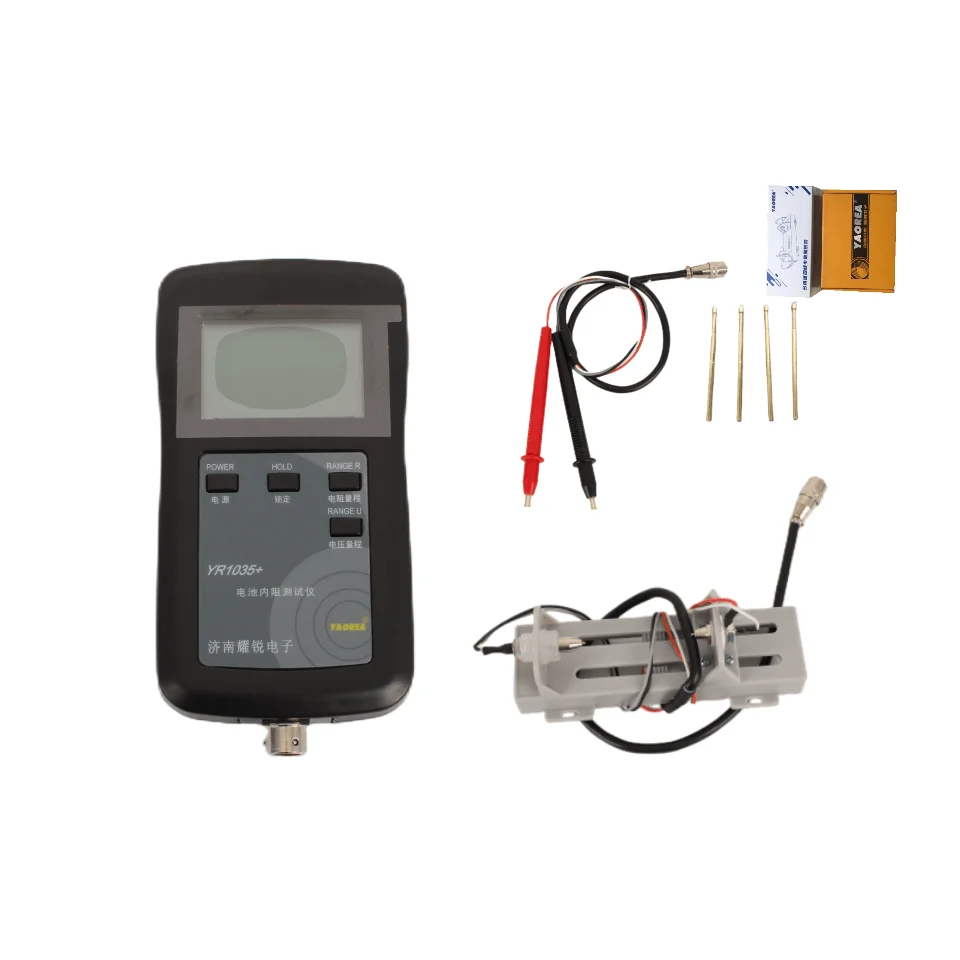

YR1035+ battery internal resistance tester is a true four-wire internal resistance tester, which can measure the internal
resistance and voltage at the same time. It can also be used to measure the resistance. The measurement results are displayed on the same screen. This product is suitable for battery configuration, battery performance testing, battery screening and other aspects.The machine structure exquisite, easy to carry, is your ideal electrician, electronic testing machine.



Precision specifications
Format of precision specification: ± ([degree percentage]+[minimum significant digit])


Range※
Maximum resolution
Precision
display mode
20mΩ
0.01mΩ
0.7%+7
22.00mΩ
200mΩ
0.1mΩ
0.5%+5
20.0 mΩ
2Ω
1mΩ
0.5%+5
2.200 Ω
20Ω
10mΩ
0.5%+5
22.00 Ω
200Ω
0.1Ω
0.6%+5
220.0 Ω


※The range of gear range is 5%-95%, and the error may be greater than the above precision if the range is not within this range(less than 5% range, or greater than 95% range).



Voltage measurement: ±(% reading +% range)


Range
Maximum resolution
Precision
display mode
1V
0.00001V
0.15+0.015
.99999V
10V
0.0001V
0.15+0.010
9.9999V
100V
0.001V
0.15+0.015
99.999V


Positive and negative symmetry error ±(0.012% +5 words)
Temperature Drift 100ppm/℃ within normal service temperature (10℃-40℃)




FAQ


1. who are we?
We are based in Shandong, China, start from 2022,sell to North America(10.00%),South America(10.00%),Eastern
Europe(10.00%),Southeast Asia(10.00%),Oceania(10.00%),Mid East(10.00%),Eastern Asia(10.00%),Western Europe(10.00%),Central
America(10.00%),Southern Europe(10.00%). There are total about 20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Battery internal resistance measuring instrument,Wire resistance measuring instrument

4. why should you buy from us not from other suppliers?
We are authorized distributors of manufacturers. The quality of goods sold is strictly controlled, providing customers with good pre-sales and after-sales service, and striving to make customers more satisfied is our continuous pursuit.

5. What services can we provide?
Accepted delivery terms: non-customized goods will be delivered within 3 to 15 days;
Currency of payment accepted: RMB, USD, EUR;
Type of payment accepted: online payment;
Spoken English: Chinese, English, Japanese;

6.How to contact us?
You can contact us by direct chat or email 839518446@qq.com.
