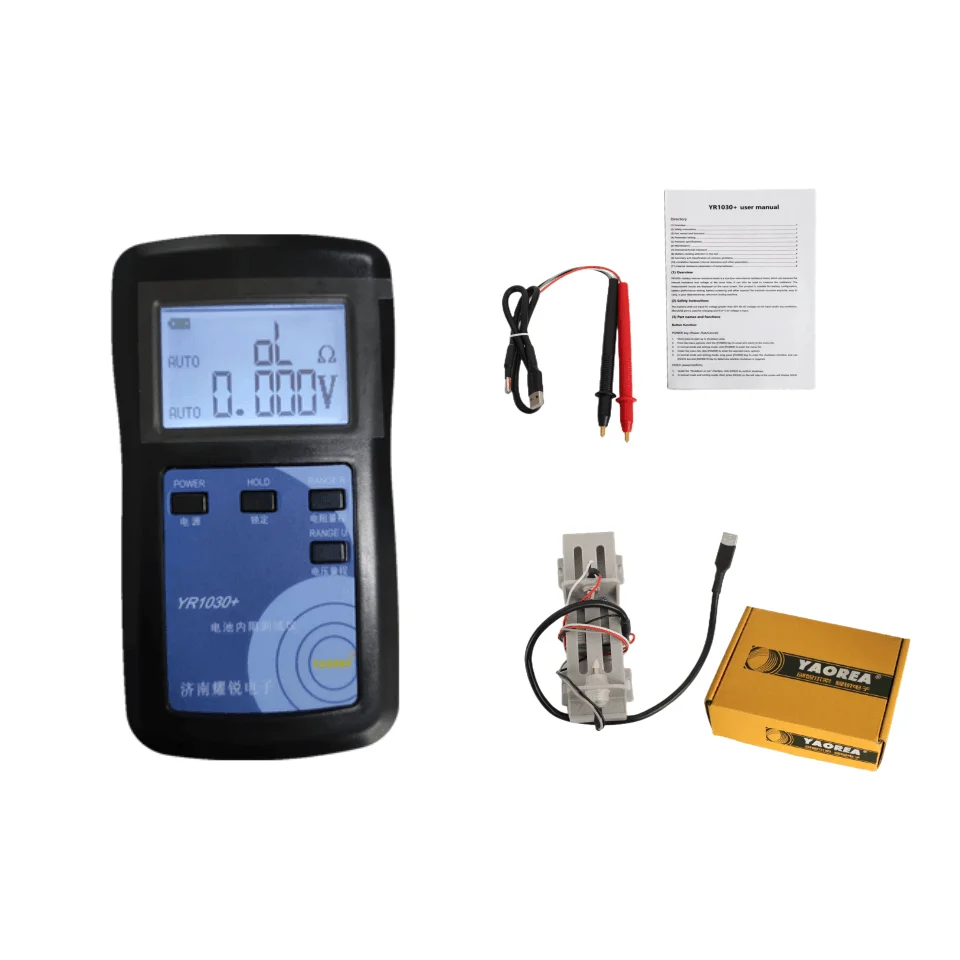

34/5000 YR1030 + Солнечная батарея внутреннего сопротивления
- Категория: Other Test Instrument >>>
- Поставщик: Jinan,Presun,Electronic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 57.88 $* | 60.75 $* |
| Aug-15-2025 | 57.9 $* | 60.58 $* |
| Jul-15-2025 | 48.40 $* | 50.16 $* |
| Jun-15-2025 | 56.31 $* | 59.52 $* |
| May-15-2025 | 48.30 $* | 50.10 $* |
| Apr-15-2025 | 55.40 $* | 58.11 $* |
| Mar-15-2025 | 54.42 $* | 57.92 $* |
| Feb-15-2025 | 54.92 $* | 57.86 $* |
| Jan-15-2025 | 53.97 $* | 56.74 $* |
Характеристики
Product Description
Specification
item | value |
Place of Origin | China |
Does it contain battery | Yes |
Types of machine-powered batteries | One 18650 lithium battery |
Machine size | length, width and thickness / 13.5cm*7.3cm*2.5cm |
Single box size | Length, width and height / 16.5cm*12.5cm*5cm |
Weight | host ≈ 200g, test rack ≈ 120g, four-pin probe ≈ 43g, clip ≈ 68g, outer packing box ≈ 90g |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
The products we sell have been accurately measured and tested. They not only have good accuracy, but also have good service. You can contact us if you have any questions in subsequent use.
YR1035+ battery internal resistance tester is a true four-wire internal resistance tester, which can measure the internal
resistance and voltage at the same time. It can also be used to measure the resistance. The measurement results are displayed on the same screen. This product is suitable for battery configuration, battery performance testing, battery screening and other aspects.The machine structure exquisite, easy to carry, is your ideal electrician, electronic testing machine.
resistance and voltage at the same time. It can also be used to measure the resistance. The measurement results are displayed on the same screen. This product is suitable for battery configuration, battery performance testing, battery screening and other aspects.The machine structure exquisite, easy to carry, is your ideal electrician, electronic testing machine.
Precision specifications
Format of precision specification: ± ([degree percentage]+[minimum significant digit])
Format of precision specification: ± ([degree percentage]+[minimum significant digit])
Range※ | Maximum resolution | Precision | display mode |
20mΩ | 0.01mΩ | 0.7%+7 | 22.00mΩ |
200mΩ | 0.1mΩ | 0.5%+5 | 20.0 mΩ |
2Ω | 1mΩ | 0.5%+5 | 2.200 Ω |
20Ω | 10mΩ | 0.5%+5 | 22.00 Ω |
200Ω | 0.1Ω | 0.6%+5 | 220.0 Ω |
※The range of gear range is 5%-95%, and the error may be greater than the above precision if the range is not within this range(less than 5% range, or greater than 95% range).
Range | Maximum resolution | Precision | display mode |
4V | 1mV | 0.8%+5 | 4.400V |
40V | 10mV | 0.8%+5 | 44.00V |
Positive and negative symmetry error ±(0.012% +5 words)
Temperature Drift 100ppm/℃ within normal service temperature (10℃-40℃)
Temperature Drift 100ppm/℃ within normal service temperature (10℃-40℃)
FAQ
1. who are we?
We are based in Shandong, China, start from 2022,sell to North America(10.00%),South America(10.00%),Eastern
Europe(10.00%),Southeast Asia(10.00%),Oceania(10.00%),Mid East(10.00%),Eastern Asia(10.00%),Western Europe(10.00%),Central
America(10.00%),Southern Europe(10.00%). There are total about 20 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Battery internal resistance measuring instrument,Wire resistance measuring instrument
4. why should you buy from us not from other suppliers?
We are authorized distributors of manufacturers. The quality of goods sold is strictly controlled, providing customers with good pre-sales and after-sales service, and striving to make customers more satisfied is our continuous pursuit.
5. What services can we provide?
We are based in Shandong, China, start from 2022,sell to North America(10.00%),South America(10.00%),Eastern
Europe(10.00%),Southeast Asia(10.00%),Oceania(10.00%),Mid East(10.00%),Eastern Asia(10.00%),Western Europe(10.00%),Central
America(10.00%),Southern Europe(10.00%). There are total about 20 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Battery internal resistance measuring instrument,Wire resistance measuring instrument
4. why should you buy from us not from other suppliers?
We are authorized distributors of manufacturers. The quality of goods sold is strictly controlled, providing customers with good pre-sales and after-sales service, and striving to make customers more satisfied is our continuous pursuit.
5. What services can we provide?
Accepted delivery terms: non-customized goods will be delivered within 3 to 15 days;
Currency of payment accepted: RMB, USD, EUR;
Type of payment accepted: online payment;
Spoken English: Chinese, English, Japanese;
6.How to contact us?
You can contact us by direct chat or email 839518446@qq.com.
