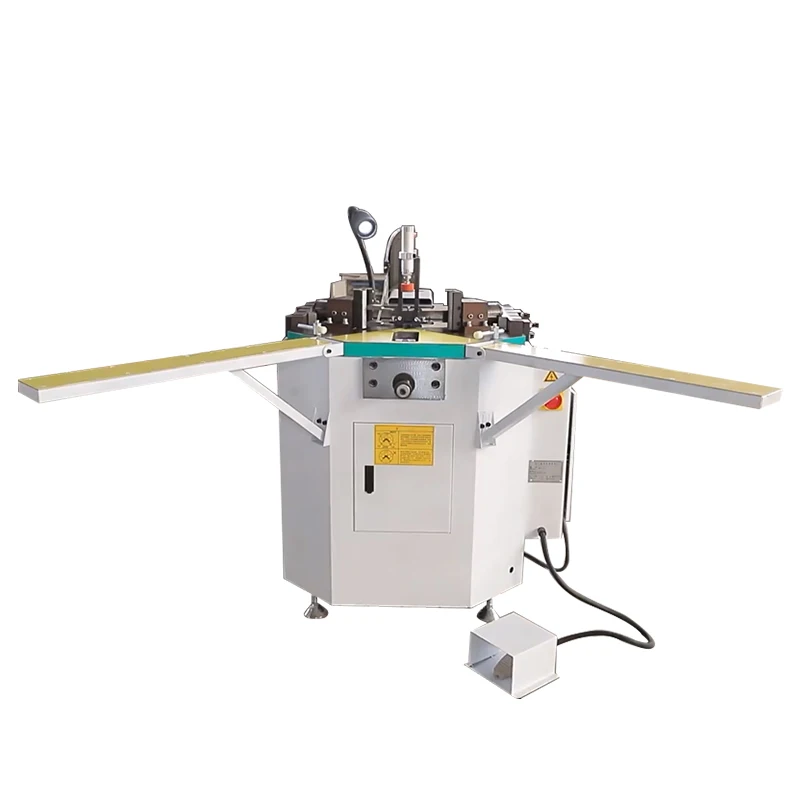

Прямая Продажа с завода автоматический гидравлический алюминиевый угловой обжимной станок для окон
- Категория: Building Material Machinery >>>
- Поставщик: Shandong,Care,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1904.86 $* | 1999.22 $* |
| Aug-15-2025 | 1888.31 $* | 1982.62 $* |
| Jul-15-2025 | 1584.90 $* | 1663.33 $* |
| Jun-15-2025 | 1856.67 $* | 1949.16 $* |
| May-15-2025 | 1616.66 $* | 1697.94 $* |
| Apr-15-2025 | 1824.87 $* | 1915.73 $* |
| Mar-15-2025 | 1808.37 $* | 1898.81 $* |
| Feb-15-2025 | 1792.89 $* | 1882.52 $* |
| Jan-15-2025 | 1776.78 $* | 1865.39 $* |
Характеристики
Video display
Equipment Features:
The corner combining machine is used for 90° fabricating of aluminum window.
Adopt new mechanical linkage device, realize complete synchronous corner combining.
Up and down adjustable locating device, suitable for various section and sized profile.
Left and right punching heads adopt hardness synchronous feeding device, avoid deformation and
make sure firm connection.
make sure firm connection.
Main Features
1.Aluminum Window and Door Corner Forming Machine is Used for aluminum frame and
sash corner crimping, especially for the high-quality profile, such as thermal bridging profile.
2.Hydraulic system driving, ensure a stable working.
3.Synchronous feeding of the level (left and right side) pushing knives by link with one
hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently.
4.Convenient operation and less error in processing.
5. Distance of tool knife adjustable, as the screw thread connection, easy working for tools
1.Aluminum Window and Door Corner Forming Machine is Used for aluminum frame and
sash corner crimping, especially for the high-quality profile, such as thermal bridging profile.
2.Hydraulic system driving, ensure a stable working.
3.Synchronous feeding of the level (left and right side) pushing knives by link with one
hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently.
4.Convenient operation and less error in processing.
5. Distance of tool knife adjustable, as the screw thread connection, easy working for tools
Product Paramenters
Power | 1.5kw | Profile crimping height | Max.120mm |
Voltage | 380V/50HZ | Profile crimping width | Max. 90mm |
Air pressure | 0.6-0.8MPa | Hydraulic pressure | 15MPa |
Air consumption | 20L/min | Capability of oil box | 20L |
Crimping accuracy | ≤0.15mm | Dimension | 1100x1100x1300mm |
Products Description
1.

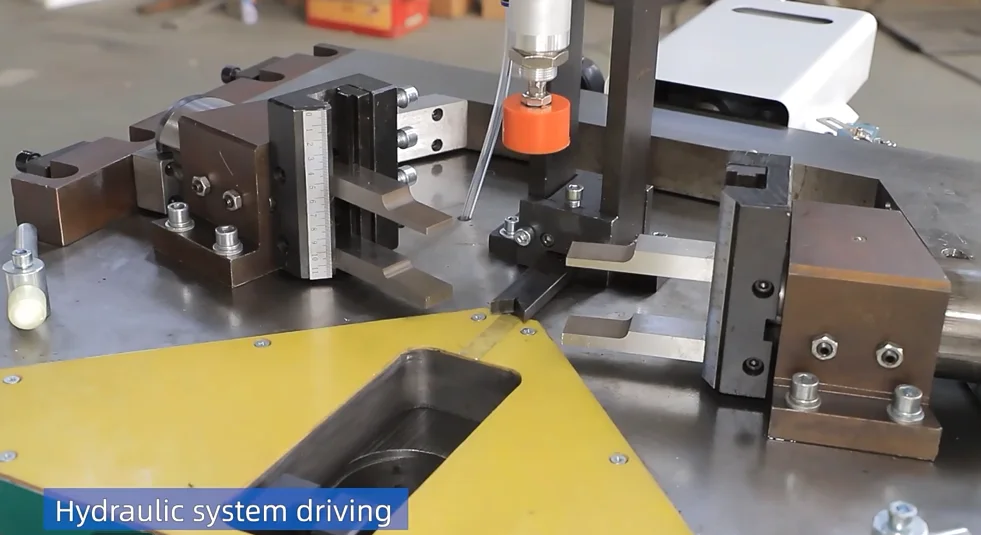

Hydrulic system driving
2.

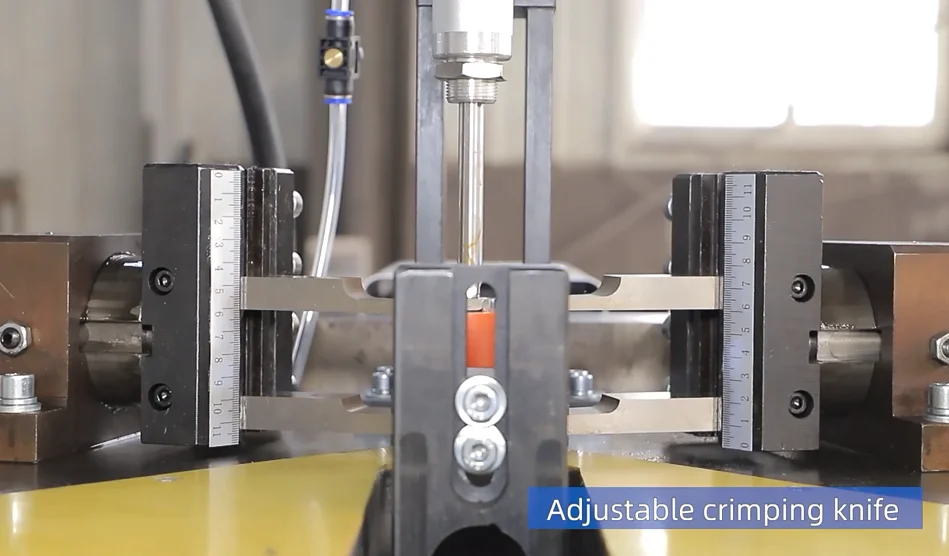

Adjustbable crimping knife
3.
4.
High accuracy crimping less than 0.1mm
