18kw20kw30kw40kw50kw60kw100kw kva Ethiopia электрический портативный бесшумный дизельный

18kw20kw30kw40kw50kw60kw100kw kva Ethiopia электрический портативный бесшумный дизельный

Цена:680,00 $ - 1 100,00 $*

Количество:

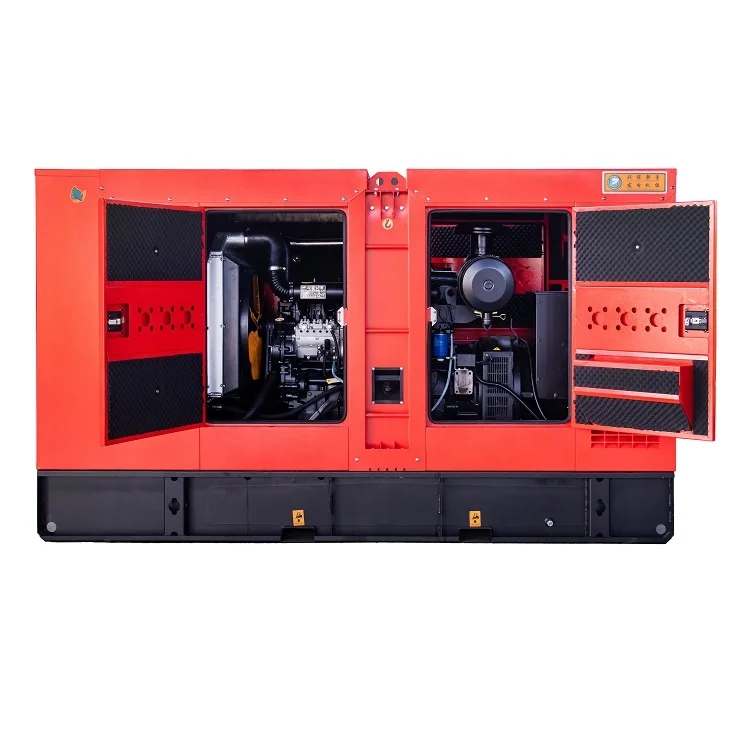

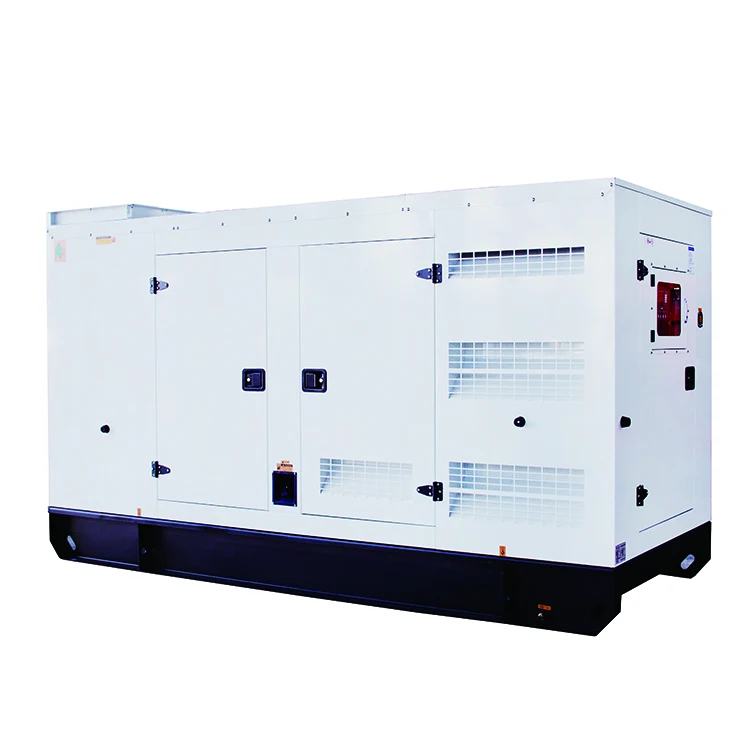

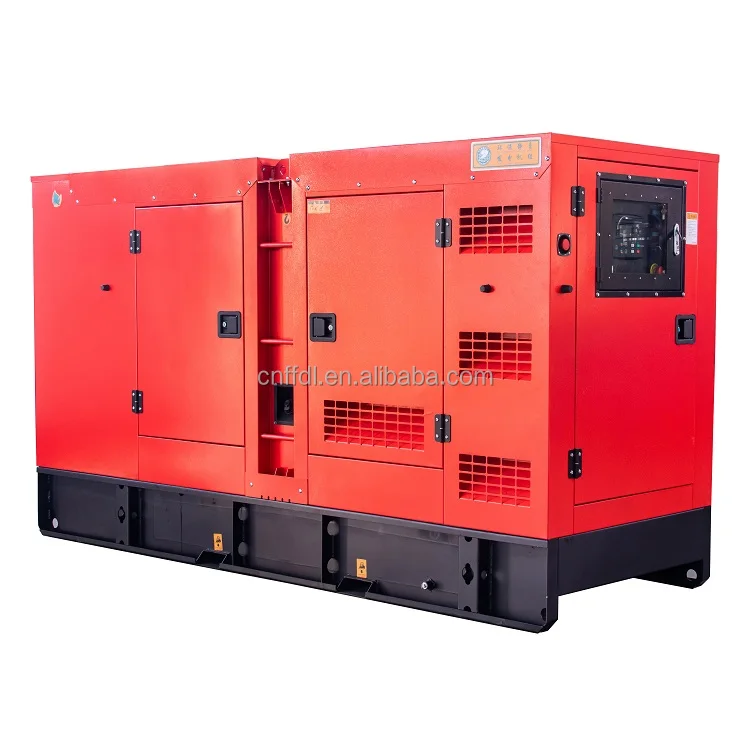

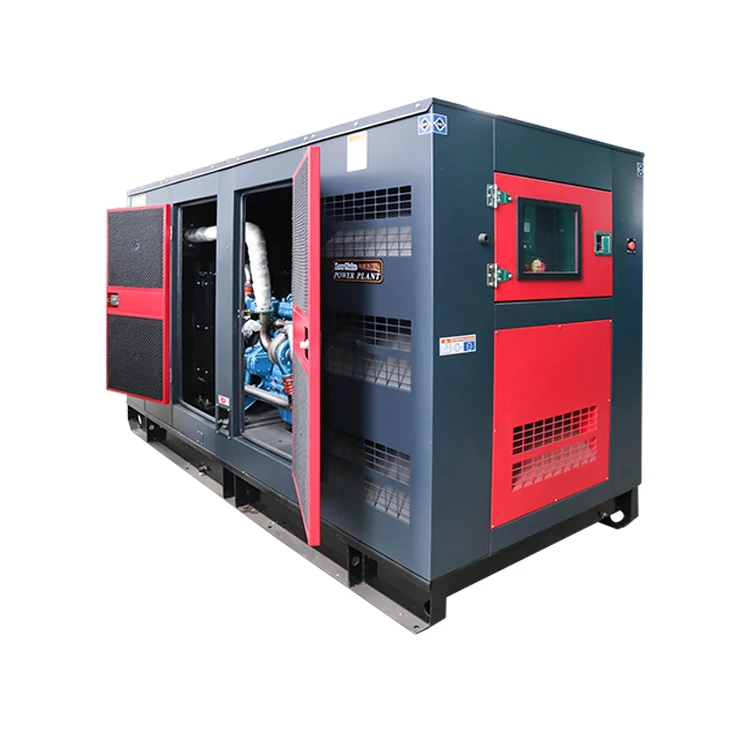

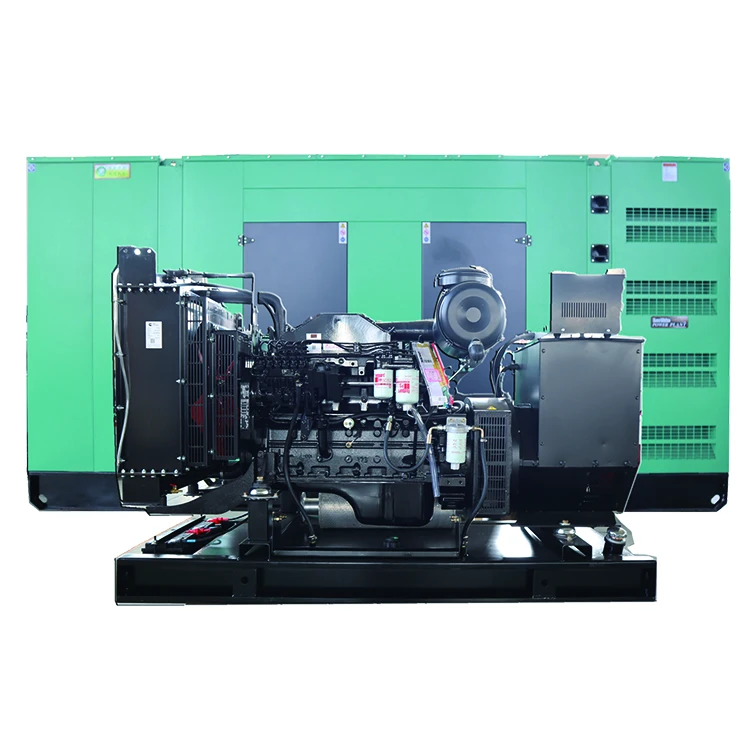

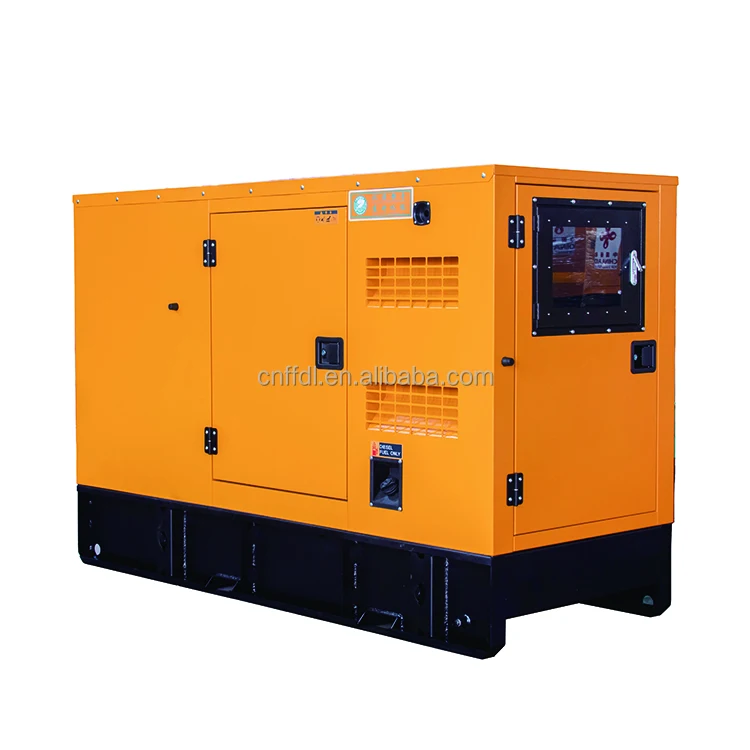

18kw Ethiopia Electric Portable Power Diesel Generator Price

Product Description

Specification

Diesel Engine Technical Data

Engine Model	DCEC Cummins 4B3.9-G11
Air intake system	Air natural aspirated
Fuel system	Weifu A pump /RSV
Cylinder arrangement	4 in line
Displacement	3.9L
Bore and stroke	102*120（mm）
Compression ratio	18.0:1
Rated speed	1500rpm
Rated net power(with fan)	20KW
Governor type	Mechanical/Electrical
Exhaust System
Exhaust gas flow	70 m3/min
Exhause gas temp	410 ℃
Max back pressure	10kPa
Air Intake System
Max inlet pressure	/ kPa
Combustion volume	/ kPa
Air flow	32.9m³/min
Fuel System
Fuel consumption @ 100% (Prime Power) Load	5.7 L/h
Fuel consumption @ 75% (Prime Power) Load	4.6 L/h
Fuel consumption @ 50% (Prime Power) Load	3.7L/h
Oil System
Total oil capacity	10.9L
Oil consumption	≤0.5g/kwh
Oil pressure	207-345kPa
Cooling System
Coolant capacity	7.2L
Max water temperature	104℃

Alternator Technical Data

Alternator model	FF-18gf
Alternator manufacturer	FENGFA
Exciter type	Single bearing, Brushless, Self-excited
Prime Power	18kw
Rated speed	1500 RPM
Rated frequency	50 Hz
Phase	3
Rated voltage	400 V(Available with customer requirements)
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation grade	H
Protection grade	IP23

Company Profile

Our Advantages

Installation Instructions

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
