Смартфон Tuya с Wi-Fi RGB RGBW DC 12 В 24 5 в 1 контроллер светодиодной
- Категория: Dimmers >>>
- Поставщик: Shenzhen,You,Lai,Mi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 11.79 $* | 11.26 $* |
| Jul-15-2025 | 9.40 $* | 9.50 $* |
| Jun-15-2025 | 11.67 $* | 11.16 $* |
| May-15-2025 | 11.51 $* | 11.95 $* |
| Apr-15-2025 | 9.33 $* | 9.21 $* |
| Mar-15-2025 | 11.77 $* | 11.96 $* |
| Feb-15-2025 | 11.6 $* | 11.33 $* |
| Jan-15-2025 | 11.36 $* | 11.50 $* |
Характеристики

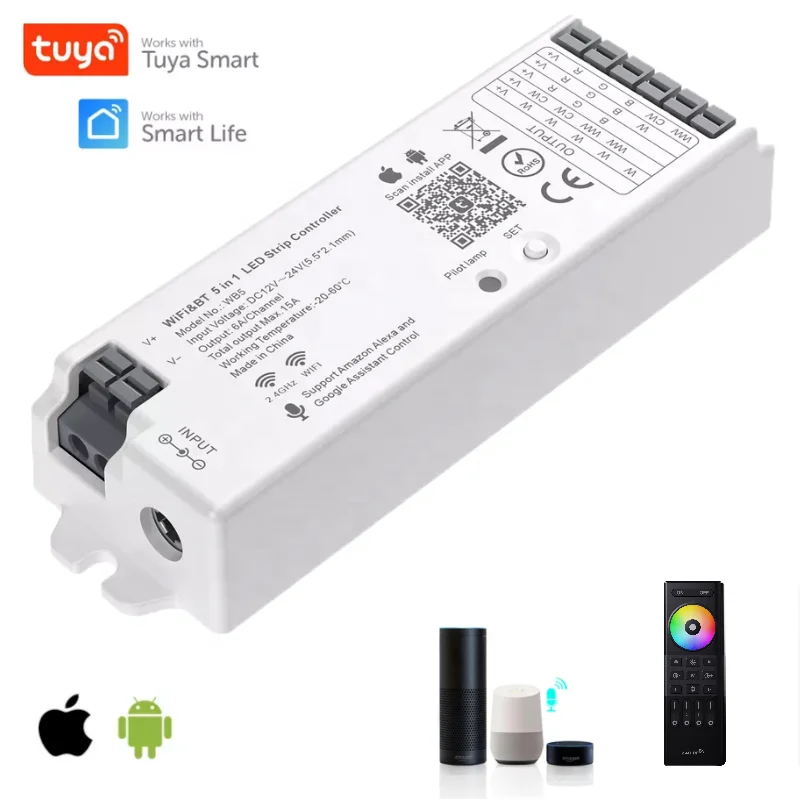

Product Name | WiFi&Bluetooth 5 in 1 LED controller | ||||||
Model | WB5 | ||||||
Brand | Laimi | ||||||
Working Voltage | DC12V~24V | ||||||
Output | 6A/Channel (Total Output Max 15A) 12V180W 24V360W | ||||||
Working Temperature | -20~60℃ | ||||||
Communication Mode | WiFi-IEEE 802.11b/g/n 2.4GHz or 2.4G RF | ||||||
Control APP name | Tuya Smart Life | ||||||
Weight | 65g | ||||||
Size | 125x38x23(mm) / 4.9x1.5x0.9(in) | ||||||
Warranty | 3 years | ||||||
Certification | CE/RoHs/FCC | ||||||
Features:

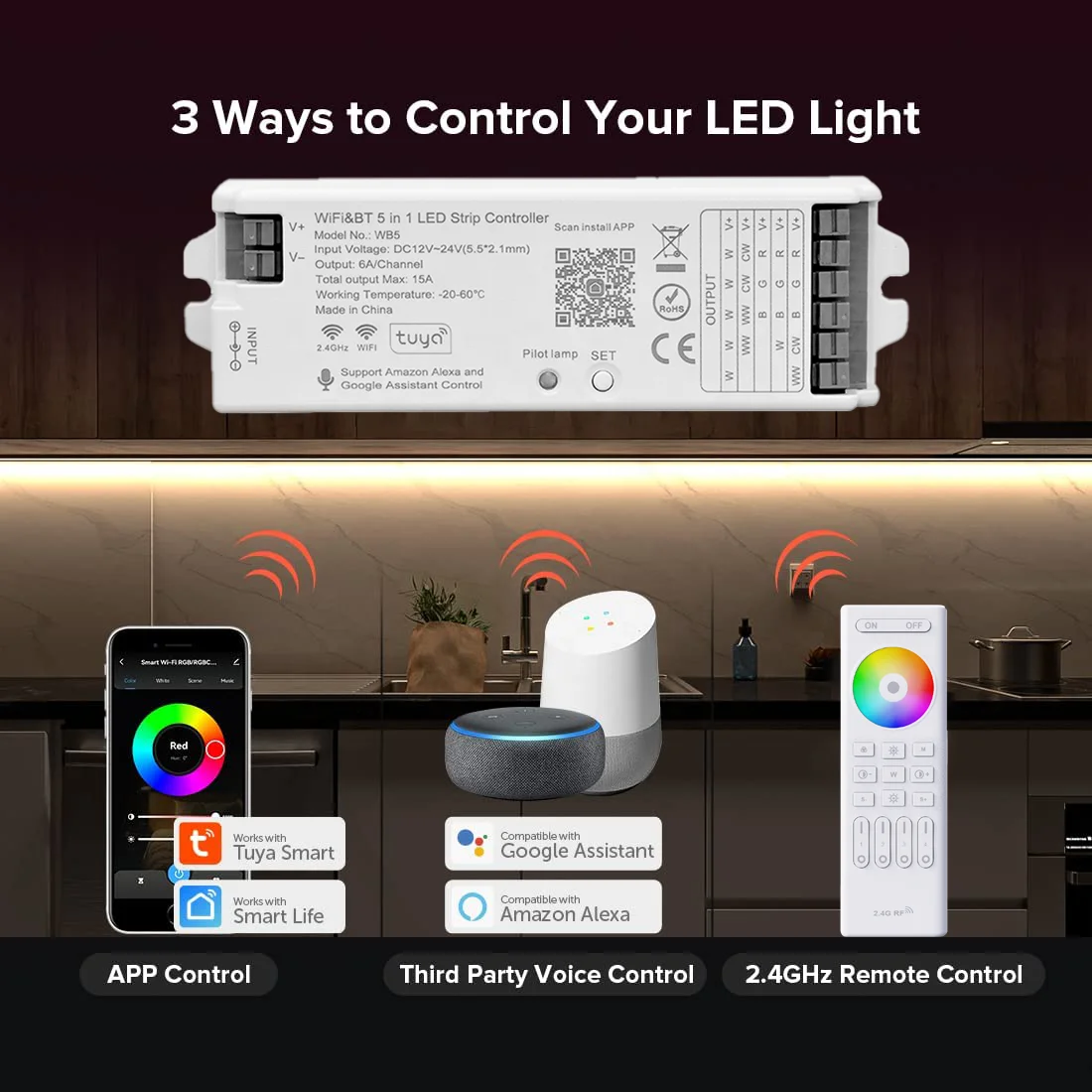

The controller is adopted by the most advanced PWM control technology, and has memory function ( The light status will keep same as the status before you tum off the light ). Wireless and 4G controlled by "Tuya Smart" APP.
The controller is adopted by the most advanced PWM control technology, and has memory function ( The light status will keep same as the status before you tum off the light ). Wireless and 4G controlled by "Tuya Smart" APP.
SET Button: Long press "SET" 3 seconds, when the purple pilot lamp blinking, the device go into Link/Unlink mode and Smart Link mode.
( Note: Bluetooth control will be available after linking by WiFi APP).

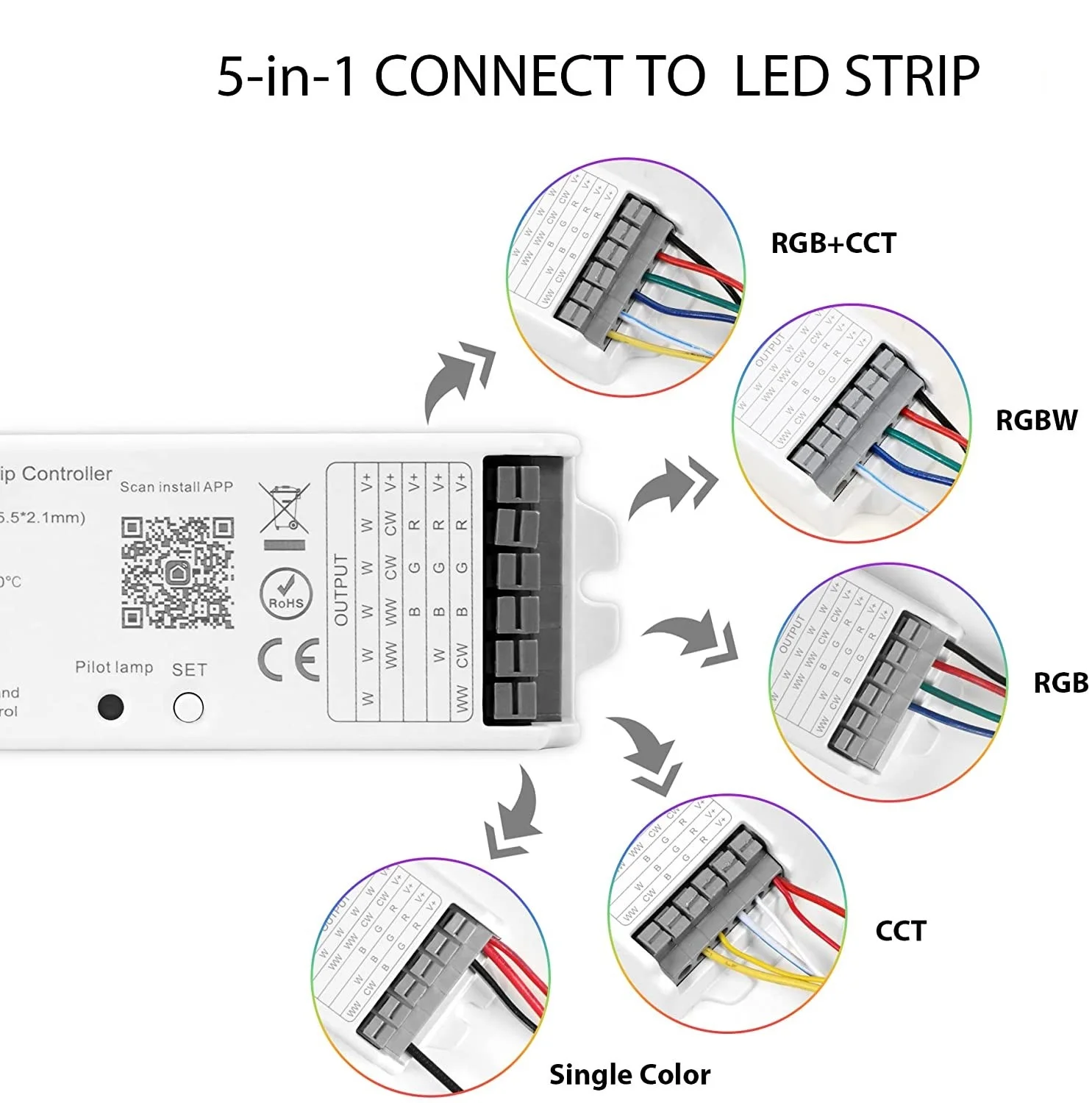

Switching Output Mode: Short press "SET" button to switch the output mode. The Pilot lamp flickering means switching successfully.Different colors flickering correspond to different output mode.
Attention Please:
1. Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please
check the connection of both the cathode and anode.
2. The working Voltage is DC12~24V, the controller will be broken if the voltage is higher than 24V.
3. Non-professional user cannot dismantle the controller directly, otherwise, it may cause fire and electric shock.
4. The working temperature is-20~60°C. Do not use the device to direct sunlight, moist and other high temperature area.
5. Please do not use controller around the mental area and high magnetic field, otherwise, it will badly affect the control
distance.
6.When the device load to 15A, wire diameter must be over 1.5mm²
Switching Output Mode: Short press "SET" button to switch the output mode. The Pilot lamp flickering means switching successfully.Different colors flickering correspond to different output mode.
Attention Please:
1. Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please
check the connection of both the cathode and anode.
2. The working Voltage is DC12~24V, the controller will be broken if the voltage is higher than 24V.
3. Non-professional user cannot dismantle the controller directly, otherwise, it may cause fire and electric shock.
4. The working temperature is-20~60°C. Do not use the device to direct sunlight, moist and other high temperature area.
5. Please do not use controller around the mental area and high magnetic field, otherwise, it will badly affect the control
distance.
6.When the device load to 15A, wire diameter must be over 1.5mm²
