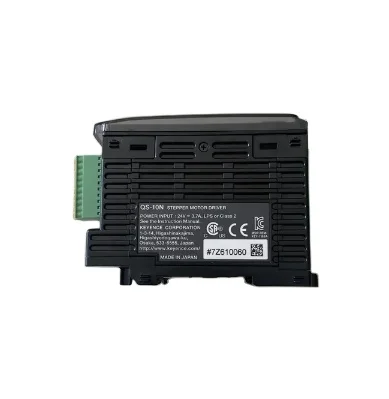

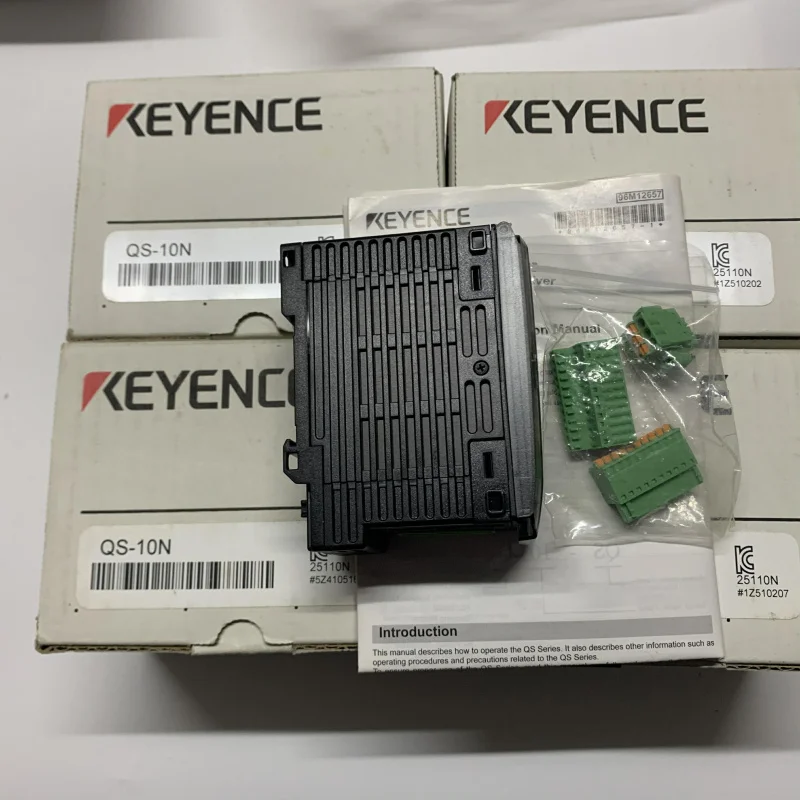

Встроенный тип позиционирования Универсальный QS-10H ключа

Model

QS-10H

Outer Size

85 (W) x 68 (D) x 38 (H) mm

Spe.

Ambient temperature

0 - +50°C (No Freezing)

Ambient temperature

35-85% RH,(No condensation)

Storage temperature

-20-85℃ (No Freezing)

Storage temperature

35-85% RH,(No Condensation)

Anti-interference

Vibration resistant

In the case of intermittent vibration

Frequency:5~9Hz

Amplitude:3.5 mm^*1

Frequency:9~150Hz

Acceleration:9.8 m/s^2*1

In the case of continuous vibration

Frequency:5~9Hz

Amplitude:1.75 mm^*1

Frequency:9~150Hz

Acceleration:4.9m/s^2*1

Current consumption (including motor)

2.6A or less (when using QS-M28)
2.7A or less (when using QS-M42)
3.7A or less (when using QS-M60)

Performance specifications

Basic step angle

1.8°

Command resolution

200/400/800/3200 P/R

Drive Method

2 Phase bipolar

Control Mode

Stepping

Support Mode

2-phase DC stepper motor
1.8°/STEP rated current 2.0 A or less

Motor Encoder Resolution

-

Automatic recognition of motor size

Current location range

Location unit

Built-in positioning function

Positioning Mode

Absolute value / relative value / speed + / speed-

Position setting range

-9999999- +9999999 [PLS]^*2

1 action address

Acceleration and deceleration curve

Straight Line,SIN

Acceleration and deceleration

1-1000000 [Hz/ms](Point General)

Points

4 Points(64 Points^*3)

Teach

Teaching at current position

Return to origin

Origin Return Method

-

Pulse input frequency

Frequency

Input Method

Encoder Output

Resolution

JOG /Inch

Regenerative resistance

Built-in only (not externally connected)

Dynamic brake (DB)

Yes

Electromagnetic brake control

Backup

Settings, alarm history (10 entries) (EEPROM storage), rewrite times 100,000 times

Display Function

Status, function selection, bar display, 7-segment (3 digits), 7-segment (7 digits), etc.

Opertation Function

Action mode switching, operation, MODE, SET keys, etc.

Protect Function

Overvoltage (regeneration) detection, overcurrent detection, overheating detection

Input Terminal

Control Input

8 o'clock
(Point designation 1 to 4, return-to-origin command,
Alarm reset/stop, FREE input, select input)

Sensor Input

4 points (limit +, limit -, origin sensor, stop sensor)

Pulse Input

-

Output Terminal

Control Input

2 Points
(Operation preparation is complete, alarm)

Incoder Output

-

Extra Power

Sensor Use(24 VDC)

Communication unit
When using QS-MB1

Number of connection Unit

Up to 8 units (mixed connection is possible)

Parameters that can be set

Positioning (1 to 64 points), JOG, origin return, system
