Ультразвуковая очистка 28 кГц схема ультразвукового генератора
- Категория: Cleaning Equipment Parts >>>
- Поставщик: Shenzhen,Jiangyuan,Microelectronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 70.94 $* | 71.95 $* |
| Jul-16-2025 | 57.36 $* | 58.56 $* |
| Jun-16-2025 | 69.1 $* | 70.3 $* |
| May-16-2025 | 68.69 $* | 69.88 $* |
| Apr-16-2025 | 54.3 $* | 55.19 $* |
| Mar-16-2025 | 67.75 $* | 68.26 $* |
| Feb-16-2025 | 67.78 $* | 68.3 $* |
| Jan-16-2025 | 66.26 $* | 67.30 $* |
Характеристики

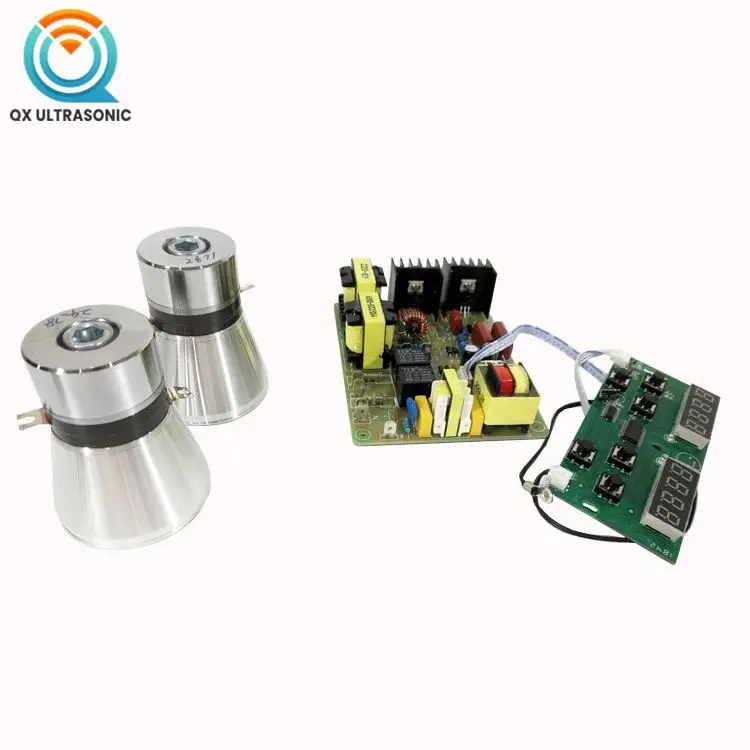

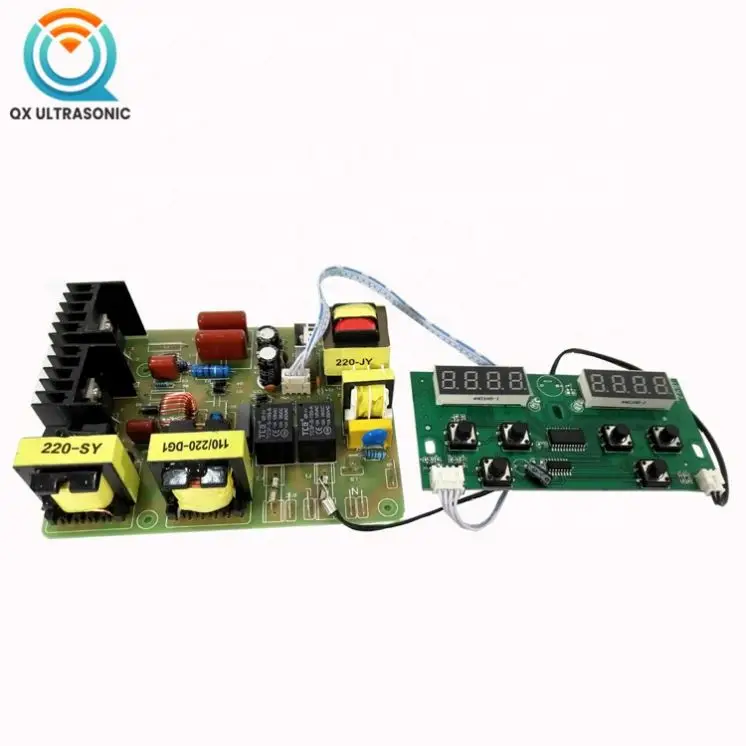

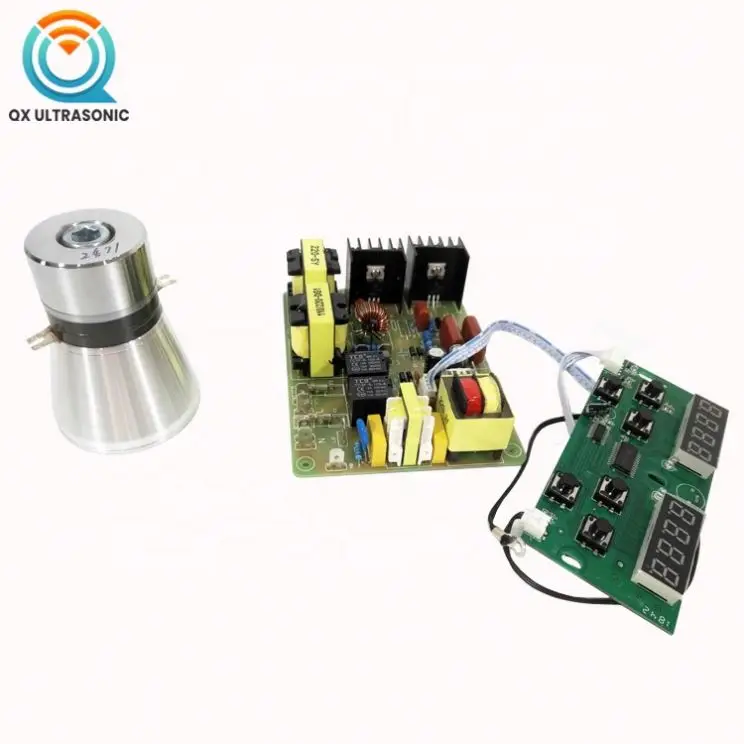

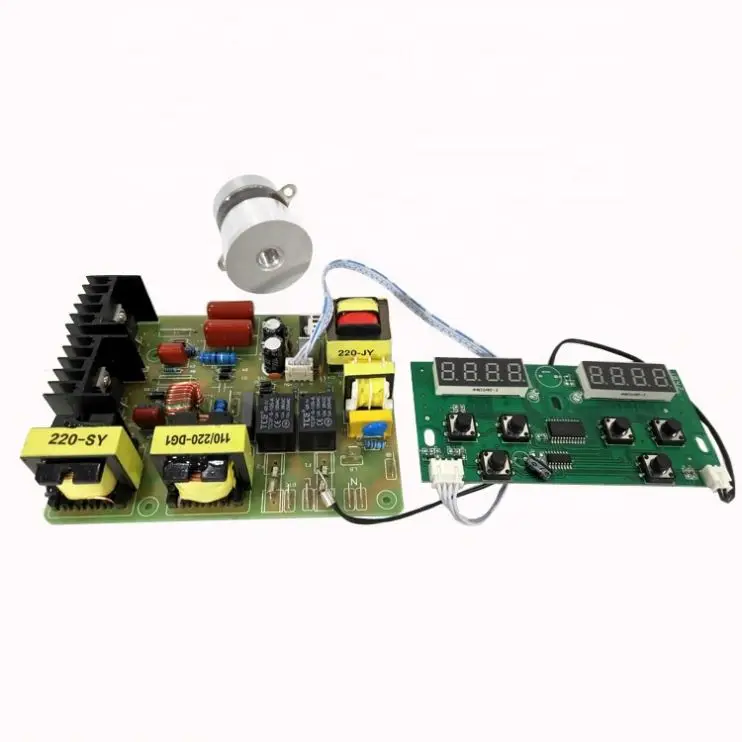

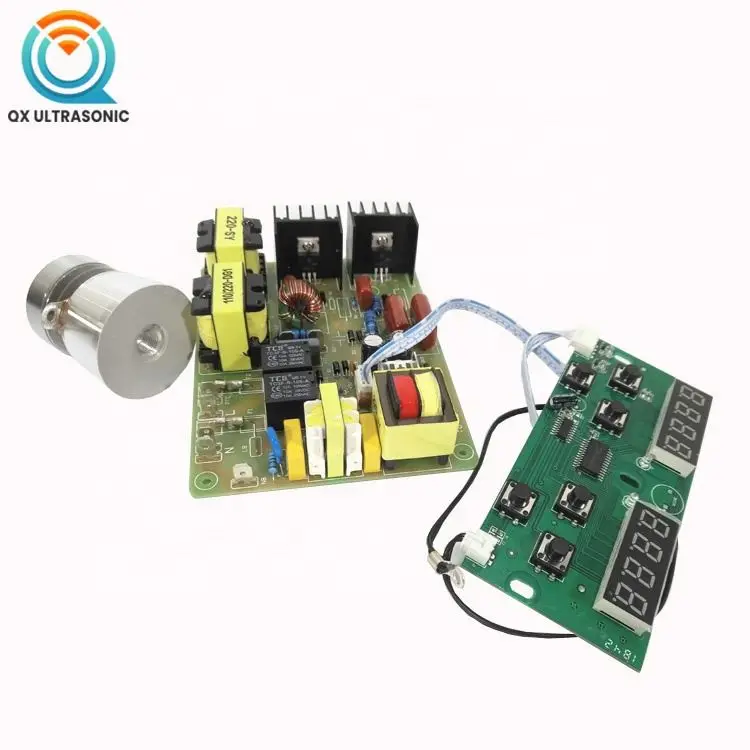

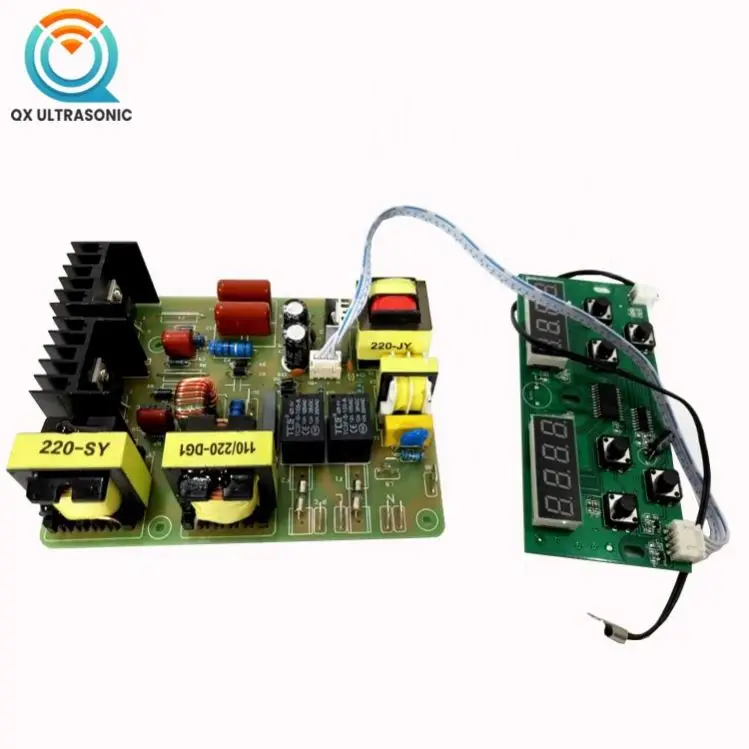

28Khz Ultrasonic Cleaning Pcb Ultrasonic 100 Watt Generator Circuit Schematic For Driving Transducer
Product Description
Berif Description of Ultrasonic Driver Circuit
 |
|
| |
| |
| |
|
Features of Ultrasonic Driver Circuit
 |
|
| |
| |
Application of Ultrasonic Driver Circuit:The pcb generator is the main parts of ultrasonic cleaning syste,which is for cleaning Electronic workshop,industrial and mining enterprises,laboratories,hospitals,glass shop,jewelry shop,mobile phone repair shop,family and so on. | |
Cleaning products such as belows:Electronic products,laboratory supplies,office supplies,household goods,computer motherboards and accessories,glassware,circuit boards, auto parts, hardware parts, medical apparatus and instruments, false tooth and dental equipment,clocks and watches,glasses,jewelry,golf ,coins,badge,tableware,baby bottles,fruit and so on. | |
The Specifiction of Small Ultrasonic Driver Circuit
| Type | Frequency |
Power
|
| QXCGPB50+ | 25khz.28khz. 40khz | 50w |
| QXCGPB60+ | 25khz.28khz. 40khz | 60w |
| QXCGPB100+ | 25khz.28khz. 40khz | 100w |
| QXCGPB120+ | 25khz.28khz. 40khz | 120w |
If you are interested in our product,
Pls just feel free to send us your inquiry.
We wil try our best to quote the competitive price for you!----- Contact Us Now
Bonding Transducer
| Some Common Technical Problem of Ultrasonic Generator |
| The ultrasonic generator can't power on under no-load condition |
| After installed, we can not power on until lay cleaning fluid |
| Ultrasonic transducer has two lugs.The positive one lay in the middle of two pieces of ceramic.The native one near lower metal column. Please do not make wrong when wiring. |
| The larger side with screw hole in ceramic transducer which has a function of vibration,can be stuck in the bottom of cleaning machine. And please make sure the cleaning machine is safely grounding |
| The ceramic transducer should be pasted in the bottom of cleaning machine using transducer specialized glue or use AB glue stick. but the effect is a bit poor, or use epoxy resin with proportion of 10:4. |
| The working circuit board voltage is 600V.The voltage output to the transducer is 1100 v.Please ensure the cleaning machine is safely grounding. Please make sure leakage protect switch assembled on the power supply in order to ensure safety. |
Get More Free Technical Informations How to Build High Quality Ultrasonic Cleaner.
| Related Ultrasonic Generator |
| You May Also Need Ultrasonic Transducer to Match with Ultrasonic Generator |
