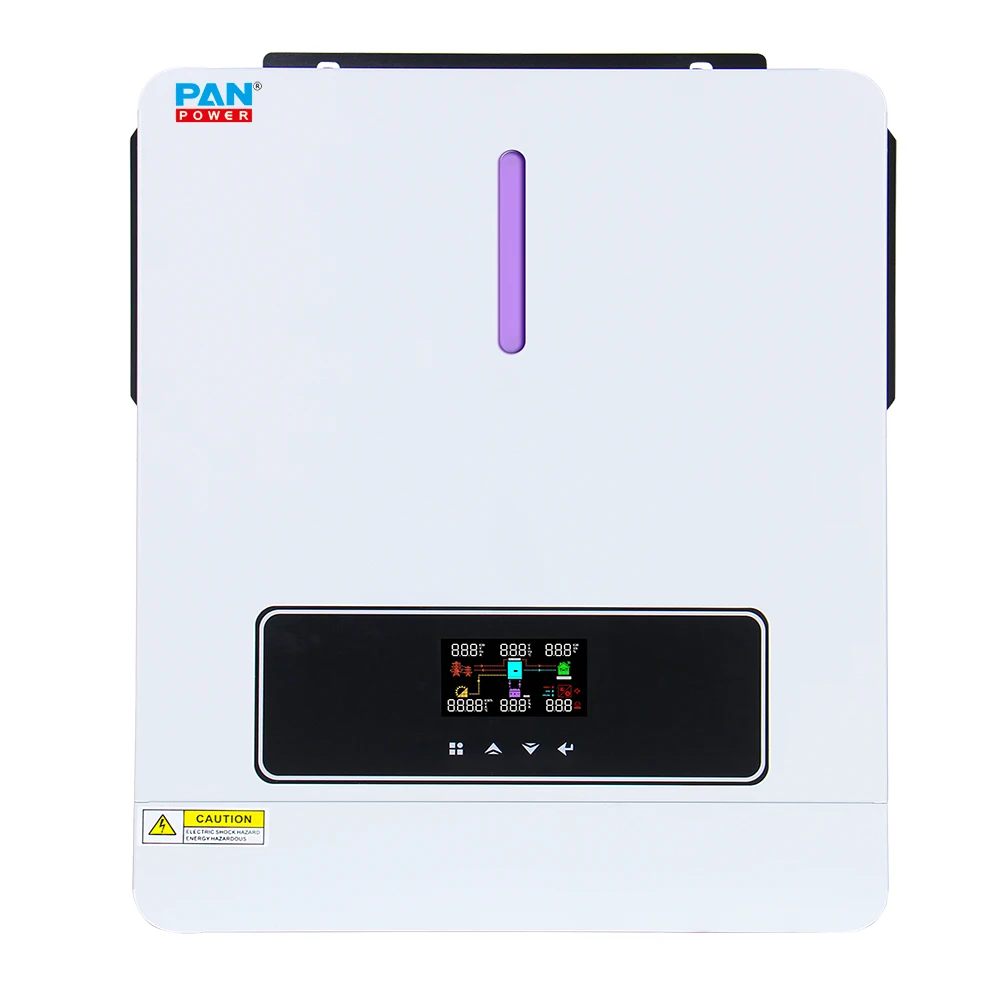

24 В 48VDC 3.6KW 6.2KW On-Off сетевой Гибридный солнечный инвертор Встроенный 120A MPPT Солнечный
- Категория: Solar Energy Products >>>
- Поставщик: Guangdong,Panpower,Power,Supply,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.54 $* | 0.15 $* |
| Aug-18-2025 | 0.15 $* | 0.82 $* |
| Jul-18-2025 | 0.10 $* | 0.6 $* |
| Jun-18-2025 | 0.69 $* | 0.8 $* |
| May-18-2025 | 0.48 $* | 0.56 $* |
| Apr-18-2025 | 0.72 $* | 0.67 $* |
| Mar-18-2025 | 0.4 $* | 0.81 $* |
| Feb-18-2025 | 0.22 $* | 0.98 $* |
| Jan-18-2025 | 0.74 $* | 0.9 $* |
Характеристики
Main Features
*Off Grid Pure sine wave solar inverter.
*Output power factory 1.0
*WIFI available for IOS and Andriod.
*Inverter running without battery.
*One-key restoration to factory Settings.
*Built-in Lithium battery automatic activation.
*Built-in 120A (for 3.6KW/6.2KW)
*MPPT: Max 6200W(for 3.6KW), Max 6500W(for 6.5KW) solar charge.
*High PV input voltage range(90~450VDC)
*Built-in anti-dusk kit for harsh environment.
*Smart battery charge design to optimize battery life.
*Dual output.
Solar System Diagram
Technical Parameters
MODEL | VICTOR NM-ECO-3.6KW PLUS | VICTOR NM-ECO-6.2KW PLUS | ||
Capacity | 3600W | 6200W | ||
Phase | 1—phase | |||
INPUT | ||||
Normal Voltage | 220/230VAC | |||
Acceptable Voltage Range | 170~280VAC ( for personal computers) 90~280VAC (for home appliances) | |||
Frequency | 50/60HZ (auto sensing) | |||
OUTPUT | ||||
Nominal Voltage | 220/230VAC ± 5% | |||
Surge Power | 7200W | 12400W | ||
Frequency | 50Hz/60Hz | |||
Waveform | Pure Sine Wave | |||
Transfer Time | 10ms (for personal computers); 20ms (for home appliances) | |||
Peak Efficiency (pv to inv) | 98% | |||
Peak Efficiency (batt to pv) | 94% | |||
Overload Protection | 5s@>=150% load; 10s 110%~150% load | |||
Crest Factor | 3:1 | |||
Admissible Power Factor | 0.6~1 (inductive or capacitive) | |||
BATTERY | ||||
Battery Voltage | 24VDC | 48VDC | ||
Battery Type | Lead acid/ gel type/ lithium | |||
SOLAR CHARGE & AC CHARGE | ||||
Solar Charge Type | MPPT | |||
Max.PV Array Power | 6200W | 6500W | ||
Max.PV Array Open Circuit Voltage | 550VDC | |||
PV Array MPPT Voltage Range | 90VDC~450VDC | |||
Maximum Solar Charge Current | 120A | 120A | ||
Maximum AC Charge Current | 100A | 100A | ||
Communication Interface | RS232/WiFi(option） | |||
ENVIRONMENT | ||||
Operating Temperature | -10~50℃ | |||
Storage Temperature | -15~55℃ | |||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
NATURE | ||||
Dimension, D*W*H (MM) | 420*310*110 | |||
Net Weight(KGS) | 10 | 11 | ||
Notice: this series inverter is suitable for AGM/GEL/Lithium battery | ||||

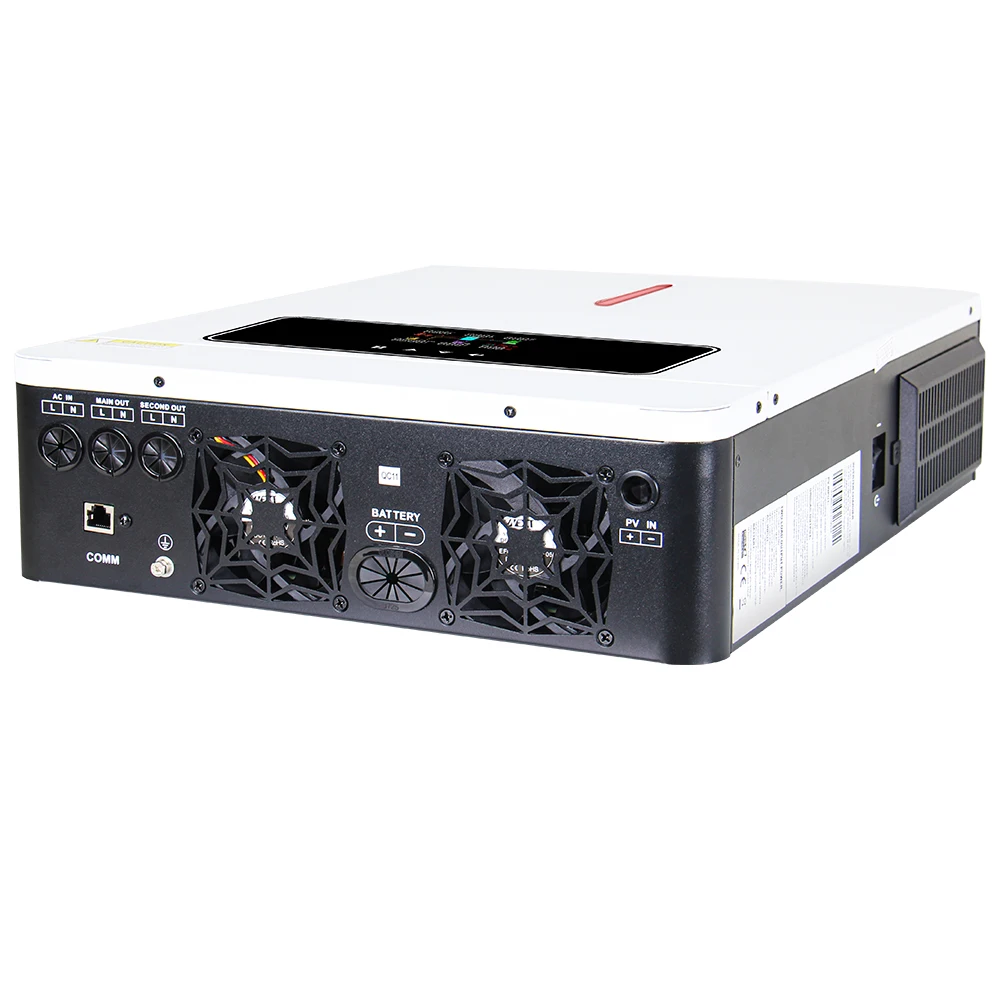

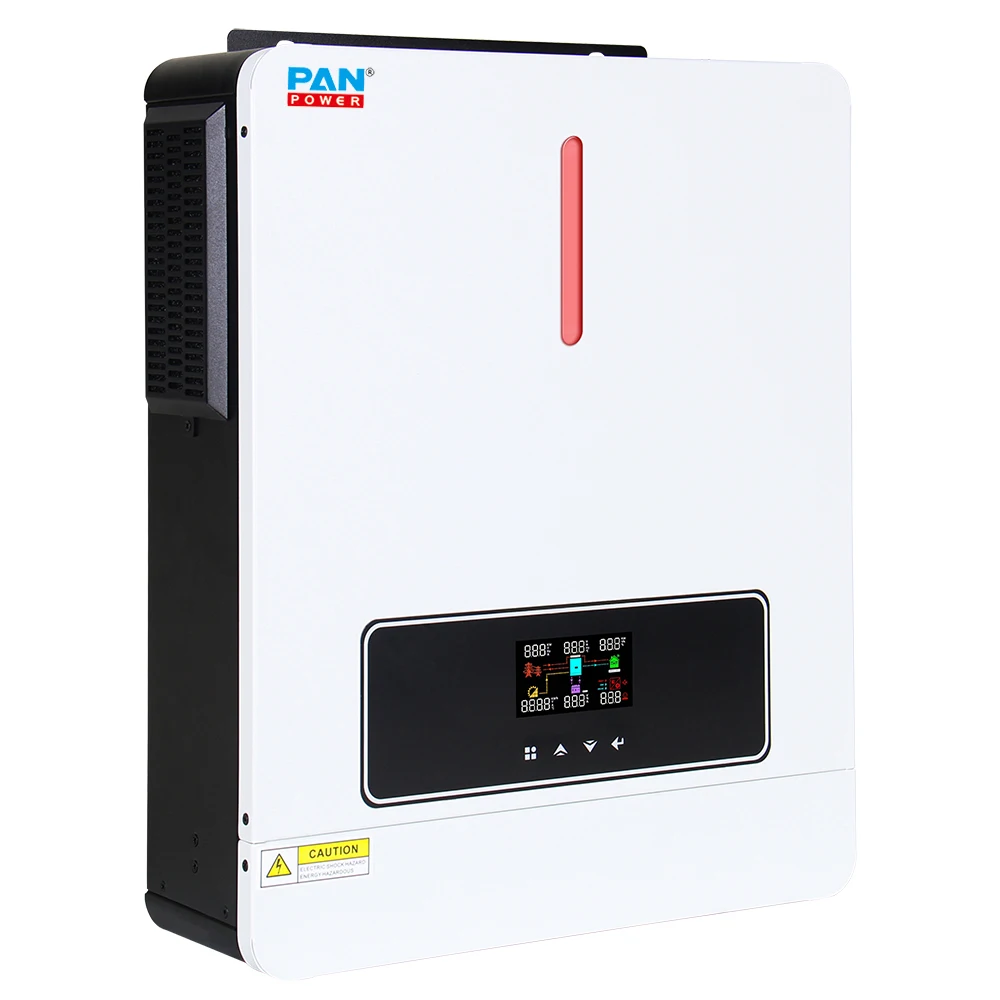

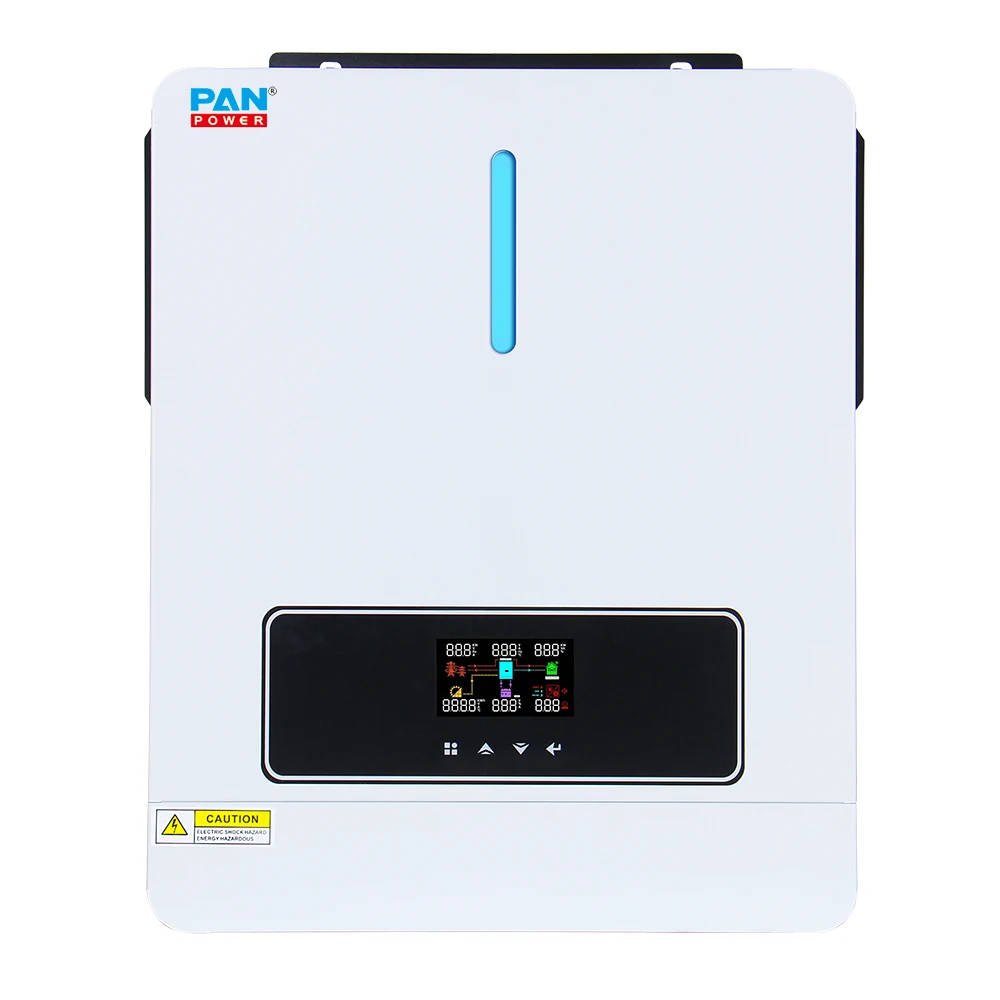

Product Details
Application
Certifications
Company Introduction
FAQ
Q: What’s the payment term?
A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q: What kind of output you can do?
A: Normally single phase 110V 120V 220V 230V 240V 50/60Hz, and three phase 220V 380V 400V 415V 440V 50/60Hz.
A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q: What kind of output you can do?
A: Normally single phase 110V 120V 220V 230V 240V 50/60Hz, and three phase 220V 380V 400V 415V 440V 50/60Hz.
