Экономичный высокочастотный входной гибридный солнечный инвертор на сетке и за пределами сети MPPT с двойным выходом 3600
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Sunray,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 233.32 $* | 245.70 $* |
| Aug-19-2025 | 231.9 $* | 243.75 $* |
| Jul-19-2025 | 194.48 $* | 204.39 $* |
| Jun-19-2025 | 227.67 $* | 238.45 $* |
| May-19-2025 | 198.87 $* | 208.61 $* |
| Apr-19-2025 | 223.11 $* | 234.72 $* |
| Mar-19-2025 | 221.52 $* | 232.12 $* |
| Feb-19-2025 | 220.41 $* | 231.59 $* |
| Jan-19-2025 | 218.35 $* | 229.84 $* |
Характеристики

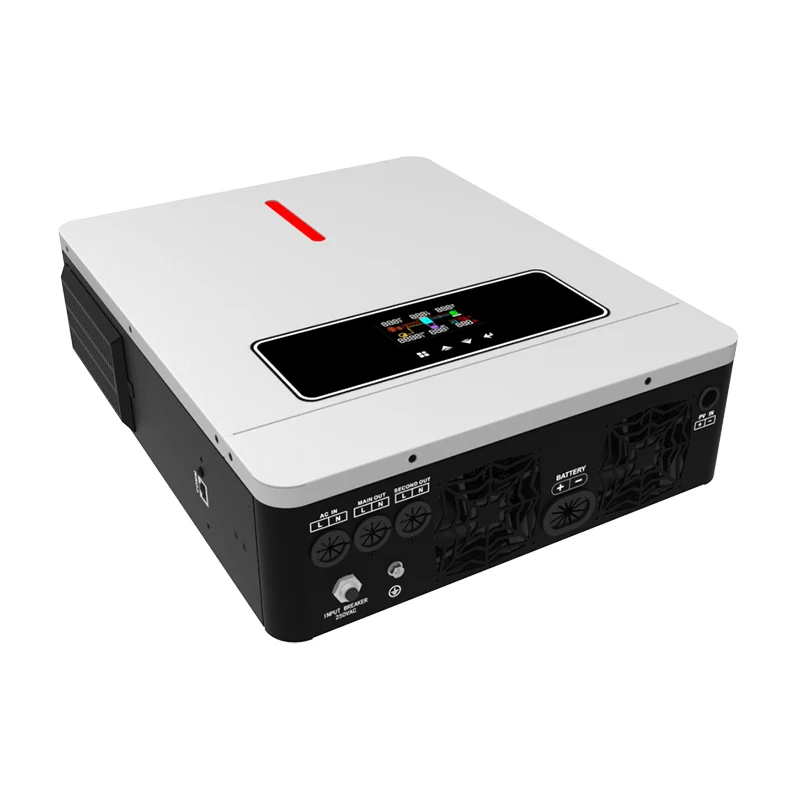

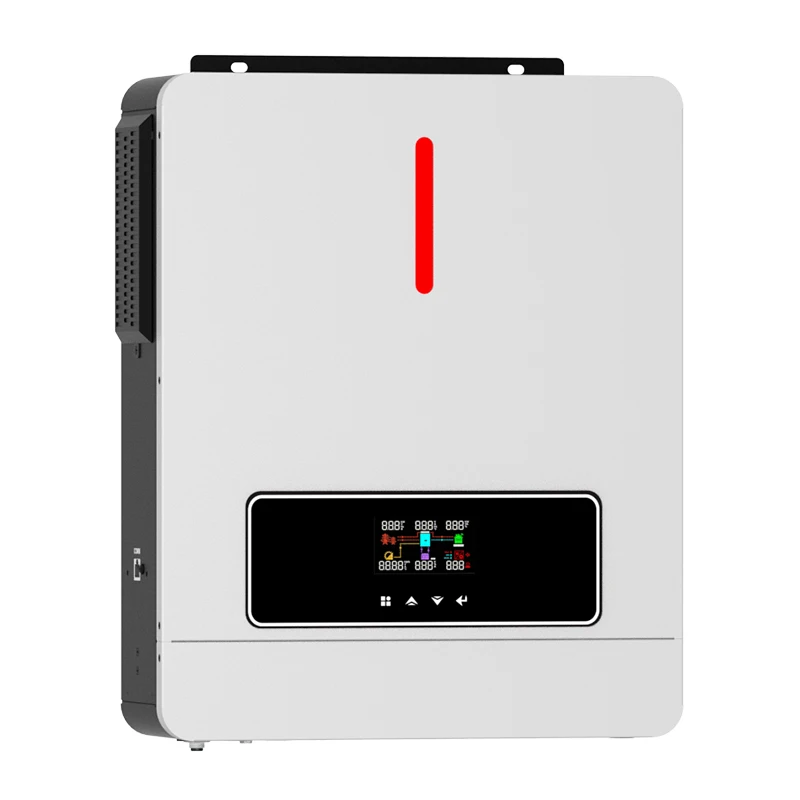

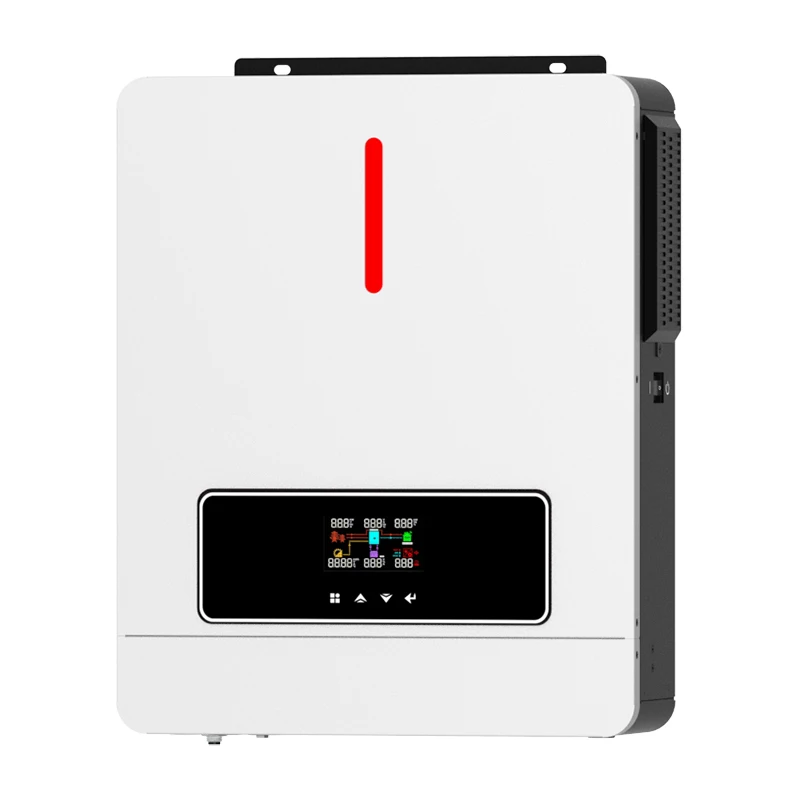

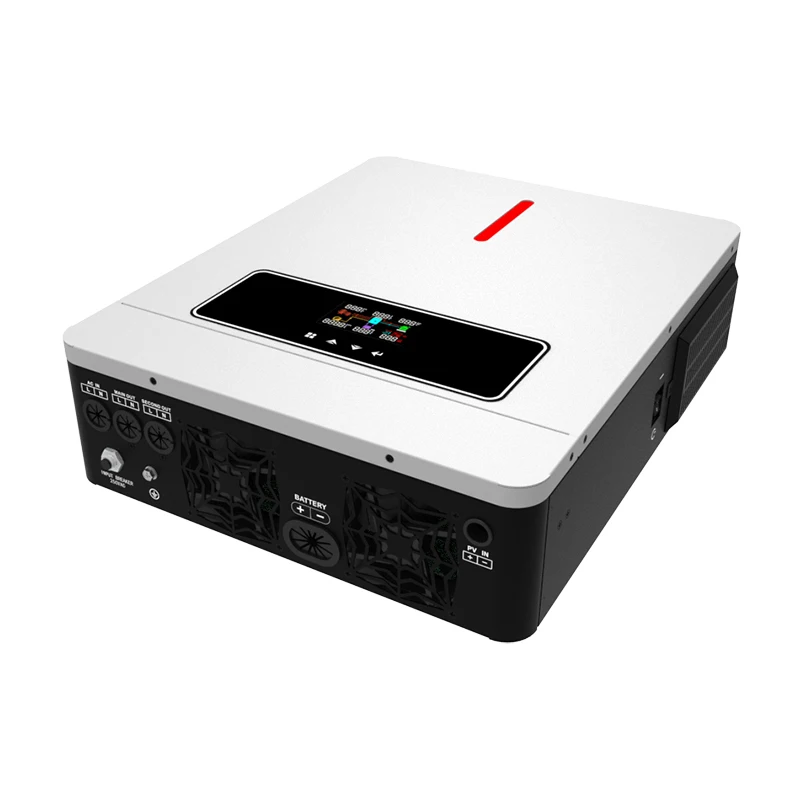

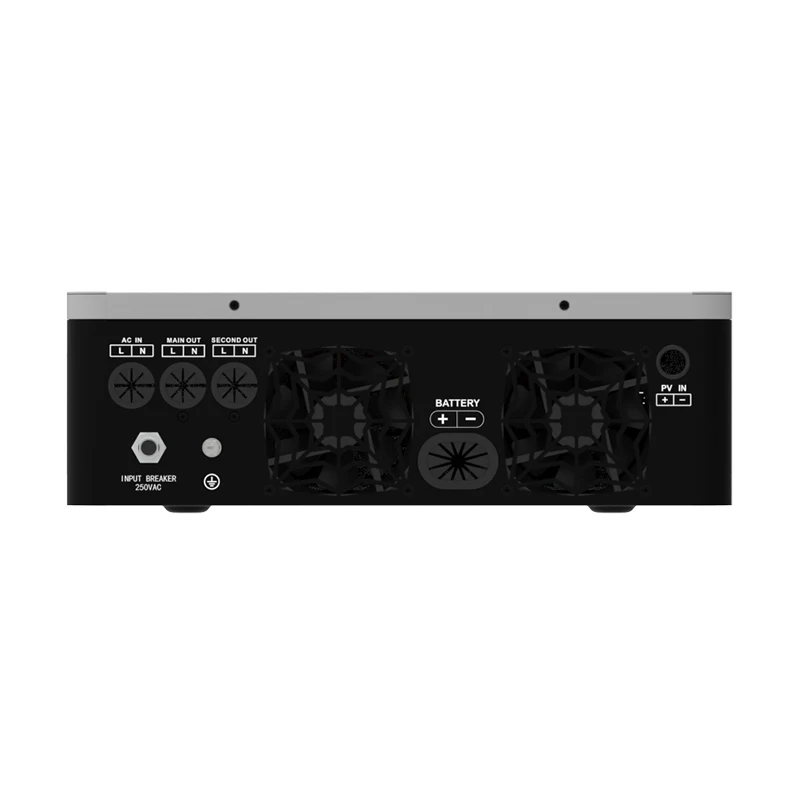

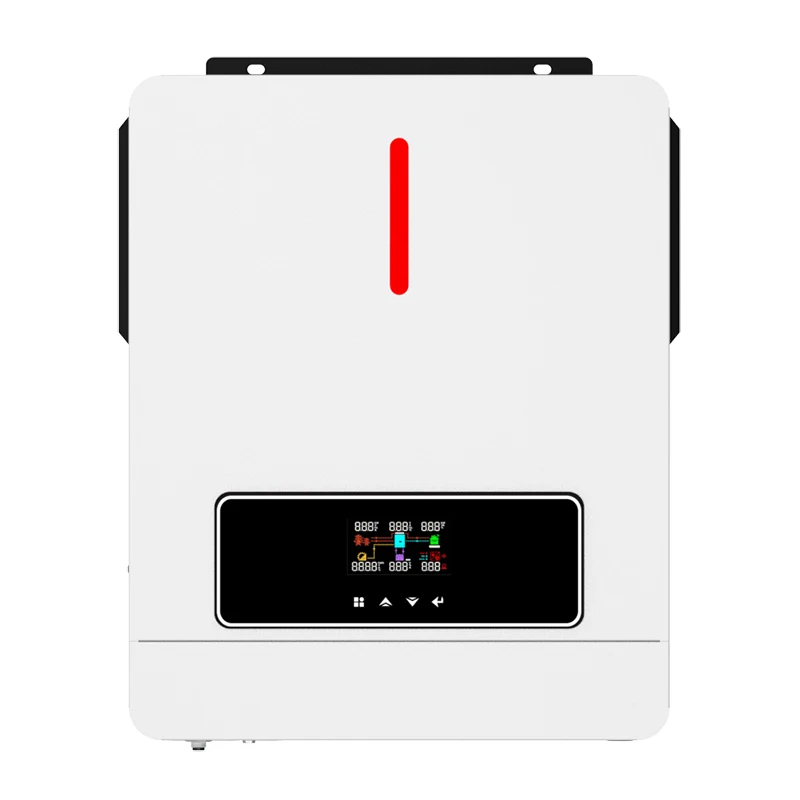

Economic High PV Input Hybrid On Grid And Off Grid Solar Inverter MPPT Solar Inverter With Dual Output 3600W 6200W
Product Specification
Features
Pure sine wave solar inverter(on/off Grid)
WIFI&GPRS available for IOS and Android
Inverter running without battery
One-Key restoration to factory Settings
Built-in Lithium battery automatic activation
MPPT:Max 6200W(for 3.6KW), Max 6500W(for 6.2KW )
Max 7500W (for 7.2 KW ) solar charge
High PV input voltage range(60~500VDC)
Anti-dusk kit for harsh environment
Smart battery charge design to optimize battery life
Dual output
MODEL | MPS VIII ECO 3.6KW | MPS VIII ECO 6.2KW | MPS VIII ECO 7.2KW |
Phase | 1-phase | ||
Maximum PV Input Power | 6200W | 6500W | 7500W |
Rated Output Power | 3600W/3600VA | 6200W/6200VA | 7200W/7200VA |
Maximum Solar Charging Current | 120A | 120A | 140A |
GRID-TIE OPERATION | |||
PV Input(DC) | |||
Nominal DC Voltage/ Maximum DC Voltage | 360VDC/500VDC | ||
Start-up Voltage/ Initial Feeding Voltage | 90VDC/120VDC | ||
MPPT Voltage Range | 60VDC~500VDC | ||
Number of MPPT Trackers/Maximum Input Current | 1/27A | ||
GRID OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Voltage Range | 195.5~253VAC | ||
Nominal Output Current | 15.7A | 27.0A | 31.3A |
Power Factor | >0.99 | ||
Feed-in Grid Frequency Range | 49~51±1Hz | ||
EFFICIENCY | |||
Maximum Conversion Efficiency(DC/AC) | 98% | ||
TWO LOAD OUTPUT POWER | |||
Full Load | 3600W | 6200W | 7200W |
Maximum Main Load | 3600W | 6200W | 7200W |
Maximum Second Load(battery mode) | 1200W | 2067W | 2400W |
Main Load Cut Off Voltage | 22VDC | 44VDC | 44VDC |
Main Load Return Voltage | 26VDC | 52VDC | 52VDC |
OFF-GRID OPERATION | |||
AC INPUT | |||
AC Start-up Voltage/ Auto Restart Voltage | 120-140VAC/180VAC | ||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
Maximum AC Input Current | 40A | 40A | 50A |
Nominal operating frequency | 50/60Hz | ||
Surge power | 7200W | 12400W | 14400W |
BATTERY MODE OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Waveform | Pure sine wave | ||
Efficiency(DC to AC) | 94% | ||
BATTERY & CHARGER | |||
Nominal DC Voltage | 24VDC | 48VDC | 48VDC |
Maximum Solar Charging Current | 120A | 120A | 140A |
Maximum AC Charging Current | 100A | 100A | 100A |
GENERAL | |||
PHYSICAL | |||
