Четырехрамочный двухсторонний широкополосный шлифовальный станок
- Категория: Woodworking Machinery >>>
- Поставщик: WEIHAI,BAISHENGYUAN,INDUSTRY,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 121927.24 $* | 128023.41 $* |
| Aug-19-2025 | 120903.27 $* | 126948.8 $* |
| Jul-19-2025 | 101435.54 $* | 106507.69 $* |
| Jun-19-2025 | 118854.36 $* | 124797.98 $* |
| May-19-2025 | 103485.46 $* | 108659.39 $* |
| Apr-19-2025 | 116804.97 $* | 122644.60 $* |
| Mar-19-2025 | 115780.79 $* | 121569.42 $* |
| Feb-19-2025 | 114755.43 $* | 120493.96 $* |
| Jan-19-2025 | 113731.62 $* | 119418.57 $* |
Характеристики
Product Description
Four frame Double Side Wide Belt Plywood Sander
BSY Industry is a professional manufacturer for high quality heavy duty machine models for whole plywood production line.
Four frame Double Side Wide Belt Plywood Sander is a main machine model BSY Industry developed for plywood production line, it is used to sanding and polishing the surface of sized plywood.
The Four frame Double Side Wide Belt Plywood Sander adopts European innovative manufacturing process, improving the machining precision and performance for continuous use
The Four frame Double Side Wide Belt Plywood Sander has high working efficiency.
Details Images

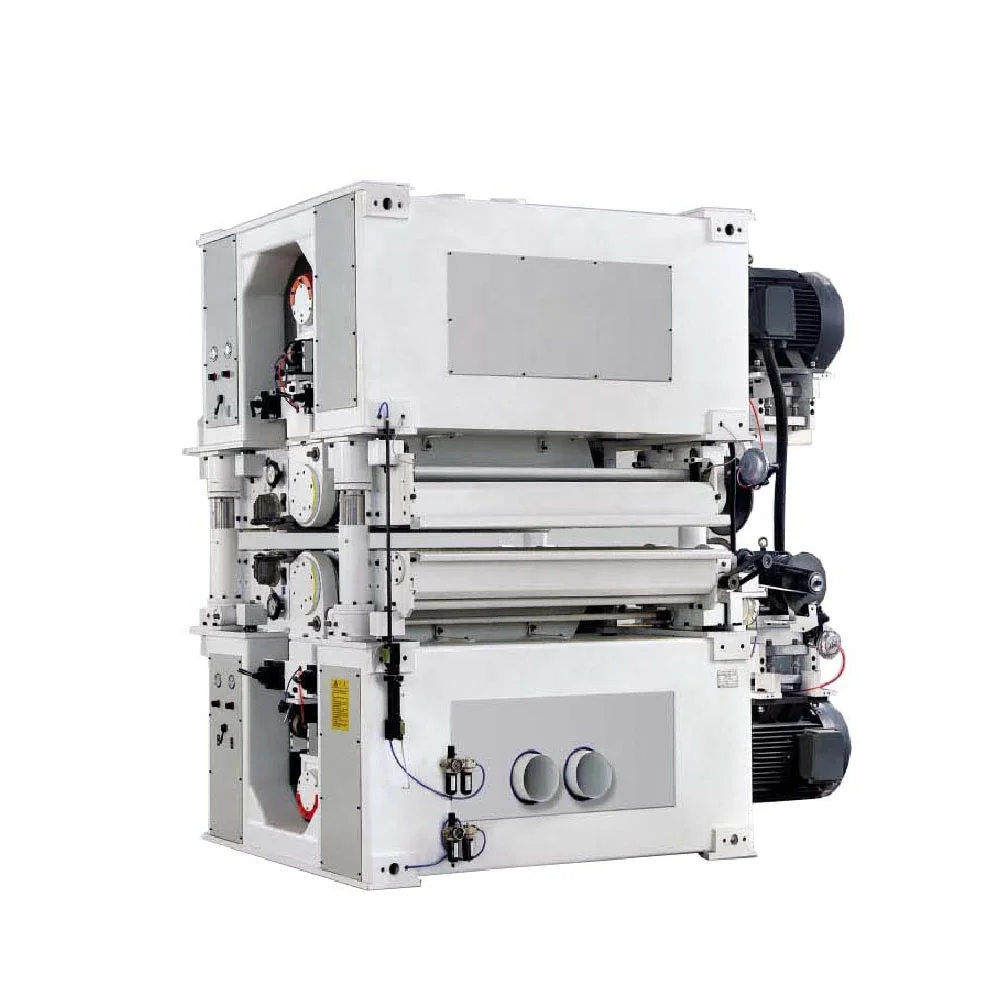

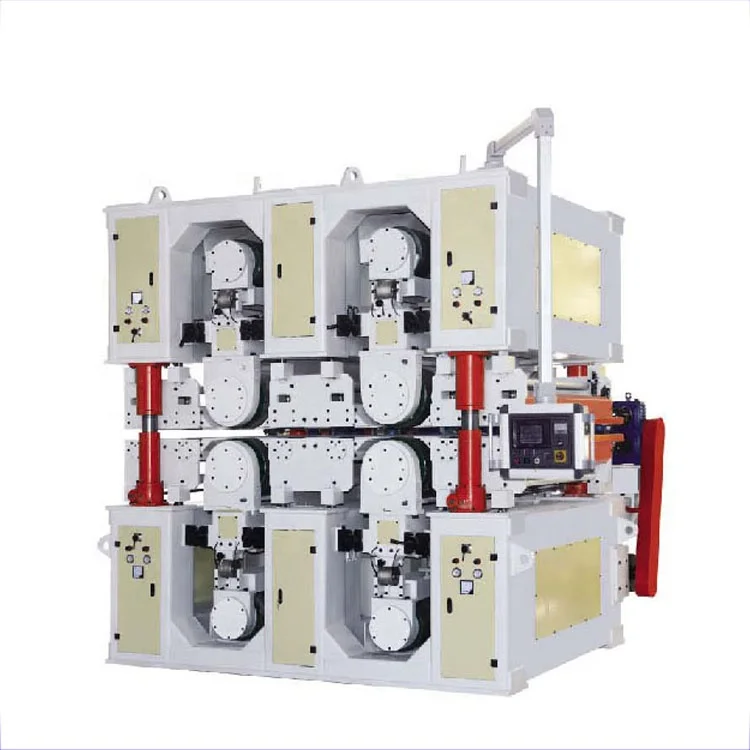

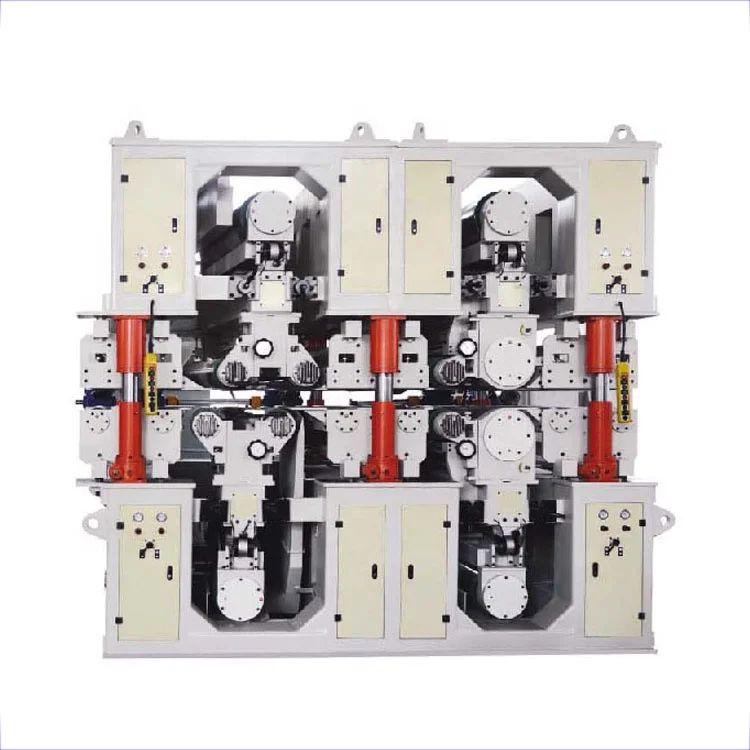

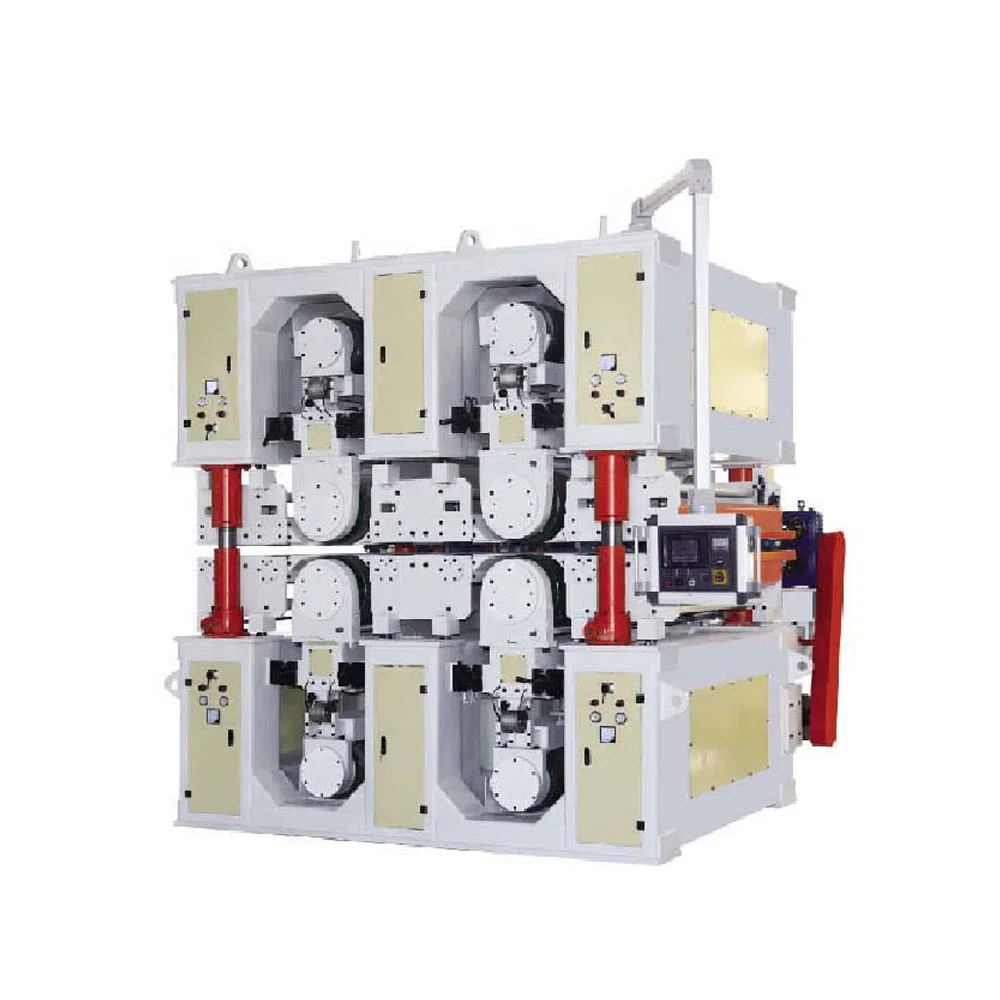

Four frame Double Side Wide Belt Plywood Sander
The sanding drums of Four frame Double Side Wide Belt Plywood Sander has different choice, welcome select according to your requirements.
Automatic Sanding Line optional
For Four frame Double Side Wide Belt Plywood Sander, we can also add some Auto feeder, roller table, auto stacker to compose a production line to improve auto level and saving labour;
Specification
Model | MM5813DR-R | MM5813DRP-P |
Working width: | 1300mm | 1300mm |
Working thickness: | 5-100mm | 5-100mm |
Working length: | ≥500mm | ≥500mm |
Feeding speed: | 8-40m/min | 8-40m/min |
Main motor power: | 90kwx2pcs/75kwx2pcs | 75kwx2pcs/55kwx2pcs |
Feeding motor power: | 15kw | 15kw |
Total power: | 350kw | 280kw |
Working air pressure: | 0.55Mpa | 0.55Mpa |
Air Flow: | 32000m3/h | 32000m3/h |
Sanding Belt size: | 3000*1350mm | 3300*1350mm/3320*1350mm |
Weight: | 33000kg | 35000kg |
Dimension: | 3450*3080*3150mm | 3450*3500*3150mm |
Packing & Delivery
Four frame Double Side Wide Belt Plywood Sander
The Four frame Double Side Wide Belt Plywood Sander will be wrapped by plastic film for container loading.
And will be well fixed inside container.
Related products
Company Profile
Weihai Baishengyuan Industry Co.,Ltd
Professional Plywood Machine Manufacturer
Found in 1956;
Factory cover: more than 100,000 square meter;
Factory Stuff: more than 200 people;
Production facilities: more than 80 sets;
Main Products:
1. Log Treatment ( log conveyor, log cut-off saw)
2. Veneer peeling line for different length and diameter log;
1-1. Spindle veneer peeling line for Min 600mm diameter log peeling;
1-2. Spindless veneer peeling line for Max 500mm diameter log peeling;
Factory cover: more than 100,000 square meter;
Factory Stuff: more than 200 people;
Production facilities: more than 80 sets;
Main Products:
1. Log Treatment ( log conveyor, log cut-off saw)
2. Veneer peeling line for different length and diameter log;
1-1. Spindle veneer peeling line for Min 600mm diameter log peeling;
1-2. Spindless veneer peeling line for Max 500mm diameter log peeling;
(8ft model can reach Max 800mm)
3. Veneer drying line; ( Hot Press Dryer / Roller Dryer / Mesh Net Dryer)
4. Plywood making line (Glue Spreader -- Plywood Pre-press Machine -- Hydraulic Hot Press Machine -- D.D.Saw -- Wide Belt Plywood Sander)
5. Plywood sorting line (Semi auto)
Welcome visit us for win-win cooperation.
3. Veneer drying line; ( Hot Press Dryer / Roller Dryer / Mesh Net Dryer)
4. Plywood making line (Glue Spreader -- Plywood Pre-press Machine -- Hydraulic Hot Press Machine -- D.D.Saw -- Wide Belt Plywood Sander)
5. Plywood sorting line (Semi auto)
Welcome visit us for win-win cooperation.
FAQ
Are we a dealer or a manufacturer?
How can we guarantee quality?
We are Leader manufacturer for High Quality Heavy Duty Plywood & Veneer Machines, we have our own factory with technical team, management team, production team, sales team and after-sales service teams.
What can you buy from us?
What can you buy from us?
High quality heavy duty plywood machine models for whole plywood production line, standard or customized.
How can we guarantee quality?
The machine will have test running before put into warehouse and ready for shipment.
Why should you buy from us not from other suppliers?
Why should you buy from us not from other suppliers?
1. We have long history, production technology is mature;
2. High auto level, we select best component and operation system for machine works control;
3. High working performance, All machining done strictly and precisely;
4. Continuous upgrade, our target is to do best in China.
5. Long Working Life. All machine model is built by high quality steel plate, cast iron, famous brand component. Machine body is strong enough to undertake the anti-force.
What services can we provide?
Accepted Trade Terms: FOB, CFR, CIF, EXW；
Accepted Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, Irrevocable L/C at sight.
What services can we provide?
Accepted Trade Terms: FOB, CFR, CIF, EXW；
Accepted Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, Irrevocable L/C at sight.
