Токоизмеритель постоянного/переменного
- Категория: Clamp Meters >>>
- Поставщик: Shenzhen,Gvda,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 24.60 $* | 24.99 $* |
| Jul-15-2025 | 20.79 $* | 20.21 $* |
| Jun-15-2025 | 24.37 $* | 24.26 $* |
| May-15-2025 | 24.52 $* | 24.65 $* |
| Apr-15-2025 | 19.97 $* | 19.93 $* |
| Mar-15-2025 | 23.84 $* | 23.95 $* |
| Feb-15-2025 | 23.19 $* | 23.36 $* |
| Jan-15-2025 | 23.84 $* | 23.3 $* |
Характеристики
Product Description

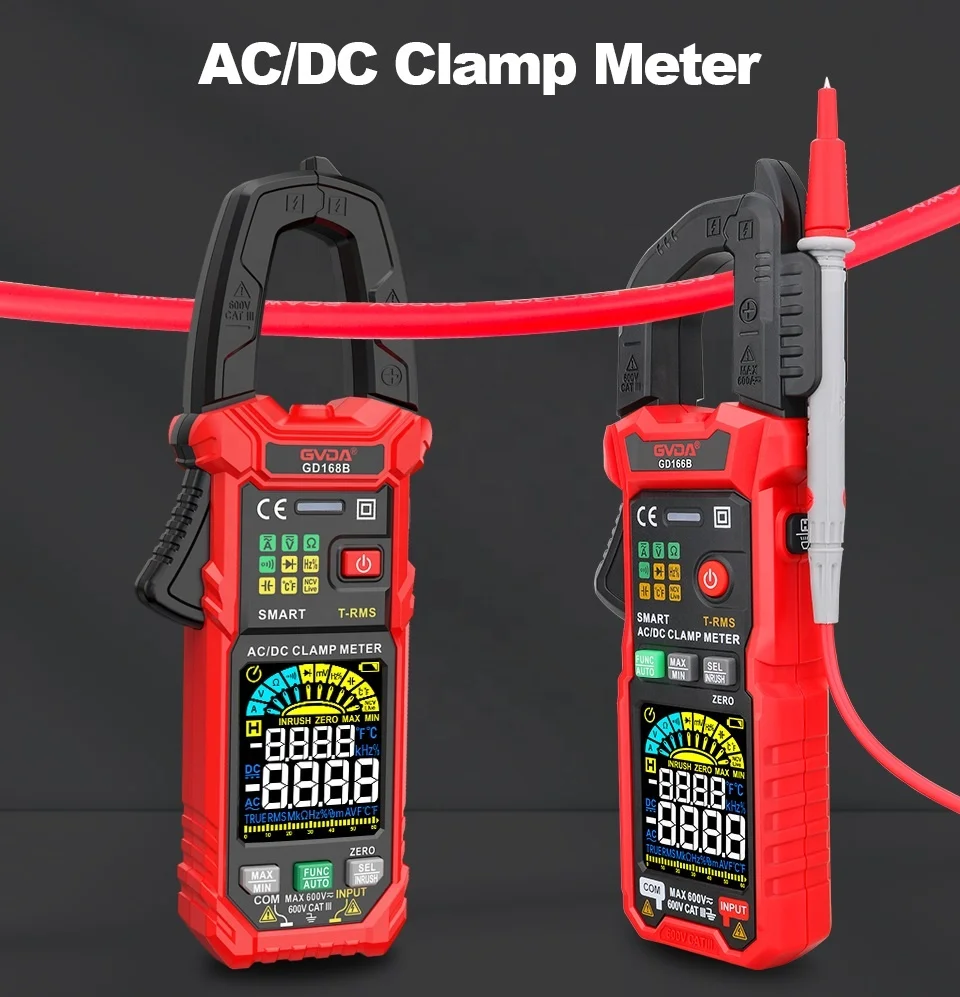

GVDA Digital Clamp Meter Multimeter Auto Range True RMS NCV DC AC Voltage Inrush Current Temperature Tester Automatic Voltmeter Smart Multitester
A new generation of true RMS high performance intelligent digital clamp meters that combine a wide range of functions to make your work easier, more efficient and sager. It is capable of measuring AC/DC voltage, AC/DC current, frequency, duty, resistance, capacitance, temperature, diode, continuity, NCV, live wire detection and more.

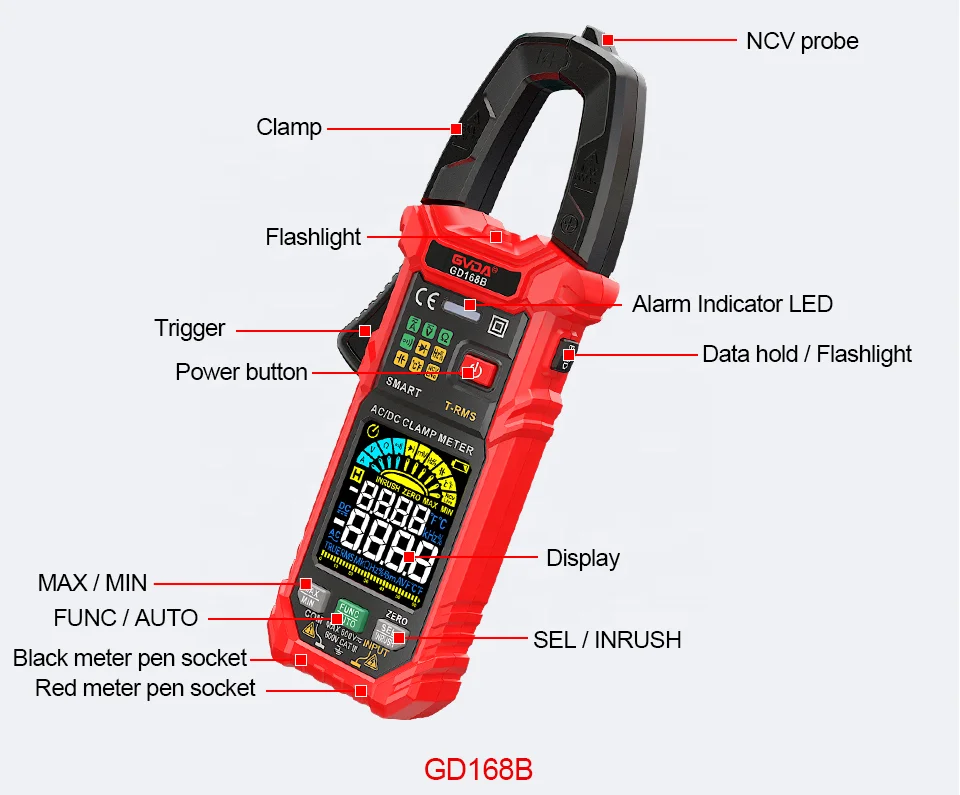

Special Features
1) HD Colour LCD Display
2) Display: Maximum 6000 Counts display
3) Non-contact AC voltage measurement(NCV)

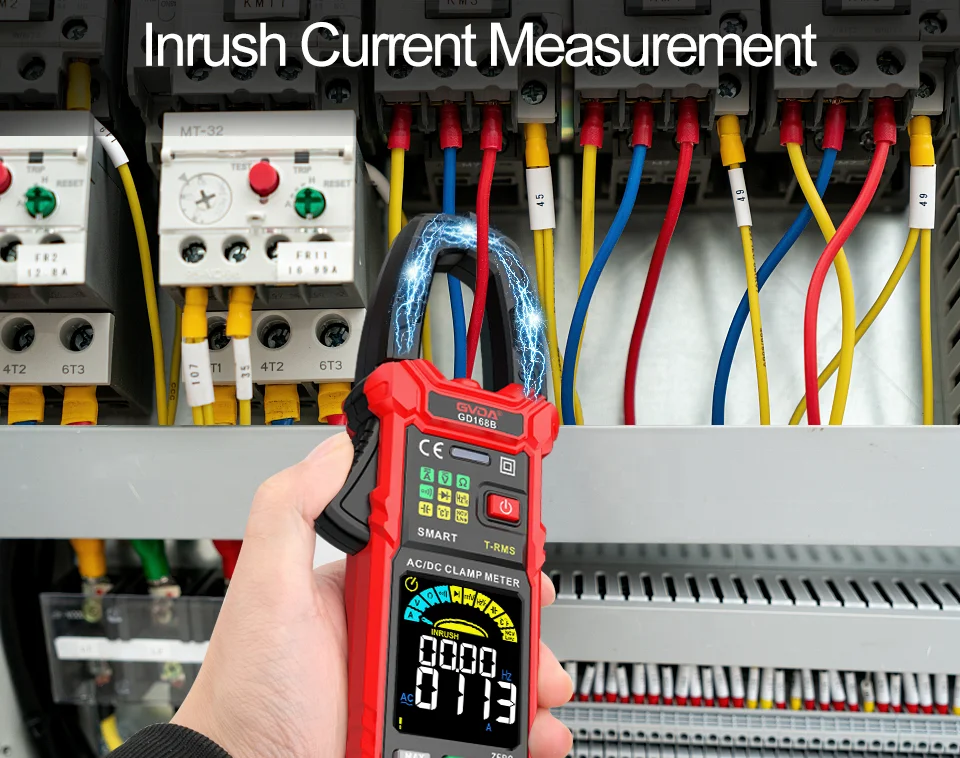

4) AC Inrush current measurement
5) MAX/MIN value measurement
6) Live wire detection
7) Auto power off
8) Low voltage display: low battery indication
9) Over range indication
10) DCA zero (only GD166B GD168B)
Product Specifications
Technical Indicator | Measuring Range |
DC Voltage | 600mV,6V,60V,600V |
AC Voltage | 600mV,6V,60V,600V |
DC Current | 60A,600A |
AC Current | 60A,600A (only GD166B GD168B) |
Resistance | 600Ω,6KΩ,60KΩ,600KΩ,6MΩ,60MΩ |
AC Inrush current: | 60A,600A |
Capacitance | 6nF,60nF,600uF,6uF,60uF,600uF;6mF,60mF |
Frequency | 100Hz,1000Hz,10KHz,100KHz,1000KHz,10MHz |
Duty Cycle | 1%~99%±(1.0%+2) |
Temperature | -40℃~1000℃±(1.0%+2)/-40℉~1832℉±(1.0%+2) |
Maximum count | 6000 counts |
VA HD display screen | √ |
Automatic/manual range | √ |
Continuity test (sound and light prompt) | √ |
Diode test (buzzer prompt) | √ |
Data-hold | √ |
NCV non-contact voltage detection (acousto-optic prompt) | √ |
Backlight | √ |
Flashlight | √ |
DCA ZERO function | √ yes (only GD166B GD168B) |
Low voltage indication | √ |
Automatic shut-down | √ |
True RMS | √ |
INRUSH function | √ |
Maximum/MIN value measurement | √ |
REL (relative value) measurement | √ |

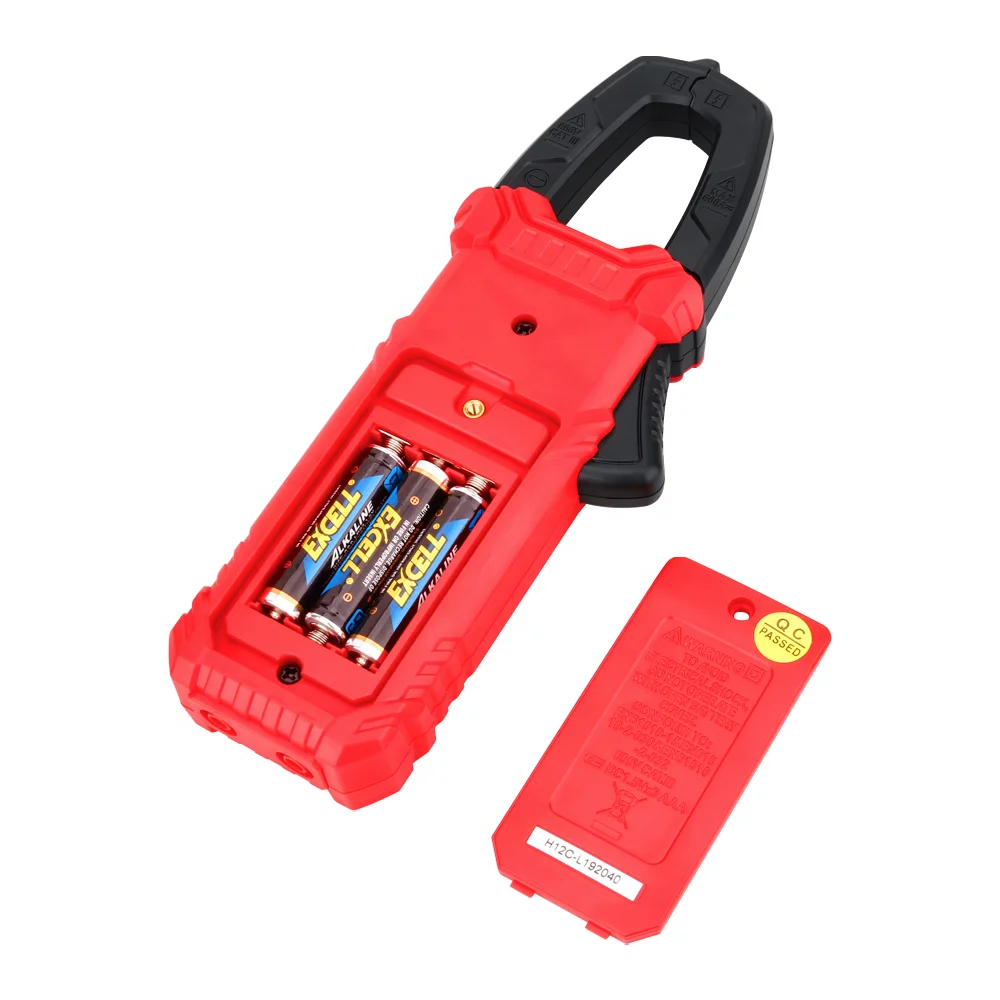

Power supply | 3x1.5V AAA batteries(not include) |
Product Weight | GD166A: 200g GD166B: 206g |
Product Size | 199*81*32mm |
Packing Weight | 450g |
Package Size | 230x120x45mm |
Safety Rating | EN61010-1 CAT III 600V |

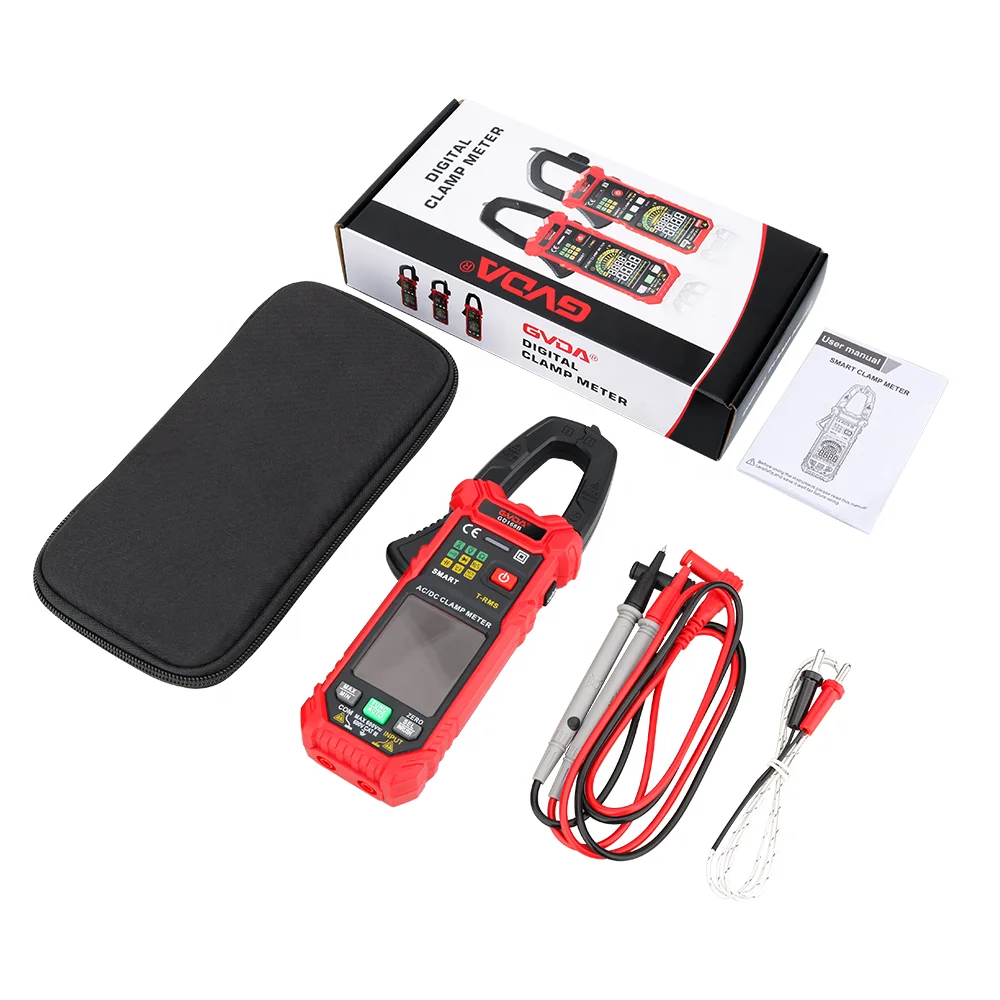

Packing Contents | 1 x Clamp Meter(Battery Not Included) 2 x Probe 1 x Temperature Probe 1 x Carrying Case 1 x Manual |
Related Products
Company Profile
Company Introduction
We are a professional manufacture and sale of instrument. Our instrument has more than 10 years of instrument development and production experience. We have a large number of personnel of research and development of cutting-edge technology in the industry. We create a platform for technical exchange with domestic universities. Our independent R & D team develop our products from key components to finished products. Leading core technology, strong R & D capability and innovative team spirit brings us strong competitiveness. Our products including smart multimeter Clamp meter DC power supply laser distance meter, infrared thermometer, vibration meter, thickness gauge, sound level meter, anemometer, temperature hygrometer, range finder, gas detector, metal detector, voltage insulation meter, earth resistance tester, leakage current tester and other products have a good reputation and market share in the industry. we can provide ODM/OEM and Processing services, OEM services are applicable to all models.
Certifications
FAQ
1. Q: Is your company accept customization?
A: We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
2. Q: What’s the delivery time after an order placed?
A: It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
3. Q: How long have your company run on Digital Multimter
A: We have been manufacturing and developing Digital Multimter since 2010.
4. Q: What’s the MOQ?
A: Regular products only 1 standard carton. but no limit for sample order!
5. Q: What’s the warranty of the product?
A: We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
6. Q: What Shipping way Customer can choose?
A: DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order q'ty!
7. Q: How to place an order?
a: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price, freight and other details
d: complete the payment
e: we start production and arrange the shipment
f: you got your products
