Индивидуальный 5g маршрутизатор gigabit
- Категория: Routers >>>
- Поставщик: Shenzhen,Mosslink,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 62.76 $* | 65.80 $* |
| Aug-18-2025 | 61.39 $* | 64.57 $* |
| Jul-18-2025 | 51.78 $* | 54.68 $* |
| Jun-18-2025 | 60.61 $* | 63.68 $* |
| May-18-2025 | 53.76 $* | 56.7 $* |
| Apr-18-2025 | 59.83 $* | 62.77 $* |
| Mar-18-2025 | 59.47 $* | 62.73 $* |
| Feb-18-2025 | 58.34 $* | 61.14 $* |
| Jan-18-2025 | 58.86 $* | 61.25 $* |
Характеристики
Product Description

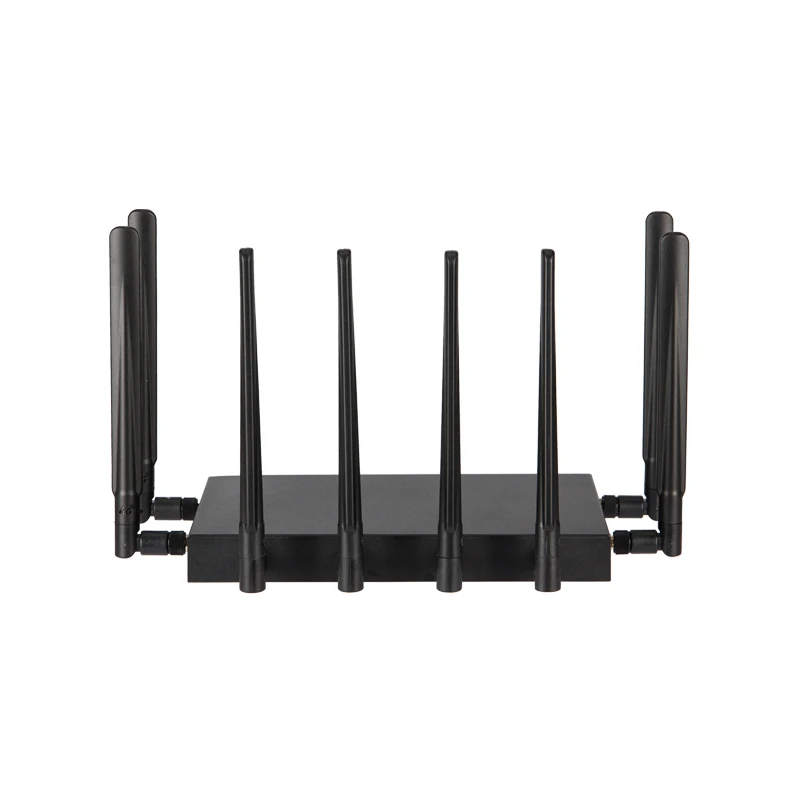

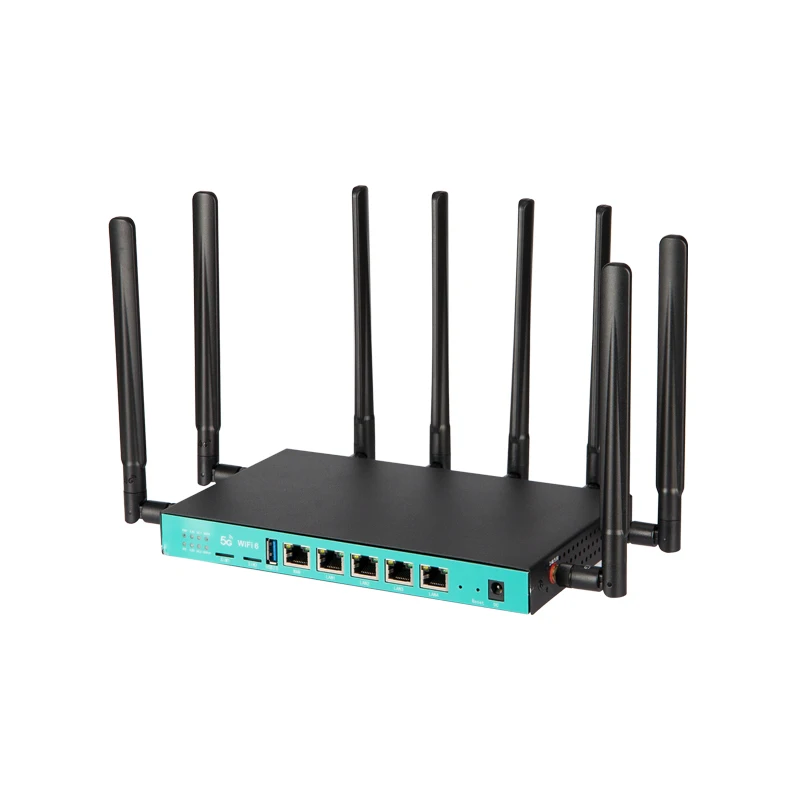

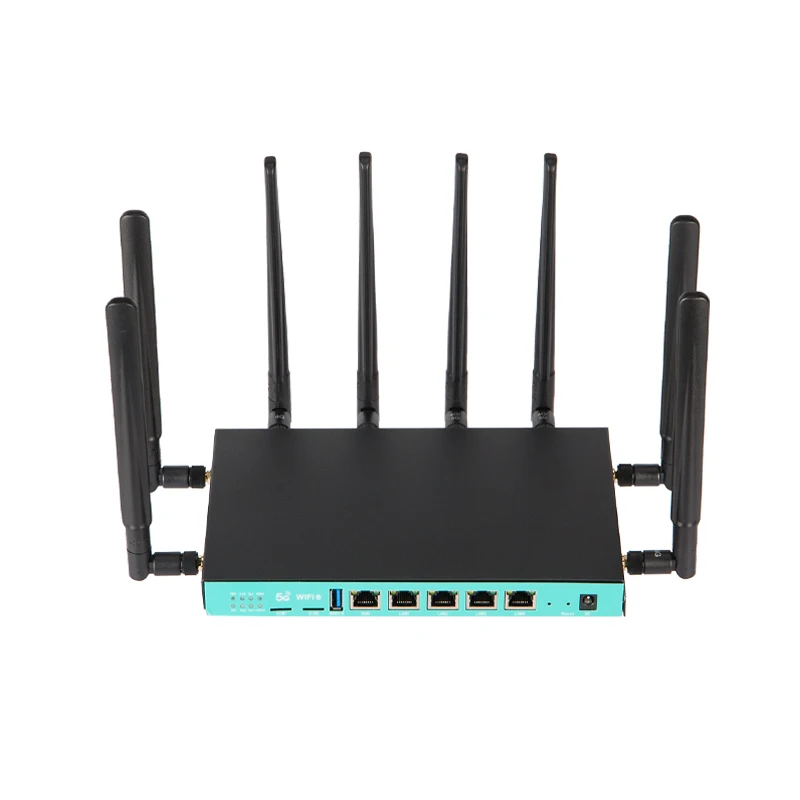

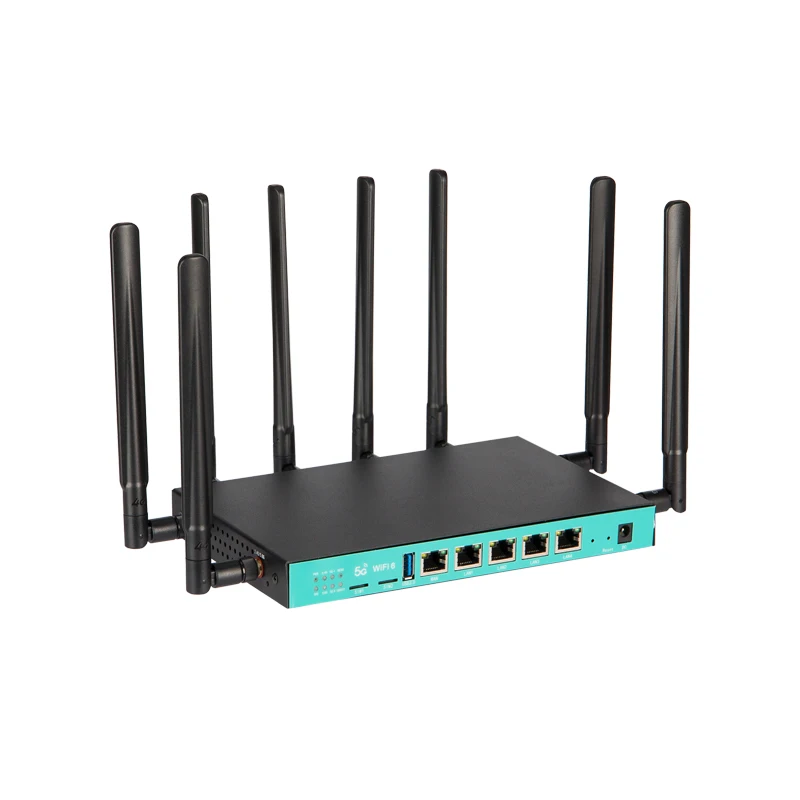

A high-performance industrial-grade 5G WiFi6 router product supporting 802.11ax technology, using MT7621+MT7915+MT7975 high-performance SoC kit, with 16MB flash memory and 256MB memory, industrial-grade circuit design, supporting IEEE802.11a/b/g/n/ ac/ax protocol, work in 2.4G & 5.8G wireless frequency band, and meet the needs of 128 people at the same time wireless high-speed Internet access. Full Gigabit network interface, supports up to 573Mbps wireless access speed in 2.4G 802.11ax mode, supports up to 1201Mbps wireless access speed in 5.8G 802.11ax mode, supports single SIM and dual SIM card modes, supports installation of 4G5G modules , has the characteristics of high performance, high gain, high receiving sensitivity, high bandwidth, high access number, etc., not only can cover a larger range, but also can provide higher wireless transmission performance and stability.
Hardware facilities
- The latest WIFI6 dual-core network chipset MT7621A+MT7975+MT7915
- Provides 5 Gigabit Auto MDI/MDIX Ethernet ports
- Provide 1*USB3.0 port and 2*M.2 port
- Provides 1 Micro SD card slot (built-in)
- Provide 2*SIM Nano SIM card slot
- Provide 1* reset button
- Provide 1*DC power interface
Software
Pre-installed OpenWRT or Rooter firmware supports "one-key flash mode", that is, long press the reset button to enter flash mode, which supports secondary development.
Can support the current mainstream M.2 interface modem, such as Quectel EM12 EM20 EM160 R500Q R502Q; Dell DW5821e Fibocom; FM150 and other brands
Specification
| WS1688/Hardware Specifications | |
| Hardware Specifications | MT7621A+ MT7975+MT7915 Dual-core WIFI6 DDR3 RAM 256MB SPI FLASH 16MB |
| Protocol standard | 2.4G WiFi 2*2 802.11b/g/n/ax(Theoretical maximum speed up to 573Mbps) 5.8G WiFi 2*2 802.11a/n/ac/ax(Theoretical maximum speed up to 1201Mbps) 1024QAM Ultra-high-speed access rate,OFDMA Ultra-high-density user access MU-MIMO/MU-OFDMA Up/Down BSS Color Spatial multiplexing |
| Wireless rate | Dual-band concurrency up to 1800Mbps |
| Working frequency | 2.4GHz 5.8GHz |
| 4G5G frequency band | Frequency bands can be customized, support domestic and foreign customization |
| Antenna | 2*5dbi high-gain omnidirectional wifi antennas, 6*5dbi high-gain omnidirectional 4G5G antennas (optional) |
| interface | 1*10/100M/1000M WAN port,automatic MDI/MDIX 4*10/100M/1000M LAN port,automatic MDI/MDIX 1*USB 3.0 port 2*M.2 2*Nano SIM card slot 1*SD card |
| LED | power/2.4G/5.8G/5G-1/5G-2/SYS/USB/Mesh |
| Button | 1* Reset button |
| Power Adapter | DC 12/2000mA |
| Maximum power consumption | < 24W |
System picture
Picture details
Company Information
HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included OpenWRT 4G5G wifi router, Vehicle 5G router, outdoor CPE, indoor CPE,MESH Router ,WIFI-6 Router ,4G OTT 4G5G Modem.HUASIFEI .with 50 people R&D team and around 700 people in factory, 20,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, HUASIFEI's products have exported to over 30 countries.
Packaging & Shipping
FAQ
