Sunpal Фотоэлектрические двухфазные солнечные панели 500 Вт 520 550 555 монокристаллическая солнечная панель мощность Pv модуль


Поделиться:


Цена:9,76 ₽ - 13,02 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 11.77 $* 11.76 $*
Jul-15-2025 9.21 $* 9.70 $*
Jun-15-2025 11.36 $* 11.95 $*
May-15-2025 11.42 $* 11.31 $*
Apr-15-2025 9.53 $* 9.22 $*
Mar-15-2025 11.84 $* 11.10 $*
Feb-15-2025 11.71 $* 11.24 $*
Jan-15-2025 11.91 $* 11.38 $*

Характеристики





Canadian Solar Panels










BiHiKu & HiKu Series




Testing Condition
STC
CS6W
530MS
535MS
540MS
545MS
550MS
555MS
Maximum Power(Pmax/W)
530W
535W
540W
545W
550W
555W
Voltage at Maximum Power(Vmp/V)
40.9V
41.1V
41.3V
41.5V
41.7V
41.9V
Current at Maximum Power(Imp/A)
12.96A
13.02A
13.08A
13.14A
13.20A
13.25A
Open Circuit Voltage(Voc/V)
48.8V
49.0V
49.2V
49.4V
49.6V
49.8V
Short Circuit Current(lsc/aA)
13.80A
13.85A
13.90A
13.95A
14.00A
14.05A
Module Efficiency(%)
20.70%
20.90%
21.10%
21.30%
21.50%
21.60%
Testing Condition
NMOT
CS6W
530MS
535MS
540MS
545MS
550MS
555MS
Maximum Power(Pmax/W)
397W
401W
405W
409W
412W
416W
Voltage at Maximum Power(Vmp/V)
38.3V
38.5V
38.7V
38.9V
39.1V
39.3V
Current at Maximum Power(Imp/A)
10.38A
10.42A
10.47A
10.52A
10.55A
10.59A
Open Circuit Voltage(Voc/V)
46.1V
46.3V
46.5V
46.7V
46.9V
47.1V
Short Circuit Current(lsc/aA)
11.13A
11.17A
11.21A
11.25A
11.29A
11.33A

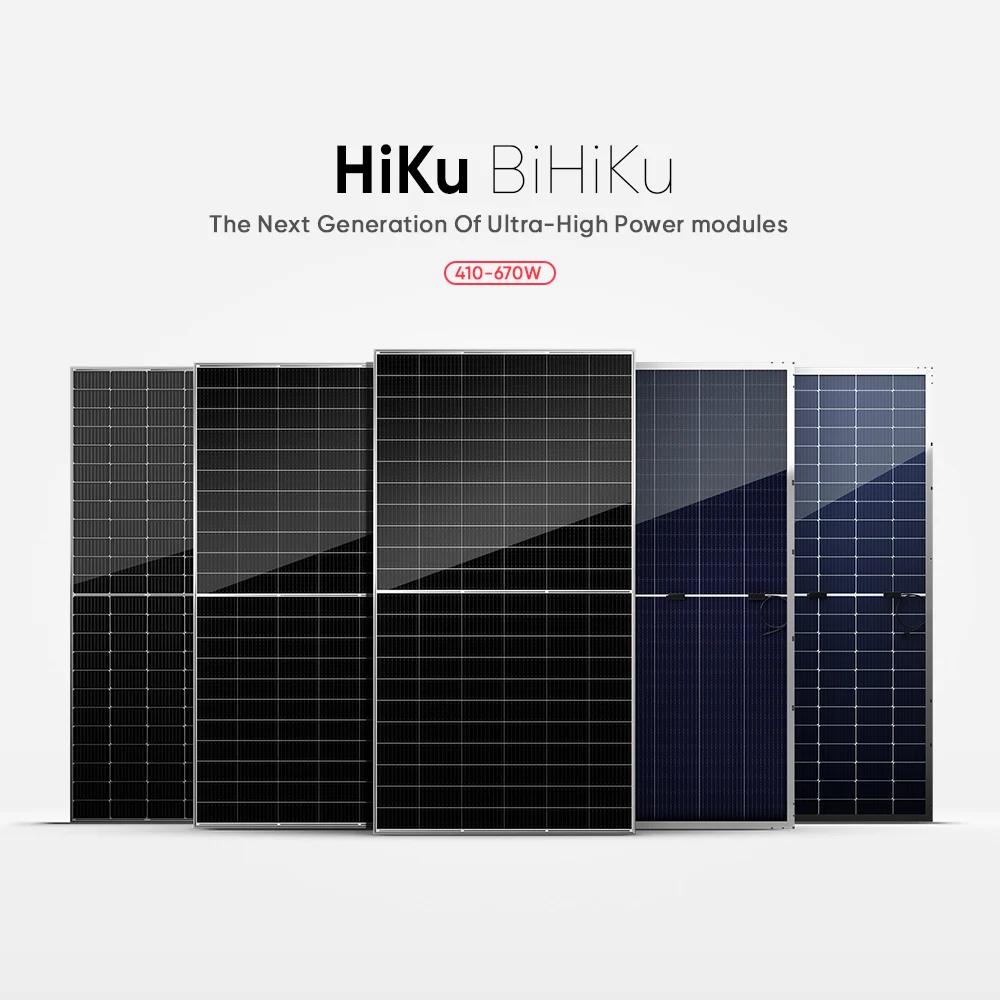

BiHiKu7
Bifacial High Power Dual Cell PERC Module
CS7N: 2384 x 1303 x 35 mm
Front side power range: 635~665 W
CS7L: 2172 x 1303 x 35 mm
Front side power range: 575~600 W
Wafer size 210 mm
Up to 8.9 % lower LCOE
Excellent hot spot performance


HiKu7
High Power Dual Cell PERC Module
CS7N: 2384 x 1303 x 35 mm
Power range: 640~670 W
CS7L: 2172 x 1303 x 35 mm
Power range: 580~610 W
Wafer size 210 mm
Module efficiency up to 21.6 %
Lower BOS cost & LCOE cost


BiHiKu6
Bifacial High Power Dual Cell PERC Module
CS6W: 2266 x 1135 x 30 mm
Front side power range: 520~550 W
Wafer size 182 mm
Up to 30%
more energy yield from back side
Low hot spot temperature


HiKu6
High Power Dual Cell PERC Module
CS6R: 1722 x 1134 x 30 mm
Power range:400~420 W
CS6W: 2261 x 1134 x 35 mm
Power range: 530~555 W
Wafer size 182 mm
Module efficiency up to 21.6 %
2.7% more energy yield in module lifetime


TOPBiHiKu6
High Power Dual Cell PERC Module
CS6R: 1722 x 1134 x 30 mm
Power range:400~420 W
CS6W: 2261 x 1134 x 35 mm
Power range: 530~555 W
Wafer size 182 mm
Module efficiency up to 21.6 %
2.7% more energy yield in module lifetime


TOPHiKu6
Mono facial N-Type TOPCon Module
CS6W-T: 2278 x 1134 x 30 mm
Power range: 550~575 W
CS6R-T: 1722 x 1134 x 30 mm
Power range:
410~435 W
Wafer size 182 mm
Module efficiency up to 22.3%
Lower BOS cost & LCOE cost






Tier 1 Solar Module






About Us


Company Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PVproducts and solar panels. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.

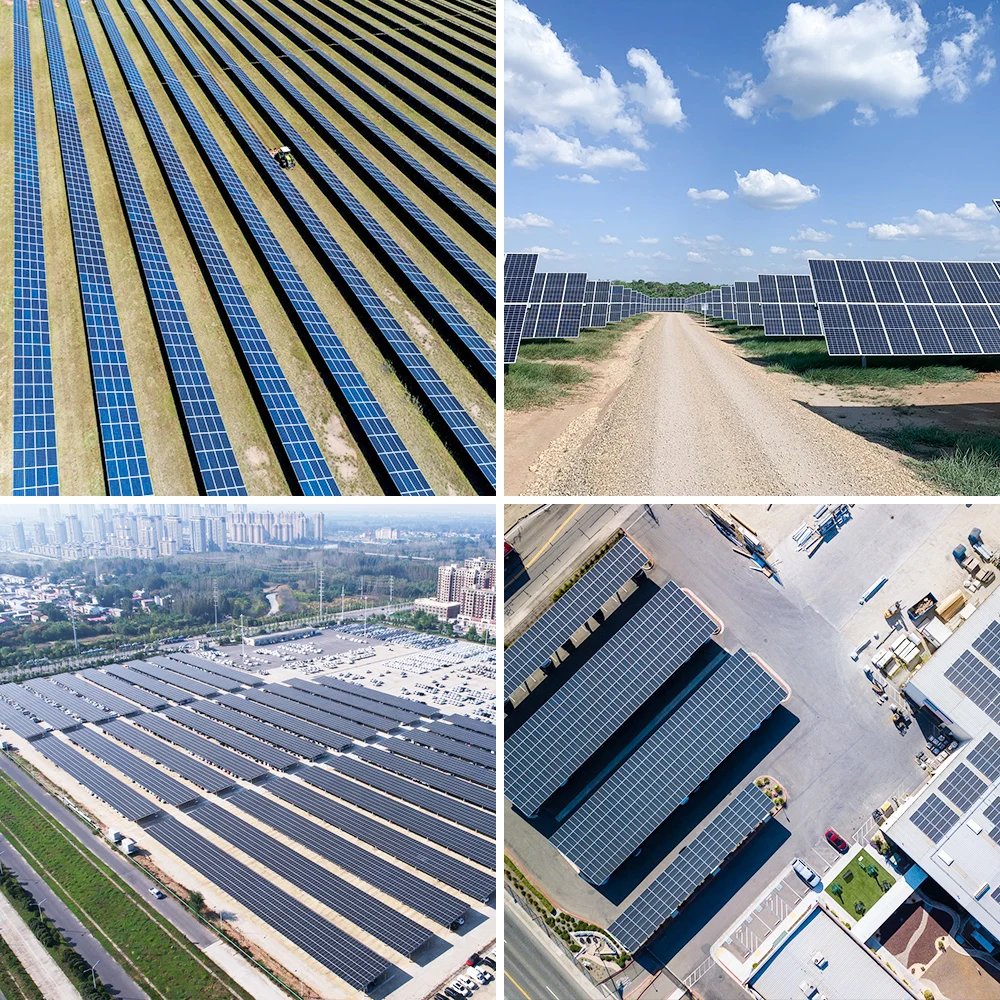

Global Project Case



Utility Scale

With years of professional experience, SunPal can provide you the perfect module product for your perfect projects so as to maximize your benefits of investments.





Commercial

Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which module plays a key role. And SunPal was, is, and will always be a reliable partner which you won`t regret to choose.





Residential

Thousands of houses around the globe are equipped with SunPal solar panel systems, so they can now enjoy the clean power with a lower electricity bill and moreover, make profits from them.




Get Free Quote Now




FAQ


A: What are your main products?
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.

B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.

C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.

D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.

E: What is your Delivery time?

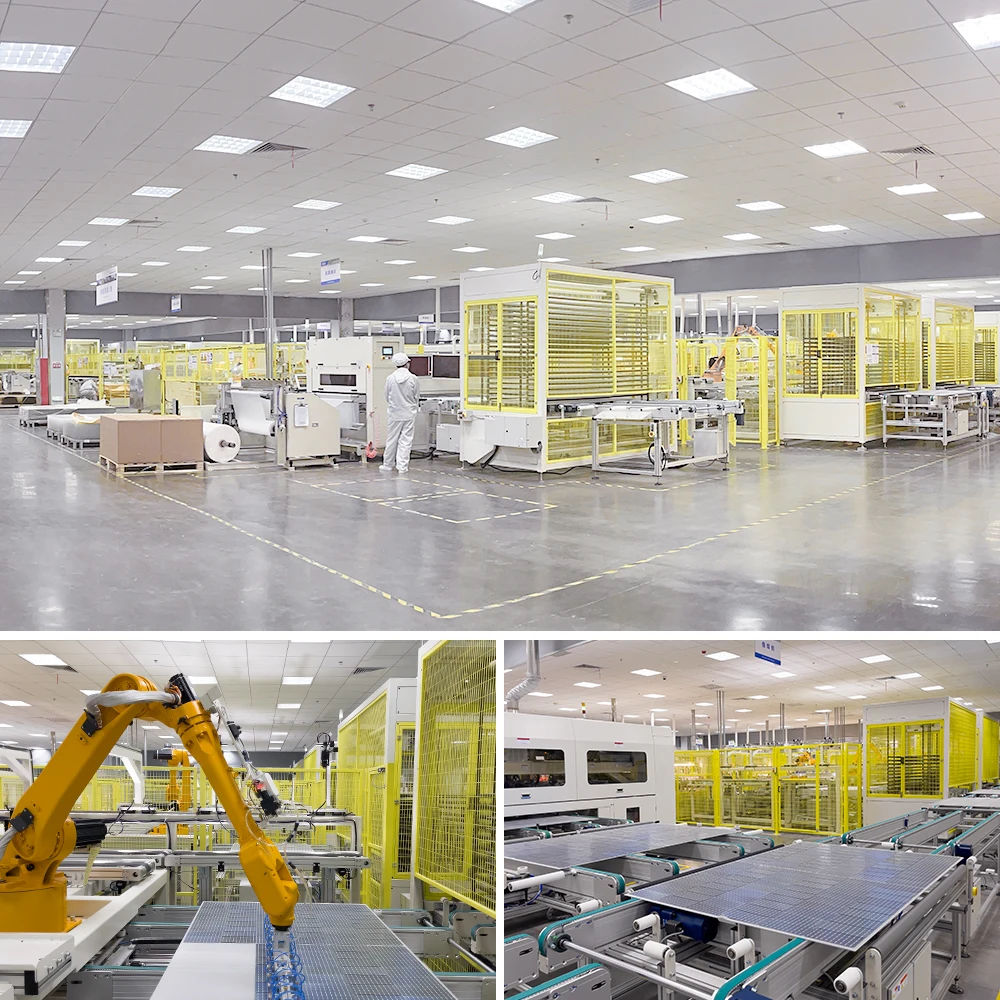

Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.

F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately.

If you want to know more information, you can send inquiry to our team, we will cover more details.
