Высококачественная роторная буровая установка XR200E с высокой

Высококачественная роторная буровая установка XR200E с высокой

Категория: Oil Field Equipment >>>
Поставщик: Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.

Цена:120 000,00 $ - 155 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	142800.87 $*	149940.7 $*
Aug-20-2025	141600.3 $*	148680.69 $*
Jul-20-2025	118800.72 $*	124740.76 $*
Jun-20-2025	139200.6 $*	146160.79 $*
May-20-2025	121200.22 $*	127260.33 $*
Apr-20-2025	136800.60 $*	143640.28 $*
Mar-20-2025	135600.0 $*	142380.88 $*
Feb-20-2025	134400.90 $*	141120.33 $*
Jan-20-2025	133200.83 $*	139860.19 $*

Характеристики

Product Overview

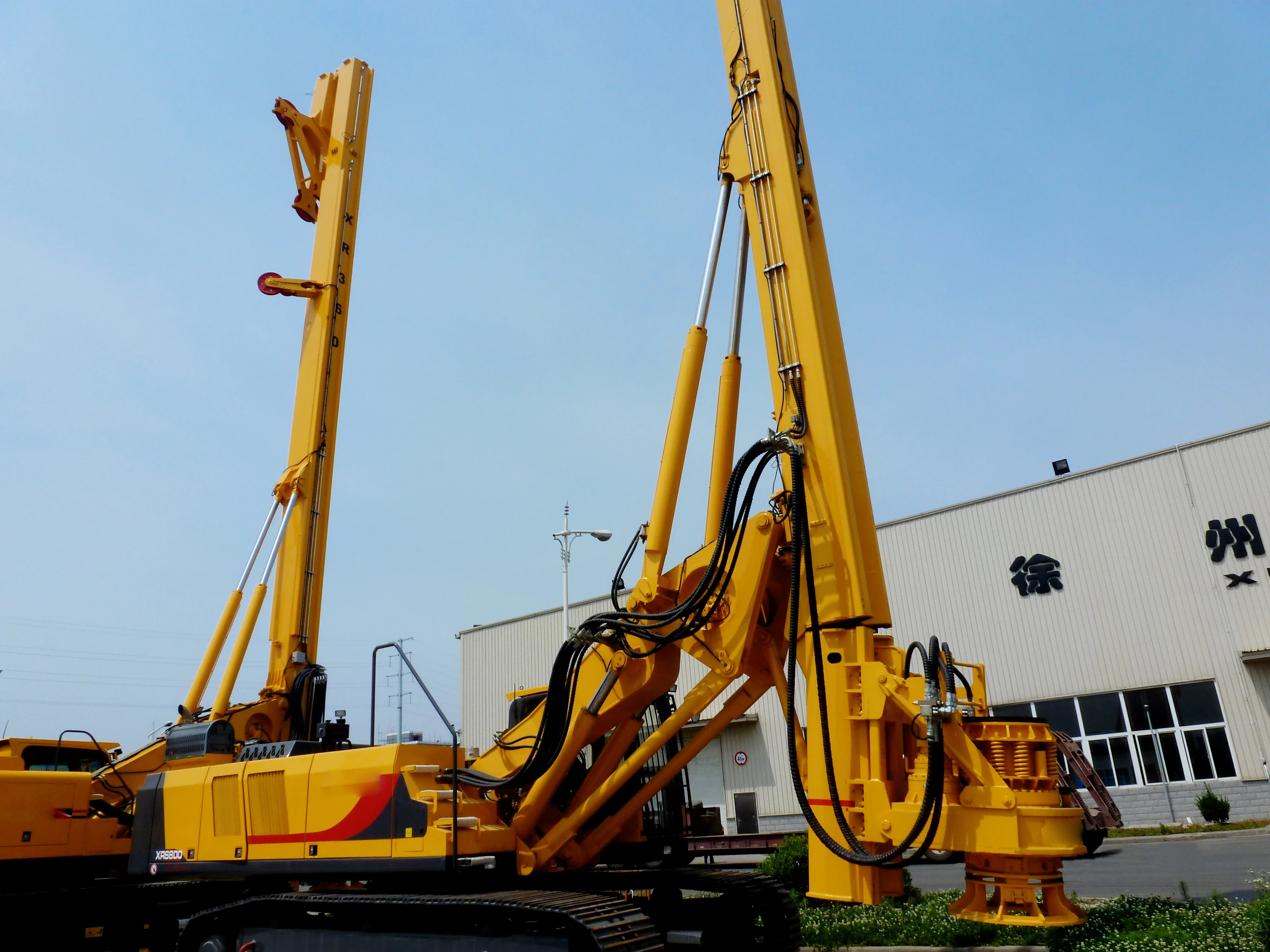

XR200E XR Series Rotary Drilling Rig

1. It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
2. It adopts the top brand electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
3. With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.
4. Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep detection device is setted in main winding,single rope to make deep inspection more accurate.
5. The whole machine design meet the requirements of the CE directive, safety guarantee, construction safer.

PRODUCT SPECIFICATIONS

Model	XR130E	XR160E	XR200E
Engine Model	QSB7-C227	QSB7-C202	6HK1X
Rated Power(kW)	169	150	212
Max.output torque(kN.m)	130	160	210
Rotary Speed(r/min)	8-35	5-35	7-30
Max.Drilling Diameter(mm)	φ1500/φ1300	φ1500/φ1300	φ1800
Max.Drilling Depth(m)	50	56	65
Max.pull-down piston push(kN)	120	160	210
Max.pull-down piston pull(kN)	140	160	210
Max.pull-down piston stroke(m)	3.5	4.2	4.8
Max.pull-down piston push(kN)	200	160	210
Max.pull-down piston pull(kN)	200	180	210
Max.pull-down piston stroke(m)	11	13	13
Max.pulling force(kN)	140	160	190
Max.line speed(m/min)	75	80	70
Max.pulling force(kN)	50	60	80
Max.line speed(m/min)	70	80	70
Mast Rake(Slide/forwards/backwards)(°)	±3/5/15	±4/5/15	±4/5/15
Max.traveling speed(km/h)	2.7	2.1	1.9
Max.grade ability(%)	40	40	40
Min.clearance(mm)	345	384.5	379
Track shoe width(mm)	600	700	700
Distance between tracks(mm)	2500-3600	2960-4200	2960-4200
Working pressure(MPa)	35	35	35
Overall Drilling Weight(t)	45	49	63/65
Working condition(mm)	7546×3600×17724	7862×4200×19028	8800×4200×21215
Transporation condition(mm)	14097×2500×3500	13993×2960×3464	16576×3000×3514
