Балконная Солнечная фотоэлектрическая система панели солнечные батареи для домашнего использования 800 Вт комплект солнечных панелей с батареей
- Категория: Solar Energy Products >>>
- Поставщик: Ningbo,Skycorp,Solar,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 451.3 $* | 460.93 $* |
| Jul-19-2025 | 366.73 $* | 373.15 $* |
| Jun-19-2025 | 444.52 $* | 453.94 $* |
| May-19-2025 | 440.36 $* | 449.82 $* |
| Apr-19-2025 | 351.82 $* | 358.75 $* |
| Mar-19-2025 | 433.69 $* | 442.97 $* |
| Feb-19-2025 | 430.31 $* | 439.45 $* |
| Jan-19-2025 | 426.59 $* | 435.22 $* |
Характеристики

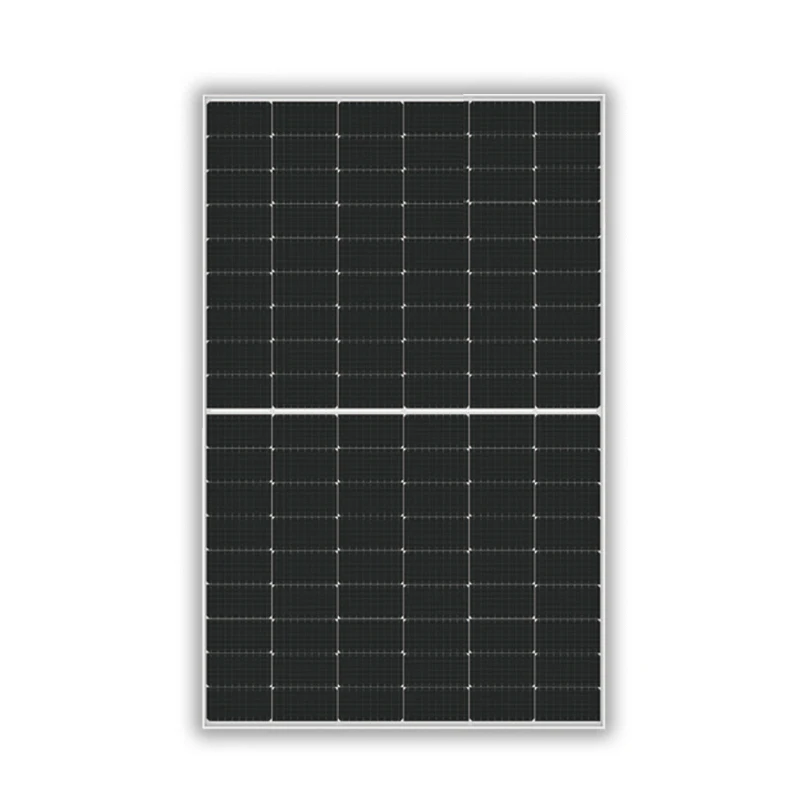

Solar Panel | ||||||||||
Rated Power in Watts-Pmax(Wp) | 410 | 415 | Maximum Power-Pmax(Wp) | 310.7 | 314.5 | |||||
Open Circuit Voltage-Voc(V) | 41.9 | 42.2 | Open Circuit Voltage-Voc(V) | 38.97 | 39.25 | |||||
Short Circuit Current-lsc(A) | 12.47 | 12.53 | Short Circuit Current-lsc(A) | 10.22 | 10.27 | |||||
Maximum Power Voltage-Vmpp(V) | 34.89 | 35.14 | Maximum Power Voltage-Vmpp(V) | 32.38 | 32.61 | |||||
Maximum Power Current-lmpp(A) | 11.76 | 11.82 | Maximum Power Current-lmpp(A) | 9.6 | 9.65 | |||||
Module Efficiency(%) | 21.3 | 21.6 | ||||||||
Cell configuration | 120 cells(5*12+5*12) | Nominal Module Operating Temperature (NMOT) | 44°C+2°C | |||||||
Dimensions | 1754*1096*30mm | Temperature Coefficient of Voc | -0.25%/℃ | |||||||
Cables | 4.0mm2(12AWG),Positive(+)350mm, Negative(-)230mm (Connector Included) | Temperature Coefficient of Isc | 0.04%/°C | |||||||
Superstrate | • High Transmission, Low Iron, Tempered ARC Glass | Temperature Coefficient of Pmax | -0.34%/°C | |||||||
Substrate | • White Back-sheet | Operational Temperature | -40°C~+85°C | |||||||
Connector | Twinsel PV-SY02, IP68 | Maximum System Voltage | 1500VDC | |||||||
J-Box | •Potted, IP68, 1500VDC, 3 Schottky bypass diodes | Maximum System Voltage | 20A | |||||||
Weight | 22kg | Limiting Reverse Current | 20A | |||||||
Frame | High strength alloy steel | |||||||||
Micro Inverter | ||||||
Input | DC | Output | AC | |||||
Recommended PV Module Power Range /W | 600 x 2 | Peak Output Power /VA | 800 | |||
MPPT Voltage Range /V | 22-55 | Max. Continous Output Power /VA | 750 | |||
Max. Input Voltage /V | 24 | Rated Output Voltage /V | 230 | |||
Max. Continous Output Current | 60 | Nominal Output Voltage Range /V | Configurable | |||
Max. Input Current /A | 17 x 2 | Max. Continous Output Current /A | 3.26 | |||
Overvoltage Protection Category | II | Nominal Frequency / Range /Hz | 50 / Configurable | |||
AC Connection Type | Trunk Cable | Power Factor (Nominal/Adjustable Range) | 1.0/0.8 leading…0.8 lagging | |||
Weight | 2.9kg | C Short Circuit Fault Current Over 3 cycles /Arms | 8.2 | |||
Peak Efficiency | 97.3% | THDi@Rated Power | <3% | |||
MPPT Efficiency | >99.5% | Max. Units per 20A Branch | 5 | |||
Night Power Consumption /mW | 110 | Overvoltage Protection Category | III | |||
General Data | ||||||
Operating Ambient Temperature Range /℃ | -40~65 | Dimensions (W x H x D) /mm | 268 x 250 x 42 | |||
Relative Humidity Range | 0-100% | Weight /kg | 2.9 | |||
DC Connector Type | MC4 | AC Connection Type (inverter-inverter) | Trunk Cable | |||
Communication Method | PLC or WiFi | Protection Class | NEMA-6 / IP-66 / IP-67 | |||
Bracket | ||||||
Installation Site | Balcony | Panel Layout | Horizontal | |||
Balcony type | Circular Metal Guard | Design Standard | European standard | |||
Tilt Angle | 23°-35° | Bracket Material | Steel &AL6005-T5 | |||
Wind Load | 50m/s | Fastener Material | SUS304 | |||
Snow Load | 1.2KN/m2 | Color | Silver or Black | |||
Applicable Solar Module | Framed | Warranty | 10-Year Warranty | |||
Applicable Solar Size | 1724*1134*30mm | |||||
FAQ
1.Do you offer sample for testing purpose?Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN,UNE206007-1 IN,IEEE1547.Pleasedouble check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders, dates may vary depending on quantity.
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN,UNE206007-1 IN,IEEE1547.Pleasedouble check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders, dates may vary depending on quantity.
