Высокочастотная индукционная нагревательная паяльная машина 220 В

Высокочастотная индукционная нагревательная паяльная машина 220 В

Категория: Other Welding Equipment >>>
Поставщик: Guangdong,Lihua,Induction,Equipment,Co.,Ltd.

Цена:700,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	833.98 $*	875.13 $*
Aug-19-2025	826.84 $*	867.75 $*
Jul-19-2025	693.55 $*	728.54 $*
Jun-19-2025	812.12 $*	853.70 $*
May-19-2025	707.73 $*	742.24 $*
Apr-19-2025	798.45 $*	838.23 $*
Mar-19-2025	791.4 $*	831.47 $*
Feb-19-2025	784.61 $*	823.94 $*
Jan-19-2025	777.30 $*	816.60 $*

Характеристики

Product Description

220V 15kVA high frequency induction heating brazing machine

■ Adopted with MOSFET, IGBT power device and variable frequency control, LIHUA high frequency induction heaters enjoy high efficiency, energy saving and larger output power.
■ With constant current and constant power control function, the products can realize extremely optimized metal heating process,thus achieving high efficient, quick heating and greatly give play to the superiority of products.
■ Saving double electricity more than traditional high frequency induction heating device under the same conditions.
■ With 100% load design, it can work 24 hours constantly without a break. It can be equipped with infrared temperature measuring device to realize automatic control, promote heating quality and simplify artificial operation.
■ With three functional setting including heating-heat retaining-cooling, it can achieve required heating and incubation process to make itself suitable for repetitive and mass heating work.
■ The machine can display various states such as over current, over voltage, lacking of water, lacking of phase and light loading, thus providing higher reliability and durability.

Details Images

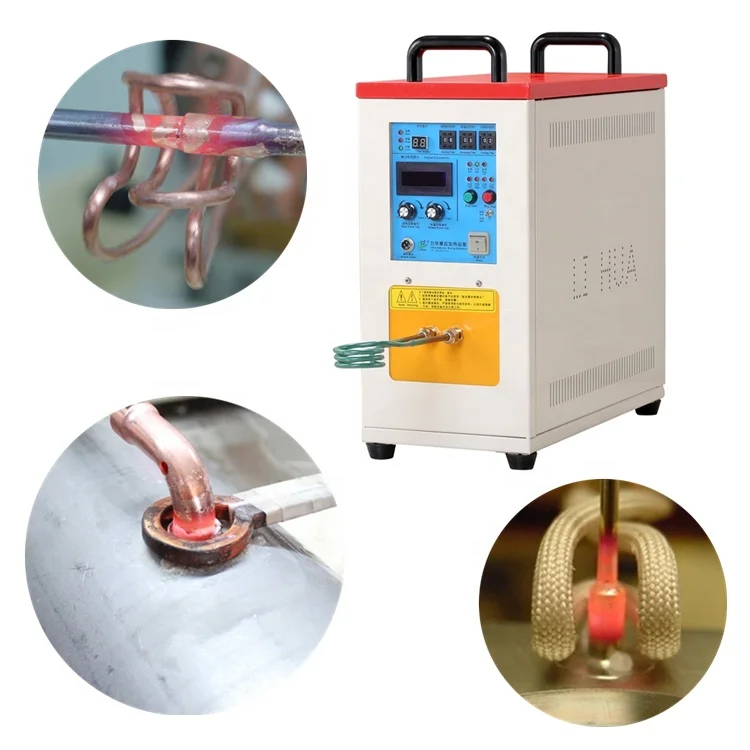

Front Side

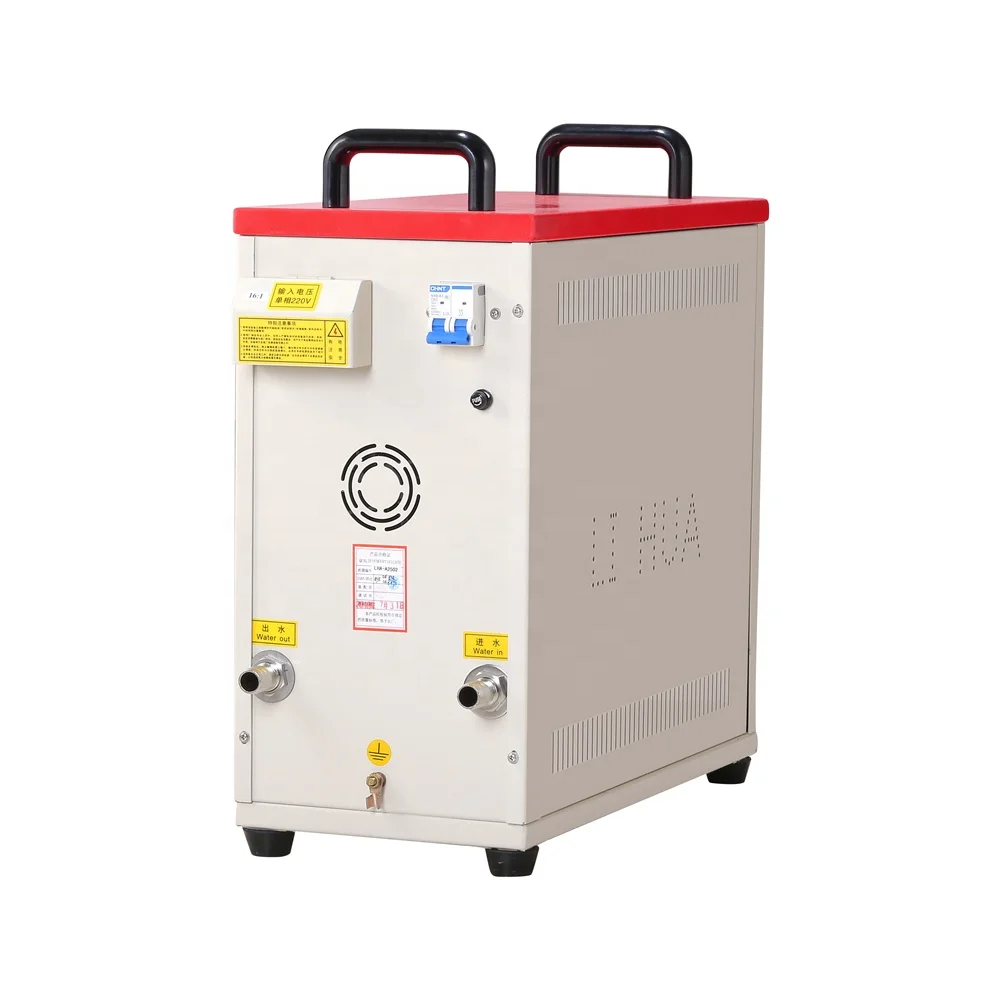

Back Side

Germany IGBT

Circuit Board

Product Paramenters

High Frequency Induction Heating System
Model	LH-15A	LH-15AB	LH-25A	LH-25AB	LH-30AB
Input voltage	220V	220V	380V	380V	380V
Output power	15kW	15kW	25kW	25kW	30kW
Frequency	30-100KHz	30-100KHz	30-80KHz	30-80KHz	30-80KHz
Output current	200-600A	200-600A	200-1200A	200-1200A	400-1500A
Timing	1-99s	1-99s	1-99s	1-99s	1-99s
Cooling water	0.06-0.12Mpa 7.5L/min	0.06-0.12Mpa 7.5L/min	0.06-0.12Mpa 7.5L/min	0.08-0.12Mpa 7.5L/min	0.08-0.16Mpa 7.5L/min
Alarm tempreture	40°C	40°C	40°C	40°C	40°C
Generator weight	25kg	10kg	30kg	18.5kg	35kg
Transformer weight	/	15kg	/	15kg	10kg
Generator size (mm)	535245550	505235520	535245550	560235520	595275580
Transformer size (mm)	/	340235405	/	425235420	485275440

Model	LH-35AB	LH-40AB	LH-60AB	LH-80AB
Input voltage	380V	380V	380V	380V
Output power	35kW	40kW	60kW	80kW
Frequency	30-80KHz	30-80KHz	30-80KHz	30-80KHz
Output current	400-1600A	400-1800A	400-2400A	400-3200A
Timing	1-99s	1-99s	1-99s	1-99s
Cooling water	0.08-0.16Mpa 7.6L/min	0.08-0.16Mpa 7.6L/min	0.08-0.16Mpa 7.6L/min	0.08-0.16Mpa 9L/min
Alarm tempreture	40°C	40°C	40°C	40°C
Generator weight	35kg	35kg	37kg	54kg
Transformer weight	10kg	10kg	36kg	47kg
Generator size (mm)	595275580	595275580	650320590	745345600
Transformer size (mm)	485275450	485275450	485275450	790425580

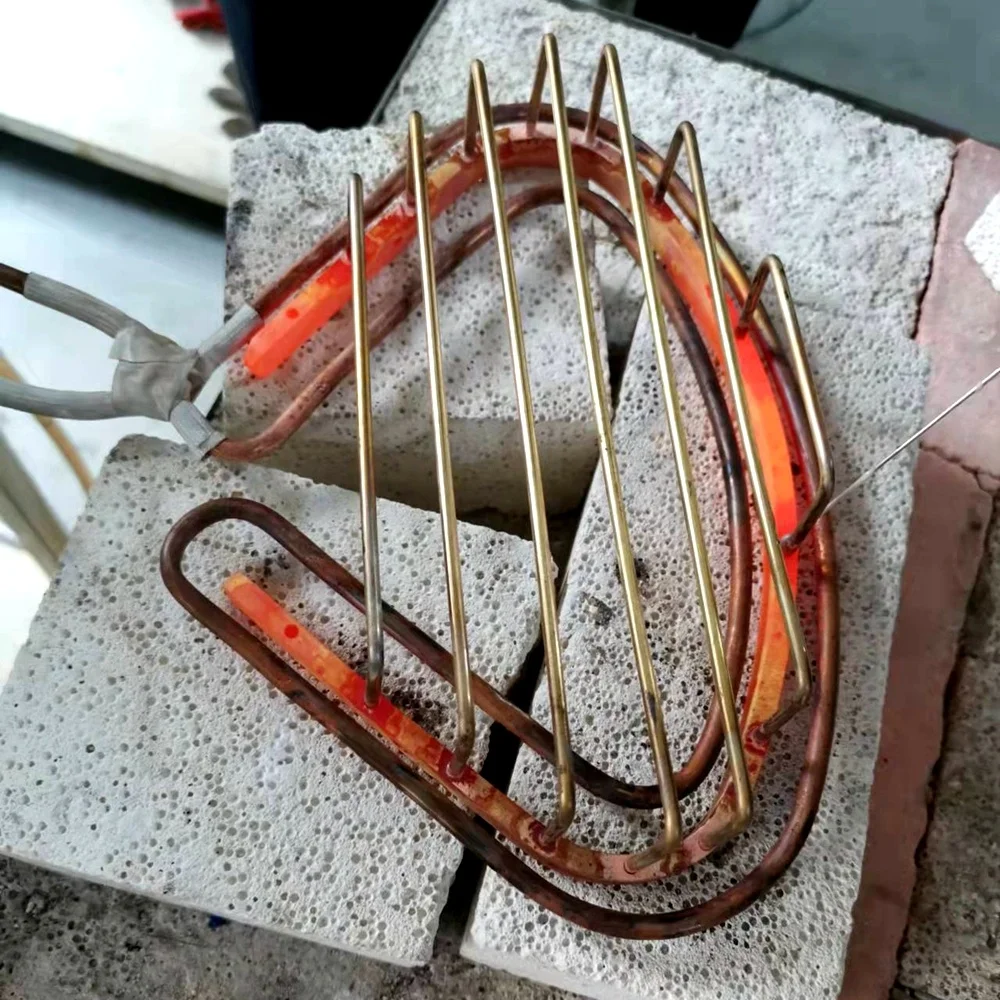

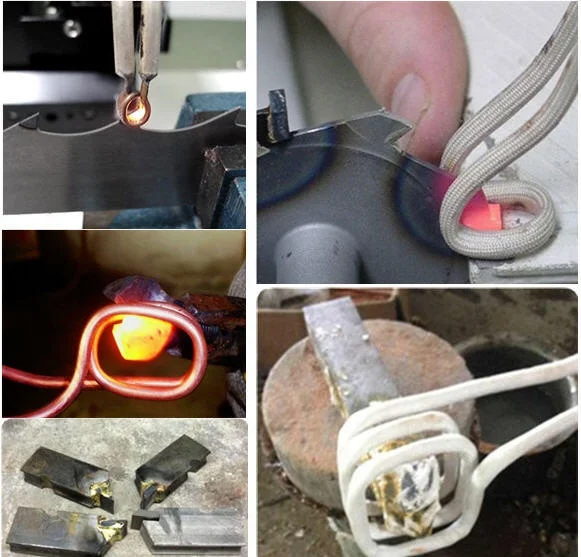

Application

Recommend Products

Production Process

Company Profile

LIHUA company has been committed to the development, production as well as the sales of induction heating equipment since 2005. Our own garden-style factory covers an area of 10,000 square meters. The company has undergone 8 times production process optimizations and 5 times production equipment updates. LIHUA obtained the honor of national high-tech enterprise and more than 60 patent certificates. We provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is LIHUA's goal!

FAQ

Q: Why use induction heating?

A: ★ Improved process efficiency ★ Localized, constant and precise heating ★ Temperature control ★ Energy saving ★ Possibility of integration into production lines ★ Best quality and yield/performance ★ Pollution free, fast and secure technology ★ Improved working environment

Q: How to choose a suitable induction heater?
A: Induction heaters have many different modles with different power and frequency.
1. The higher power, the faster of the heating speed. so if you want to heat fast then you'd better choose a high power induction heater.
2. The higher frequency, the lower of the heating layer. So for some surface hardening, we suggest use a higher frequency heater, for some entire heating (like forging and melting) we suggest to use low frequency heater.
3. If you are not sure of which model is suitable for your work, please ask our salesman for suggestion before you place an order.

Q: Does your equipment support a specific input voltage?
A: Yes, we can customize different imput voltages in response to different voltage levels in different countries.

Q: Are you a factory or trading company?
A: We are a professional manufacturer of induction heating equipment since 2005. Welcome to visit our factory anytime.

Q: Do you have any equipment in stock?
A: Yes, we have some standard models in stock, and can deliver immediately after payment.

Q: How is your quality control?
A: We have a professional team responsible for product testing and packaging before delivery. You can buy without hesitation.

Q: If the machine get damaged, what can I do?
A: Some spare parts are free of charge during the 1-year warranty period. If you don't know how to repair, please take photos or record a video and send to us., our engineer will guide you to perform the repair. If still cannot solve the problem, we can send our engineers to your factory.
