Высококачественная полипропиленовая полиэтиленовая пленка ПНД пластиковая грануляционная машина для переработки
- Категория: Plastic Raw Material Machinery >>>
- Поставщик: Hangzhou,Dingchuan,Import&export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 47600.35 $* | 49980.35 $* |
| Aug-15-2025 | 47200.63 $* | 49560.66 $* |
| Jul-15-2025 | 39600.56 $* | 41580.64 $* |
| Jun-15-2025 | 46400.24 $* | 48720.80 $* |
| May-15-2025 | 40400.82 $* | 42420.46 $* |
| Apr-15-2025 | 45600.76 $* | 47880.74 $* |
| Mar-15-2025 | 45200.37 $* | 47460.24 $* |
| Feb-15-2025 | 44800.1 $* | 47040.41 $* |
| Jan-15-2025 | 44400.2 $* | 46620.75 $* |
Характеристики
HIgh Quality PP PE HDPE LDPE Film polystar Plastic Granulator Film Pelletizing Plastic Recycling Machine
Contact:Yumi
WeChat&What's App:+86 18267163536
PRODUCT OVERVIEW
The twin-screw plastic granulator is suitable for making new material color matching, new material or regenerated particle modification (adding glass fiber, calcium carbonate, color masterbatch, etc.) and other products. It has the characteristics of good mixing, good plasticization, high output, high density of plastic particles, bright surface gloss, and no hollow particles. Therefore, the re granulation industry is widely used.Of course, our equipment must go through the raw material trial before delivery to ensure the quality of the equipment.
PRODUCT CORE COMPONENTS
1. The screw is made of W6MO5Cr4V2 alloy high-quality steel with a length diameter ratio of 40:1
2. Motor: Siemens Beide high-efficiency motor
3. Frequency converter: Lanhai Huateng/Huichuan
4. Gear box: B model
5. Hydraulic or electric screen changer, double station screen changing without stopping
PRODUCT FEATURES
Why chooses our machine
1. Adjust different thread combinations according to different raw materials, different forms of raw materials (raw material size), different formulas (whether glass fiber is added, whether additives are added, the content of additives, and the form of additives), so as to achieve the purpose of one machine with multiple uses and special raw materials.
2. The twin-screw is made of W6MO5Cr4V2 threaded element, and the cylinder is made of C-type alloy bushing, which has better wear resistance and long service life. The heater is 5.2kw cast iron heater, which has high power and fast heating; Each cylinder is equipped with a cooling water circuit, and the water volume is controlled automatically by a solenoid valve to ensure a more stable heating temperature.
3. The machine shall be equipped with an iron removal conveyor belt to remove metal impurities in the plastic and reduce the damage of metal to the screw.
4. The host adopts quantitative feeding, and is equipped with frequency conversion speed regulation. The feeding amount of the feeding screw is controlled by the rotation speed of the feeding screw. In addition, the installation of the feeder can reduce the wear of the screw and improve the service life of the screw.
MANUFACTURING PROCESS
Frame welding —— Machine pre assembly ——Installation of heater cooling water circuit
Electric box wiring installation—— Installing the feeder ——Finished product commissioning

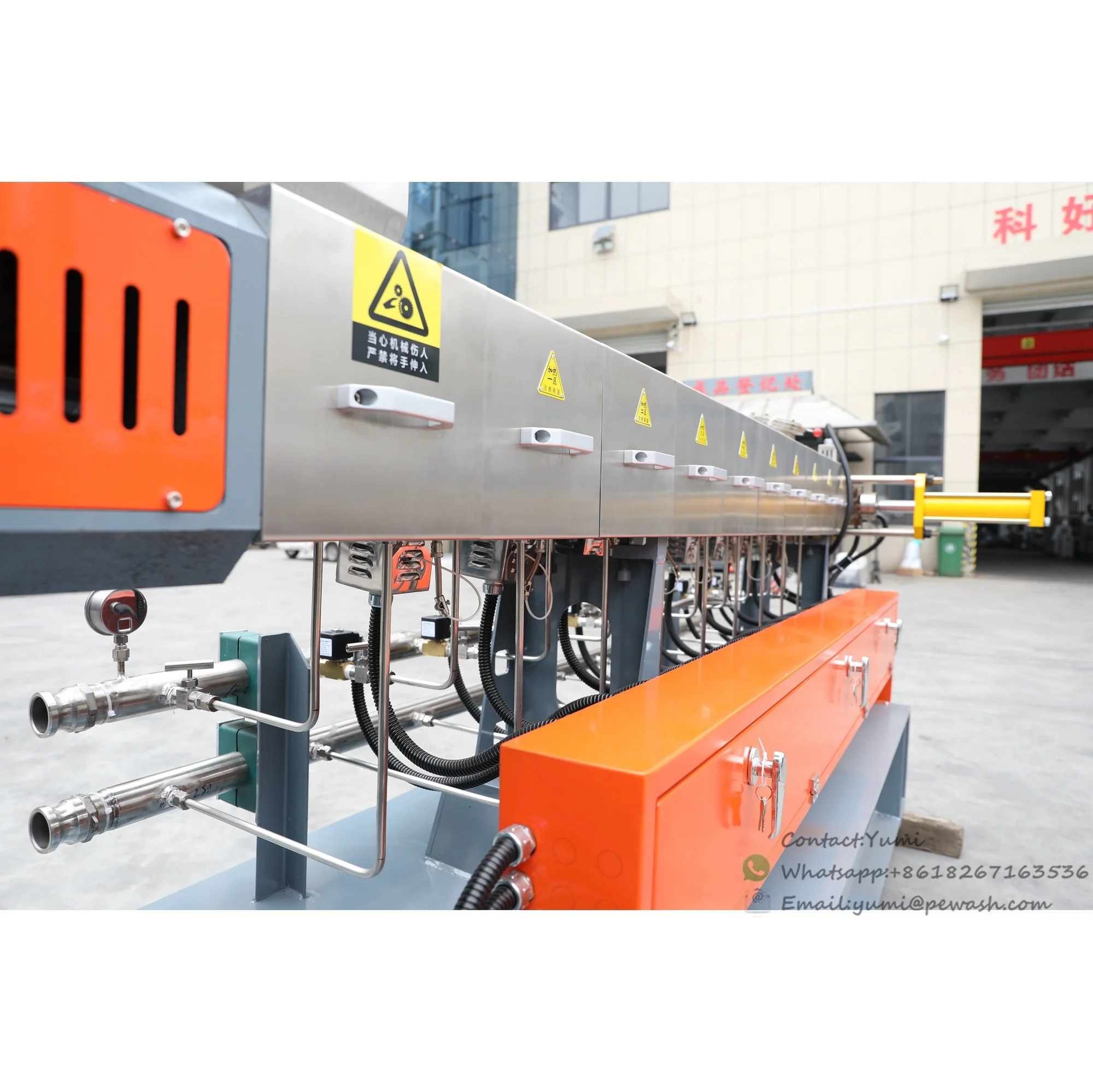

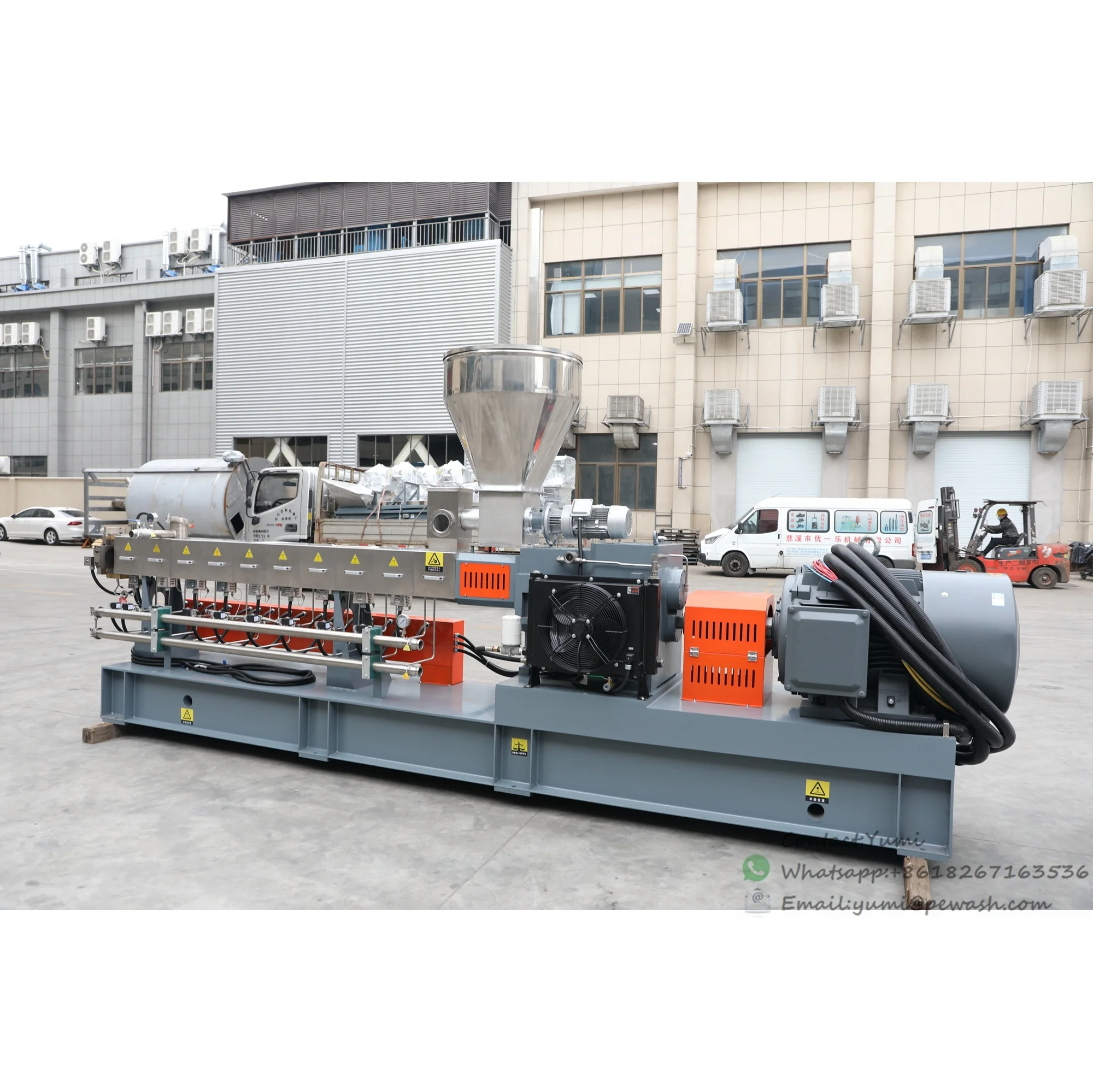

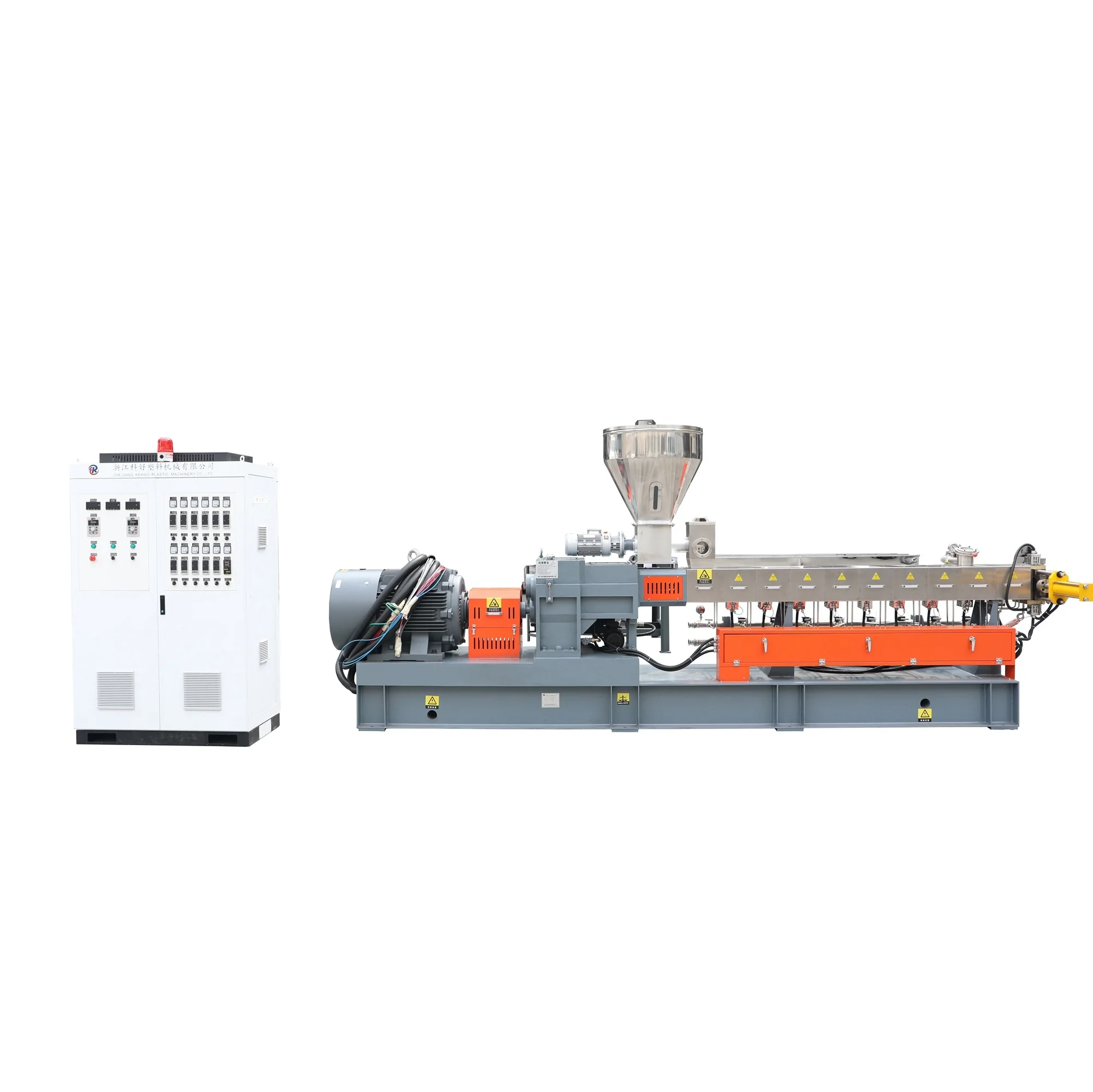

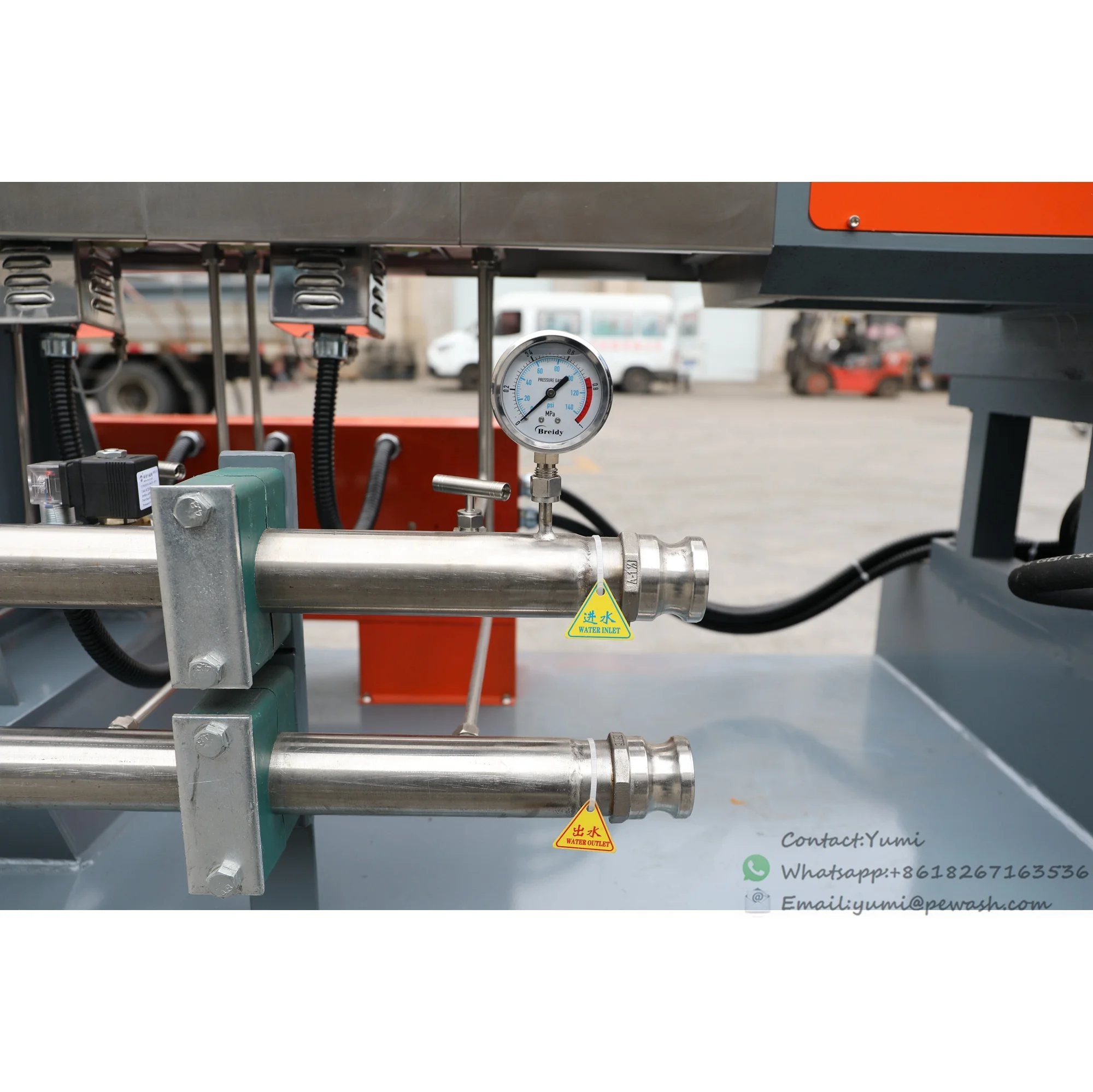

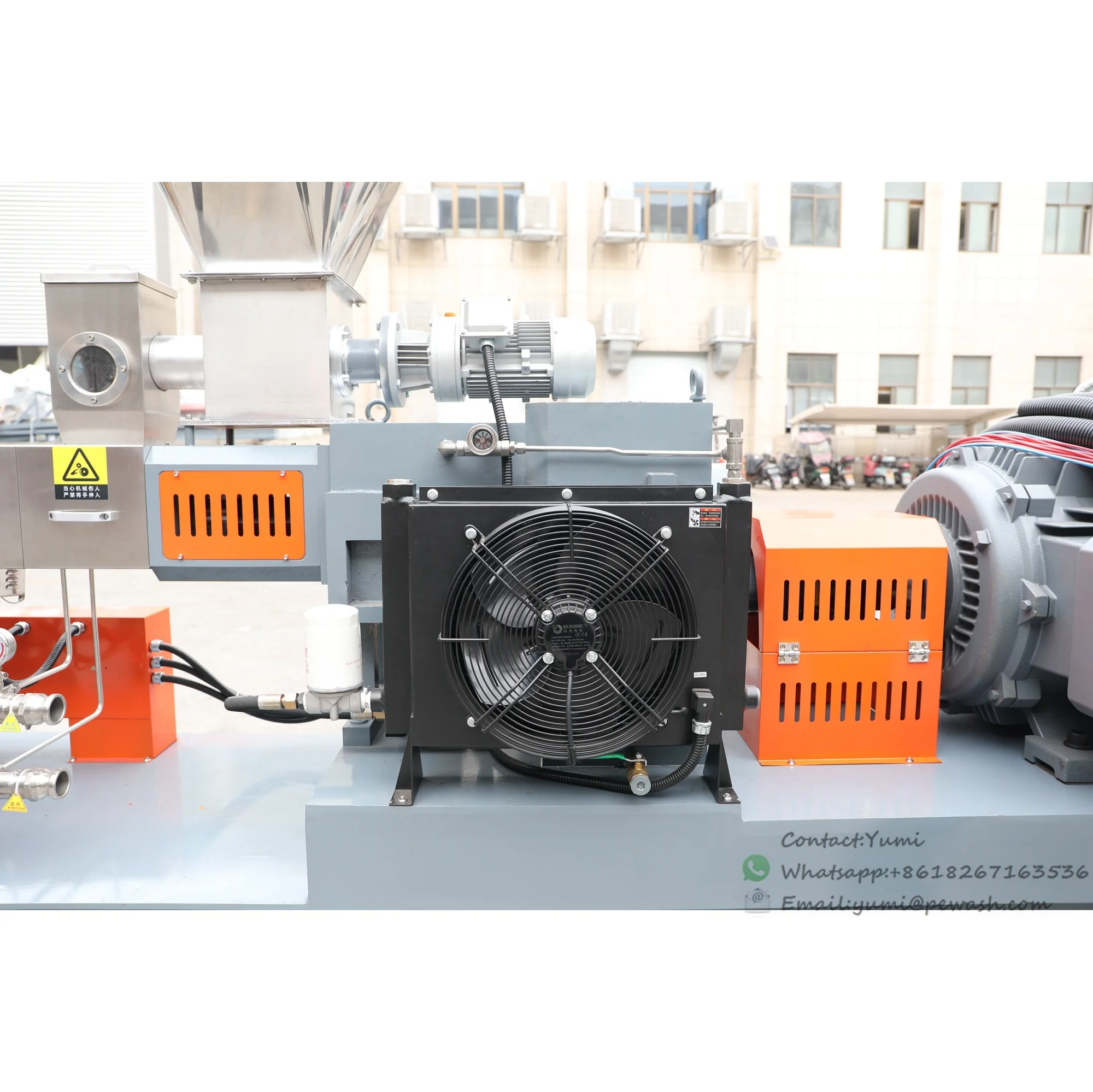

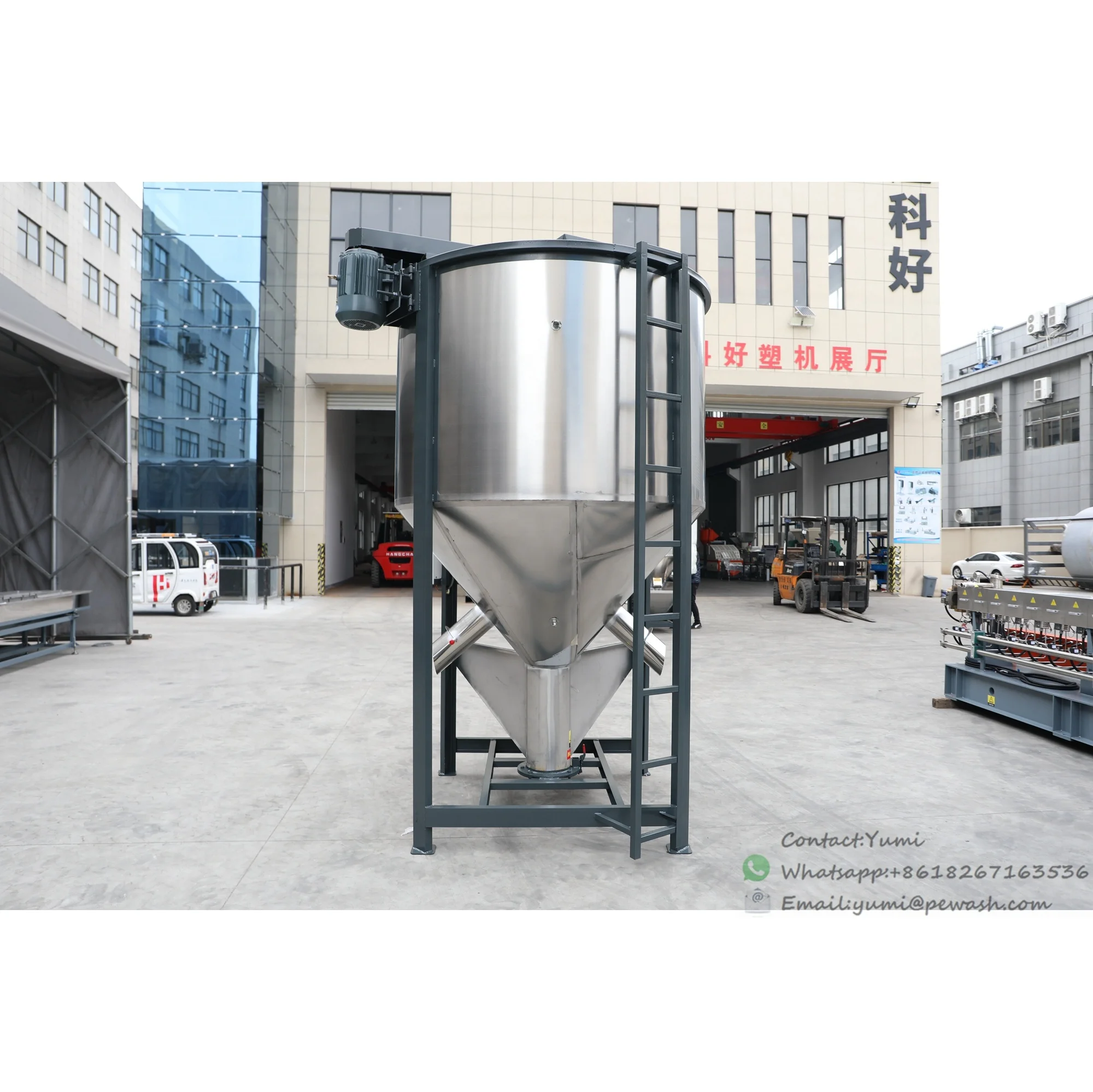

MORE DETAILED PHOTOS
