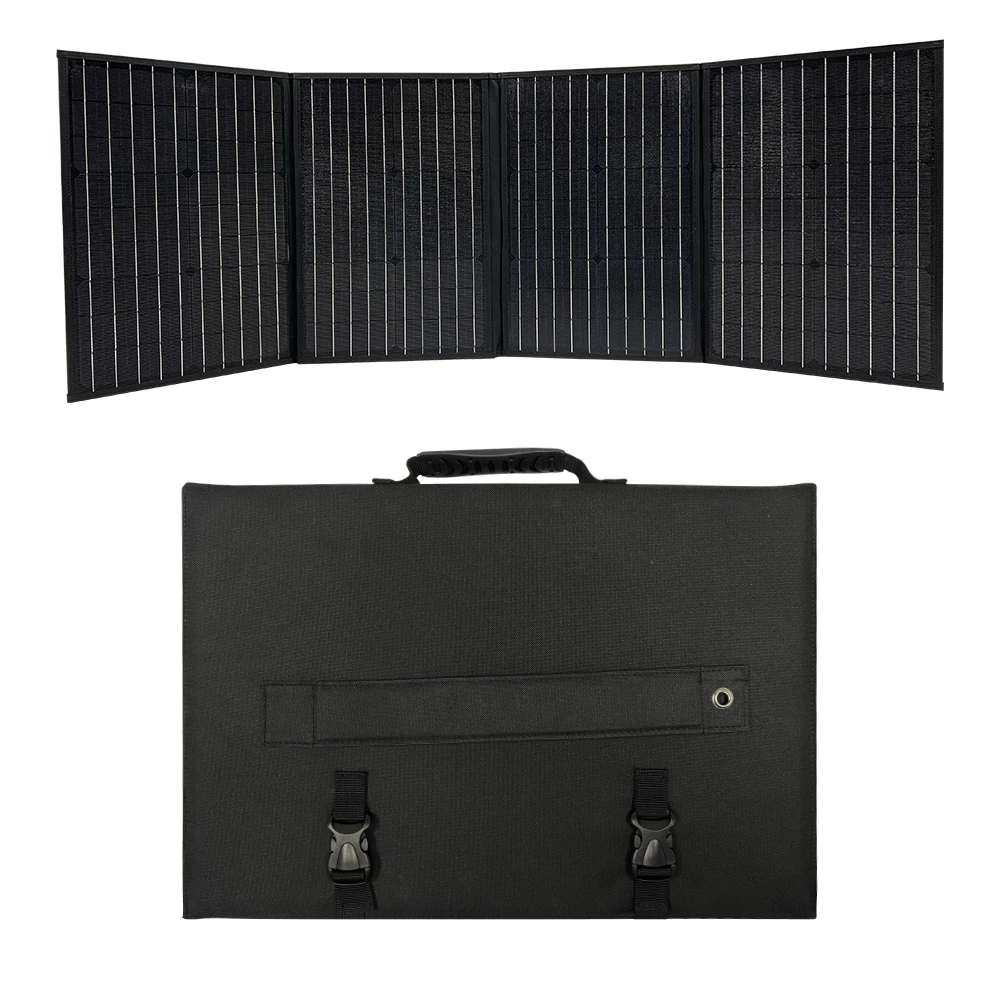

Горячая Распродажа 200 Вт солнечная панель моно с CE TUV
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Eson,Industry,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 102.84 $* | 107.70 $* |
| Aug-19-2025 | 101.48 $* | 106.57 $* |
| Jul-19-2025 | 85.1 $* | 89.43 $* |
| Jun-19-2025 | 100.76 $* | 105.39 $* |
| May-19-2025 | 87.44 $* | 91.92 $* |
| Apr-19-2025 | 98.62 $* | 103.44 $* |
| Mar-19-2025 | 97.9 $* | 102.16 $* |
| Feb-19-2025 | 96.94 $* | 101.38 $* |
| Jan-19-2025 | 95.98 $* | 100.62 $* |
Характеристики
Products Description
ANSUN Solar Panel | ||||||
Technical Specifications | ||||||
Model | ||||||
Maximum power(Pm) | 100.0 W | 120.0 W | 200.0 W | |||
Voltage of Max power(Vmp) | 18.00 VDC | |||||
Power Tolerance | -0+3% | 17.8Hours+ | 24.9Hours+ | |||
Current at max power(Imp) | 5.56 A | 6.67 A | 11.11 A | |||
Open circuit voltage(Voc) | 21.60 VDC | |||||
Short circuit current(Isc) | 6.11 A | 7.33 A | 12.22 A | |||
Cell efficlency | 22.00 % | |||||
Operating Temperature | -40°C to +85°C | |||||
Maximum System Voltage | 1000 VDC | |||||
Max. series fuse rating | 12 A | |||||
Standard Test Condtion | Irrandiance 1000W/M²,AM=1.5 ,Module temperature 25℃ | |||||
Solar cell | Monocrystalline sillicon solar cell 125*125mm | Monocrystalline sillicon solar cell 158.75*158.75mm | Monocrystalline sillicon solar cell 158.75*158.75mm | |||
Dimension | 1160*560*5mm | 1435*535*5mm | 2130*680*5mm | |||
Dimension when folded | 290*560*35mm | 360*535*35mm | 570*680*30mm | |||
Weight per panel | 4.2Kg | 5Kg | 7.5Kg | |||
