Завод-поставщик из Китая APP/SBS битумная Водонепроницаемая Мембрана для кровельного оборудования Битумная
- Категория: Building Material Machinery >>>
- Поставщик: Shandong,Shengxin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 203490.63 $* | 213665.13 $* |
| Aug-17-2025 | 201780.84 $* | 211869.33 $* |
| Jul-17-2025 | 169290.2 $* | 177755.54 $* |
| Jun-17-2025 | 198360.64 $* | 208278.86 $* |
| May-17-2025 | 172710.56 $* | 181346.87 $* |
| Apr-17-2025 | 194940.34 $* | 204687.33 $* |
| Mar-17-2025 | 193230.67 $* | 202892.75 $* |
| Feb-17-2025 | 191520.76 $* | 201096.91 $* |
| Jan-17-2025 | 189810.51 $* | 199301.23 $* |
Характеристики
Products Description
SBS/APP modified bitumen waterproof membrane production line
APP / SBS modified bitumen membrane production line, bitumen waterproofing membrane machine -- Automatic type
Main features of the SBS/APP Modified Bitumen Waterproofing Membrane Production Line
1) Manufacturing Capacity:
Annually manufacturing 10,000,000 m2of various types of modified bitumen waterproofing membrane, as per three shifts per day, 20
hours per working day, 300 days per year, calculated on basis of 3 mm thick membrane.
2) Speed of the production line: 0~30m/min, adjustable. On the basis of producing 3mm membrane.
3) Mechanical speed: 35 m/min.
4) Voltage (according to the voltage in Buyer’s country)
1) Manufacturing Capacity:
Annually manufacturing 10,000,000 m2of various types of modified bitumen waterproofing membrane, as per three shifts per day, 20
hours per working day, 300 days per year, calculated on basis of 3 mm thick membrane.
2) Speed of the production line: 0~30m/min, adjustable. On the basis of producing 3mm membrane.
3) Mechanical speed: 35 m/min.
4) Voltage (according to the voltage in Buyer’s country)
bitumen waterproofing membrane production line mainly includes six parts:
1) Membrane forming production line
2) Compound preparation system
3) Air compressor system
4) Hot oil conductor furnace system
5) Water cooling system
6) Fume disposing system
3) Air compressor system
4) Hot oil conductor furnace system
5) Water cooling system
6) Fume disposing system
Product specification：
The system can produce SBS, APP modified asphalt waterproofing
membrane with the following specifications:
Base mat: polyester mat, fiberglass mat
Face: sand, PE or Aluminum
The system can produce SBS, APP modified asphalt waterproofing
membrane with the following specifications:
Base mat: polyester mat, fiberglass mat
Face: sand, PE or Aluminum
SBS self-adhesive bitumen waterproofing bitumen membrane production line

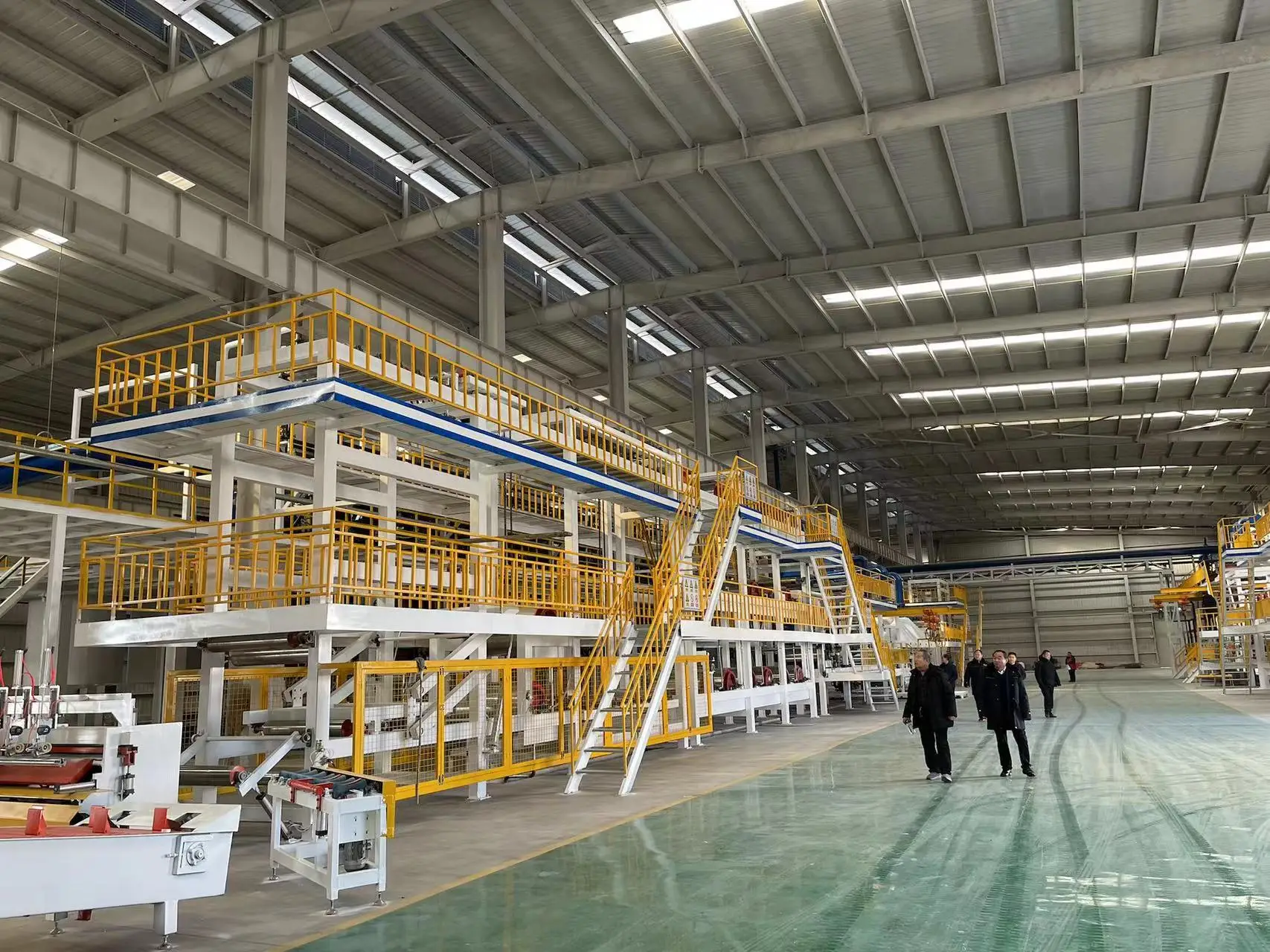

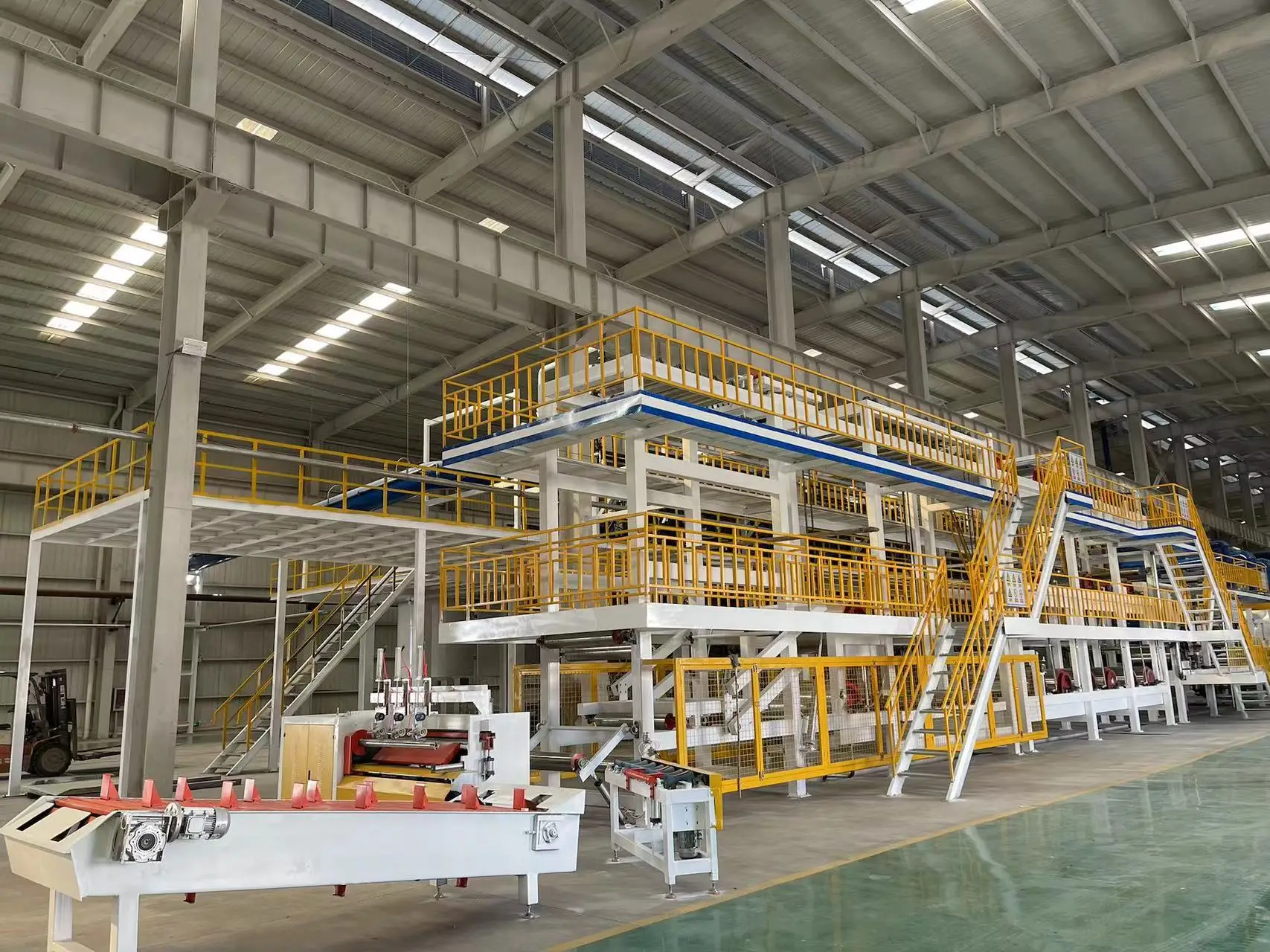

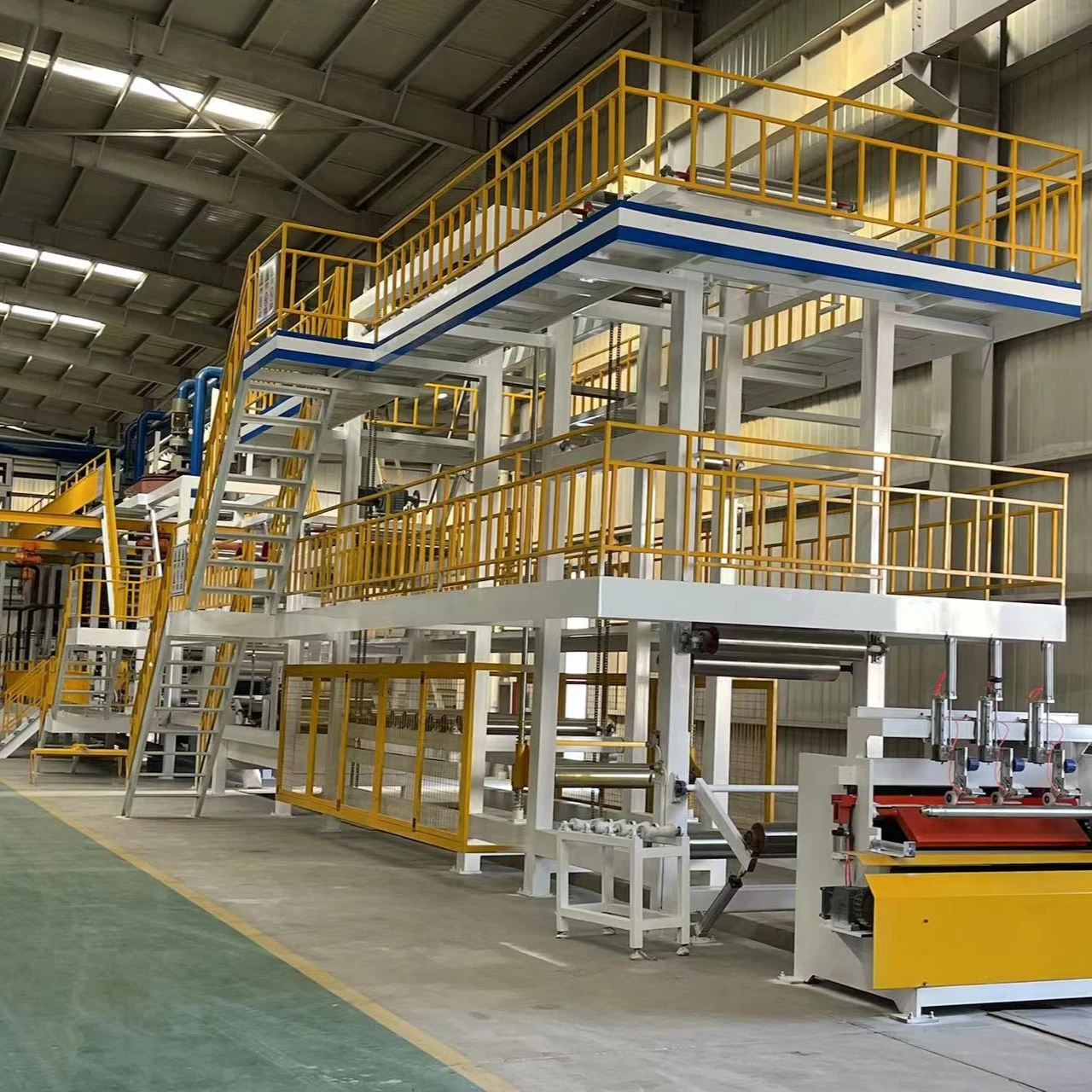

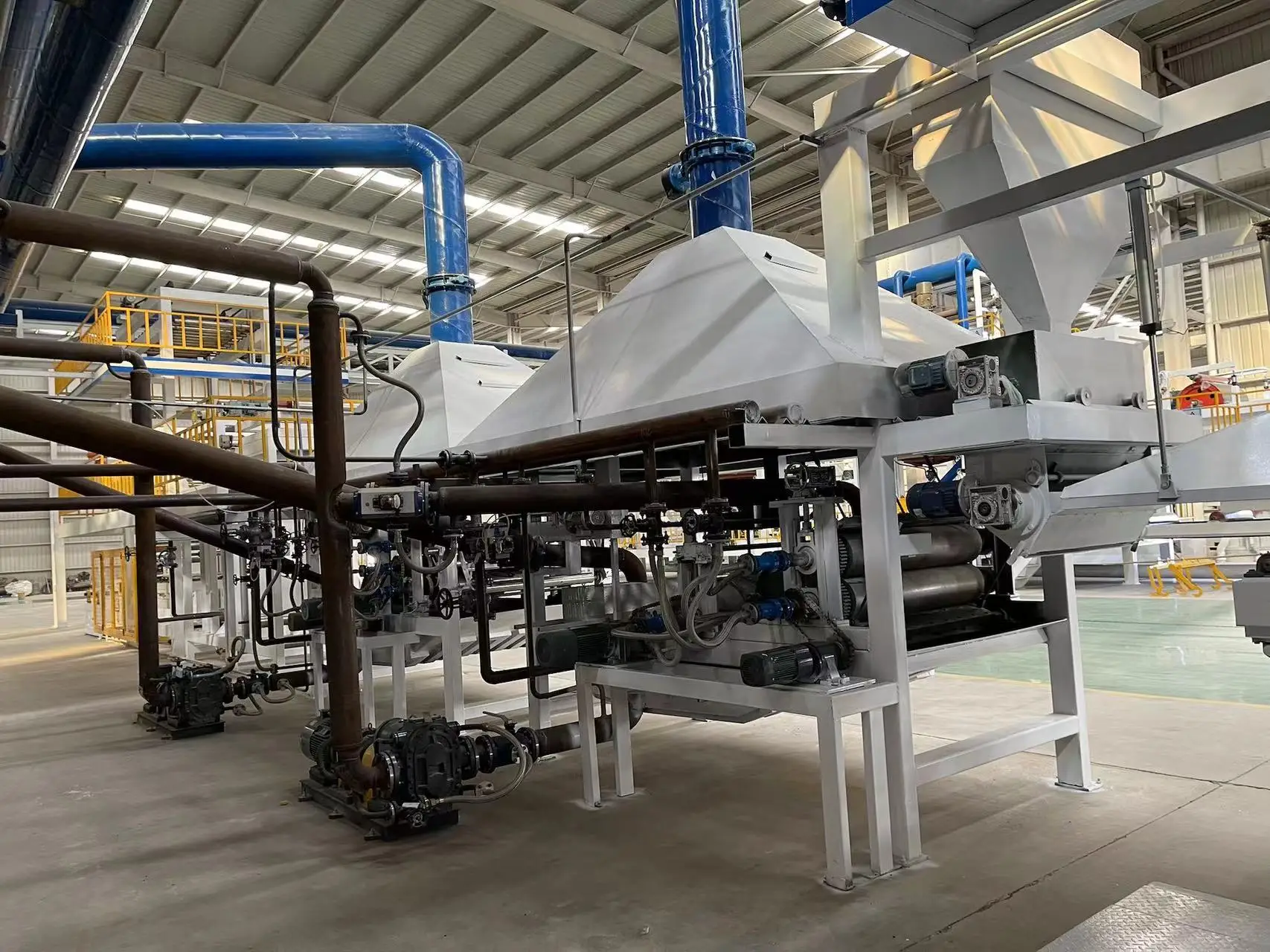

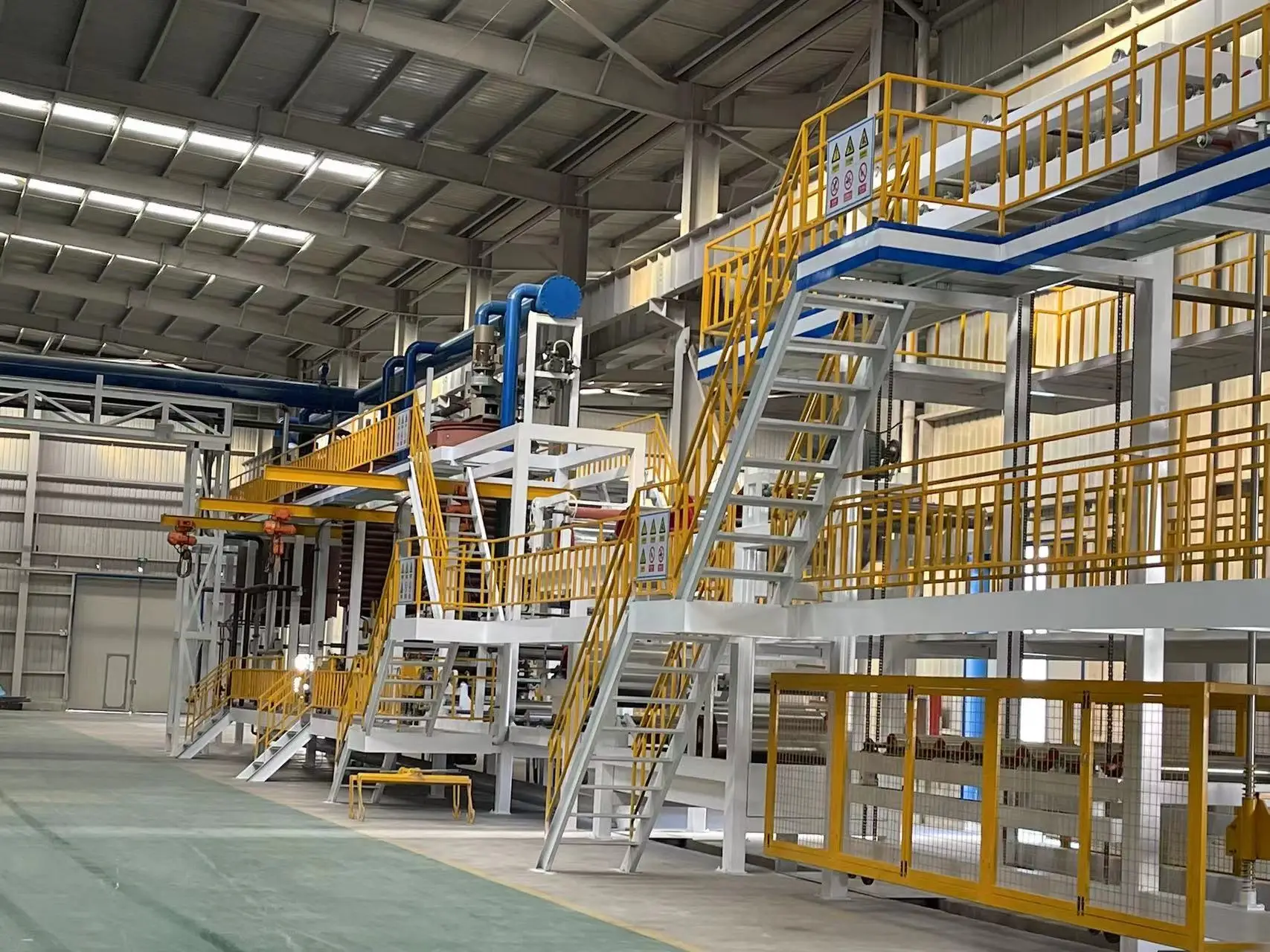

Details Images
INTEGRATION OF ELECTRICAL DESIGN
It is equipped with a dedicated electrical control device, which fully ensures the comfort of customer operation and the convenience of process adjustment under the purpose of energy saving.
SIMPLE AUTOMATION
Humanized design, automatic operation, visual operation interface, and thickness measurement system are equipped for the whole production line, easy to operate and ensures the thickness under the condition of ensuring the output.
HIGH PRODUCTION EFFICIENCY
Selected high-quality raw materials, mature technology, quality assurance, efficient and stable operation, high production efficiency of waterproof membrane, reliable and stable quality.
ONE MACHINE FOR MULTIPLE PURPOSES
Realize multiple combinations, multi-purpose and strong versatility. One machine can be used for multiple purposes: it can be used in the same way.The conditions for changing equipment are to produce TPO, PVC, PE and other waterproof membrane materials
Consumption of the Plant:
1) Fuel Consumption: 200×104Kcal/h, thermal efficiency ≥73%.
2) Compressed Air Consumption: 1.6 m3/min,
0.7MPa
0.7MPa
3) Capacity of the whole equipment: 700 KW
4) Water usage: 200kg per day
5) Main workshop: L70×W18×H7m
Labor required:
Operators required for the whole production line
1) Boiler room: 1workers
2) Modified workshop: 2 workers
3) Production workshop:5 workers
Packaging & Shipping The production line will be fabricated in China and shipped with about 11HQ, 9OT and 1FR.
OurServices:
Seller provide installation, commissioning & training services and a warranty of 12 months will be provided after successful commissioning. After warranty expires, seller provide maintenance service at buyer's cost.
APP/SBS Modified Bitumen Waterproof Membrane Machine Production Line
Applications
The production line is to produce bitumen waterproof membrane.
Bitumen waterproof membrane production line could produce SBS/APP modified bitumen waterproof membranes(Asphalt Felt).Bitumen Membrane (Bituminous Membrane) is widely used in industrial and civil buildings, such as roof, basement, toilet, bridge,park, swimming pool, tunnel for waterproof and moisture-proof. Bitumen is kind of hydrocarbon and is created naturally from crude oil. It is a useful carbon store and does not generate greenhouse gases. The membrane is therefore a sustainable way of storing carbon on the Earth's surface.
Bitumen waterproof membrane production line could produce SBS/APP modified bitumen waterproof membranes(Asphalt Felt).Bitumen Membrane (Bituminous Membrane) is widely used in industrial and civil buildings, such as roof, basement, toilet, bridge,park, swimming pool, tunnel for waterproof and moisture-proof. Bitumen is kind of hydrocarbon and is created naturally from crude oil. It is a useful carbon store and does not generate greenhouse gases. The membrane is therefore a sustainable way of storing carbon on the Earth's surface.
Asphalt waterproof membrane refers to a rolled material made of asphalt material, tire material and anti-adhesive material spread on the surface, also known as linoleum. It is often used for post-type waterproof layer. Asphalt waterproof membrane refers to tire membrane and tireless membrane. Any roll material made by impregnating petroleum asphalt with thick paper or glass cloth,asbestos cloth, cotton and linen fabric, etc., is called a tire roll; mixing asbestos, rubber powder, etc. into the asphalt material and rolling it The rolled material is called rolled coil or tireless coil.
Company Profile
Shandong Shengxin Machinery Co., Ltd is a professional manufacture which is specialized in researching, producing, marketing and service waterproof equipment,established in 2000 and located in the biggest construction waterproofing base in China. Our company has three factories, covering an area of seventy thousand square meters, there are more
than 300 high qualification employees and 20 professional production and processing equipment.As a research ,design ,sales and service as one of professional waterproof high-tech enterprises, Our main products :SBS/APP Modified bitumen membrane product line ;Self adhesive waterproof bitumen membrane product line ;Macromolecule self adhesive waterproof bitumen membrane product line ;Non-bitumen macromolecule self adhesive waterproof membrane product line ;Waterproof Painting product line;SBS /APP modified bitumen waterproof membrane , Self adhesive modified bitumen waterproof membrane ,selfadhesive bitumen waterproof tapes , Self adhesive butyl waterproof tapes；Polyester Mat；Pet release film .ect.
Our company is one of the most famous supplier in the line of waterproof equipment in China, is also an important supplier in international markets. On the basis of absorbing foreign advanced science and technology, our factory has developed various kinds of advanced waterproof equipment plants, and has got many national patents. We have passed CE, ISO-9001-2000 international quality system certification, is also strictly in accordance with international quality system to ensure product quality.We are guided by technology, excellent quality, honest management and sincere service, and has won the unanimous praise of domestic and foreign waterproof industry enterprises.
than 300 high qualification employees and 20 professional production and processing equipment.As a research ,design ,sales and service as one of professional waterproof high-tech enterprises, Our main products :SBS/APP Modified bitumen membrane product line ;Self adhesive waterproof bitumen membrane product line ;Macromolecule self adhesive waterproof bitumen membrane product line ;Non-bitumen macromolecule self adhesive waterproof membrane product line ;Waterproof Painting product line;SBS /APP modified bitumen waterproof membrane , Self adhesive modified bitumen waterproof membrane ,selfadhesive bitumen waterproof tapes , Self adhesive butyl waterproof tapes；Polyester Mat；Pet release film .ect.
Our company is one of the most famous supplier in the line of waterproof equipment in China, is also an important supplier in international markets. On the basis of absorbing foreign advanced science and technology, our factory has developed various kinds of advanced waterproof equipment plants, and has got many national patents. We have passed CE, ISO-9001-2000 international quality system certification, is also strictly in accordance with international quality system to ensure product quality.We are guided by technology, excellent quality, honest management and sincere service, and has won the unanimous praise of domestic and foreign waterproof industry enterprises.
Our R & D team and production team have more than ten years of experience in thethe waterproof production line industry. Every production process of each the waterproof production line has to pass a strict inspection by the quality control department. Perfect company management system and team enable us to make steady progress in the the waterproof production line industry.We have sufficient stock of the waterproof production line and adequate supply of the waterproof production line accessories enables us to deliver the products usually within 20 days.
Cooperation Partners
Project Case
Product packaging
Our quality control department considers packing and shipping as important as the production details of the waterproof production line. We have a professional packaging workshop and experienced workers and long-term and stable cooperation with many freight companies that have experience in waterproof production line delivery. To ensure each waterproof production line arrives every customer with perfect quality.
Payment method
T/T. L/C, Western Union, Paypal, Moneygram. A various of payment terms are optional or as your request guarantee 100% payment security.Trade Assurance Of Alibaba is a free payment protection service for buyers. The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract. Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
Certifications
FAQ
Advantages of Shengxin Machinery TECH teams
1. We have rich experience across multiple waterproof machine manufacturing industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
Advantages of Shengxin Machinery after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
Shengxin Machinery sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
Q: how big is your company?
A: We are a scientific and technological innovation enterprise integrating R&D, design, production and service of waterproof machine manufacturing.Our company has 300 employees and A building area of 70000 square meters. We own land and 3 factories.
1. What payment methods do you accept?
A: We accept T/T, Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q: What about the delivery time?
A: Usually within 30 days after receiving your payment or based on order quantity and production schedule .But if you need iturgently, it can be completed within 30 days after receiving your payment.
Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
1. We have rich experience across multiple waterproof machine manufacturing industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
Advantages of Shengxin Machinery after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
Shengxin Machinery sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
Q: how big is your company?
A: We are a scientific and technological innovation enterprise integrating R&D, design, production and service of waterproof machine manufacturing.Our company has 300 employees and A building area of 70000 square meters. We own land and 3 factories.
1. What payment methods do you accept?
A: We accept T/T, Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q: What about the delivery time?
A: Usually within 30 days after receiving your payment or based on order quantity and production schedule .But if you need iturgently, it can be completed within 30 days after receiving your payment.
Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
