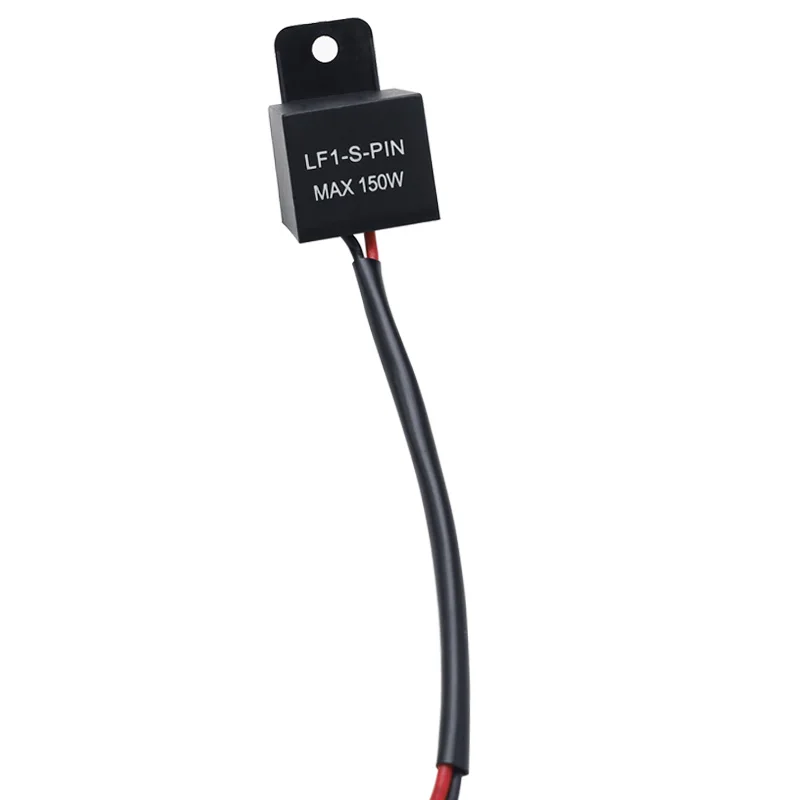

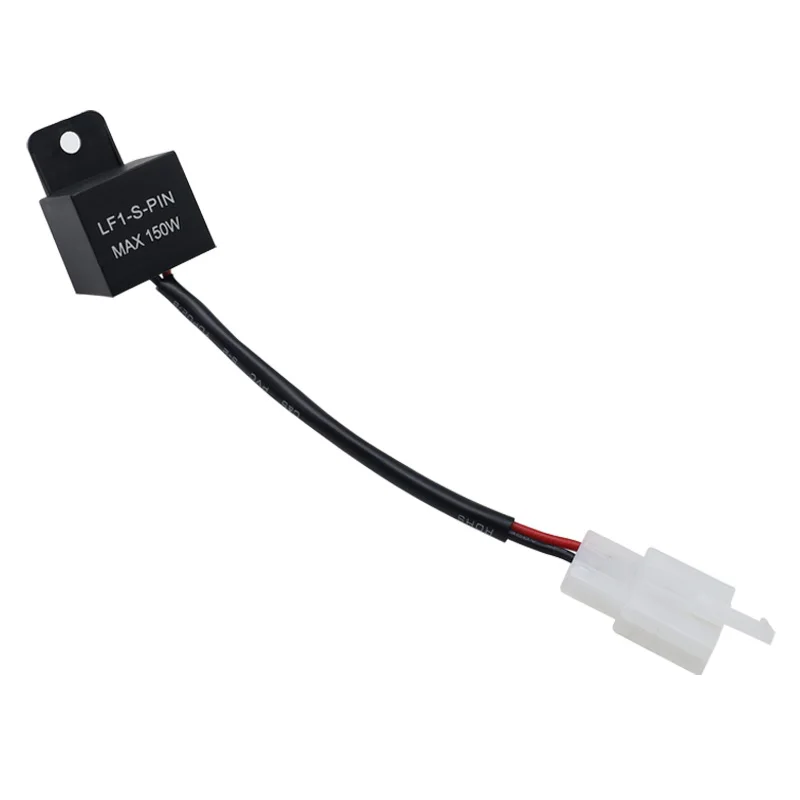

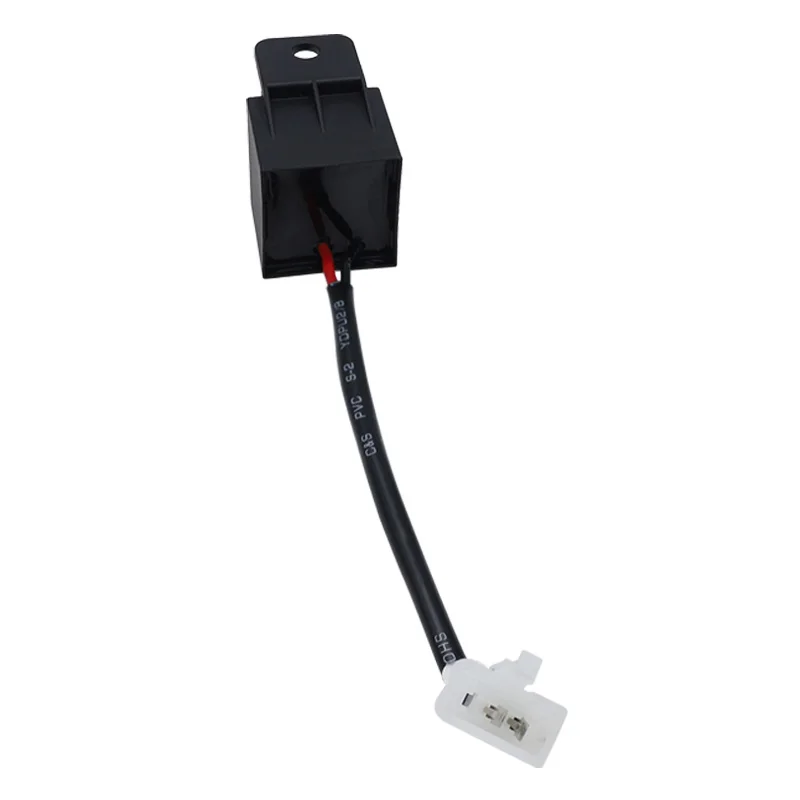

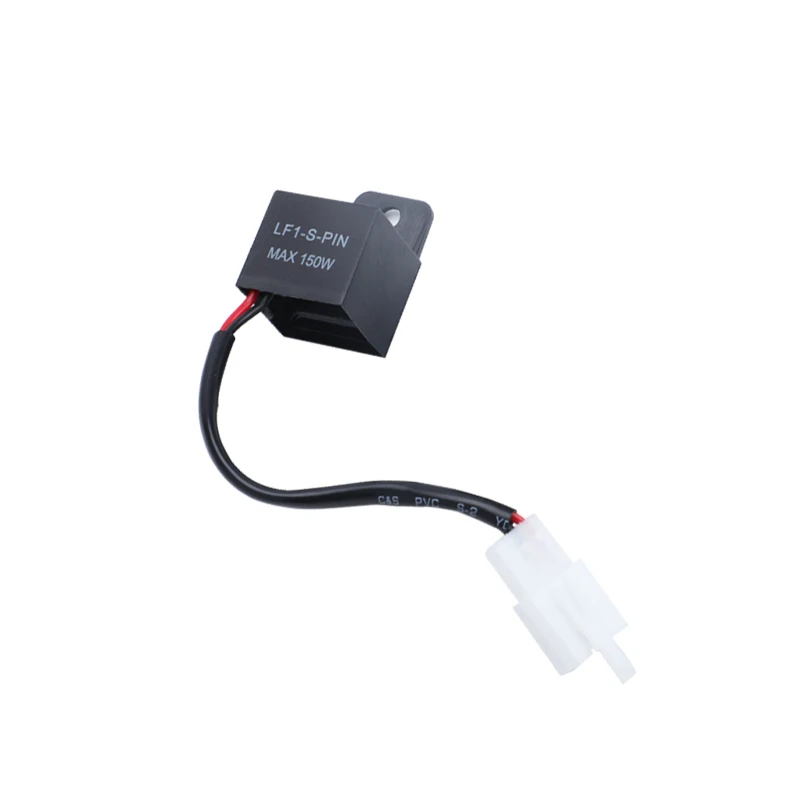

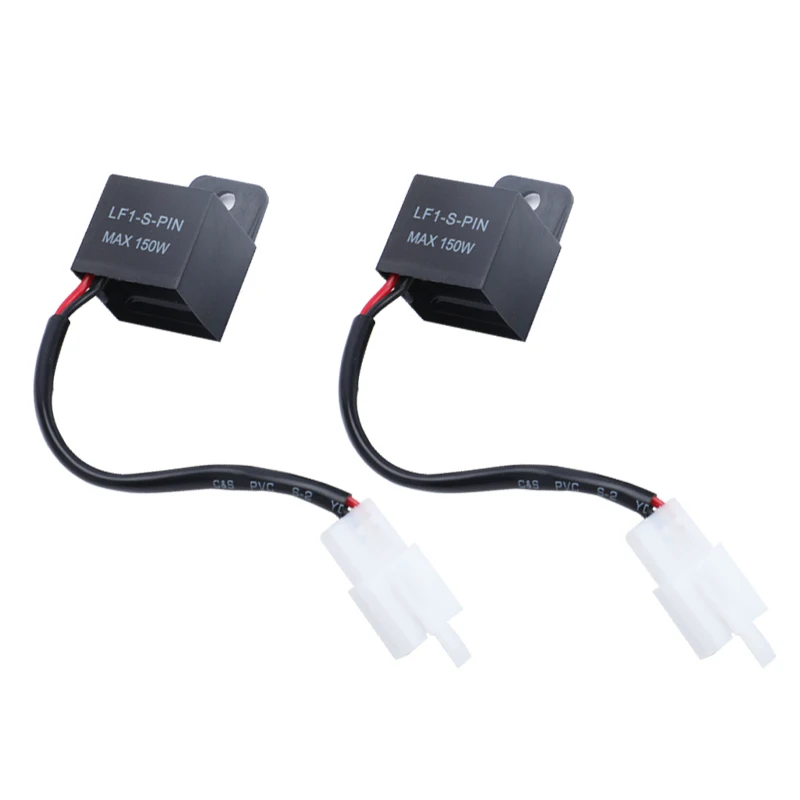

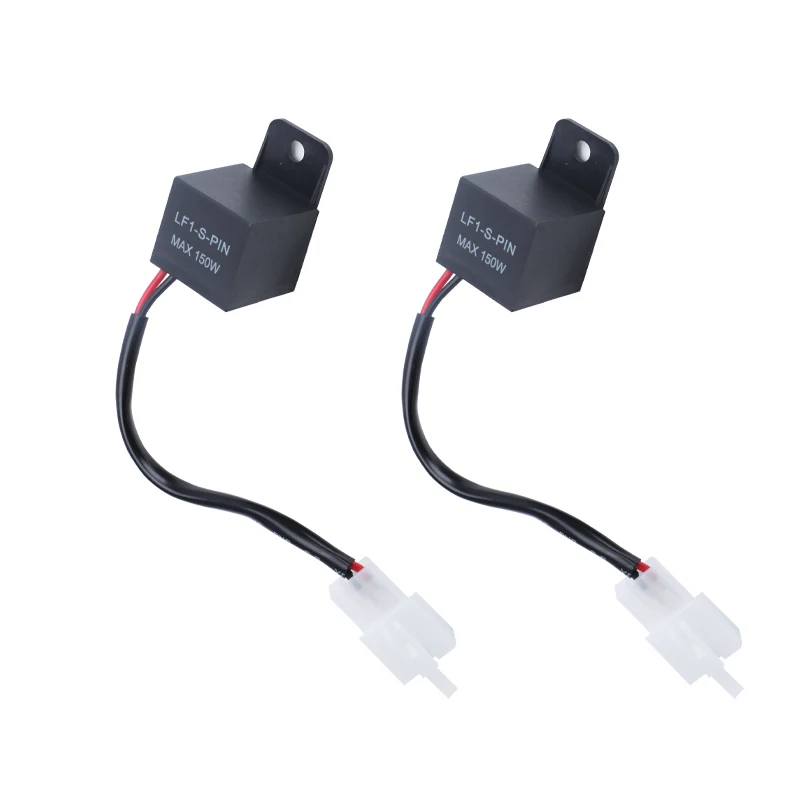

Светодиодная вспышка для мотоцикла 12 В 150 Вт 2-контактное реле
- Категория: Auto Relays >>>
- Поставщик: Yueqing,Haokang,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1.87 $* | 1.53 $* |
| Jul-15-2025 | 1.98 $* | 1.10 $* |
| Jun-15-2025 | 1.74 $* | 1.80 $* |
| May-15-2025 | 1.60 $* | 1.42 $* |
| Apr-15-2025 | 1.57 $* | 1.33 $* |
| Mar-15-2025 | 1.15 $* | 1.65 $* |
| Feb-15-2025 | 1.89 $* | 1.73 $* |
| Jan-15-2025 | 1.85 $* | 1.92 $* |
Характеристики
Product Name | Automobile flash |
Product brand | HAOKANG |
Product voltage | 12V LF1-S-PIN |
Operating voltage | 11V-15V |
Switching load | 0.1w-0.02A 150W-20A |
Flash frequency | 60-120 beats per minute |
Duty cycle | 30%-70% |
Contact resistance | ≤50mΩ |
Insulation resistance | ≥1,00MΩ |
Ambient temperature | -40℃~+85℃ |
Installation form | Quick connect type |
service life | 4000 hours (continuous) |
Dielectric Strength | 500VAC between open contacts |
Product characteristics | Flicker lamp frequency with temperature and voltage compensation ★ The load current of LED lamp is 0.02A. When the turn signal is halogen tungsten lamp, it can also directly replace the electronic flasher ★ Relay output current drive ability is good, low saturation current ★EMI magnetization coefficient is low ★ When working, it will make dripping prompt sound ★ Standard foot position, easy to use and replace. Main parameters check voltage: DC10V~15V load current: 0.02-20A Ambient temperature: -40~+80℃ scintillation frequency: standard 85c/m±1 |
After the LED turn signal is modified, there will be no flashing or fast flashing (stroboscopic) phenomenon: | The reason is that some of the original relay design has a warning of lack of light (burning light), which is to determine the flash frequency according to the load situation. If there is an anomaly, it will appear as fast flashing or no flashing. The traditional turn signal is 21W (motorcycle is 10W), and the LED turn signal is only about 2W, which is usually used to let the traditional flasher judge that there is a turn signal burned out. This is not a quality issue with LED turn signals or traditional flasher, just a mismatch between the two. Electronic flasher output is a fixed clock control flash frequency, whether using conventional or LED turn signal its flash frequency will not change. |
