Характеристики

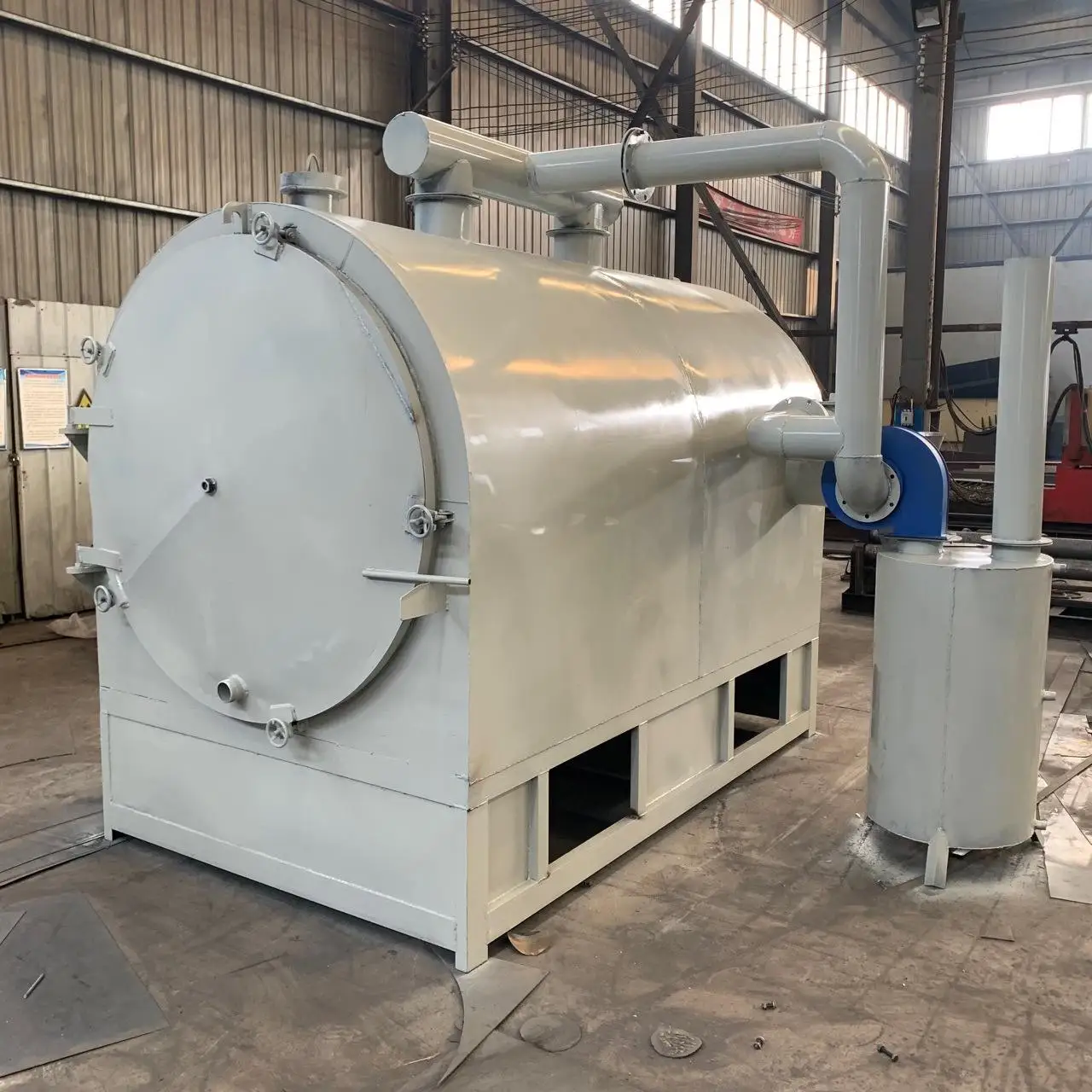

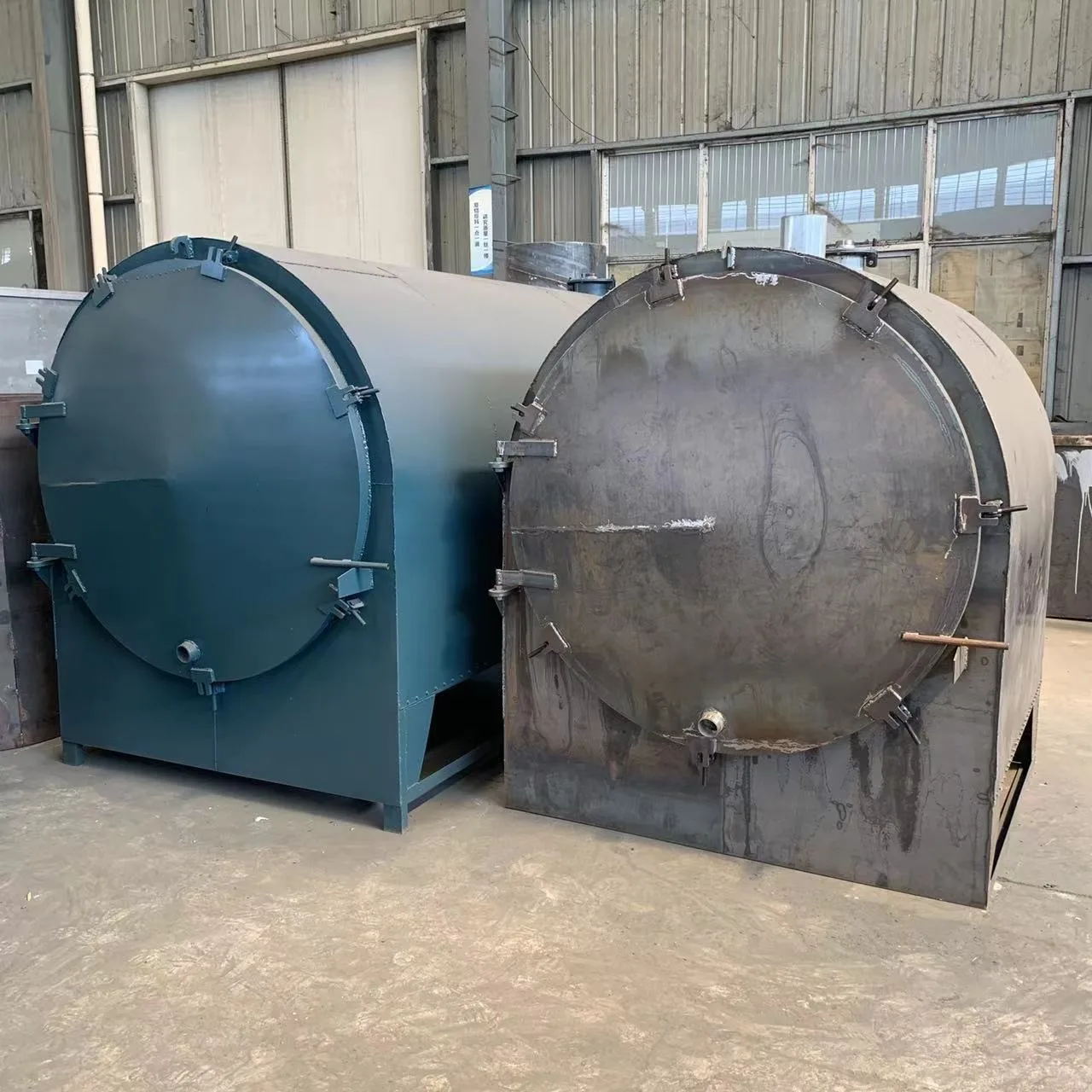

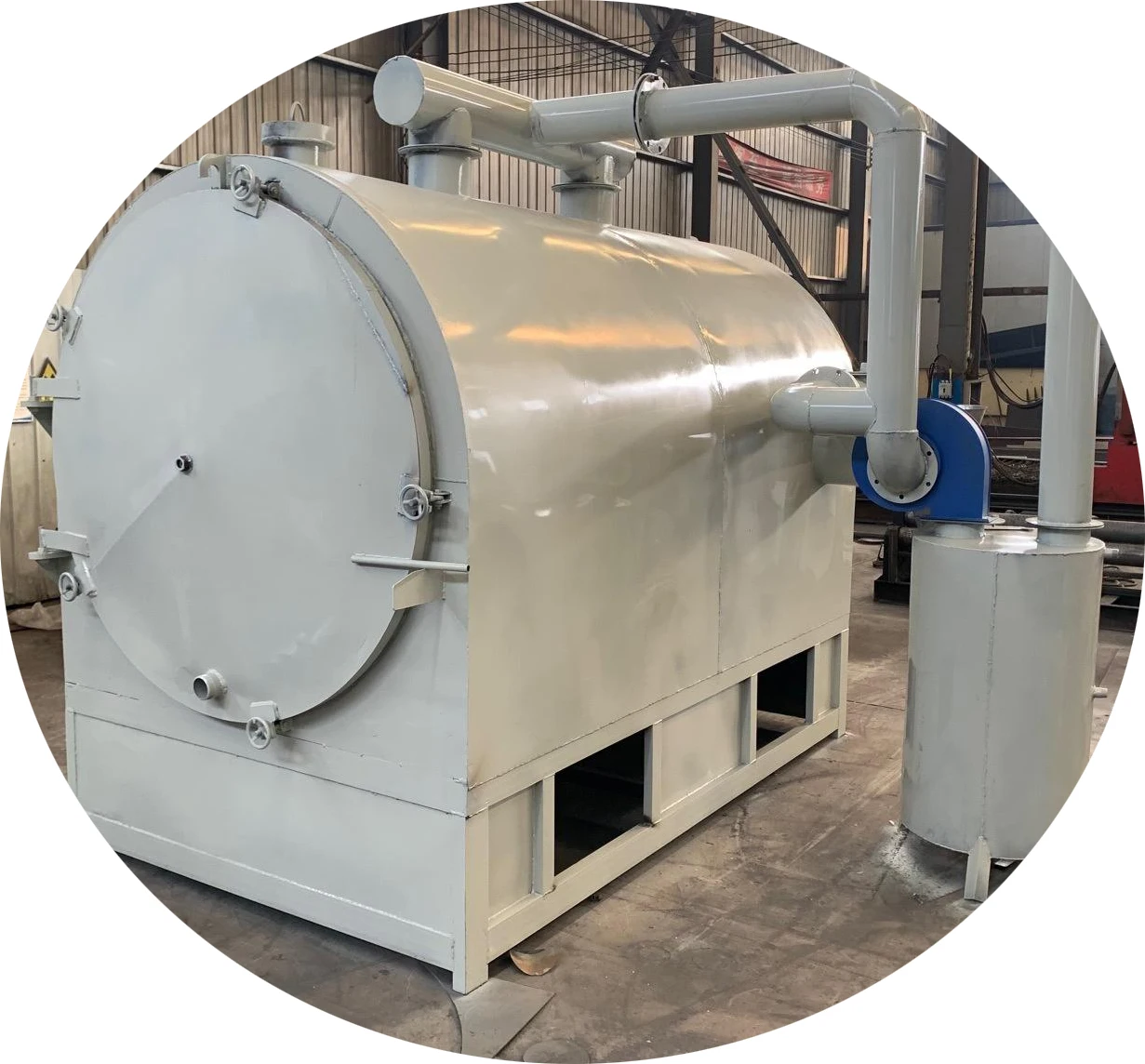

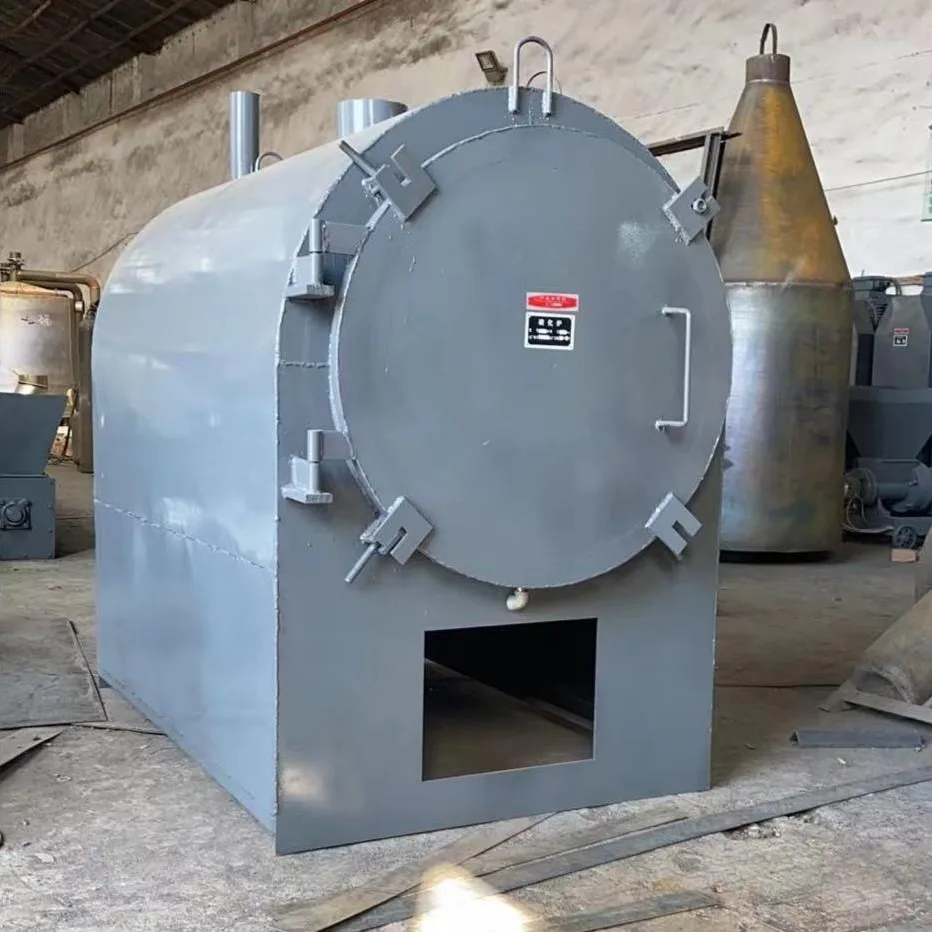

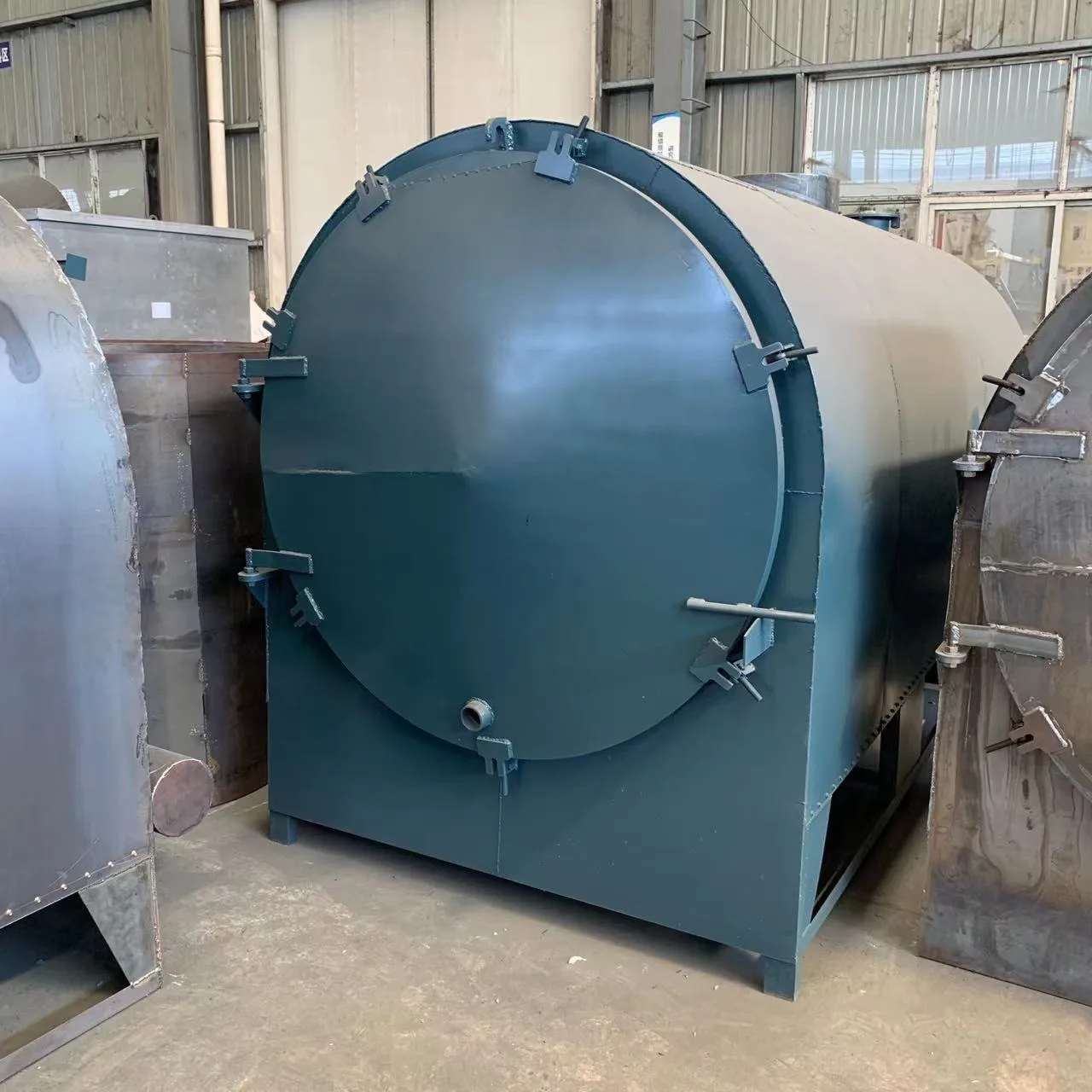

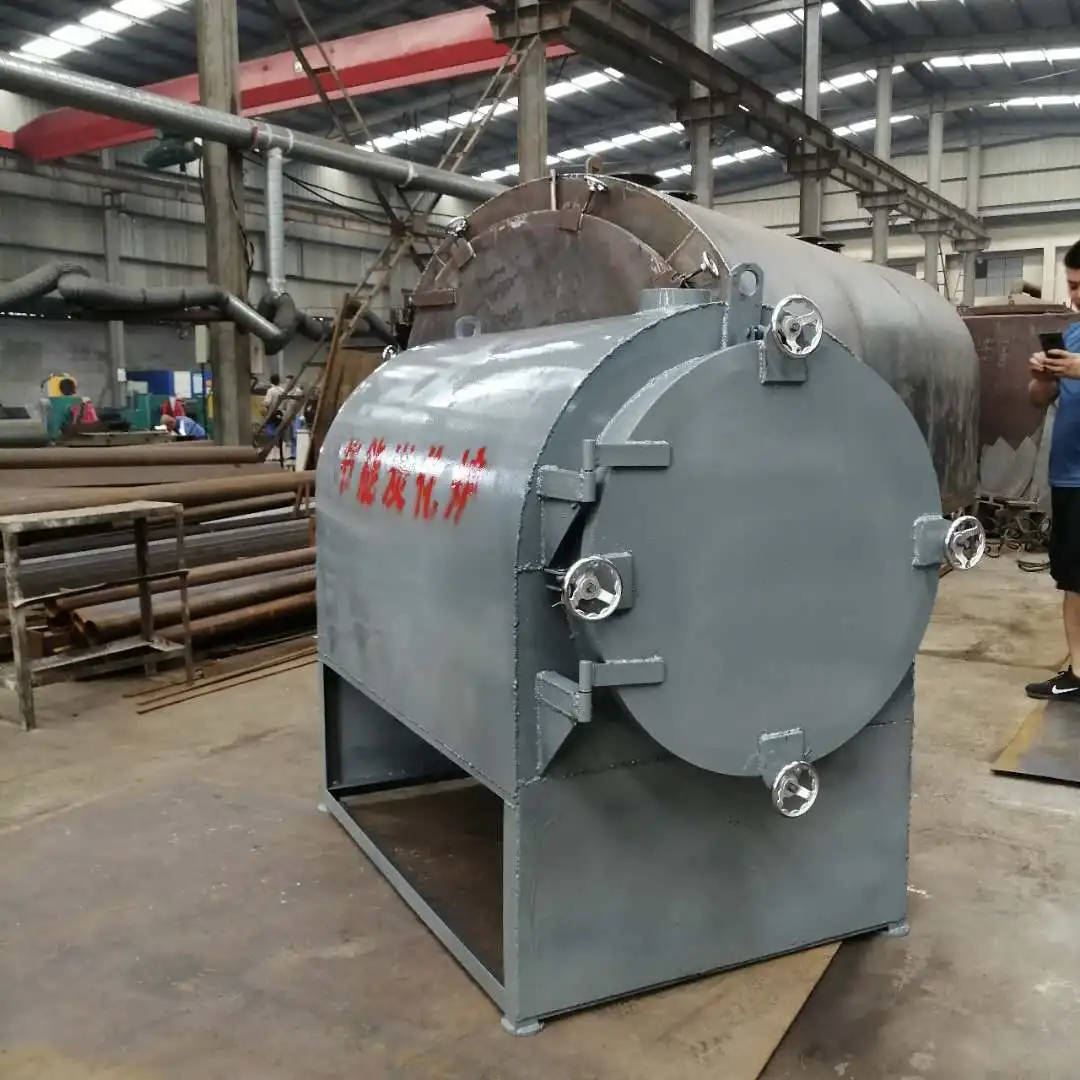

Carbonization furnace
The Huahong series horizontal charcoal furnace is a new kind of air flow type carbonization stove, which can also be called charcoal retort kiln, charcoal making machine, charcoal stove, biochar machine, charcoal maker. It is used to make biochar charcoal from wood, bamboo, coconut shell and all kinds of biomass.
Raw materials
Apply for many kinds of biomass raw materials, such as wood, wood log, tree branch, wood stick, wood waste, wood briquette, coconut shell, bamboo, olive husk, palm kernel shell, cashew nut shell, etc.
Finished charcoal
This charcoal making machine is easy to operate, safety, environmental protection and high production efficiency. It is the main ideal equipment of the charcoal production line.
Parameters:
Model | Inner Size | Capacity | Dimension | Weight |
HH-1 | 0.5m*1.2m | 100kg/batch | 1.8m*0.8m*1.5m | 300kg |
HH-2 | 1m*1.5m | 200kg/batch | 2.1m*1.3m*1.7m | 500kg |
HH-3 | 1.5m*1.5m | 500kg/batch | 2.1m*1.8m*2.3m | 1200kg |
HH-4 | 1.5m*3m | 1000kg/batch | 3.5m*1.8m*2.4m | 2500kg |
HH-5 | 1.5m*4.5m | 2000kg/batch | 5.2m*1.9m*2.4m | 3500kg |
HH-6 | 1.9m*4.5m | 3000kg/batch | 5.2m*3.1m*2.4m | 5000kg |
The time of carbonization is determined by the size of the charcoal kiln | ||||
Other sizes can be customized according to your requirements. | ||||
Features:
1. Three layers structure of the furnace body. The inner layer is high heat transfer and wear-resistance steel for increasing the carbonizing temperature. The middle layer is the asbestos for insulation. The outer layer is painted steel.
2. Various heating methods. The heating source can be firewood, coal, liquefied gas, burner, electric, etc.
3. The door of the furnace is sealed with graphite packing. This can prevent the air from entering the furnace and increase the charcoal yield.
4. Green and energy saving. The purifier tank can clean the smoke generated in the carbonizing. The cleaned gas enters the burning chamber through the pipes and then is ignited to heating the furnace. In this process, no harmful gas is emitted and reduces the consumption of wood, coal, gas, electric, etc for heating.
5. Guide rail and loading basket. They are uniquely equipped for the horizontal carbonizing machine. Workers can load the wood or briquettes into the steel basket and then push it into the carbonizing chamber. This design saves the labor cost a lot and makes the operation easier.
Charcoal briquette making line:
How to make charcoal from sawdust?
1. Wood crusher: A crusher will help you to reduce the size of your raw material to less than 5 mm.
2. Dryer: For small capacity drying, you can choose the air flow dryer with small investment. If your capacity is bigger, a rotary dryer will be a better choice.
3. Wood briquette machine: Press raw material into wood briquettes.
4. Charcoal furnace: After carbonization, wood sawdust briquettes become smokeless charcoal.
5. Other accessories: Conveyor, material distributor, etc.
In total,there are two design for charcoal making line:
One:If your raw material is biomass wood sawdust, there are several steps to make briquettes:
1. The frist step is crush biomass wood sawdust become small size, less than 3mm.
2. The second step is dry raw biomass wood sawdust, in order to reduce the moisture less than 12%.
3. The third step is use press machine produce briquette.
4. The fourth step is carbonize briquette become charcoal.
Two: If your raw material is Toner, there are several steps to make briquettes:
1. Shredder machine:If your raw material is wood log, coconut shell they need cut into small pieces before drying.
2. Rotary dryer/Air flow dryer: if you raw material moisture higher 30%, before carbonizing it need to dry.
3. Continuous carbonization furnace: carbonizng the raw material into charcoal.
4. Charcoal crusher:crusher the charcoal into less than 5mm powder.(Choose configuration)
5. Charcoal and binder mixer: mixing charcoal powder and binder(we supply you formula).
6. Charcoal briquette machine:we supply all kinds of charcoal briquette machine.accordingto your require.
7. Charcoal briquette dryer:Drying the charcoal briquette and then can packing it directly.(Choose configuration)
Click the picture to view all the parameters and detailed introduction of the continuous carbonization production line.
1. Shredder machine:If your raw material is wood log, coconut shell they need cut into small pieces before drying.
2. Rotary dryer/Air flow dryer: if you raw material moisture higher 30%, before carbonizing it need to dry.
3. Continuous carbonization furnace: carbonizng the raw material into charcoal.
4. Charcoal crusher:crusher the charcoal into less than 5mm powder.(Choose configuration)
5. Charcoal and binder mixer: mixing charcoal powder and binder(we supply you formula).
6. Charcoal briquette machine:we supply all kinds of charcoal briquette machine.accordingto your require.
7. Charcoal briquette dryer:Drying the charcoal briquette and then can packing it directly.(Choose configuration)
Click the picture to view all the parameters and detailed introduction of the continuous carbonization production line.
FAQ:
1.What is the main material of this machine ?
It used to carbonize wood branches, wood logs, bamboo, coconut shell blocks, biomass rods and scrap pieces in furniture factories,etc.
2.What is the finished product?
The finished product can be the original wood charcoal, coconut shell charcoal, bamboo charcoal and biomass briquettes charcoal etc.
3.The application area of the finished product?
It is generally use for home heating, barbecue, cooking, activated carbon factory reprocessing, etc.
4.What is the output per day of the horizontal airflow carbonizing furnace?
We have a variety of models to meet the needs of different customers.We have a capacity of 3-15 cubic meters, and the output ranges from 1 ton to 5 tons per day.
5.What are the main features of this carbonization furnace?
The carbonization stove is a new designed machine, It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%. And the operation is very convenient, good safety, high production
efficiency, can save a lot of energy, good environmental protection performance.
It used to carbonize wood branches, wood logs, bamboo, coconut shell blocks, biomass rods and scrap pieces in furniture factories,etc.
2.What is the finished product?
The finished product can be the original wood charcoal, coconut shell charcoal, bamboo charcoal and biomass briquettes charcoal etc.
3.The application area of the finished product?
It is generally use for home heating, barbecue, cooking, activated carbon factory reprocessing, etc.
4.What is the output per day of the horizontal airflow carbonizing furnace?
We have a variety of models to meet the needs of different customers.We have a capacity of 3-15 cubic meters, and the output ranges from 1 ton to 5 tons per day.
5.What are the main features of this carbonization furnace?
The carbonization stove is a new designed machine, It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%. And the operation is very convenient, good safety, high production
efficiency, can save a lot of energy, good environmental protection performance.
