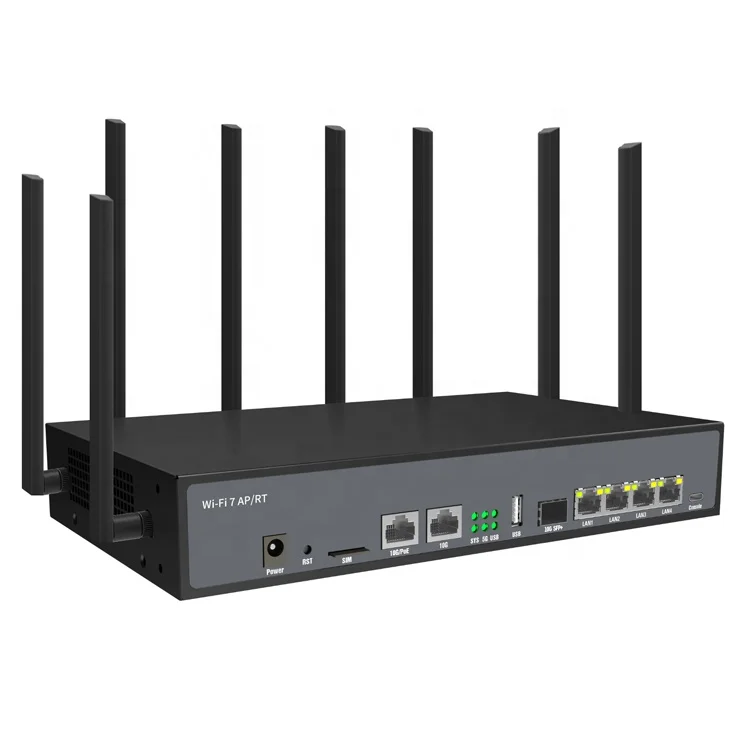

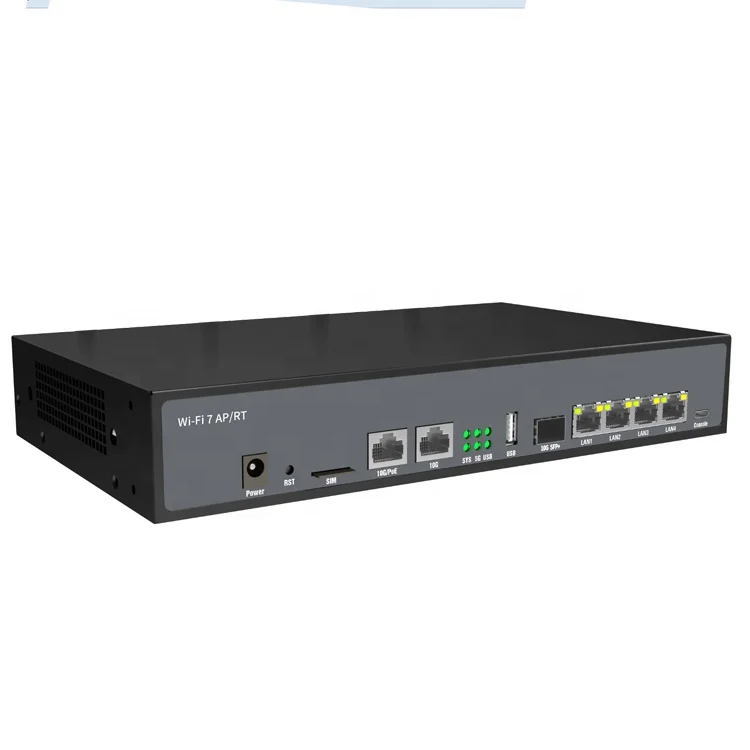

WiFi7 Tri-Band 2 4 GHz 5 и 6GHz 802.11be Wi-Fi 7 PoE AP Точка доступа или
- Категория: Routers >>>
- Поставщик: Shenzhen,Commtek,Intelligent,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1579.36 $* | 1611.35 $* |
| Jul-19-2025 | 1280.4 $* | 1306.18 $* |
| Jun-19-2025 | 1554.48 $* | 1585.9 $* |
| May-19-2025 | 1541.95 $* | 1572.4 $* |
| Apr-19-2025 | 1231.12 $* | 1256.78 $* |
| Mar-19-2025 | 1516.11 $* | 1546.0 $* |
| Feb-19-2025 | 1504.17 $* | 1534.74 $* |
| Jan-19-2025 | 1492.25 $* | 1522.81 $* |
Характеристики
Product Description
Specification
Key Components | ||
Processor | Qualcomm Alder Quad A73 2.2GHz ( IPQ9570 or IPQ9574) | |
Wireless Chipset | Waikiki 2.4GHz band QCN6224 – 2.4GHz Waikiki 5GHz band QCN6274 – 5GHz Waikiki 6GHz band QCN6274 – 6GHz (EU or US) | |
2.5GE PHY | Qualcomm QCA8084 | |
10GE PHY | MARVELL AQR113C (10 GBE) RJ45 ×2 | |
SPI NOR Flash | 16MB | |
SPI NAND Flash | 256MB | |
DDR4 | 2GB (32-bit) | |
Hardware specifications | ||
Fixed port | 1×10/100/1000/2500/5000/10000M Base-TX MDI/MDIX RJ-45 port with PoE PD 802.3 bt 1×10/100/1000/2500/5000/10000M Base-TX MDI/MDIXRJ-45 port 4x 2.5GE LAN 1×1000M/2500M/10000M SFP 1x USB 3.0 port 1x Console port 1x DC power jack | |
Wireless | Radio 1 : 802.11be, 4x4 2.4GHz @1376Mbps Radio 2 : 802.11be, 4x4 5GHz @11.5Gbps Radio 3 : 802.11be, 4x4 6GHz @11.5Gbps | |
Antenna | 8x External dual band antennas –2.4G/5G/6G | |
Operating frequencies | 802.11be/ax/ac/n/a : 5150GHz-5.850GHz 802.1111be/ax/b/g/n : 2.4GHz-2.483GHz 802.11be/ax/ac/n/a : EU: 5.945-6.425GHz US:6.115-7.125GHz | |
Supported standards | IEEE 802.11a/b/g/n/ac/ax/be IEEE 802.11d/e/h/i/j/k/r/u/v/w IEEE 802.11ba | |
Modulation mode | Modulation: 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM 802.11b: CCK(11 & 5.5 Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11n: PSK/CCK,DBPSK, DQPSK, OFDM 802.11ac: BPSK、QPSK、16-QAM、64-QAM、256-QAM 802.11ax: BPSK、QPSK、16-QAM、64-QAM、256-QAM、1024-QAM 802.11be：BPSK、QPSK、16-QAM、64-QAM、256-QAM、1024-QAM、4096-QAM | |
Maximum radio power | 2.4GHz: 20dBm 5GHz: 20dBm 6GHz: 20dBm (Transmit power is multi-chain combined power, no antenna gain isincluded. The actual transmit power depends on local laws and regulations) | |
Bandwidth | 20 or 40 MHz in 2.4 GHz 20, 40, 80, 160 or 320-80 MHz in 5 GHz and 6 GHz | |
Operating temperature/storage temperature | Operating Tem: -10ºC～50ºC Storage Tem: -40º C～75º C | |
Power Source | PoE PD 802.3 bt 60W Adapter 12V DC 3.5A | |
Power consumption | <45W | |
Dimensions(L×W×H excluding mounting accessories) | 260mm x 160mm x 45mm | |
Weight(excluding mounting accessories) | 1.8kg | |
Packing & Delivery
Neutral packaging
Company Profile
******
FAQ
1. who are we?.
Commtek is an ODM partner that specializes in wireless networking products and is experiencing rapid growth. With expertise in customized hardware design and engineering, Commtek has demonstrated a high level of proficiency in networking applications based on Qualcomm and MediaTek solutions.
Customers benefit from Commtek's ability to speed up time-to-market, provide innovative and cost-effective solutions, and enhance their success and competitiveness in a challenging market.
Our manufacturing facilities are located in Dongguan, China, and our R&D is based in Shenzhen. These strategic locations provide us with extensive access to high-quality components from reputable suppliers such as Skyworks and Qorvo.
2. What We Do?
Commtek specializes in providing complete wireless solutions, ranging from wireless modules to final systems, for customers seeking time-to-market solutions based on Qualcomm Atheros (QCA) or MediaTek solutions.
Our ODM/OEM services include hardware customization tailored to customers' specific requirements. No matter the volume of product orders, whether large or small, the type of business we engage in is very flexible, and we are committed to helping our clients achieve success.
3.what can you buy from us?
Wireless Access Point, Router, Wi-Fi Module, Gateway, Switch
4. why should you buy from us not from other suppliers?
Over 20+ Years networking solution design experience,23+ experienced engineers, Tier-one hardware ODM capability and fast development period, Driver level software support (SDK & Pre-load Openwrt),Professional intelligent manufacturing factory.
5. what services can we provide?
Commtek offers two main design and manufacturing services:
1：Customized design and manufacturing tailored to meet customers' unique design concepts and performance requirements. We provide a range of services that can help you save time and resources in developing and managing your concept into a successful product in the market, regardless of its size or stage of deployment.
2：Standard modules and SOC boards based on Qualcomm WiFi reference designs can be seamlessly integrated into customers' end products
Commtek is an ODM partner that specializes in wireless networking products and is experiencing rapid growth. With expertise in customized hardware design and engineering, Commtek has demonstrated a high level of proficiency in networking applications based on Qualcomm and MediaTek solutions.
Customers benefit from Commtek's ability to speed up time-to-market, provide innovative and cost-effective solutions, and enhance their success and competitiveness in a challenging market.
Our manufacturing facilities are located in Dongguan, China, and our R&D is based in Shenzhen. These strategic locations provide us with extensive access to high-quality components from reputable suppliers such as Skyworks and Qorvo.
2. What We Do?
Commtek specializes in providing complete wireless solutions, ranging from wireless modules to final systems, for customers seeking time-to-market solutions based on Qualcomm Atheros (QCA) or MediaTek solutions.
Our ODM/OEM services include hardware customization tailored to customers' specific requirements. No matter the volume of product orders, whether large or small, the type of business we engage in is very flexible, and we are committed to helping our clients achieve success.
3.what can you buy from us?
Wireless Access Point, Router, Wi-Fi Module, Gateway, Switch
4. why should you buy from us not from other suppliers?
Over 20+ Years networking solution design experience,23+ experienced engineers, Tier-one hardware ODM capability and fast development period, Driver level software support (SDK & Pre-load Openwrt),Professional intelligent manufacturing factory.
5. what services can we provide?
Commtek offers two main design and manufacturing services:
1：Customized design and manufacturing tailored to meet customers' unique design concepts and performance requirements. We provide a range of services that can help you save time and resources in developing and managing your concept into a successful product in the market, regardless of its size or stage of deployment.
2：Standard modules and SOC boards based on Qualcomm WiFi reference designs can be seamlessly integrated into customers' end products
