Характеристики
Product Overview

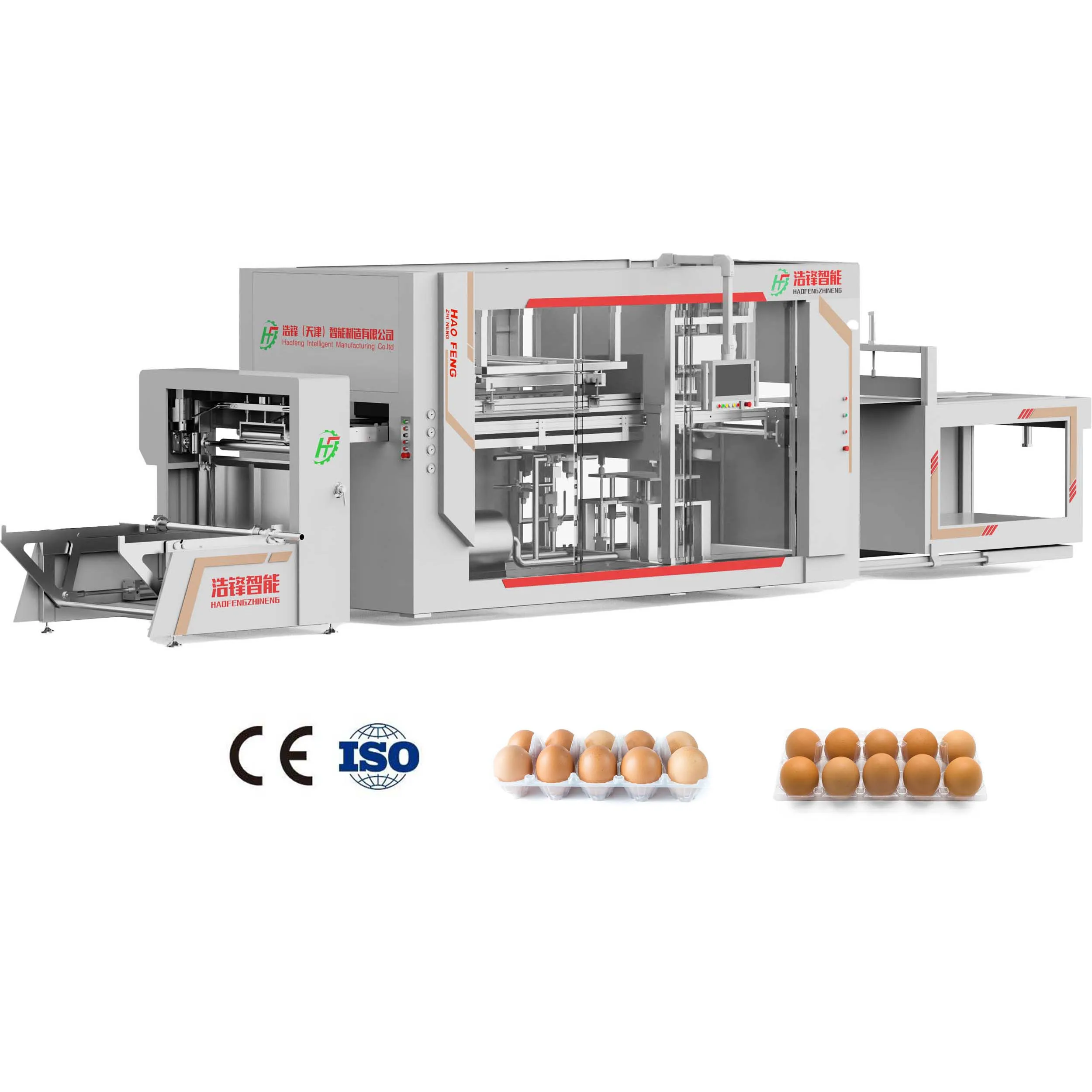

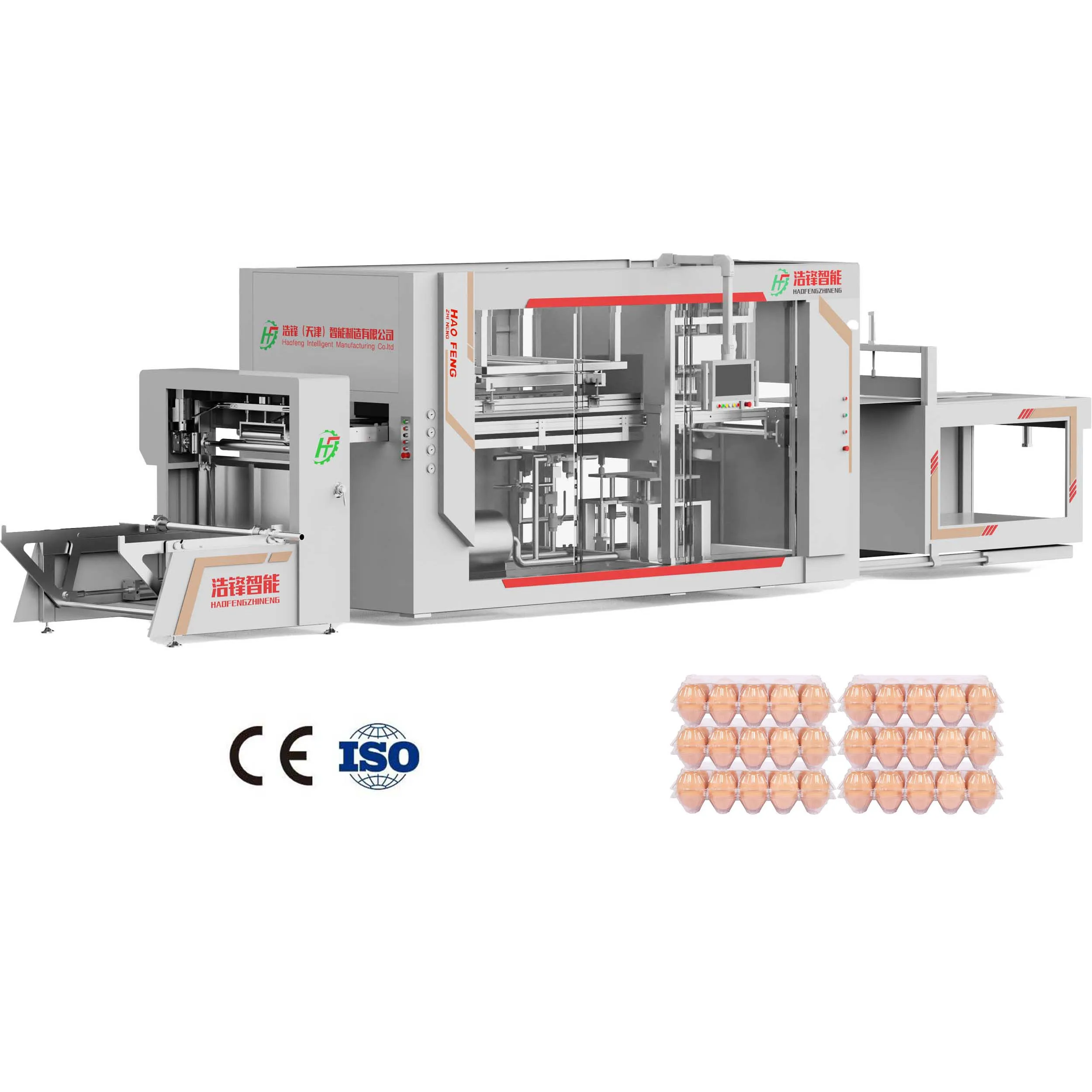

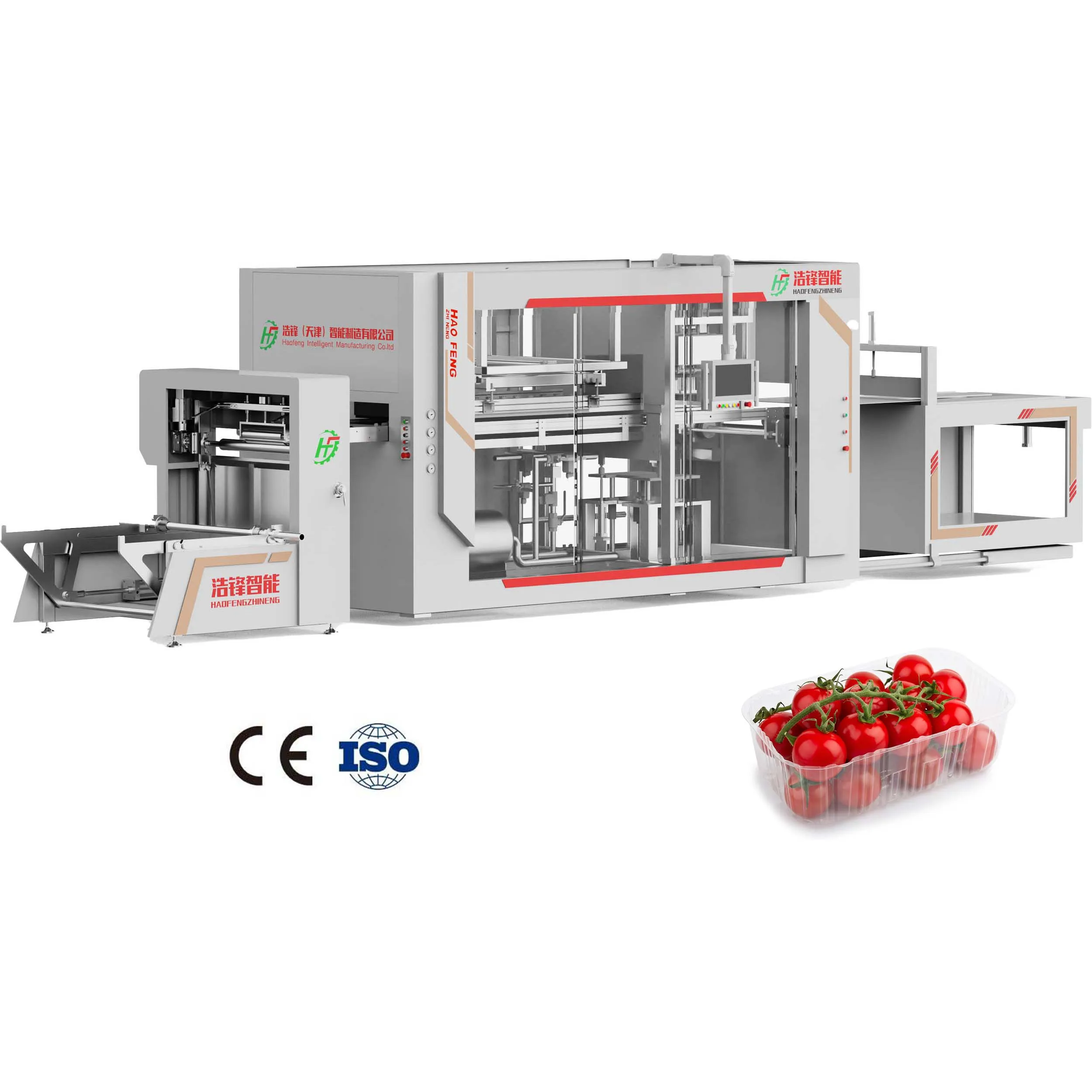

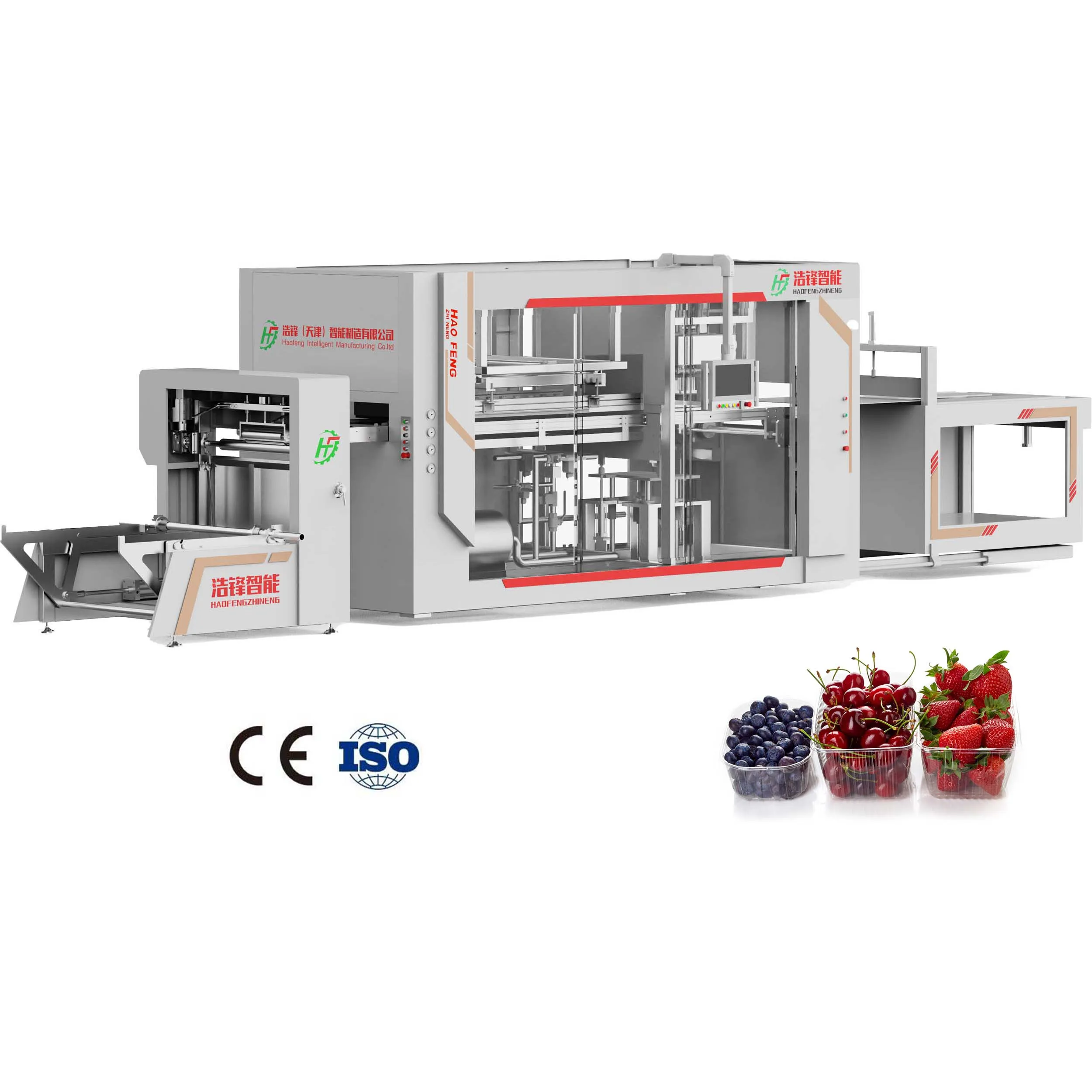

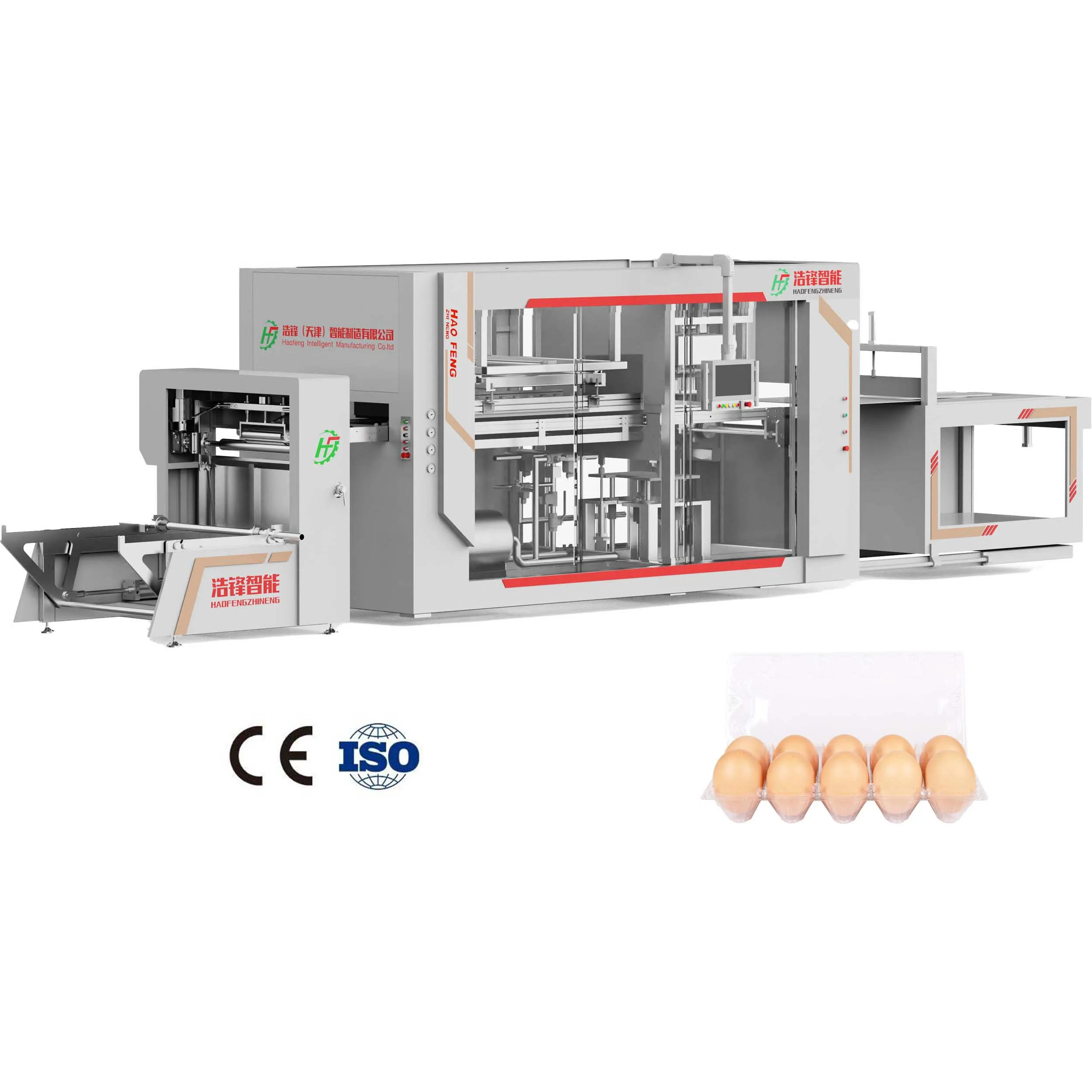

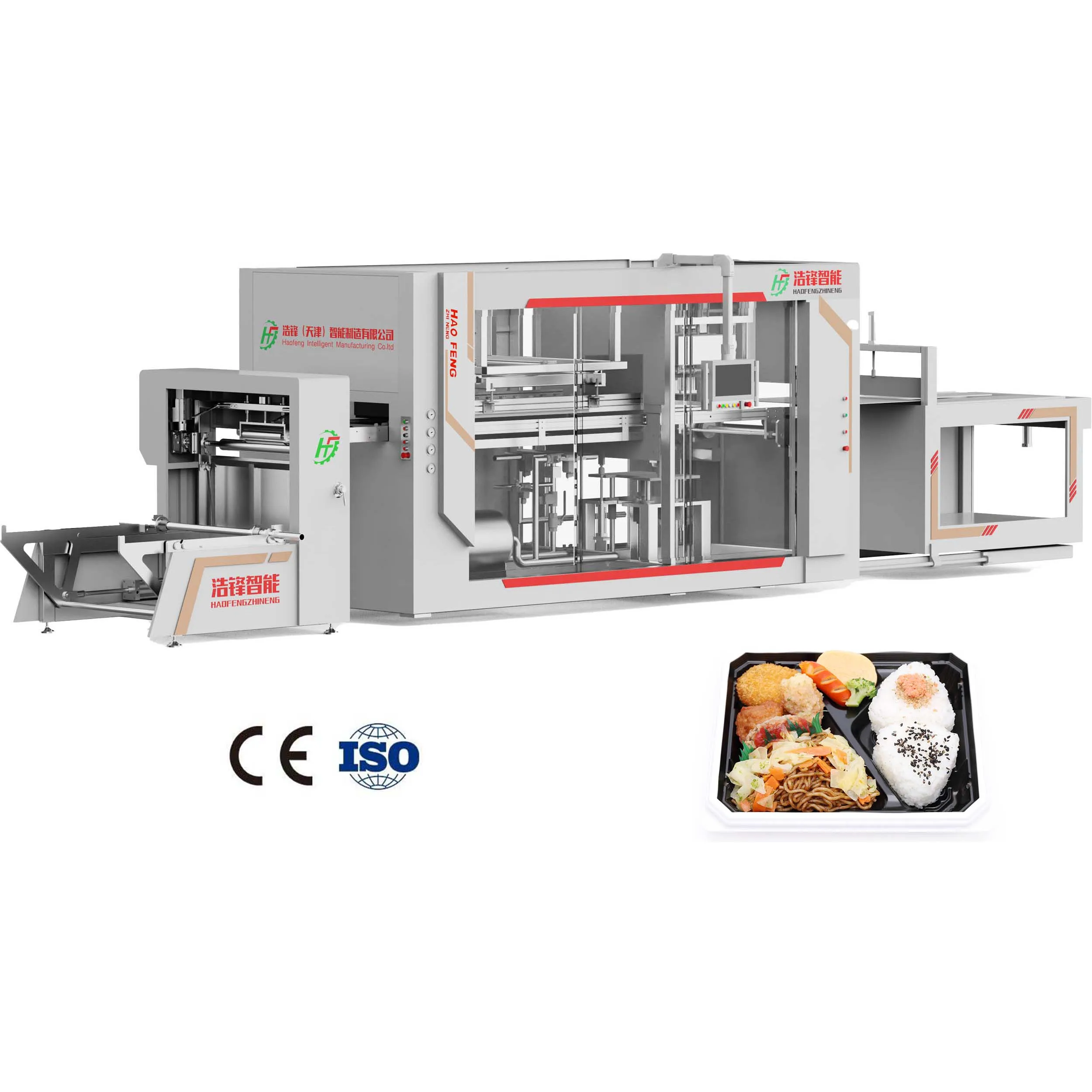

Automatic customized 750*1220 big forming area plastic thermoforming thermo vacuum forming machine
Device Specification | ||||||
Sheet width | 500~810 mm | Max.Forming Height(mm) | 130 | |||
Sheet thickness | 0.12~2.0 mm | Forming Width (mm) | 750 | |||
Forming Length | 1220 mm | Production Speed(Cycles/min) | 40 | |||
Air Pressure(MPa) | 0.7 | Type of plastic | PP, PVC, PET, PS, Hips | |||
Max.cutting force | 800KN | Heating Power (kW) | 72 | |||
Maximum forming area | 800×720 mm | Weight | 6T | |||
Voltage | 380V/50HZ 3Ph | |||||
High speed, low noise, high reliability, and convenience to maintain Max. Production speed up to 50 cycles per minute, definitely can be named as high speed thermoforming machine. | ||||||
■The door with toughened glass and aluminum, elegant appearance, easy to clean.
■The surface of platens with fine grinding, and the parallelism for platens with high precision is less than 0.03mm.
■Two movable platens (upper and lower)are adjustable in height, and it's suitable for any height of platen.
■The Plate with assist installing device can make installing and changing mold more easy to reduce machine downtime.
■ Automatic mold locking device, faster tool change, easy to installed.
■The aluminum alloy caterpillar track, the stress strength of chain track is huge, not easily to deformation.
■The chain with roller guide, is running smoothly and noiseless.
■ Heating brick is made of imported heating wire and three-year warranty.
■Cutting keeps pace with forming,precise positioning, precise Cutting.
■Smooth operation, less noise.
■The surface of platens with fine grinding, and the parallelism for platens with high precision is less than 0.03mm.
■Two movable platens (upper and lower)are adjustable in height, and it's suitable for any height of platen.
■The Plate with assist installing device can make installing and changing mold more easy to reduce machine downtime.
■ Automatic mold locking device, faster tool change, easy to installed.
■The aluminum alloy caterpillar track, the stress strength of chain track is huge, not easily to deformation.
■The chain with roller guide, is running smoothly and noiseless.
■ Heating brick is made of imported heating wire and three-year warranty.
■Cutting keeps pace with forming,precise positioning, precise Cutting.
■Smooth operation, less noise.
Sheet conveying
Controlled by servo motor,
with repeated positioning, high precision
and stable operation.
Heating system
Two heating banks (top and bottom) assembled on a single frame, sliding on prismatic guides to eliminate vibrations.Heater withCeramic heating elements and individual controllers for precise setting.
Forming station
Two movable platens (upper and lower) driven by three tie-bars for positive and negative pressure forming.Highly dynamic air valves adjusted independently achieving a higher forming speed. Quick mold locking and automatic centering.
Cutting press
Two movable platens (upper and lower) driven by four tie-bar. Cutting platens with .minimal deflection to increase knife life and process stability. Automatic locking.
Stacking system
Downward stacking,low investment and high speed.No stacking frame. Fast tool change to reduce machine downtime. Precise linear guides to prevent vibration.Ergonomic collecting with an integrated conveyor belt.
EVERY TYPES OF BLISTER PACKING
Disposable Blister plastic container has high tolerances. According to the shape and structure of the article and the weight of the tray package suitable for bearing strength, the thickness of the material used is also different, depending on the packaging needs of the packaged item.
The blister packing is often used in the food industry. electronics industry, toy industry, stationery industry, technology products industry, cosmetics industry, health care productsindustry and so on.
