Настенный Кондиционер Настенный Сплит Кондиционер
US $500.00-$520.00
9000btu 12000btu разделенный Tpye настенный гибридный солнечный кондиционер с солнечной панелью и
- Категория: Air Conditioners >>>
- Поставщик: Shenzhen,Shineyo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1060.50 $* | 1081.42 $* |
| Jul-19-2025 | 860.9 $* | 877.84 $* |
| Jun-19-2025 | 1044.48 $* | 1065.97 $* |
| May-19-2025 | 1035.60 $* | 1056.64 $* |
| Apr-19-2025 | 827.1 $* | 844.35 $* |
| Mar-19-2025 | 1019.37 $* | 1039.29 $* |
| Feb-19-2025 | 1010.62 $* | 1030.8 $* |
| Jan-19-2025 | 1002.89 $* | 1022.46 $* |
Характеристики
9000btu 12000btu Split Tpye Wall Mounted Solar Air Conditioner Hybrid With Solar Panel Energy And Solar Power System
Specification
DEYE Hybrid ACDC Solar Air Conditioner Specification T3 | ||||||||||
Model | Unit | 12000btu | 18000btu | 24000btu | ||||||
DGWG2-ACDC-12K | DGWGV-ACDC-18K | DGWGV-ACDC-24K | ||||||||
Climate Type | Tropical | T3/T1 | ||||||||
Application area | m2 | 12-20 | 20-30 | 30-42 | ||||||
Power Supply | AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | |||||||
DC Power (PV in Series) | V | 80-380V | ||||||||
DC Power Current | A | |||||||||
Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series | ||||||
Rated Cooling | Capacity(T1) | W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) | |||||
Power input(T1) | BUT | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) | ||||||
Power input(T1) | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) | ||||||
Capacity(T3) | W | 2910 | 4290 | 5130 | ||||||
BTU | 9900 | 14700 | 17500 | |||||||
Power input(T3) | W | 1050 | 1630 | 1940 | ||||||
Rated Heating | Capacity | W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) | |||||
BTU | 14000(3000-15300) | 20800(4100-23000) | 26600(6100-31000) | |||||||
Power input | W | 1170(190-1700) | 1770(220-2500) | 1770(300-3500) | ||||||
T1 EER (W/W)/ (BTU/W) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 | ||||||
T3 EER (W/W)/ (BTU/W) | / | 2.75/9.45 | 2.65/9.00 | |||||||
COP (W/W)/ (BTU/W) | / | 3.50/11.95 | 3.45/11.75 | 3.45/11.75 | ||||||
Dehumidification capacity | L/h | 1.3 | 1.7 | 2.5 | ||||||
Compressor | Model | / | WHP04200 | WHP05600 | 5RD198 | |||||
Model | / | 2xRotary Inverter | ||||||||
Model | / | Highly | Panasonic | |||||||
Indoor fan motor | Model | / | BLDC-15W | BLDC-45W | ||||||
Speed(Turbo/Hi/Mi/Lo) | r/min | 1300/1200/1100/950 | 1050/950/850/750 | 1350/1250/1150/1000 | ||||||
Indoor air flow(Turbo/Hi/Mi/Lo) | m3/h | 540/485/435/350 | 540/485/435/350 | 1290/1180/1070/900 | ||||||
Indoor noise level (Turbo) | m3/h | ≤42.5 | ≤46 | ≤50 | ||||||
Indoor unit | Dimension(W×H×D) | mm | 840×205×295 | 1080×330×237 | ||||||
Packing (W×H×D) | mm | 920×290×360 | 1140×300×382 | |||||||
Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | |||||||
Outdoor fan motor | Model | / | BLDC-40W | BLDC-55W | BLDC-75W | |||||
Speed | r/min | 880 | 850 | |||||||
Outdoor air flow | m3/h | 2100 | 2200 | 3500 | ||||||
Outdoor noise level | dB(A) | ≤52 | ≤55 | ≤58 | ||||||
Outdoor unit | Dimension(W×H×D) | mm | 802×564×32 | 802×564×323 | 910×622×405 | |||||
Packing (W×H×D) | mm | 910×622×405 | 910×622×405 | 1006×755×418 | ||||||
Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 | ||||||
Refrigerant type | / | R410A | ||||||||
Max Design pressure | MPa | 4.3/1.5 | ||||||||
Refrigerant copper pipe | Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | ||||||
Max. refrigerant pipe length | m | 15 | 20 | 25 | ||||||
Max. difference in level | m | 8 | 10 | |||||||
Drain pipe size | mm | 16 | ||||||||
Refrigerant connction copper pipe length | m | 3 | 4 | |||||||
Connection wire length | m | 4 | 5 | |||||||
Electronic Expansion Valve | / | Yes | ||||||||
Loading QTY 40" Hq/ 20"GP | Sets | 200/85 | 160/75 | 115/50 | ||||||
Product Description
Company Album
Ningbo Deye Inverter Technology Co., Ltd is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions. Also, Deye offers the right device for each application: for all module types, for grid-connection and stand-alone grids as well hybrid inverter system, for small house systems and commercial systems in the Megawatt range. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-12kW, and microinverter 300W-2000W.
Detailed Images

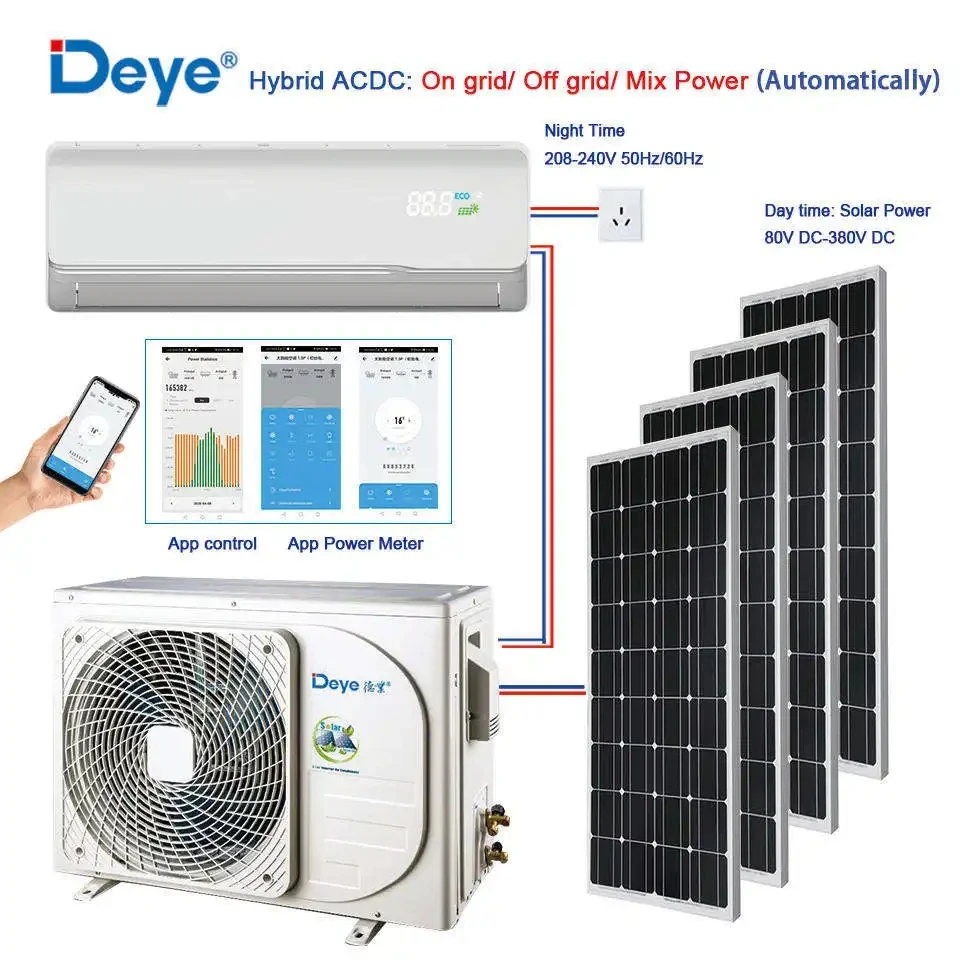

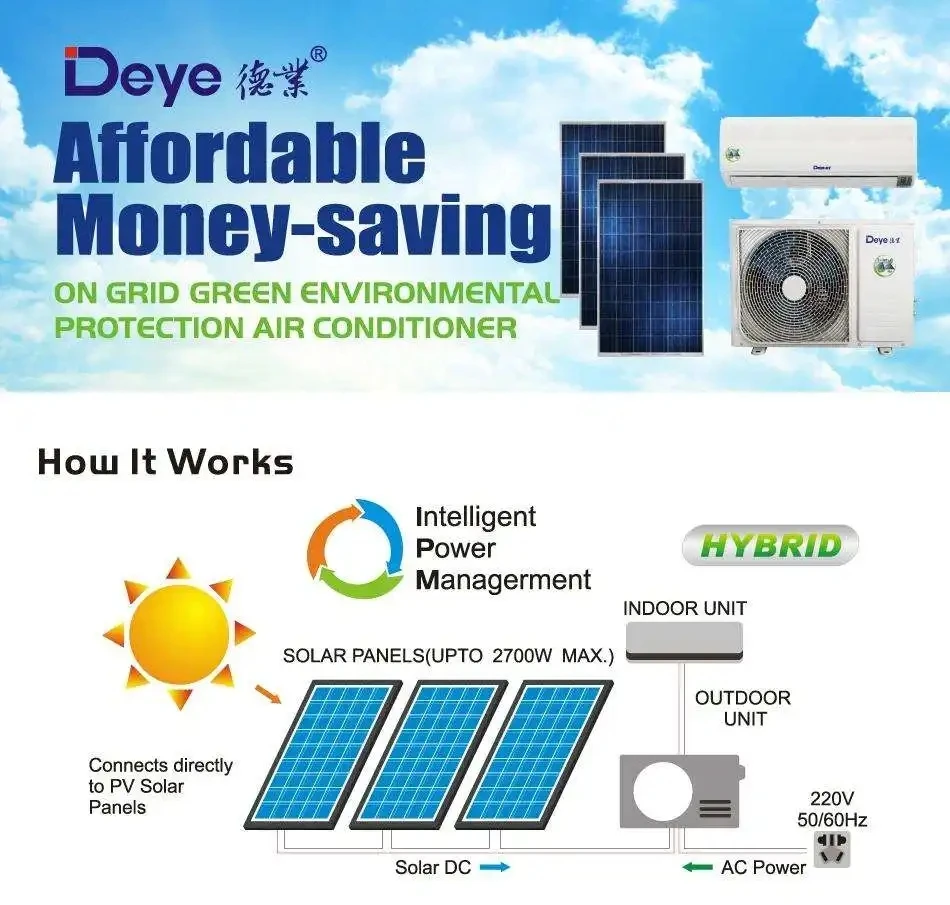

Hybrid ACDC solar air conditioner easy installation only add solar panel with plug and play MC4 connection. Without solar
technology can do installation with instructions.
technology can do installation with instructions.
1. MC4 connect to solar panel
2. Power cable connect to Grid
3. Indoor and outdoor unit connection

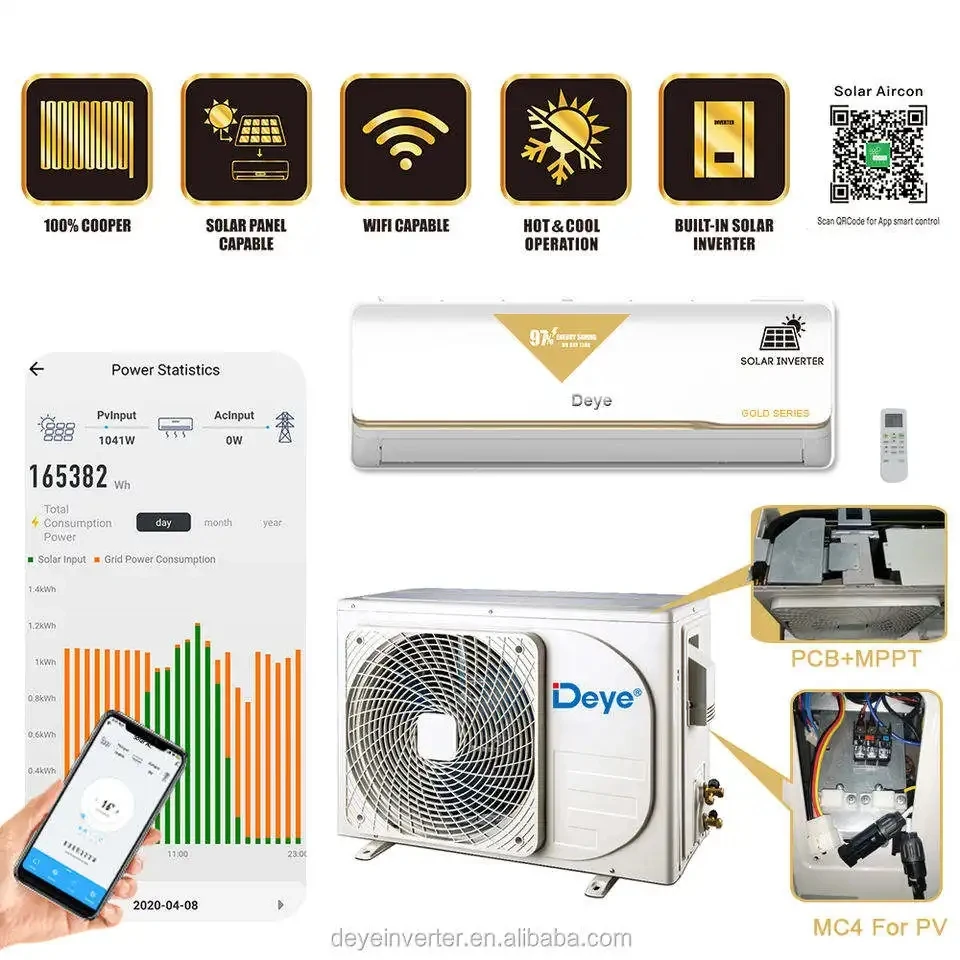

PCB controller integratedNo need solar inverter
No need battery
PCB and controller designed and produced by Deye.Hardware and soft ware both can be upgrade based on different market standard
3. Indoor and outdoor unit connection
PCB controller integratedNo need solar inverter
No need battery
PCB and controller designed and produced by Deye.Hardware and soft ware both can be upgrade based on different market standard

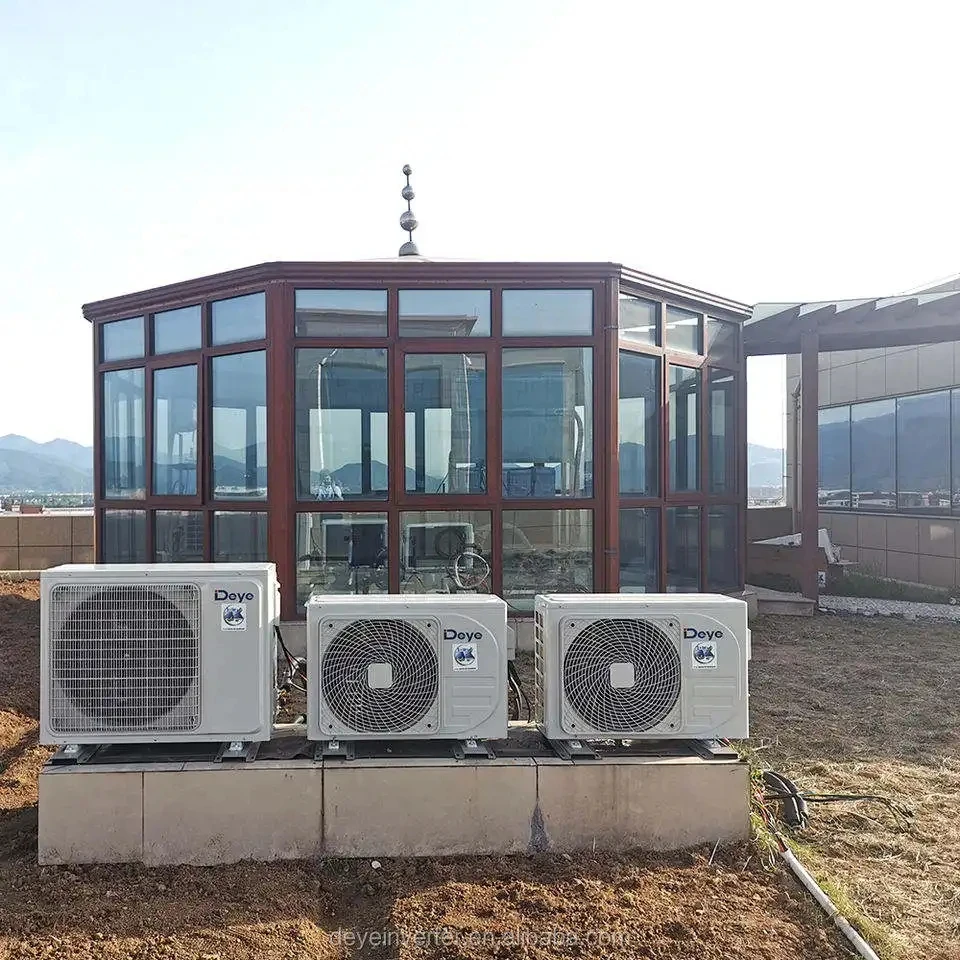

Projects cases
