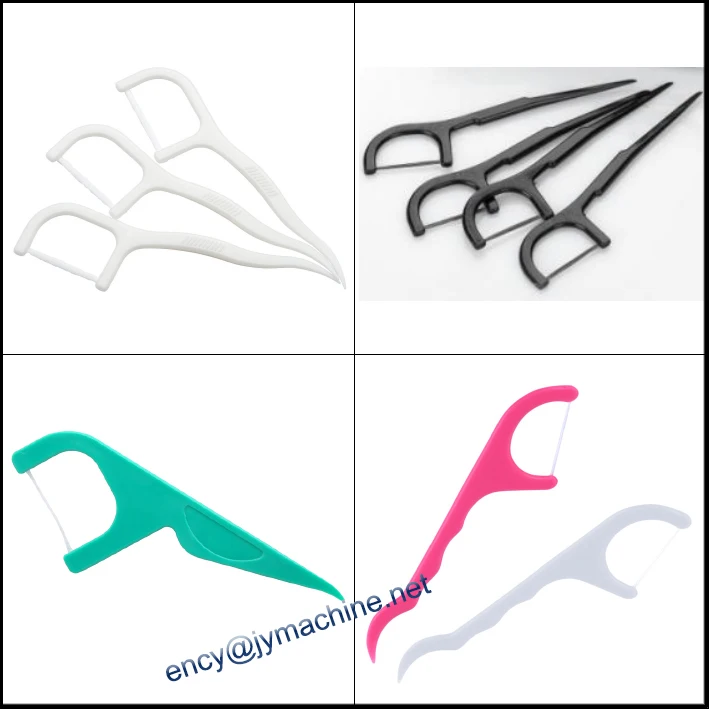

Зубочистка производство пластиковых зубных нитей полностью
- Категория: Toothpick Making Machines >>>
- Поставщик: Dongguan,Jieyang,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.1 $* | 0.18 $* |
| Aug-19-2025 | 0.49 $* | 0.23 $* |
| Jul-19-2025 | 0.84 $* | 0.57 $* |
| Jun-19-2025 | 0.11 $* | 0.91 $* |
| May-19-2025 | 0.96 $* | 0.15 $* |
| Apr-19-2025 | 0.57 $* | 0.63 $* |
| Mar-19-2025 | 0.60 $* | 0.40 $* |
| Feb-19-2025 | 0.12 $* | 0.98 $* |
| Jan-19-2025 | 0.19 $* | 0.31 $* |
Характеристики
MODEL | UNIT | JY-550ST | |||||
INJECTION UNIT | Screw Diameter | mm | Φ32 | Φ36 | Φ40 | ||
Theoretical Injection Volume | cm3 | 128.6 | 162.7 | 226 | |||
Injection Weight(PS) | g(oz) | 121.5(4.28) | 153.8(5.4) | 201(7.08） | |||
Max. Injection Pressure | Mpa(kgf/cm2) | 201(2050） | 158.85(1620） | 128.6(1210） | |||
Injection Rate | cm3/s | 70.7 | 89.5 | 110.5 | |||
Injection Speed | mm/s | 88 | |||||
Injection Speed | mm | 160 | |||||
Screw Speed Rotation | r.p.m | 0-200 | |||||
NO. of Temperature control | 4 | ||||||
Nozzle Out From Platens | mm | >45 | |||||
CLAMPING UNIT | Clamping Force | KN(tf) | 539(55) | ||||
Clamping Stroke | mm | 200 | |||||
Min. Mold Thickness | mm | 180/280 | |||||
Max. Opening | mm | 380/480 | |||||
(L*W)Distance Between Tie Bars | mm | 470*280 | |||||
(L*W)Max. Mould Size | mm | 500*450 | |||||
(L*W)Platen Size | mm | 640*450 | |||||
Ejector Distance | mm | 35 | |||||
Ejector Force | KN(tf) | 172(1.75) | |||||
OTHERS | Oil Tank Capacity | L | 175 | ||||
Electric Power | KW(HP) | 7.5(10) | |||||
Heater Power | KW | 5.3 | |||||
Machine Dimensions | m | 1.67*1.25*3.2 | |||||
Machine Weight | tf | 2.1 | |||||
FAQ
Q1: Are you a trading company or a manufactory?
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: Why choose JieYang Machinery Co., Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
Q4: What's your Delivery Time?
A4: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: Why choose JieYang Machinery Co., Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
Q4: What's your Delivery Time?
A4: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
