Нержавеющая сталь 4 способа спайдерный соединитель для стекла фитинг Стеклянная
- Категория: Spiders >>>
- Поставщик: Taizhou,Yashun,Stainless,Steel,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 32.61 $* | 33.36 $* |
| Jul-15-2025 | 26.52 $* | 27.89 $* |
| Jun-15-2025 | 31.70 $* | 32.57 $* |
| May-15-2025 | 31.14 $* | 32.74 $* |
| Apr-15-2025 | 25.82 $* | 26.9 $* |
| Mar-15-2025 | 31.55 $* | 32.2 $* |
| Feb-15-2025 | 30.94 $* | 31.27 $* |
| Jan-15-2025 | 30.31 $* | 31.15 $* |
Характеристики
Product Overview
stainless steel spider fittings
We are a factory that produce the stainless steel spider fittings.We have many types spiders and fin spiders for option.
In general, we sell very well for 100mm,120mm,150mm,160mm,170mm,200mm,210mm,220mm,250mm,300mm .We have a lot for stock for these spiders.We also have many types fin spiders. The sizes is 200mm,210mm,220mm,250mm. Welcome to send me your inquiry for the spider fittings !
PRODUCT SPECIFICATIONS
304 material composition
Material Chemical Analysis
(C):≤0.08% (Si):≤1.00% (Mn):≤2.00%
(P):≤0.045% (S):≤0.030% (Cr):17.0--18..5%
(Ni):≥8
(C):≤0.08% (Si):≤1.00% (Mn):≤2.00%
(P):≤0.045% (S):≤0.030% (Cr):17.0--18..5%
(Ni):≥8
316 material composition
Material Chemical Analysis
(C):≤0.08% (Si):≤1.00% (Mn):≤2.00%
(P):≤0.045% (S):≤0.030% (Cr):16.0--18.0%
(Ni):10.0-14.0% (S):2.00-3.00%
(C):≤0.08% (Si):≤1.00% (Mn):≤2.00%
(P):≤0.045% (S):≤0.030% (Cr):16.0--18.0%
(Ni):10.0-14.0% (S):2.00-3.00%
Composition | C | Si | Mn | P | S | Cr | Ni | Mo | ||||
304 | 0.078 | 0.85 | 1.12 | 0.023 | 0.028 | 18.07 | 8.02 | |||||
316 | 0.078 | 0.67 | 1.10 | 0.010 | 0.020 | 16.687 | 10.29 | 2.01 | ||||
Load | Axial Load | 12.8KN | Radial Load | 6.8KN | ||||||||
200mm size spider has six types: 4 legs,3 legs, 2 legs 180°，2 legs 90°。1 leg short and 1 leg long .Please check the following photos:

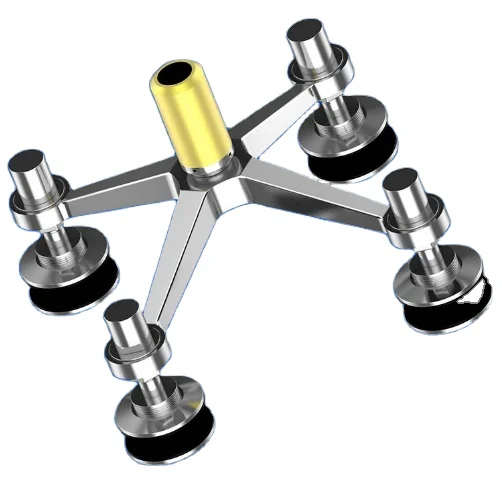

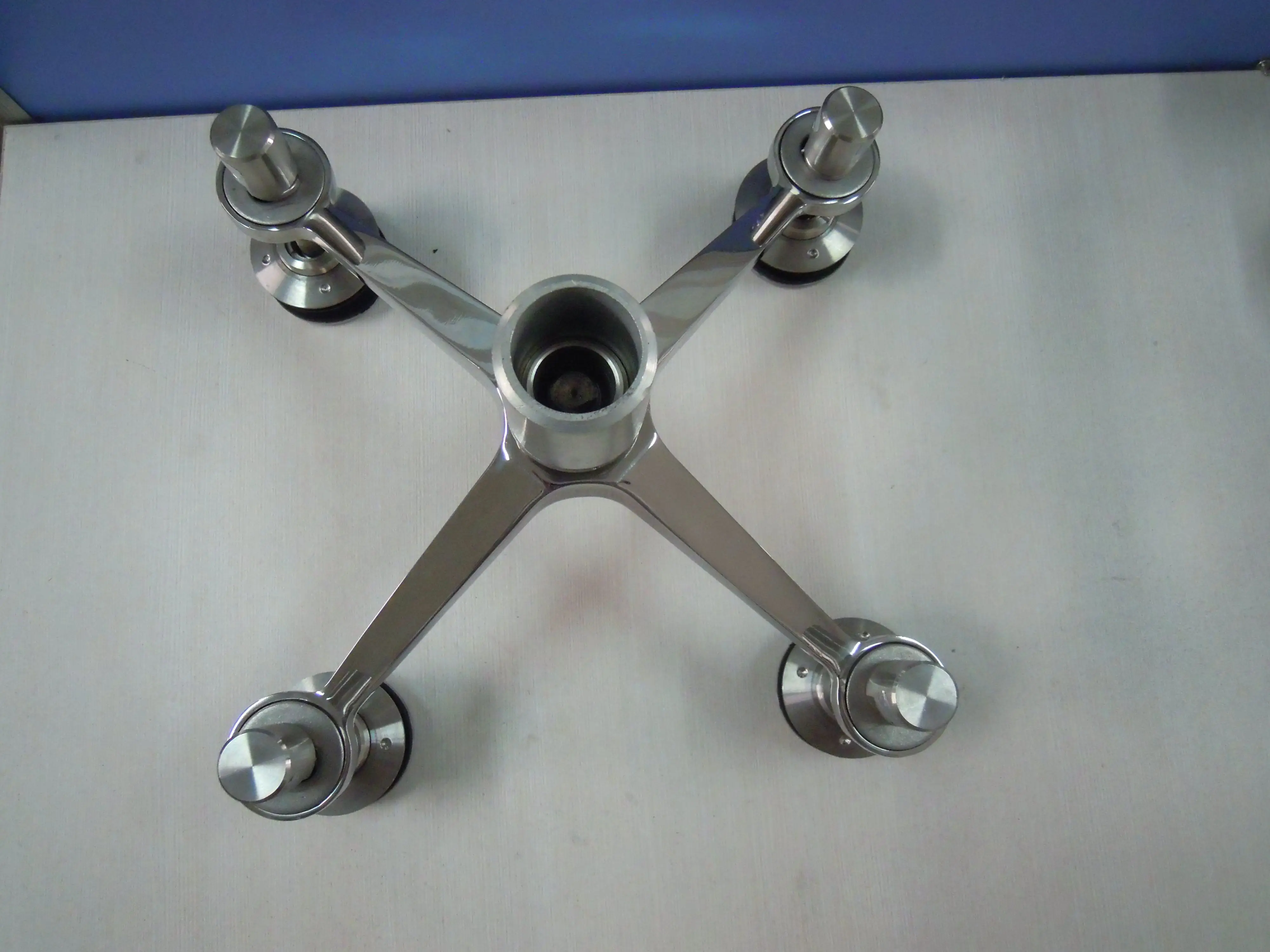

four legs
3 legs
2 legs 180°
2 legs 90°
1 leg short
.
1 leg long
Material testing
This machine will be used for testing the material composition.
All our products will be tested before we send the goods .
Production process
Wax mould making
Wax mould
sand blast
get rid of wax
Shell waiting pouring liquid steel
Burning the steel into liquid steel
Unpolished spider
.Finish the polishing
Package
