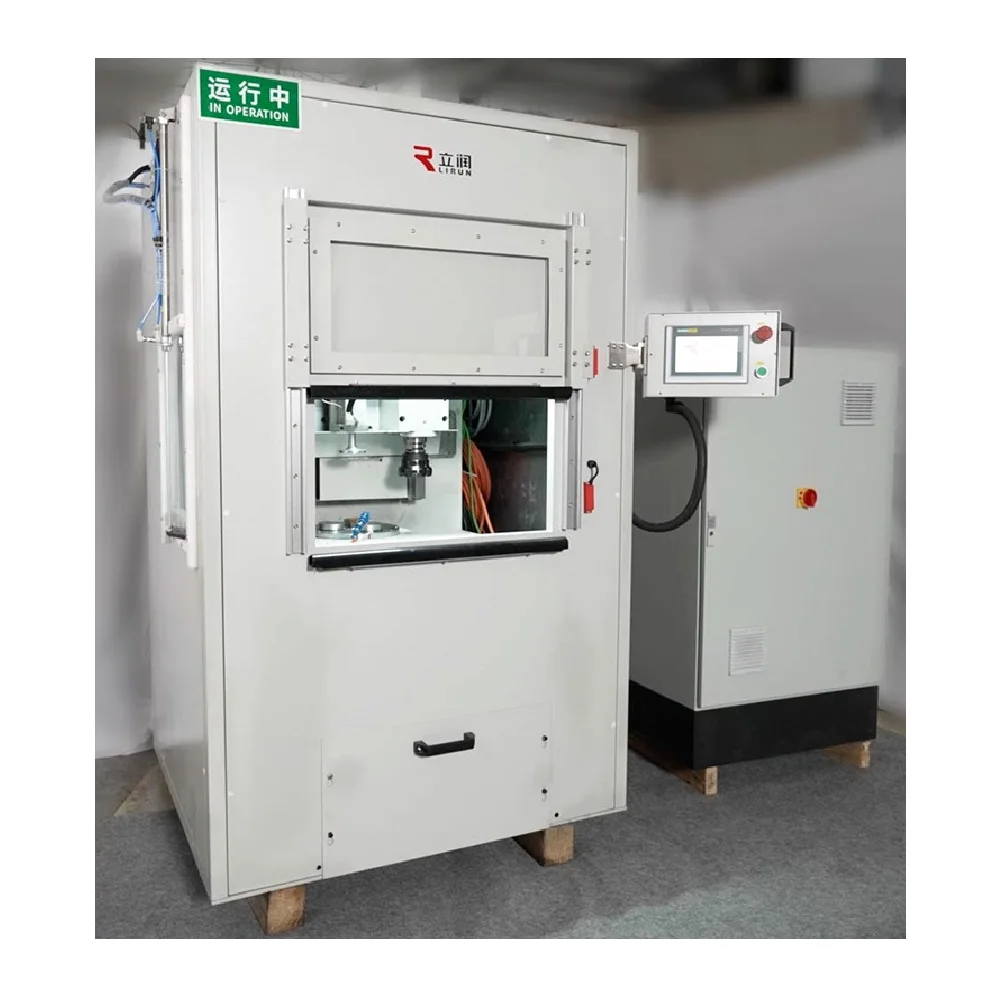

2022 долгий стабильный фрезерный станок OES Lab металлический 2 оси
- Категория: Other Measuring & Analysing Instruments >>>
- Поставщик: Shanghai,Lirun,Electromechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 67697.53 $* | 71082.5 $* |
| Aug-20-2025 | 67128.80 $* | 70484.95 $* |
| Jul-20-2025 | 56319.86 $* | 59135.47 $* |
| Jun-20-2025 | 65990.93 $* | 69290.49 $* |
| May-20-2025 | 57457.16 $* | 60330.49 $* |
| Apr-20-2025 | 64852.69 $* | 68095.31 $* |
| Mar-20-2025 | 64283.35 $* | 67497.19 $* |
| Feb-20-2025 | 63715.56 $* | 66901.6 $* |
| Jan-20-2025 | 63146.51 $* | 66303.8 $* |
Характеристики
Product Description
Overview
Essential details
Model | GPX steel-LM | Brand Name: | Lirun |
Number of Axes: | 2 | Usage: | Lab sample preparation |
No. of Spindles: | 1 | Application: | Manufacturing Plant, Lab Use, Precision |
Range of Workpiece Length(mm) | 32-48 | Machinery Test Report: | Provided |
Range of Workpiece thickness(mm) | 8-48 | Warranty: | 1 Year |
Machining Capacity: | Mediun Duty | Key Selling Points: | High-accuracy ,Long stability |
Spindle Taper: | BT40 | Core Components: | Siemens PLC control system, Siemens servo motor，Siemens frequency converter |
Max. Spindle Speed (r.p.m): | 530 r/min | After-sales Service Provided: | Field installation, commissioning and training |
Spindle motor speed(r.p.m): | 1425r/min | After Warranty Service: | Video technical support, Online support |
Spindle Motor Power(kW): | 4KW | Local Service Location: | None |
Control Voltage | DC24V | Controller: | Siemens PLC |
Range of Spindle Speed(r.p.m): | 0-530r/min | Voltage: | 380V |
Table Travel (X) (mm): | 300 | Positioning Accuracy (mm): | 0.01 |
Table Travel (Z) (mm): | 150 | Dimension(L*W*H): | 1250*1150*1950 |
Table Travel (mm): | 300 | Weight (KG): | 1800kg |
Product Details
Parameter Adjustment

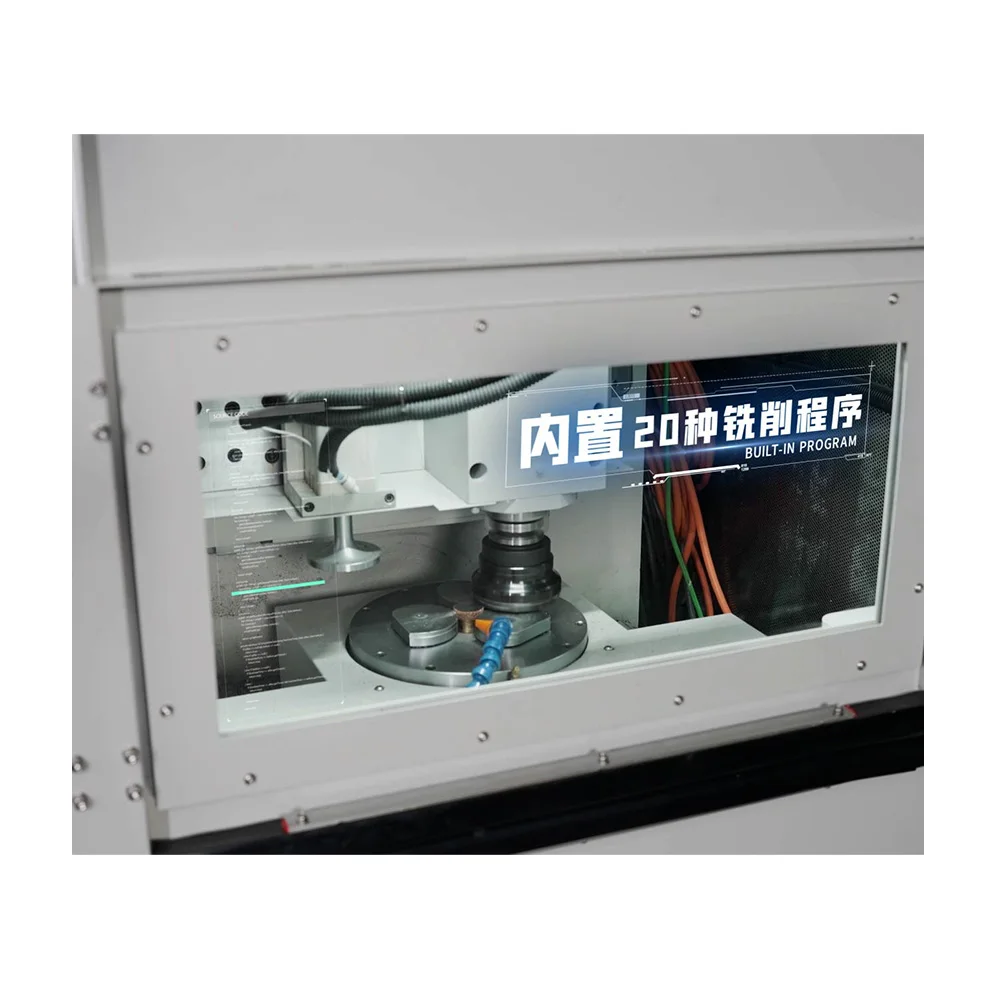

Parameters can be adjusted according to cutting requirements, and up to 20 milling programs can be set.
Both Manual And Automatic Design
Can be connected to the automation system as an option
Simple and Convenient

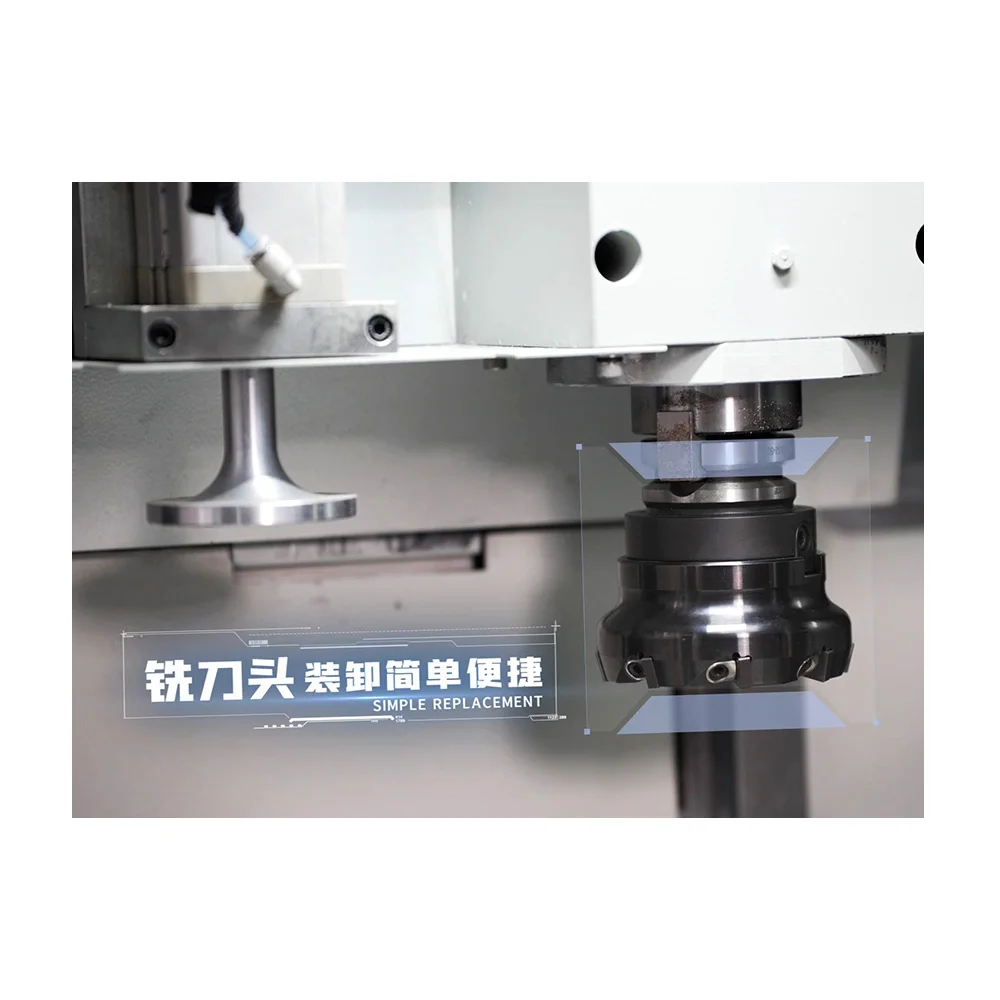

Simple and fast exchange the milling head by quick-release
Sample Shapes

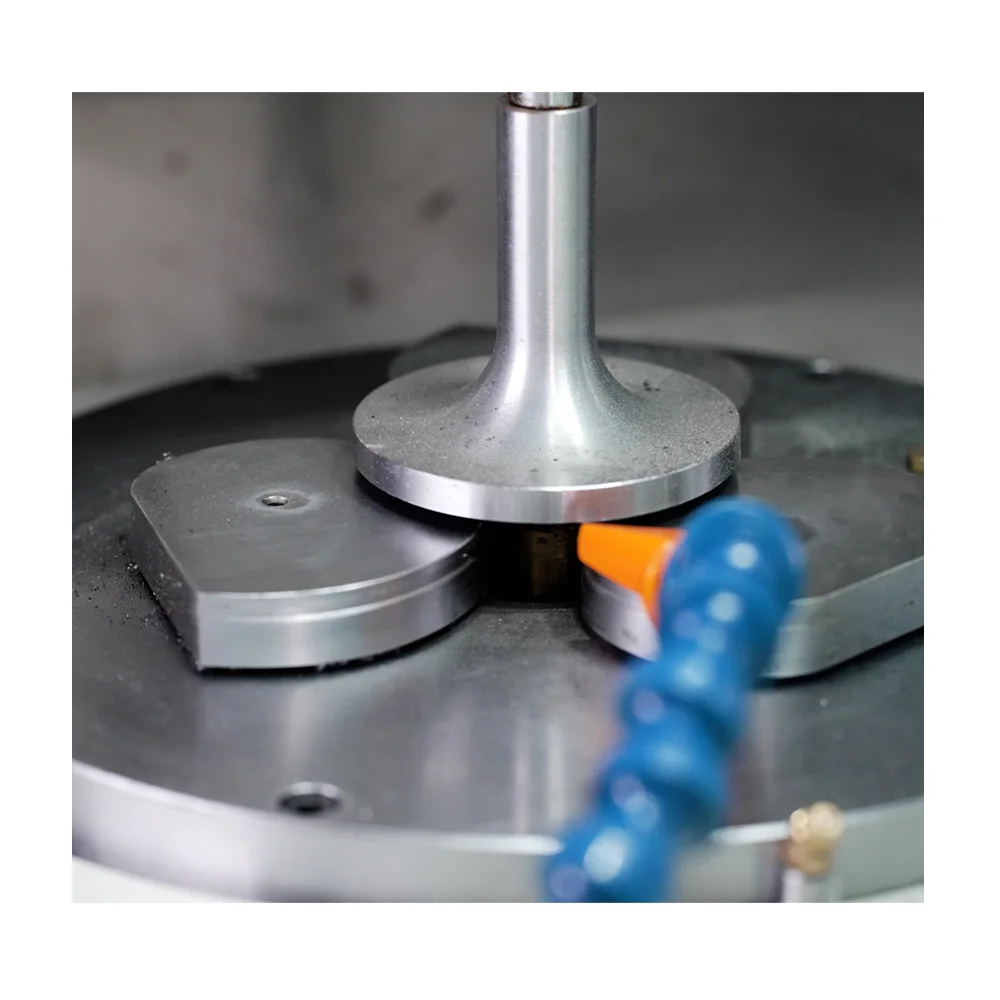

It can mill samples of various sizes and shapes
Friendly operation

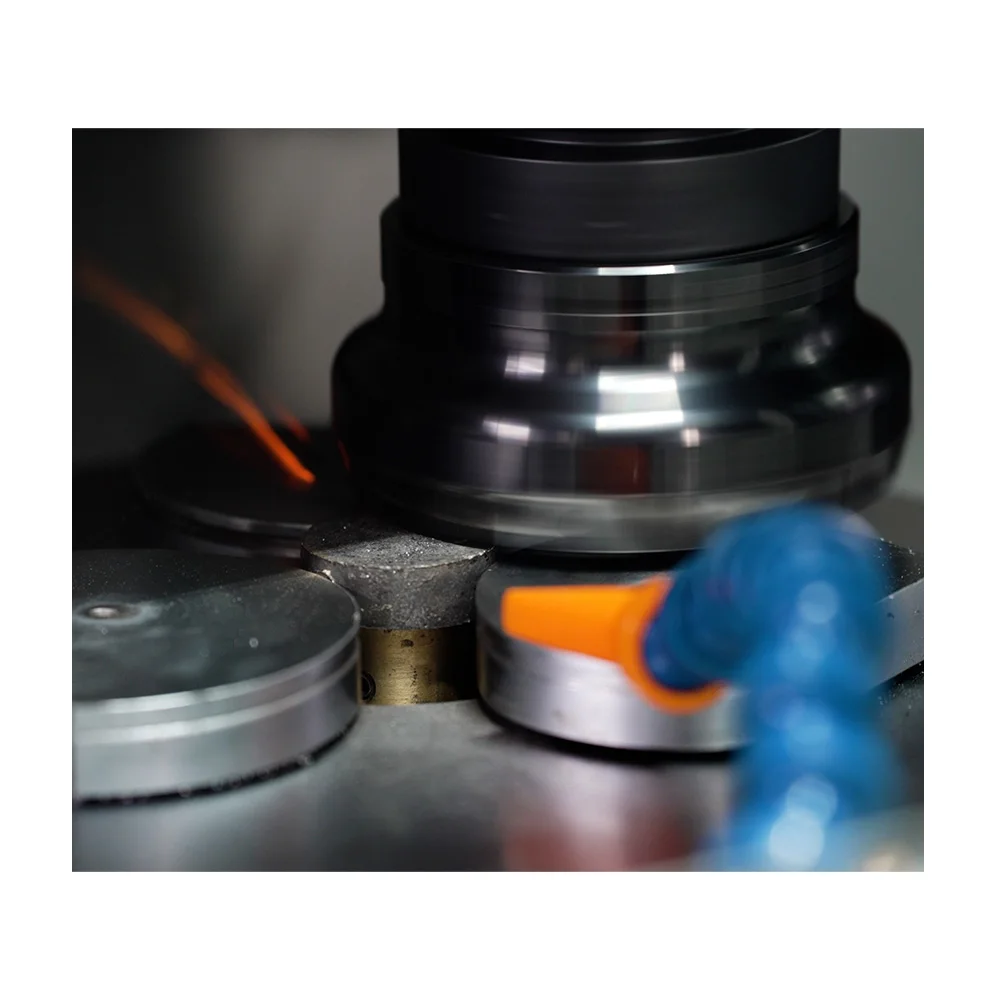

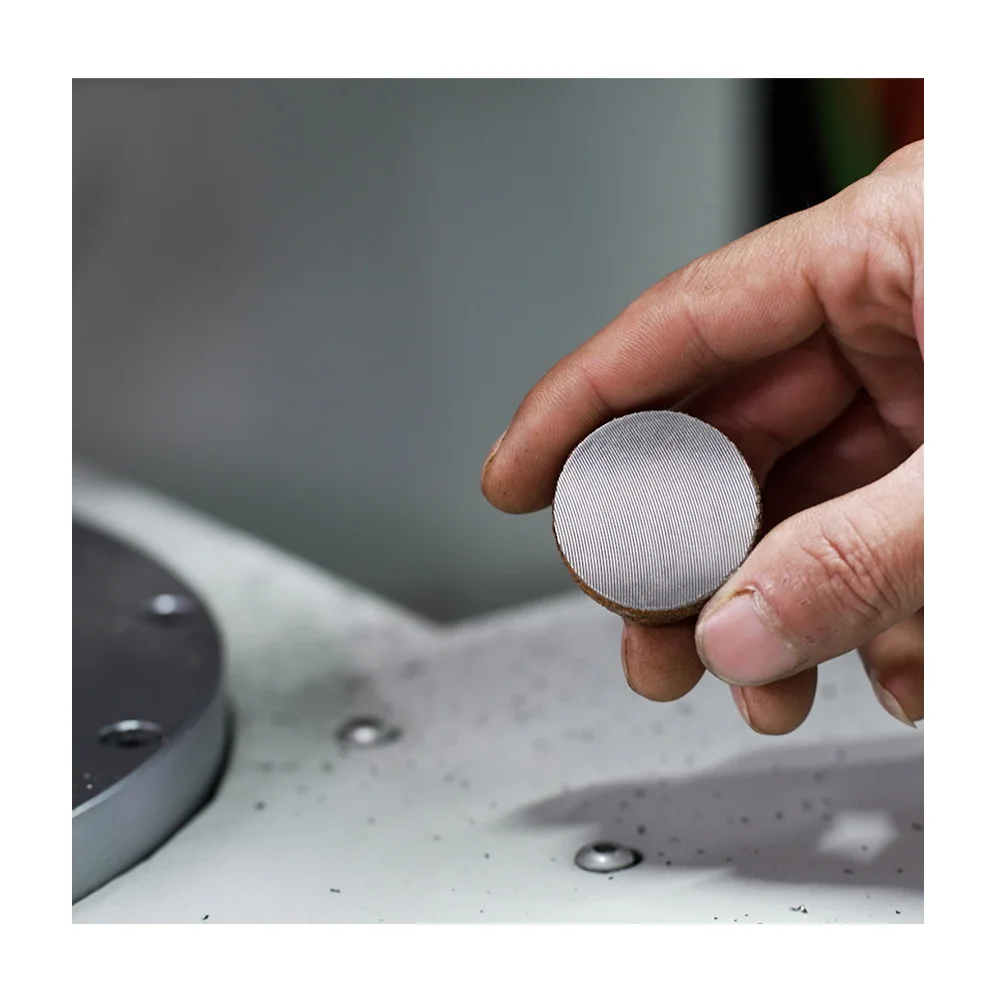

One milling step can prepare a reproducible and plain sample surface by air cooling .
Company Profile
VR
Our Advantages
1.Friendly operation:
One milling step can prepare a reproducible and plain sample surface by air cooling
2.High Cost-effective:
One milling head, price lower
3.Simple and Convenient:
Simple and fast exchange the milling head by quick-release；the corresponding cutting head can be automatically replaced according to different samples.
4.Both manual and automatic design:
Can be connected to the automation system as an option
5.Dust collector:The millings are collected in a waste box inside the machine
One milling step can prepare a reproducible and plain sample surface by air cooling
2.High Cost-effective:
One milling head, price lower
3.Simple and Convenient:
Simple and fast exchange the milling head by quick-release；the corresponding cutting head can be automatically replaced according to different samples.
4.Both manual and automatic design:
Can be connected to the automation system as an option
5.Dust collector:The millings are collected in a waste box inside the machine
The Price Remarks:
1.The above equipment prices do not include the travel, board and lodging expenses of Chinese engineers for on-site installation and commissioning, which are calculated on an actual basis.
2.The whole machine warranty is guaranteed from 12 months after installation and acceptance or 18 months after delivery, whichever comes first.
3.Free providing with training and guidance on remote video installation, commissioning and operation .
4.Payment method:T/T
2.The whole machine warranty is guaranteed from 12 months after installation and acceptance or 18 months after delivery, whichever comes first.
3.Free providing with training and guidance on remote video installation, commissioning and operation .
4.Payment method:T/T
Our Factory
Certifications
Packing & Delivery
FAQ
Q1:Are you manufacture?
A1:Yes,we are the original manufacturer of melting furnaces,which are used to prepare the laboratory sample . With our melting furnaces, people can prepare high-precision uniform samples for X-ray fluorescence spectrometry and Spark atomic emission spectrometry to ensure the analysis accuracy.
Q2:How long does your machine warranty last?
A2:One year warranty.
Q3:How is your machine quality?
A3:The main components of our machines are using domestic and world first-class brands. The quality is reliable and stable.
Q4:Where are your factory located?
A4:We are located in Shanghai China.
A5: Usually customers can use for more than 6 years without any problems if it's under normal condition using and maintenance. If you have any troubles, you may provide us a video to describe what the problem is so that our engineer can judge and give you a solusion.Within the warranty period, we'll send you the parts free of charge for replacement. After the warranty ,we'll provide you the parts at a reasonable costs. Everlasting technical support is offered freely.
